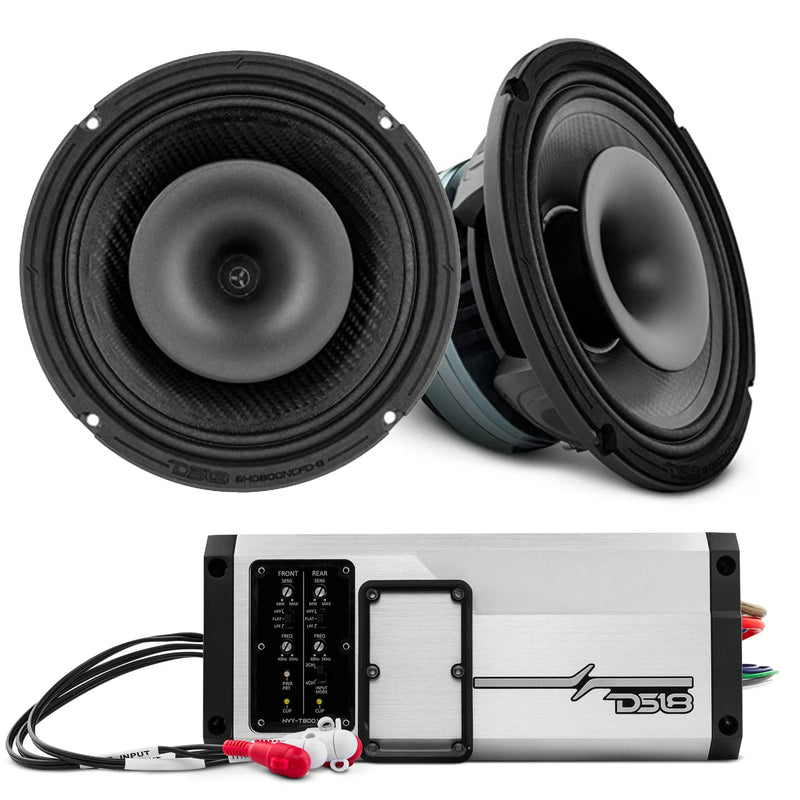

DS18 2x 8HD 8 Ohm Waterproof 8" Hybrid Speakers with Marine 4 Channel Amp

• WEATHERPROOF - Water resistant carbon fiber cone to help battle elements and moisture making them great for motorcycles, boats, and regular vehicles too

DS18 2x 8HD Carbon Fiber Waterproof 8" Hybrid Speakers with Marine 4 Channel Amp

This Product Includes:

• (1) (1) DS18 NVY-T800.4D Marine 4 Channel Amplifier


• (2) DS18 8HD800NCFD-4 Waterproof 8" Mid Bass Speaker 4ohm with 3'' Driver 8ohm

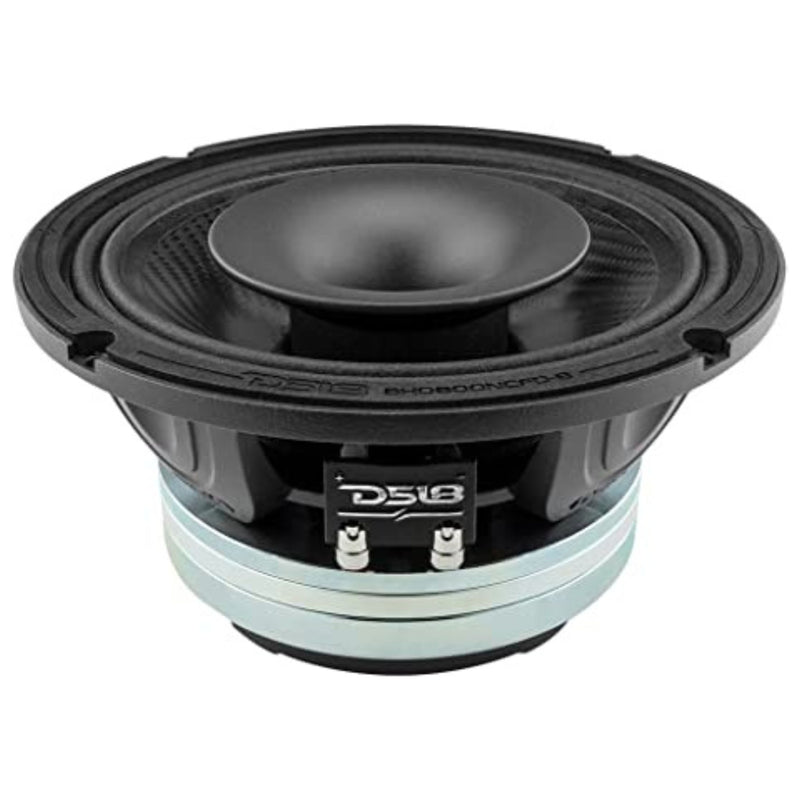

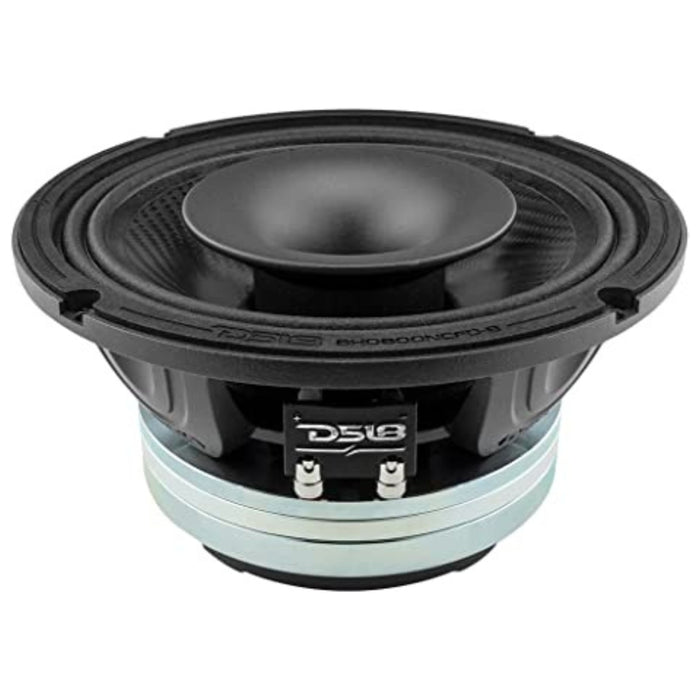

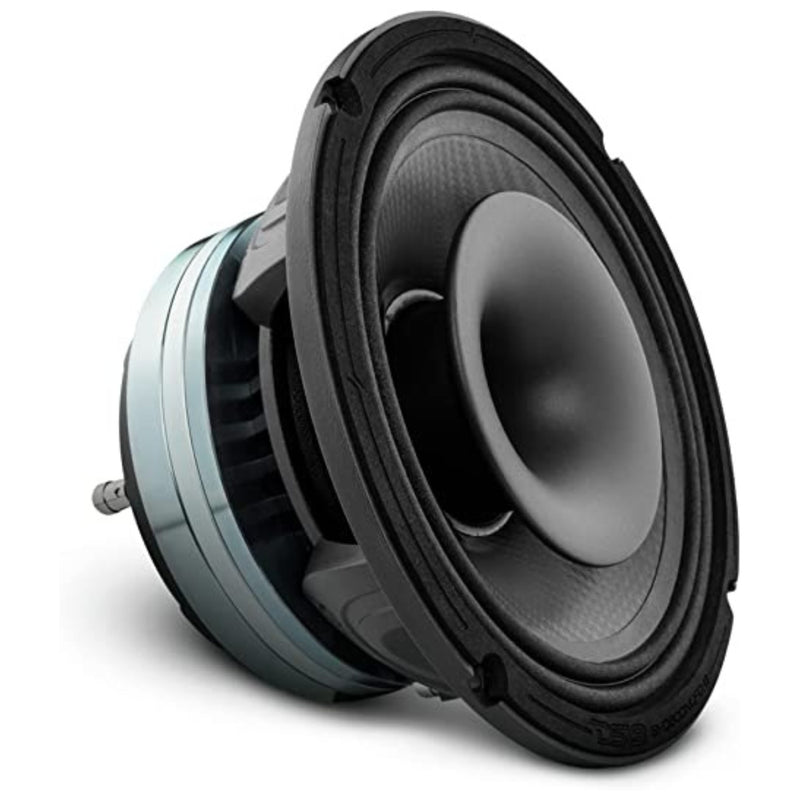

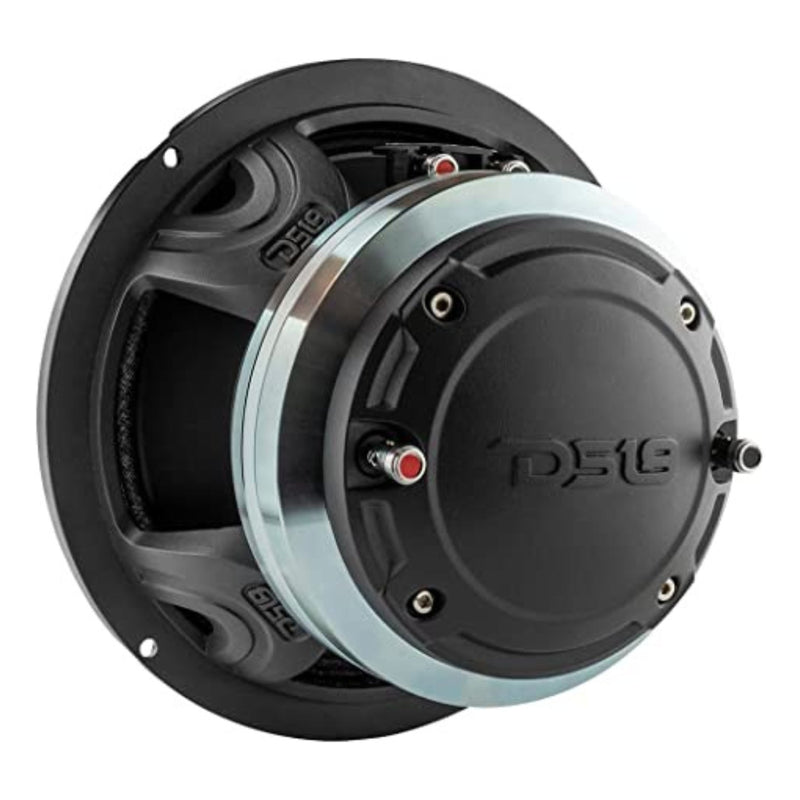

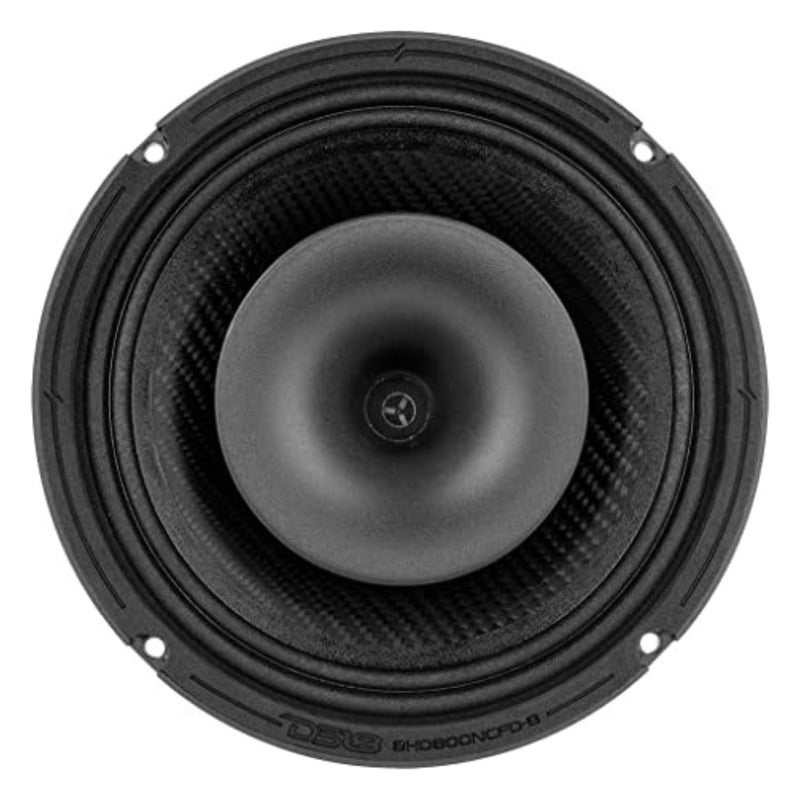

DS18 8HD800NCFD-4 Speaker Specifications:

Features:

• Hybrid design combines high wattage midrange and driver together in one beautiful frame.


• High volume 8" midrange and 3" driver rated at 400w RMS and 800 Max for crazy loud volume in a full range of frequencies.


• Midrange speaker is 4 ohms and driver is 8 ohms


• 4 terminals, two for the mid and two for the driver for multiple high power wiring options


• Water resistant carbon fiber cone to help battle elements and moisture making them great for motorcycles, boats, and regular vehicles too


• High quality design including Diecast aluminum painted black basket with DS18 molded into the frame and high quality push terminals

Specifications:

• Nominal Diameter : 8" / 203mm


• Nominal Impedance (Woofer / Driver): 4 Ohms / 8 Ohms


• RMS Power Handling (Combined): 400W


• MAX Power Handling (Combined): 800W


• Sensitivity (1w/1m) (Combined): 105dB


• Frequency Response (Combined): 40Hz-20KHz


• Number of Ways: 2 ways


• Sold in Pair or Single: Single


• Grill Included: No

WOOFER SPECIFICATIONS

• RMS Power Handling : 250W


• MAX Power Handling : 500W


• Sensitivity (1w/1m) : 96.5dB


• Frequency Response: 40Hz-10KHz


• Recommended Band-Pass Crossover: 80Hz-900Hz


• Voice Coil Diameter: 2.6" / 66mm


• Voice Coil Former Material : KAPTON


• Winding Material: CCAW


• Cone Material: Water Resistant Carbon Fiber


• Surround Material: Treated Cloth


• Basket Material: Die Cast Aluminum


• Basket Color/Finish: Black Sandblasted


• Magnet Material: Neodymium


• Magnet Size: 145x8mm

DRIVER SPECIFICATIONS

• AES Power handling: 150W


• Program Power Handling: 300W


• Sensitivity (1w/1m): 100.5dB


• Frequency Response: 315Hz-20KHz


• Recommended Hi Pass Crossover: 900Hz


• Voice Coil Diameter: 3" / 76.2mm


• Voice Coil Former Material: KAPTON


• Winding Material: CCA


• Diaphragm Material: Titanium with Polymer Edge


• Magnet Material: Neodymium


• Horn Diameter: 4.13" / 105mm

SPEAKER MEASUREMENT

• Overall Diameter: 8.24" / 209.5mm


• Overall Depth: 5" / 127.8mm


• Front Mount Baffle Cutout: 7.2" / 183mm


• Mounting Depth: 4.63" / 117.8mm


• Motor Diameter: 5.7" / 145mm

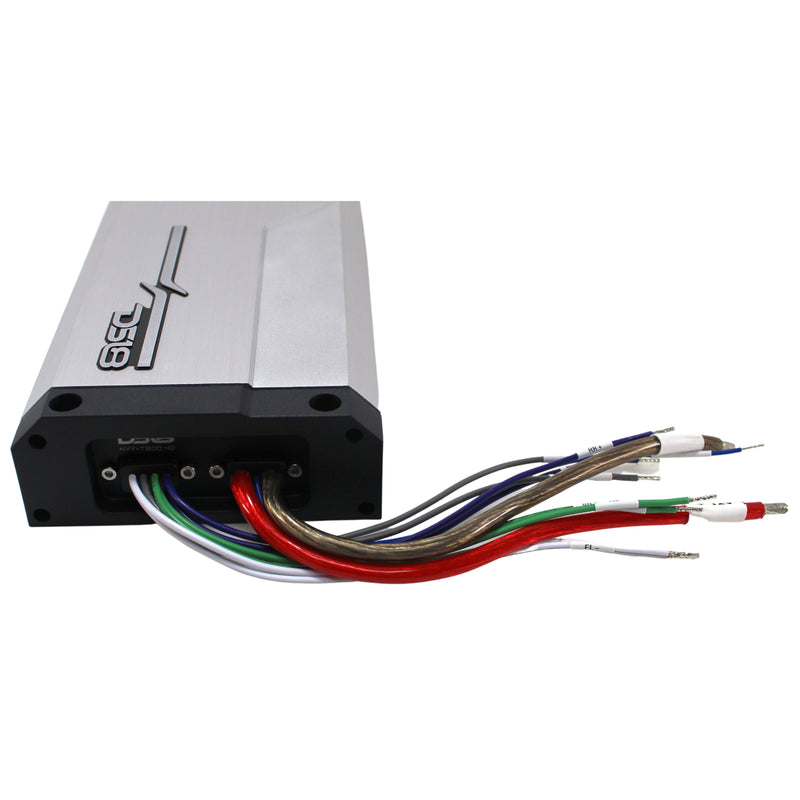

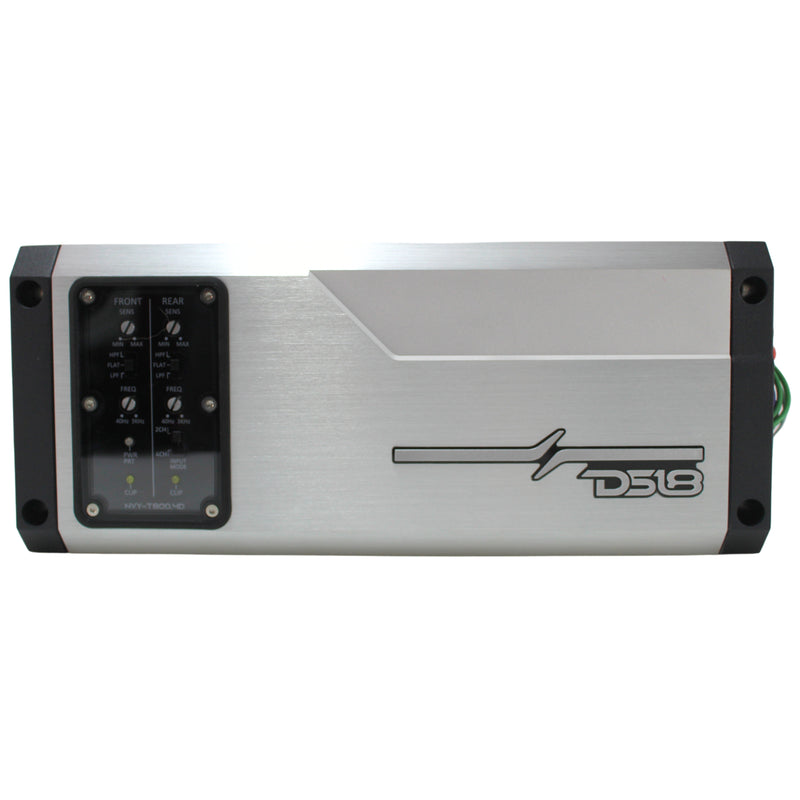

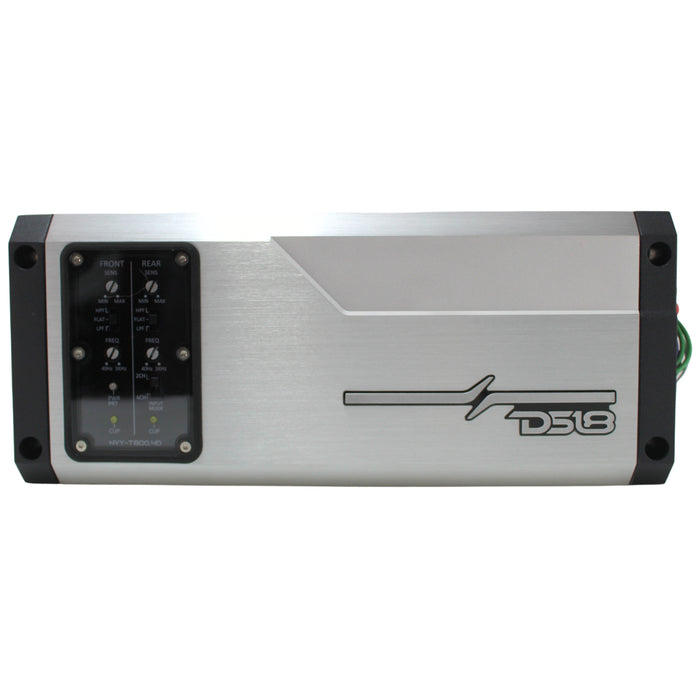

DS18 NVY HYDRO SERIES 4 CHANNEL AMPLIFIER SPECIFICATIONS:

POWER:

• Total Watts (Peak): 2400W


• RMS Power @ 4 Ohm: 4 x 200W


• RMS Power @ 2 Ohm: 4 x 300W


• RMS Power @ 4 Ohm Bridge: 2 x 600W

AUDIO:

• Frequency Response: 20Hz - 20KHz


• Signal to Noise Ratio: 1W @ 4 Ohms >80dB


• Channel Separation: >55dB


• Total Harmonic Distortion (THD): >0.05%

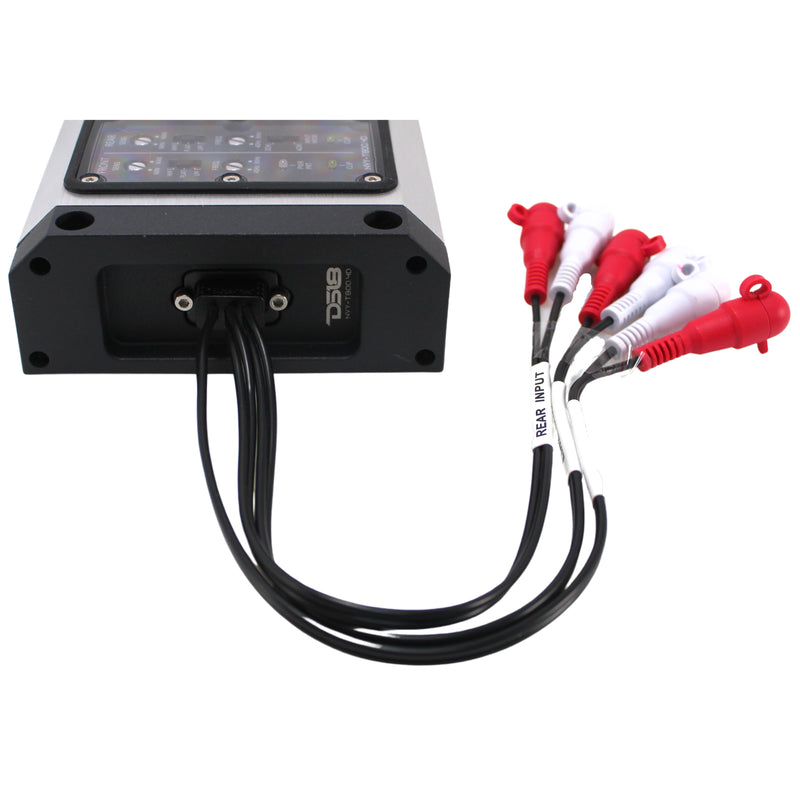

• Low Level Input Range: 200mV - 5V

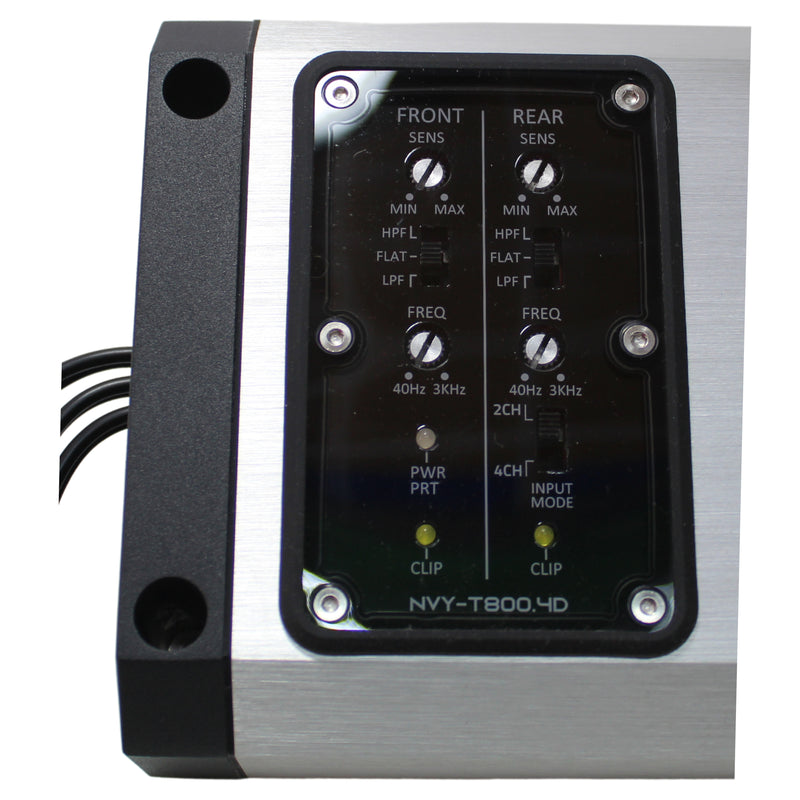

• Selectable X-Over: HPF/LPF/FLAT


• X-Over Filter Range: 40Hz - 3KHz

FEATURES:

• Amplifier Class: Digital


• Amplifier Type: Stereo Full Range


• Number of Channels: 4


• Minimum Impedance: 2 Ohms (Stereo) / 4 Ohms (Bridged)


• LED Indicator: Power | Protection | Clip


• Power Input Terminal Size: 8GA Tinned OFC


• Recommended Fuse Size: 80A


• Thermal Protection: Yes (76.4 C)


• Overload Protection


• Short Circuit Output Protection


• Voltage Input Protection


• Clipping Protection


• Finish: Brushed Aluminum
