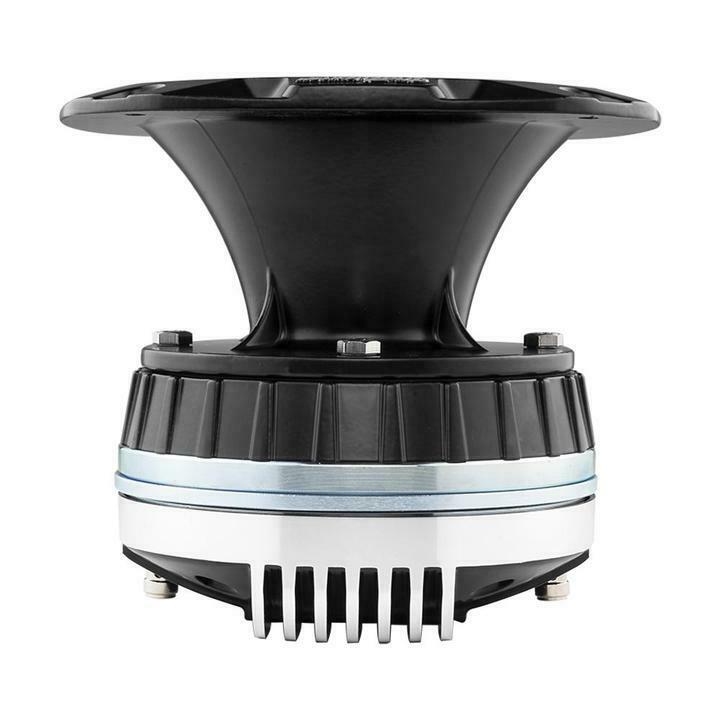

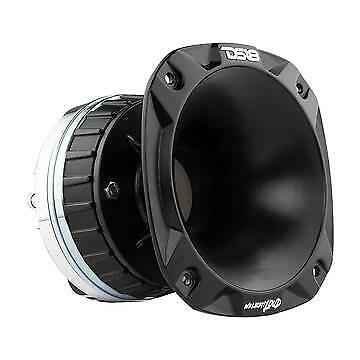

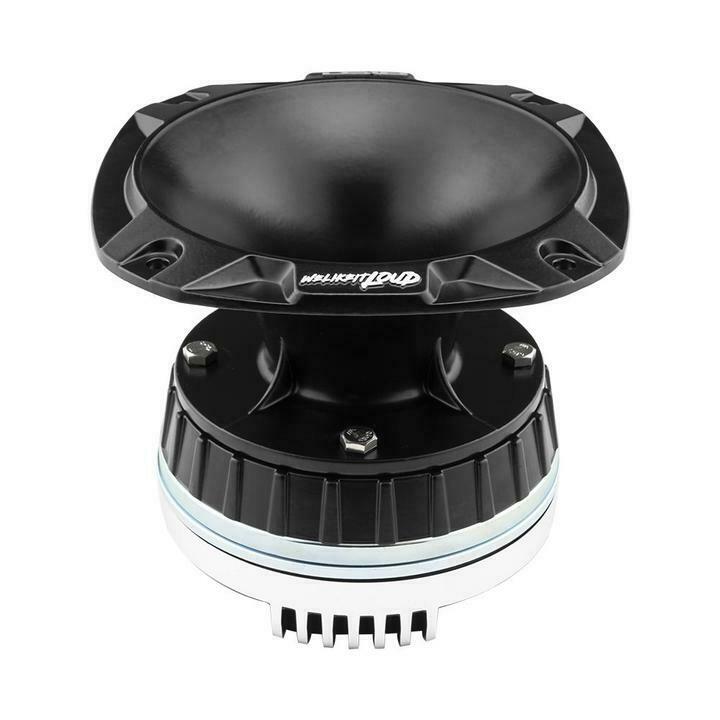

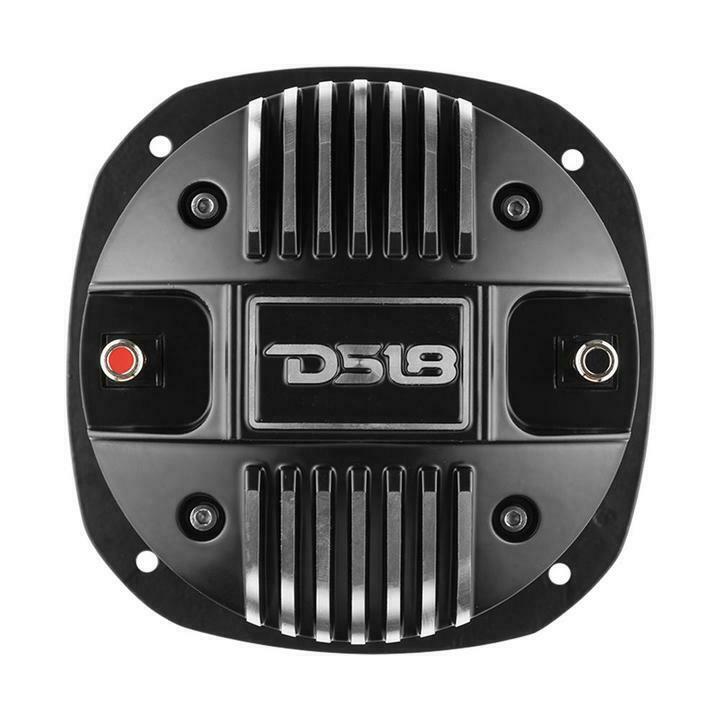

DS18 2" 8 Ohm 680 Watt Titanium Compression Driver and Aluminum Horn Kit



Shipping calculated at checkout

Available Now!

DS18 2" 8 Ohm 680 Watt Titanium Compression Driver and Aluminum Horn Kit

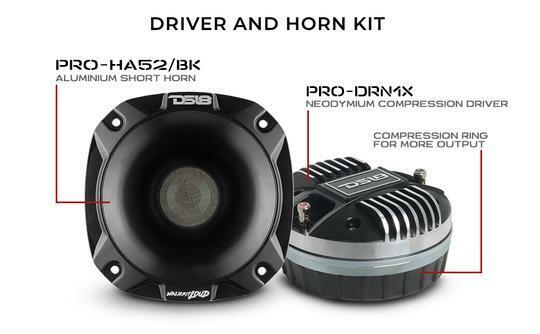

The DKN1S includes the DS18 DKN1 neodymium driver plus the newly redesigned shorty throat so you only need 5.2 inches mounting depth to mount these ear ripping drivers. The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency and the included spacer amplifies the DB sensitivity. With an AES power handling of 170w and peak at 680w you will be sure to draw everyone's attention to your audio!

This Listing Includes:
(1) Neodymium Titanium Compression Driver and Aluminum Horn Kit

-DS18 Driver spacer increases the sensitivity decibel level significantly for the loudest response.
-Aluminum "Shorty" throat with brushed DS18 logos for an amazing look and great fitment.
-DKN1 Driver with an AES rating of 170 watts and peak of 680w for super loud and vibrant highs with a Neodymium 8 ohm voice coil.
-5.2 inch mounting depth and 5.5 inches total mounting depth so you don't need a large amount of mounting depth.

Throat Diameter: 2"/50.8mm
Installation Type: Bolt-on
Nominal Impedance: 8 OHMS
Peak Power Handling: 680W
Program Power Handling:`340W
AES Power Handling:170W
Sensitivity (1w/1m):118 dB
Frequency Response:630Hz-18KHz
Recommended HI Pass Crossover:900 Hz

Motor Specifications:
Voice Coil Diameter:2.03"/51mm
Voice Coil Former Material: Kapton
Winding Material: CCA
Diaphragm Material: Titanium
Magnet Material: Neodymium
Magnet size: 4 mm Thick x 134 mm Diameter

Overall Diameter :7"/180 mm
Overall Depth: 5.5"/141.8 mm
Bolt Pattern/Type: 5.5mm hole - 6.3"/161 mm Diameter
Mounting Depth: 5.2"/132.8mm
Mounting Hole Diameter: 5.7"/145mm
