DS18 2" 8 Ohm 680 W Neodymium Phenolic Compression Driver and Aluminum Horn Kit

SKU DS-PRO-DKN1XSPH
by DS18
Save 28% Save 28%
Original price $162.44
Original price $162.44 - Original price $162.44
Original price $162.44
Current price $116.96
$116.96 - $116.96
Current price $116.96
Snap Logo Lease for as low as $/week Learn More

Free Gifts when added to Cart

The more you spend, the greater selection of free gifts you'll have at your fingertips when selecting items in your shopping cart!

Spend More, Save More

Big Jeff loves his customers!!!
  • Spend $250, Save 3%
  • Spend $500, Save 5%
  • Spend $1000, Save 10%
  • Spend $1500, Save 11%
  • Spend $2500, Save 12%
  • Spend $5000, Save 15%

*Does not apply to: Sundown, XS power & Kicker products*

*Does not stack with other promotional sales*

This is a Sample Product Title
Was $200.00 Now $100.00

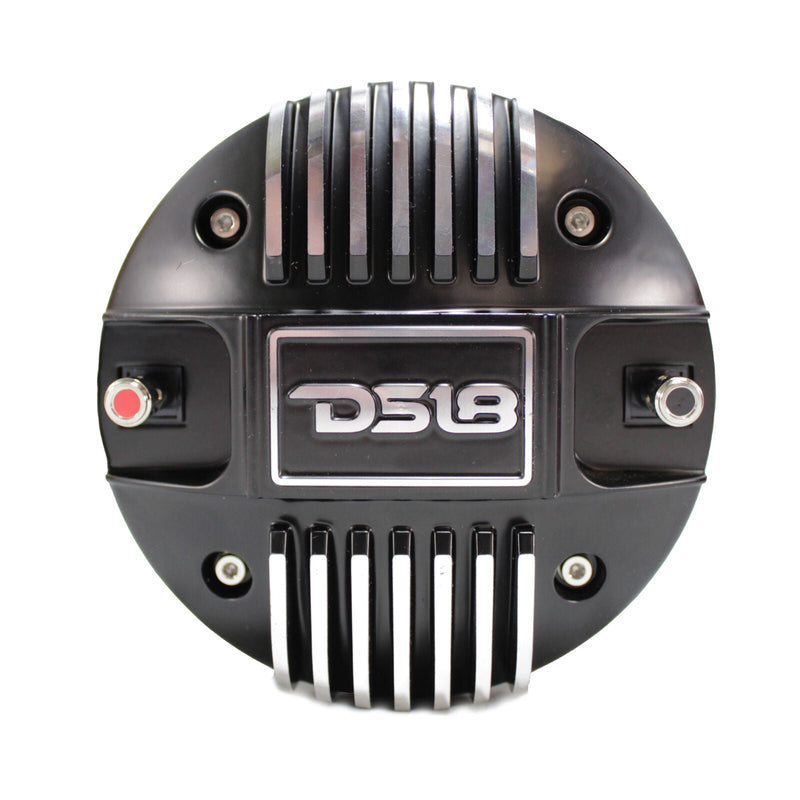

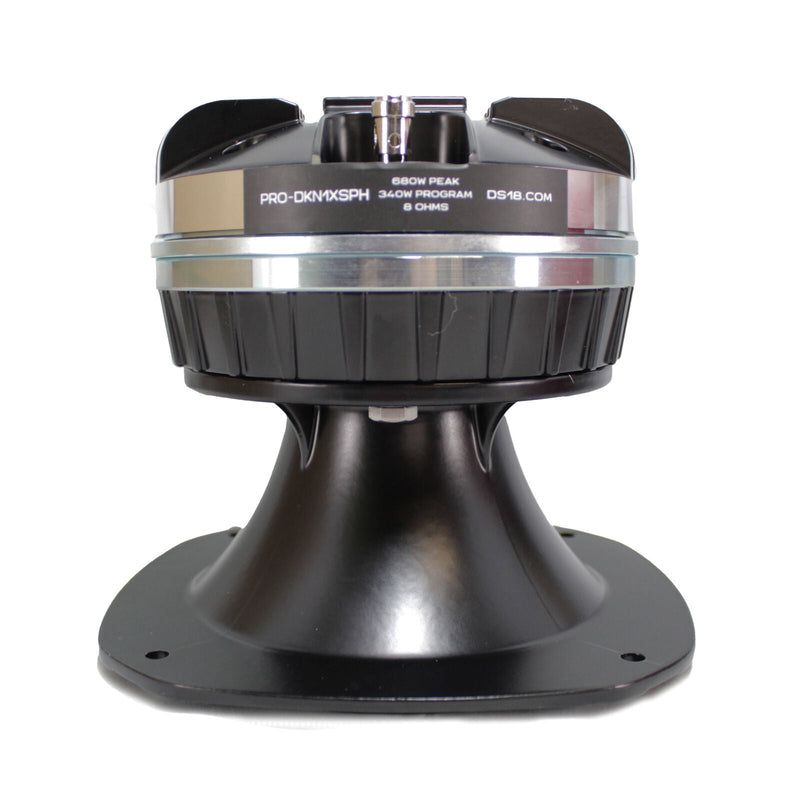

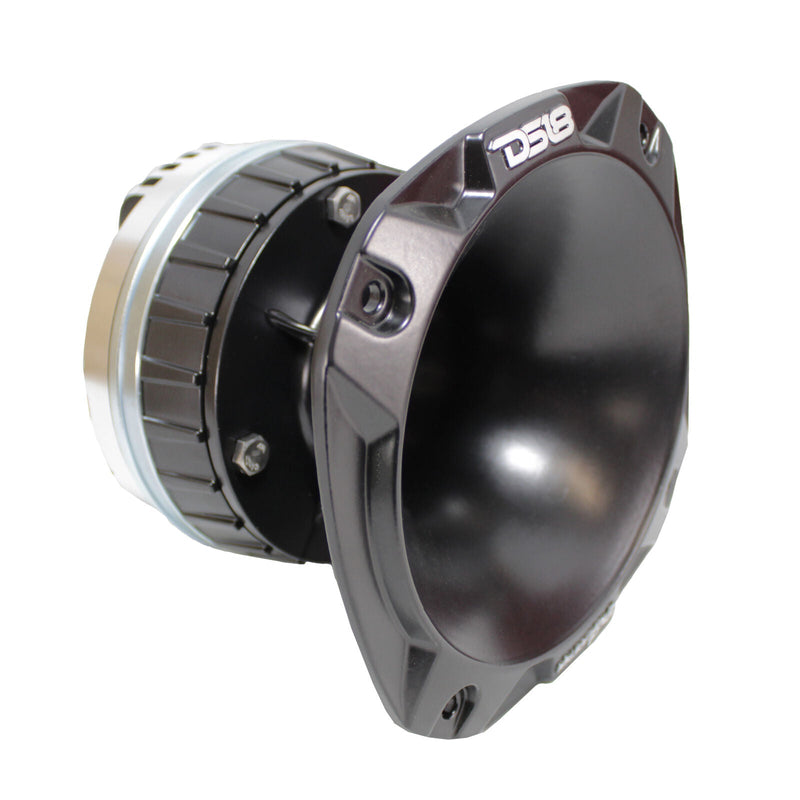

DS18 2" 8 Ohm 680 W Neodymium Phenolic Compression Driver and Aluminum Horn Kit

The DKN1XSPH includes the PRO-DRN1XPH neodymium driver plus the PRO-HA52/BK short aluminum horn so you only need 5.2 inches of mounting depth to mount these ear ripping drivers. The new throat is 2" in diameter with brilliantly brushed DS18 logos and is made for maximum directional efficiency and the included spacer amplifies the DB sensitivity. With an AES power handling of 170w and peak at 680w you will be sure to draw everyone's attention to your audio!

This Listing Includes:
(1) Neodymium Phenolic Compression Driver and Aluminum Horn Kit

Features:
-DS18 Driver spacer increases the sensitivity decibel level significantly for the loudest response.

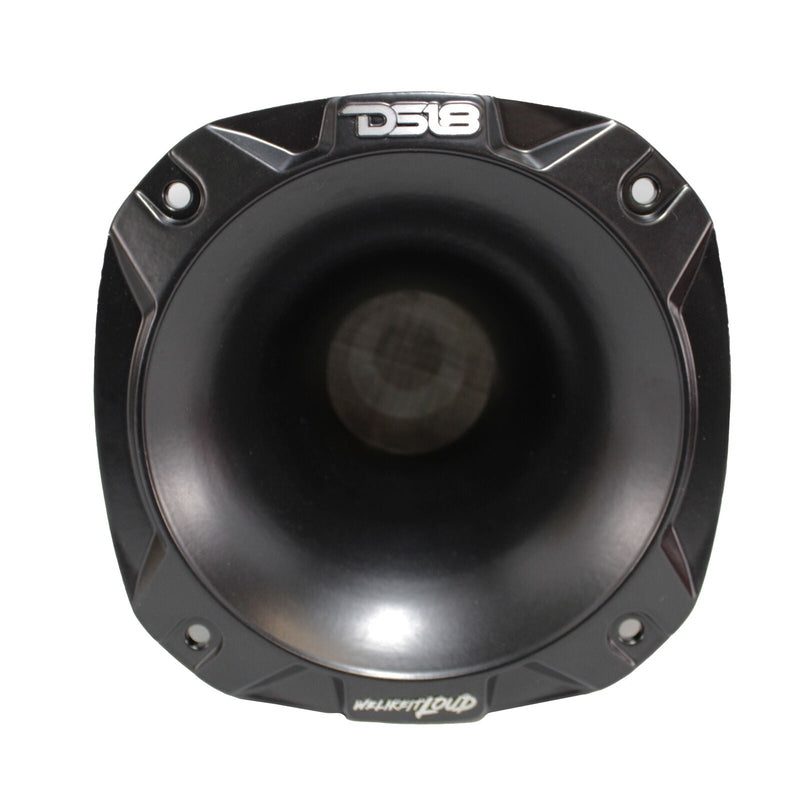

-Aluminum "Shorty" throat with brushed DS18 logos for an amazing look and great fitment.
-DRN1XPH Driver with an AES rating of 170 watts and peak of 680w for super loud and vibrant highs with a Neodymium 8 ohm voice coil.
-5.2 inch mounting depth and 5.5 inches total mounting depth so you don't need a large amount of mounting depth.

Specifications:
Throat Diameter: 2"/50.8mm
Installation Type: Bolt-on
Nominal Impedance: 8 OHMS
Peak Power Handling: 680W
Program Power Handling:`340W
AES Power Handling:170W
Sensitivity (1w/1m):117 dB
Frequency Response:630Hz-16KHz
Recommended HI Pass Crossover:900 Hz

Motor Specifications:
Voice Coil Diameter:2.03"/51mm
Voice Coil Former Material: Kapton
Winding Material: CCA
Diaphragm Material: Phenolic
Magnet Material: Neodymium
Magnet size: 5.27" x 0.15"/133.8 x 3.81mm

Dimensions:
Overall Diameter :7"/180 mm
Overall Depth: 5"/141.8 mm
Bolt Size: 0.21"/5.5mm
Mounting Depth: 5.22"/132.8mm
Mounting Hole Diameter: 6.3"/161mm
Motor Diameter: 5.27"/134 mm
