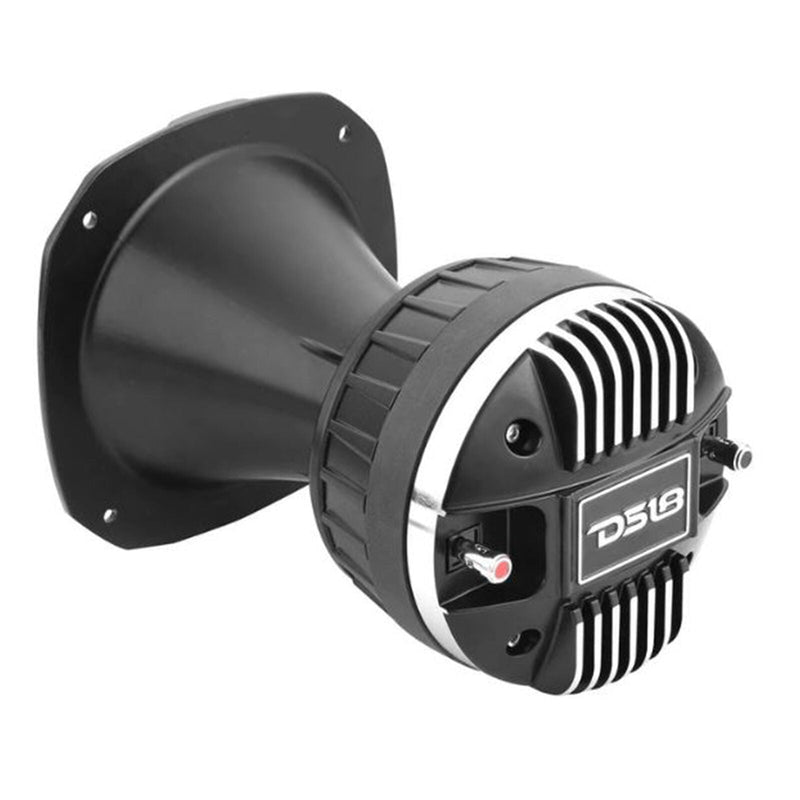

DS18 Bolt On 2" Titanium Compression Driver & Aluminum Horn Kit 640W 8 Ohm DKH1X
Everyone is looking for louder horns and what they can do to tweak them. We make that easy for you with no guesswork with the DKH1X. This full size driver includes the DS18 DKH1 redesigned to be louder with the included DB spacer to increase the drivers overall sensitivity. Plus our newly redesigned shorty throat so you you only need 7.9 inches depth to mount these ear ripping drivers. The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency. With an AES power handling of 160W and peak at 640W you will be sure to draw everyone's attention to your audio!
This Listing Includes:
(1) DS18 Titanium 2 Compression Driver & Aluminum Horn Kit DKH1X
Features:
- DS18 Driver spacer increases the sensitivity decibel level significantly for the loudest response.
- Aluminum full size throat with 115dB sensitivity spacer DKH1 Driver with an AES rating of 160 Watts and peak of 640 Watts for super loud and vibrant highs with a Titanium 8 Ohm voice coil.
- 5.7 inch mounting depth and 6 inches overall depth so you don't need a large amount of mounting depth like other traditional driver and throat combinations..
Specifications:
Throat Diameter: 2" (50.8mm)
Installation Type: Bolt-on
Nominal Impedance: 8 Ohms
Program Power Handling: 320 Watts
Peak Power Handling: 640 Watts
AES Power Handling: 160 Watts
Sensitivity: 115dB
Frequency Response: 630Hz ~ 20KHz
Recommended HI Pass Crossover: 900 Hz
Voice Coil Diameter: 2.03" (51mm)
Voice Coil Former: Material Kapton
Winding Material: CCA
Diaphragm Material: Titanium
Magnet Material: Ferrite
Magnet Weight: 35 oz
Dimensions:
Overall Diameter: 7" (180mm)
Overall Depth: 8.3" (211mm)
Bolt Pattern/Type: 5.5mm hole / 6.3" (161mm) Diameter
Mounting Depth: 7.9" (201.5mm)
Mounting Hole Diameter: 5.7" (145mm)
