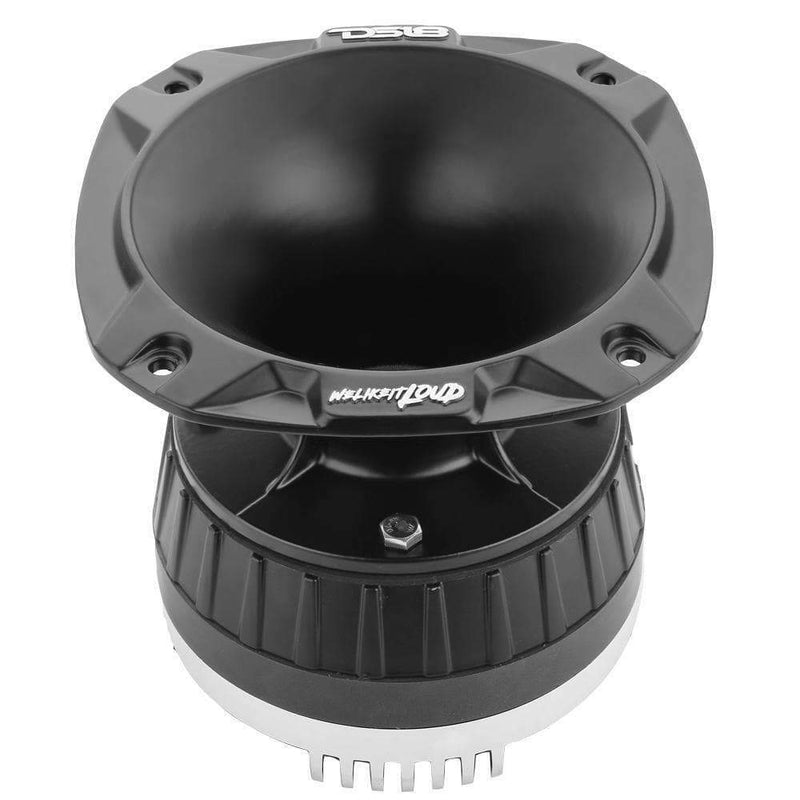

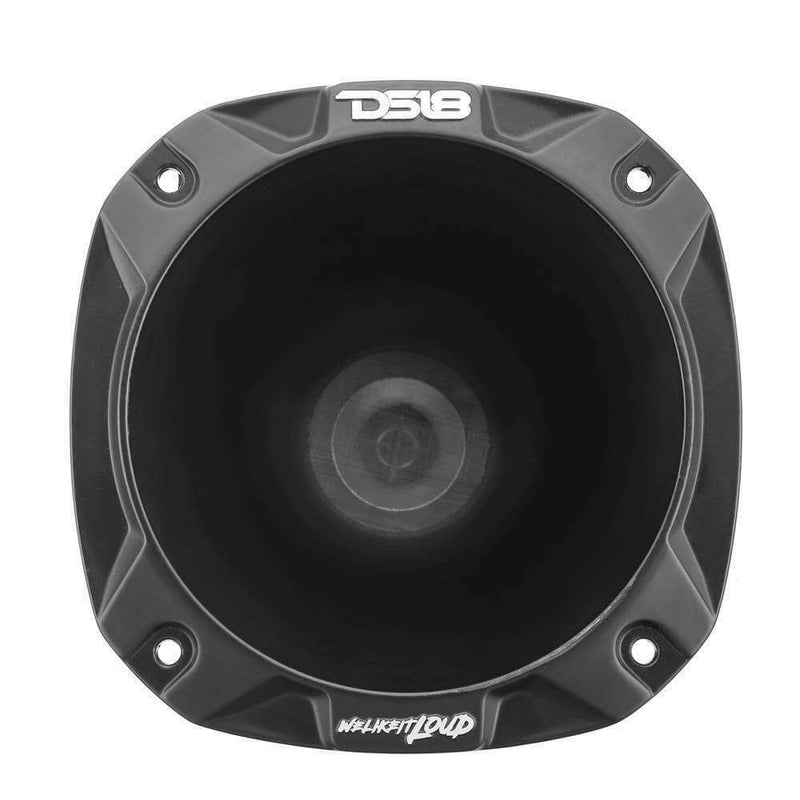

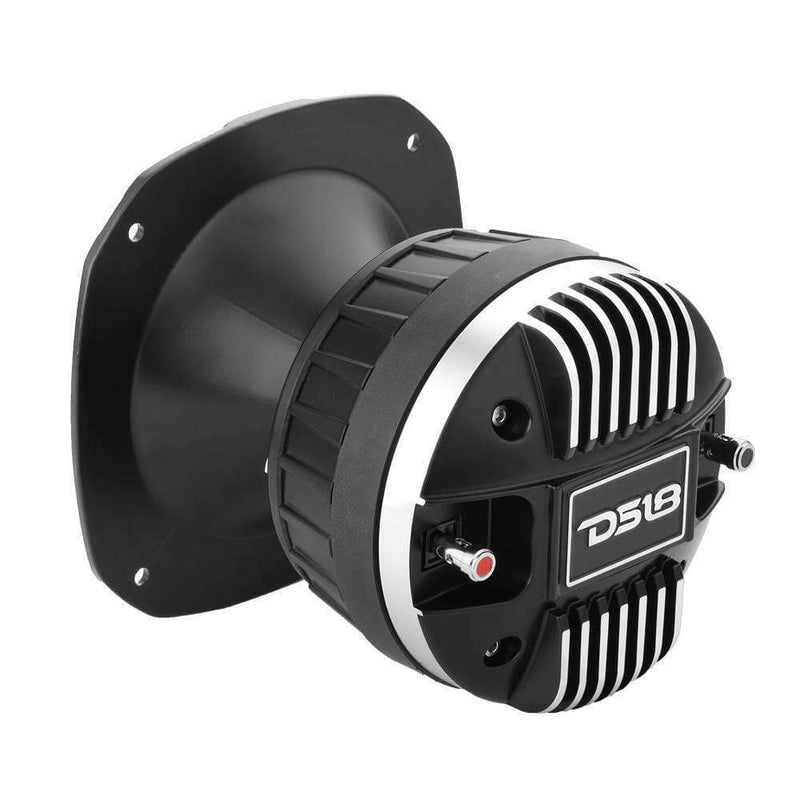

DS18 2" 320W 8 Ohm Titanium Compression Driver & Aluminum Short Horn Kit DKH1XS

• High-efficiency titanium compression driver delivers extremely loud, crystal-clear highs with a massive 115dB sensitivity, perfect for pro audio and car audio builds that demand attention
• Includes aluminum short horn throat design that improves directional sound control while reducing mounting depth, making installation easier in tight spaces
• Handles serious power with 160W AES, 320W program, and 640W peak, giving you aggressive output without sacrificing clarity or performance
• Built with a durable titanium diaphragm and Kapton voice coil former, ensuring long-lasting reliability under high heat and high-output conditions
• 2-inch throat, 8-ohm impedance, and wide frequency response from 630Hz to 20KHz make it ideal for pairing with midrange speakers in custom high-performance audio systems

DS18 2" 320W RMS 8 Ohm Titanium Compression Driver & Aluminum Short Horn Kit DKH1XS

This Listing Includes:

• (1) Driver/Horn

The DKH1S includes the DS18 DKH1 driver plus our newly redesigned shorty throat so you only need 4.9 inches mounting depth to mount these ear ripping drivers. The new throat is aluminum with brilliantly brushed DS18 logos and made for maximum directional efficiency. With an AES power handling of 160w and peak at 640w you will be sure to draw everyone's attention to your audio!

Features;

- DS18 Driver spacer increases the sensitivity decibel level significantly for the loudest response.

- Aluminum "Shorty" throat with brushed DS18 logos for an amazing look and great fitment.

- DKH1 Driver with an AMS rating of 160 watts and peak of 640w for super loud and vibrant highs with a Titanium 8 ohm voice coil.

- 5.7 inch mounting depth and 6 inches total mounting depth so you don't need a large amount of mounting depth like other traditional

driver and throat combinations.

Specifications:

• Throat Diameter: 2"/50.8mm


• Installation Type: Bolt-on


• Nominal Impedance: 8 OHMS


• Program Power Handling: 320W


• Peak Power Handling: 640W


• AES Power Handling: 160W


• Sensitivity: 115dB


• Frequency Response: 630Hz-20KHz


• Recommended HI Pass Crossover: 900 Hz


• Voice Coil Diameter: 2.03"/51mm


• Voice Coil Former Material: Kapton


• Winding Material: CCA


• Diaphragm Material: Titanium


• Magnet Material: Ferrite


• Magnet Weight: 35oz

Dimensions:

• Overall Diameter: 7"/180mm


• Overall Depth: 6"/154.7mm


• Bolt Pattern/Type: 5.5mm hole-6.3"/161 mm Diameter


• Mounting Depth: 5.7"/145.8mm


• Mounting Hole Diameter:5.7"/145mmm
