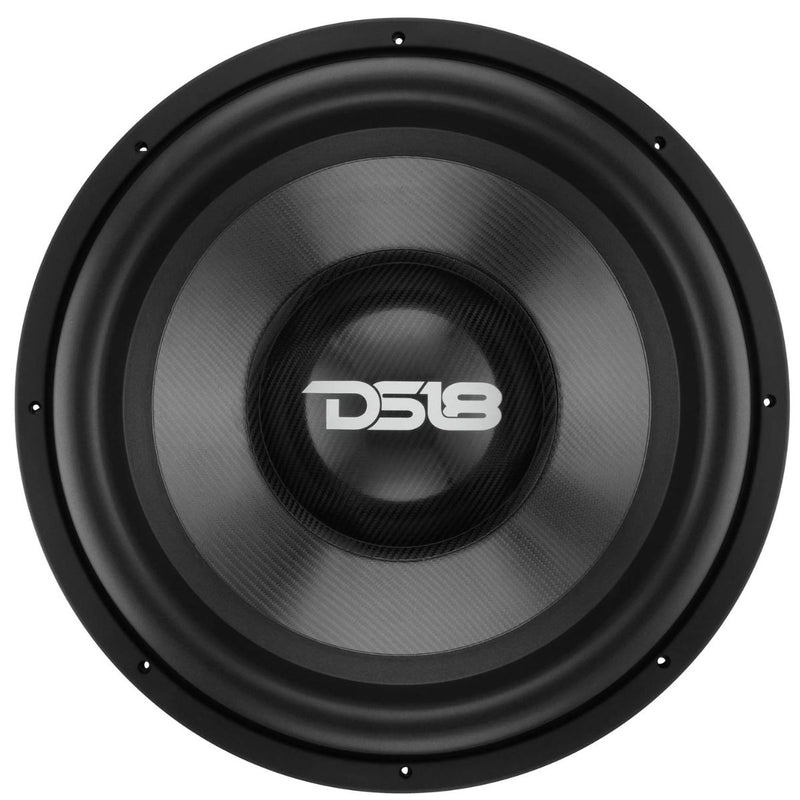

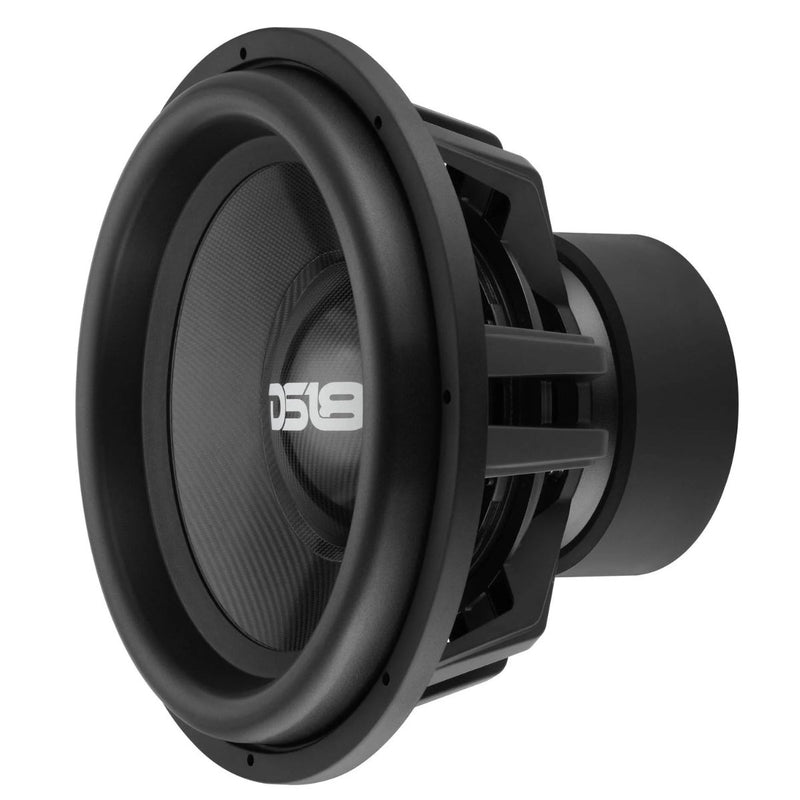

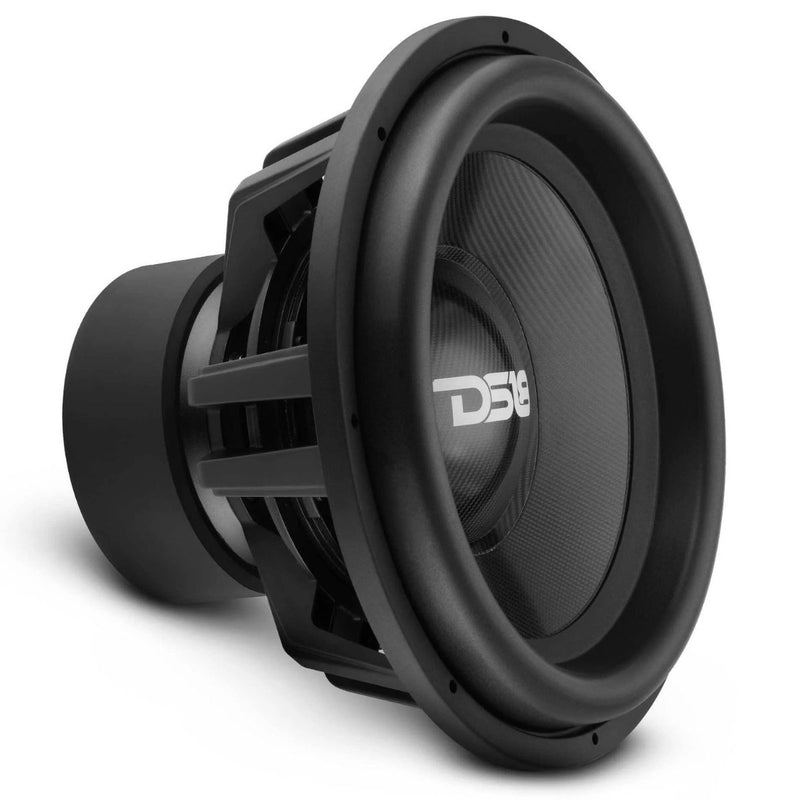

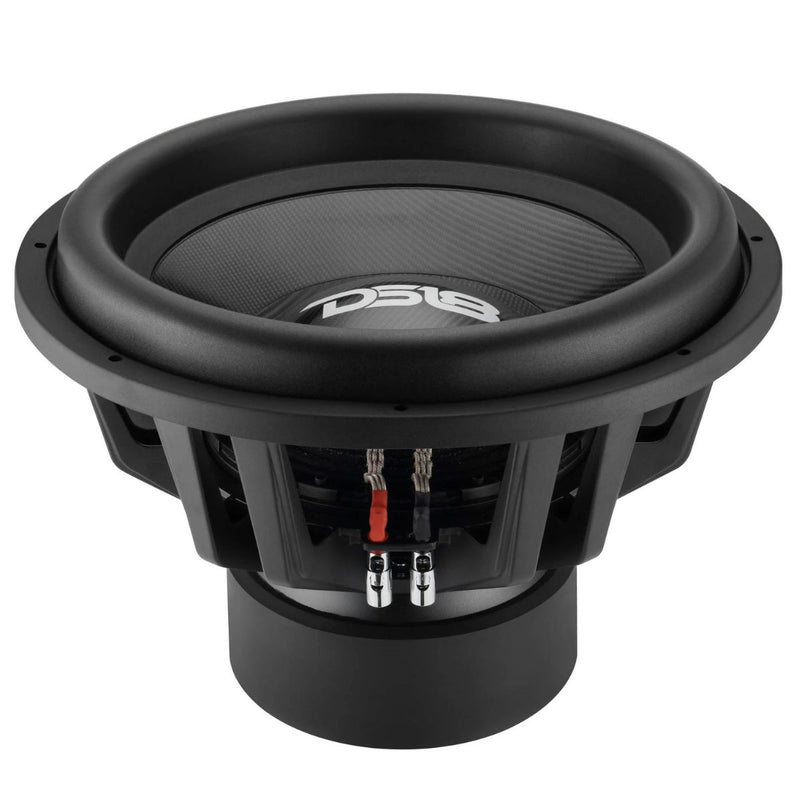

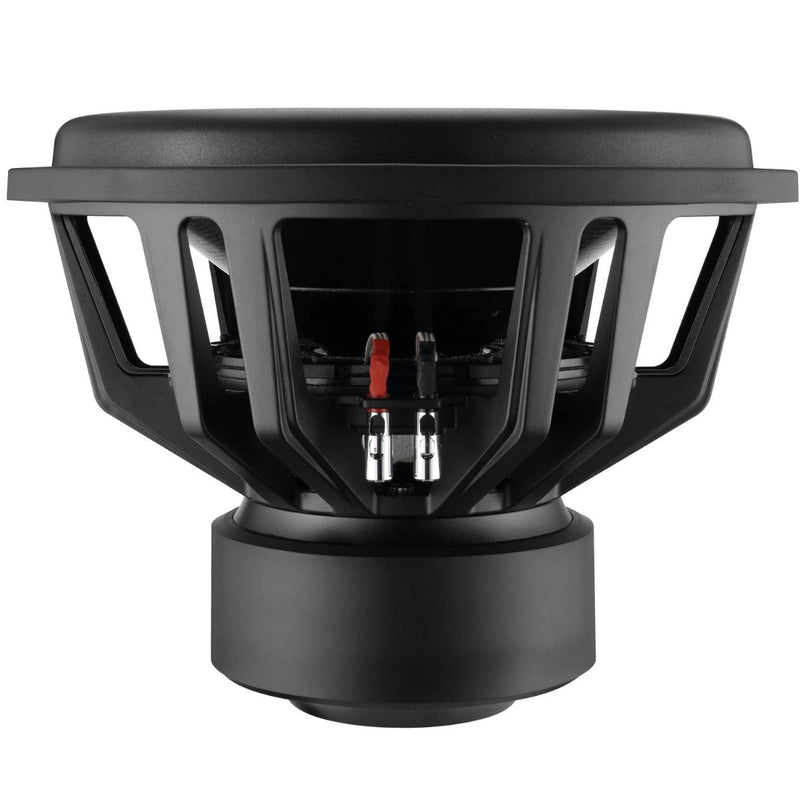

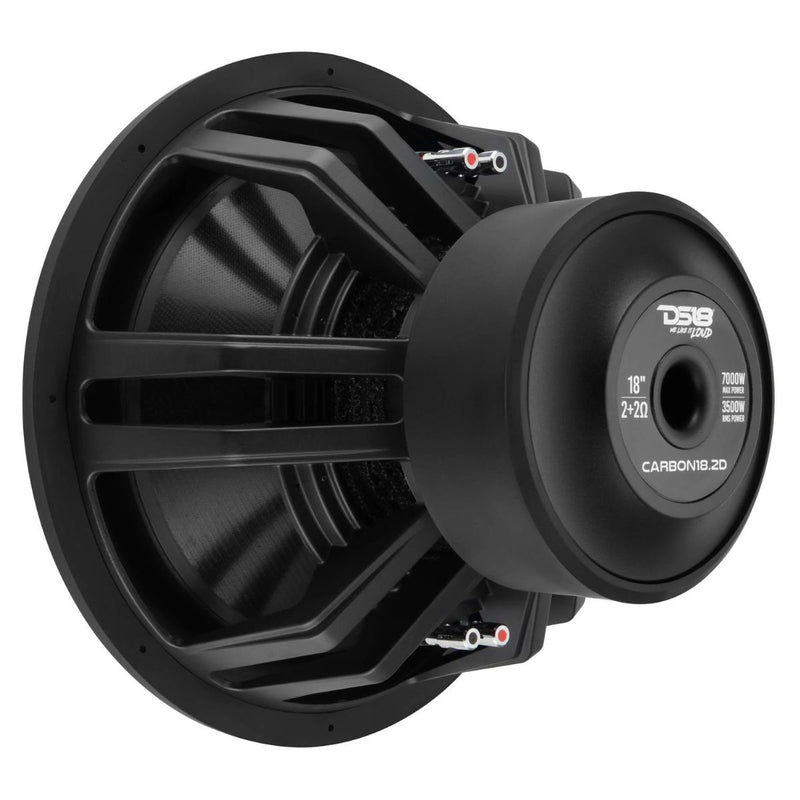

DS18 18" 3500W RMS Dual 2-Ohm Carbon Fiber Car Subwoofer CARBON18.2D

• 3500 WATTS RMS POWER HANDLING: Built for demanding car audio systems, this massive 18-inch subwoofer handles 3500 watts RMS and up to 7000 watts maximum power.
• HIGH-EXCURSION BASS PERFORMANCE: Provides up to 22.5mm of one-way excursion to move serious air and deliver deep, powerful low-frequency output.
• CARBON-FIBER CONSTRUCTION: A rigid carbon-fiber cone and matching 8-inch dust cap provide controlled response and dependable performance under heavy use.
• DUAL 2-OHM VOICE COILS: Wire the subwoofer to a final 1-ohm or 4-ohm load for flexible compatibility with different amplifier configurations.
• BUILT FOR HIGH-POWER SYSTEMS: Features a 3.5-inch voice coil, improved heat dissipation, 4-gauge terminals, an aluminum basket, and a massive 425-ounce ferrite magnet.

DS18 18" 3500W RMS Dual 2-Ohm Carbon Fiber Car Subwoofer CARBON18.2D

This Listing Includes:

• (1) DS18 CARBON18.2D 18" High-Excursion Car Subwoofer

Built for extreme low-frequency output, the DS18 CARBON18.2D delivers 3500 watts RMS and 7000 watts maximum power handling. Its massive 18-inch carbon-fiber cone and 22.5mm one-way excursion move serious amounts of air for deep, powerful bass you can feel throughout the vehicle.

The carbon-fiber cone and matching 8-inch dust cap provide the strength and rigidity required to maintain controlled performance under heavy use. A 3.5-inch voice coil with an aluminum former, improved heat dissipation, and a massive 425-ounce ferrite magnet help support dependable performance at high power levels.

Dual 2-ohm voice coils allow the subwoofer to be wired to a final 1-ohm or 4-ohm load. Heavy-duty 4-gauge push terminals accommodate oversized speaker wire for a secure connection. The cast-aluminum basket, foam surround, and crossed spider leads complete a durable platform designed for high-output car audio systems.

Features:

• High-excursion 18-inch car subwoofer


• 3500 watts RMS power handling


• 7000 watts maximum power handling


• Dual 2-ohm voice coils


• 1-ohm or 4-ohm final wiring capability


• Carbon-fiber cone and dust cap


• 22.5mm one-way excursion


• Improved heat-dissipation design


• 3.5-inch voice coil with aluminum former


• Heavy-duty 4-gauge push terminals


• Cast-aluminum basket


• Large 425-ounce ferrite magnet


• Compatible with sealed and ported enclosures

Specifications:

• Brand: DS18


• Model: CARBON18.2D


• Product Type: High-Excursion Car Subwoofer


• Nominal Diameter: 18 inches / 457mm


• Voice-Coil Configuration: Dual 2 Ohm


• Nominal Impedance: 2 + 2 Ohms


• RMS Power Handling: 3500 Watts


• Maximum Power Handling: 7000 Watts


• Sensitivity: 85dB at 1W/1m


• Frequency Response: 10Hz to 200Hz


• Recommended Low-Pass Crossover: 60Hz


• Cone Shape: Conical


• Improved Heat Dissipation: Yes


• Speaker Terminals: 4-gauge push terminals

Motor Specifications:

• Voice-Coil Diameter: 3.5 inches / 89mm


• Voice-Coil Former Material: Aluminum


• Voice-Coil Winding Material: CCAR


• Cone Material: Carbon fiber


• Dust-Cap Material: Carbon fiber


• Dust-Cap Diameter: 8 inches / 200mm


• Surround Material: Foam


• Spider Diameter: 9 inches / 228mm


• Lead Connection Type: Crossed through spider


• Basket Material: Aluminum


• Basket Color and Finish: Black aluminum


• Magnet Material: Ferrite


• Magnet Weight: 425 ounces

Thiele and Small Parameters:

• Equivalent Compliance Volume, Vas: 50.62L / 1.787 cubic feet


• One-Way Excursion, Xmax: 22.5mm


• Free-Air Resonance, Fs: 35Hz


• Mechanical Q, Qms: 7.128


• Electrical Q, Qes: 1.1


• Total Q, Qts: 0.958


• Moving Mass, Mms: 746.2g


• Compliance, Cms: 26.1mm/N


• BL Factor: 24.6


• Voice-Coil Inductance, Le: 1.76mH


• Diaphragm Area, Sd: 1164cm


• DC Resistance, Re: 2 + 2 Ohms


• Efficiency Bandwidth Product, EBP: 31.8

Recommended Enclosures:

• Sealed Internal Volume: 90L / 3.2 cubic feet


• Sealed Enclosure Output Response: 32Hz


• Ported Internal Volume: 212L / 7.5 cubic feet


• Square Port Dimensions: 4" W x 18" H x 20" L


• Port Tuning Frequency: 30Hz


• Ported Enclosure Output Response: 22Hz

Measurements:

• Overall Diameter: 18.5 inches / 470mm


• Overall Depth: 14 inches / 355mm


• Front Mounting Baffle Cutout: 16.75 inches / 426mm


• Mounting Depth: 12.15 inches / 309mm


• Motor Diameter: 9 inches / 230mm
