- High Excursion 15" Subwoofer: Built for serious bass systems, SPL builds, demo vehicles, and high-output car audio applications.
- 2000W RMS Power Handling: Handles up to 2000 watts RMS and 4000 watts MAX for powerful low-frequency performance when paired with the right amplifier.
- Dual 2-Ohm Voice Coils: DVC 2-ohm configuration gives installers flexible wiring options for custom amplifier and system setups.
- Built for Deep Bass Output: Features a 42mm one-way Xmax, 34.9Hz Fs, high excursion foam surround, and durable paper cone for strong low-end response.
- Heavy-Duty Motor Structure: Equipped with a 3" black aluminum voice coil, aluminum basket, fiberglass dust cap, and massive 306 oz ferrite magnet.

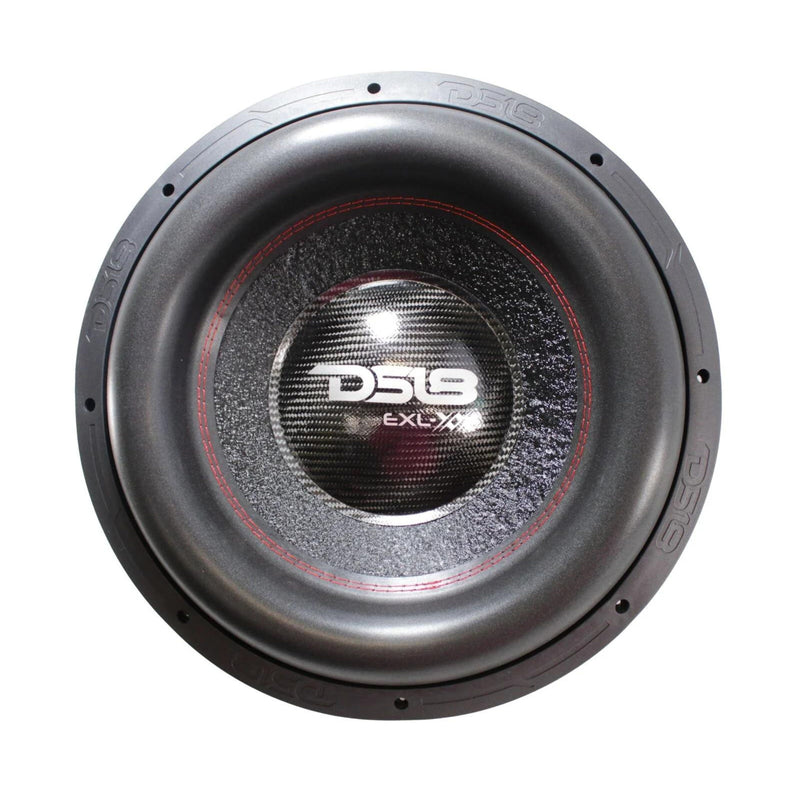

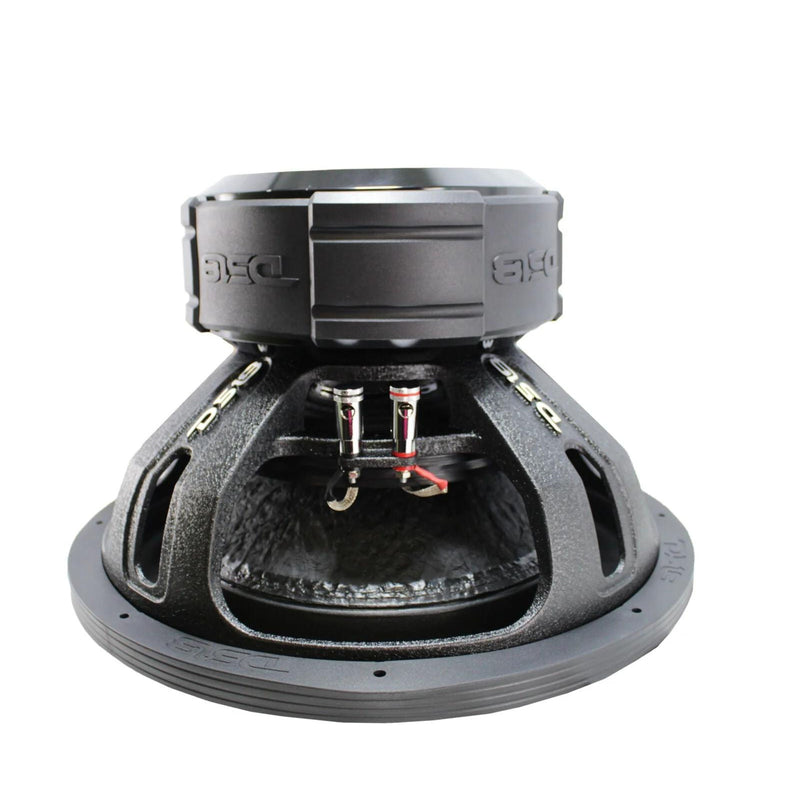

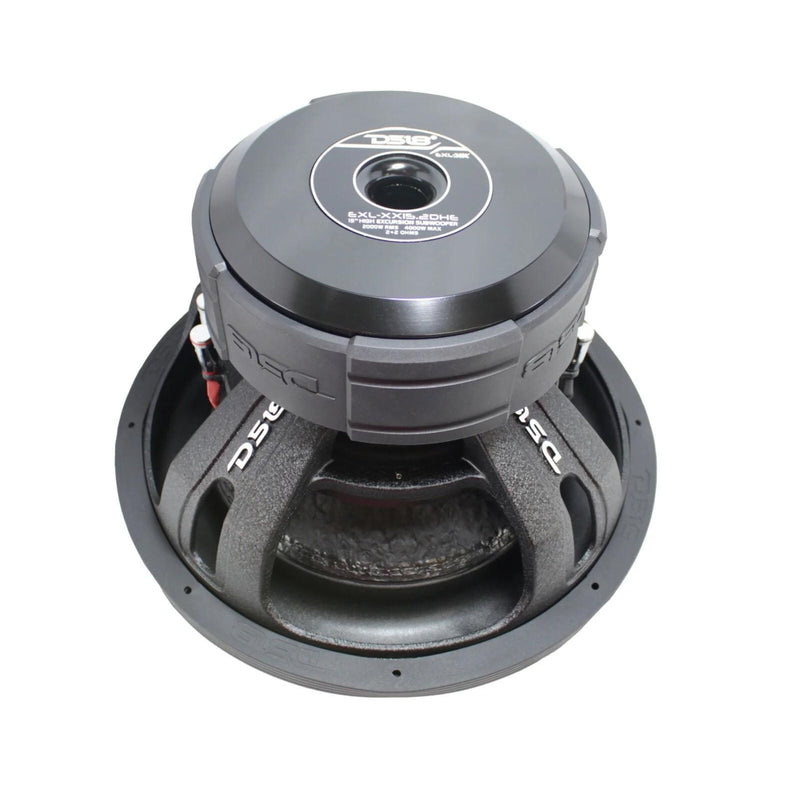

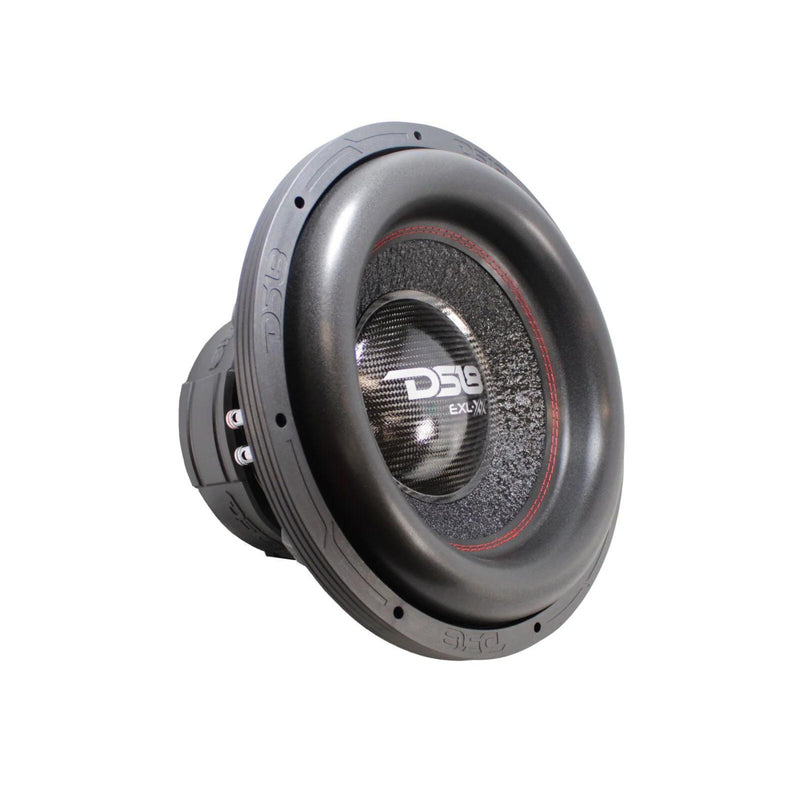

DS18 15" 2000 Watts 2-Ohm Dual Voice Coil High Excursion Subwoofer EXL-XX15.2DHE
This Listing Includes
- (1) DS18 EXL-XX15.2DHE 15" High Excursion Subwoofer
Built for serious bass builds, the DS18 EXL-XX15.2DHE 15" high-excursion subwoofer delivers the low-frequency output, power handling, and movement needed for high-performance car audio systems. Designed for big bass applications, this 15" subwoofer offers enthusiasts a strong combination of output, excursion, and value.
With 2000W RMS and 4000W MAX power handling, the EXL-XX15.2DHE is designed for systems that require heavy bass response and strong low-end performance. Its high excursion foam surround helps support extended cone movement, while the 3" black aluminum dual voice coil provides excellent power handling and efficiency.
The EXL-XX15.2DHE features a durable paper cone, fiberglass dust cap, aluminum basket, and a massive ferrite motor structure with a 306 oz magnet. With a free-air resonance of 34.9Hz and 42mm one-way Xmax, this subwoofer is built to dig deep when paired with the right amplifier and properly tuned enclosure.
Whether you are upgrading a daily driver, building a loud demo vehicle, or chasing competition-style bass, the DS18 EXL-XX15.2DHE brings serious low-frequency performance to your system.
Features
- 15" high excursion car audio subwoofer
- 2000W RMS power handling
- 4000W MAX power handling
- Dual 2-ohm voice coil configuration
- 3" black aluminum voice coil
- High excursion foam surround for increased cone movement
- 42mm one-way Xmax
- Massive 306 oz ferrite magnet structure
- Durable paper cone with fiberglass dust cap
- Aluminum basket with black finish
- Designed for big bass, SPL, demo, and high-output systems
- Recommended low-pass crossover: 80Hz
- Free-air resonance: 34.9Hz
Specifications:
- Brand: DS18
- Model/SKU: EXL-XX15.2DHE
- Product Type: High Excursion Subwoofer
- Nominal Diameter: 15"
- Nominal Impedance: Dual 2 Ohm
- RMS Power Handling: 2000W
- MAX Power Handling: 4000W
- Sensitivity: 88 dB
- Frequency Response: 20Hz - 1.5kHz
- Recommended Low-Pass Crossover: 80Hz
Motor Specifications:
- Voice Coil Diameter: 3"
- Voice Coil Former Material: Black Aluminum
- Winding Material: CCAW
- Cone Material: Paper
- Dust Cap Material: Glass Fiber
- Surround Material: Foam
- Basket Material: Aluminum
- Basket Color/Finish: Black
- Magnet Material: Ferrite
- Magnet Weight: 306 oz
- Displacement Volume: 3.62L
Thiele & Small Parameters:
- Equivalent Volume Vas: 31.976L
- One-Way Excursion Xmax: 42mm
- Free-Air Resonance Fs: 34.9Hz
- Mechanical Factor Qms: 5.159
- Electrical Factor Qes: 0.584
- Total Factor Qts: 0.525
- Moving Mass Mms: 440.158g
- Compliance Cms: 0.026mm/N
- BL Factor: 18.453
- Voice Coil Inductance Le: 8.562mH
- Diaphragm Area Sd: 804.25cm
- DC Resistance Re: 2+2 Ohms
- Efficiency Bandwidth Product EBP: 59.7
Dimensions:
- Nominal Diameter: 15"
- Overall Diameter: 15.59" / 396mm
- Overall Depth: 10.24" / 260mm
- Front Mount Baffle Cutout: 13.98" / 355mm
- Mounting Depth: 8.86" / 225mm
- Motor Diameter: 8.86" / 225mm
