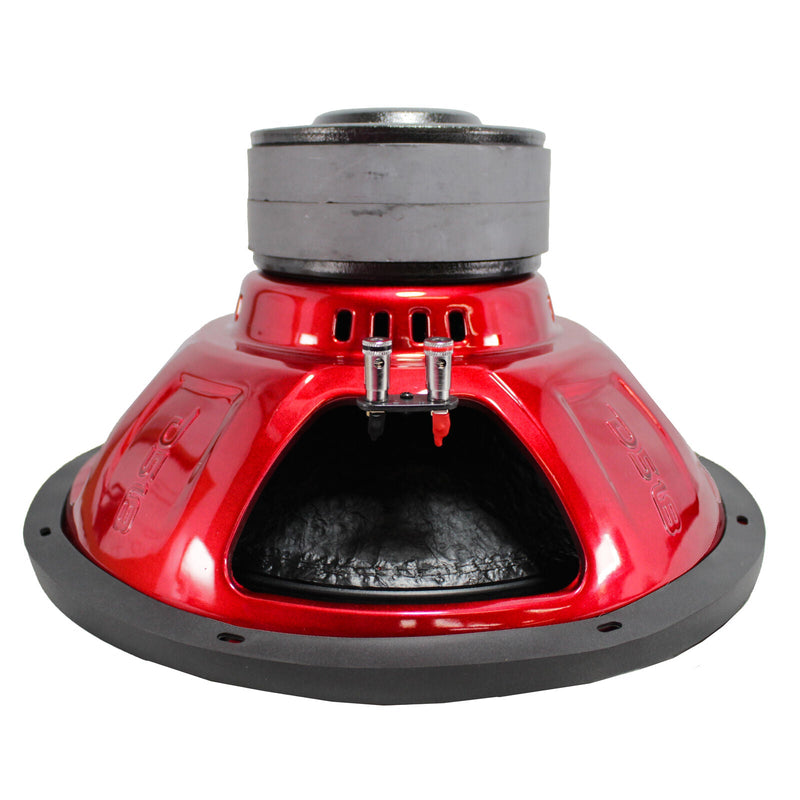

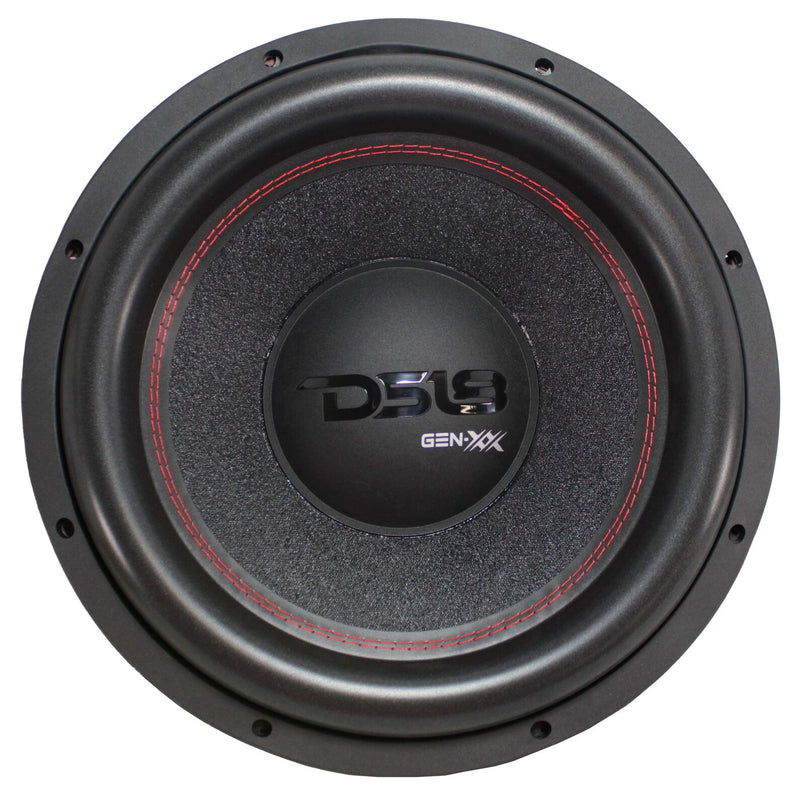

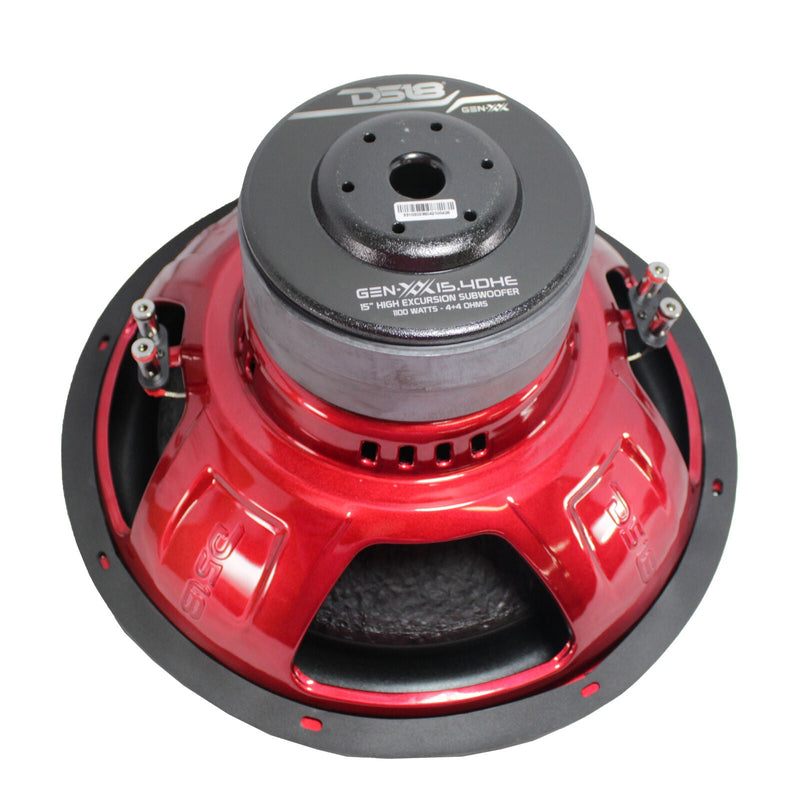

DS18 15" 1100 Watts High Excursion Subwoofer Dual Voice Coil 4-Ohm GEN-XX15.4DHE



Shipping calculated at checkout

Available Now!

DS18 15" 1100 Watts High Excursion Subwoofer Dual Voice Coil 4-Ohm GEN-XX15.4DHE

This DS18 15" Subwoofer is ready and able for hi-power applications with a 1100 Watt max! High excursion is now the mainstream. and we want to bring the experience of low frequency bass to even the entry level user. The GEN-XX15.4DHE is the answer you have been looking for. This subwoofer is a mid-tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with. DS18 stands out from other brands with progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market.

This Listing Includes:
(1) Subwoofer

-High Excursion surround for a very high amount of xmax.
-Long three voice coil and extended magnet to accommodate the xmax increase.
-FS of 27 hz so you can easily dip in the subsonic range with no issues along as your box is tuned correctly.
-Ferrite Magnet
-Steel Basket Design
-Black Aluminum Voice Coil

Nominal Impedance: 4+4 ohms
Power Handling:1100W Max
Power Handling: 550W RMS
Sensitivity (1w/1m): 87.4 dB
Frequency Response: 20Hz-1.KHz
Recommended Lo Pass Crossover: 80 Hz

Motor Specifications:
VC Diameter: 2"
VC Former Material: Black Aluminum
Winding Material: SV
Cone Material: Paper
Dust Cap Material: PPI
Surround Material: Foam
Basket Material: Steel
Basket Color/Finish: Glossy Red
Magnet Material:Ferrite
Magnet Weight: 136 Oz
Displacement Volume: 3.26L

Thiele & Small Parameters Specifications:
Equivilant Vol :Vas 105.083L
Excursion (one way): Xmax 25 mm
Free Air Resonance: Fs 27 Hz
Mechanical Factor: Qms 3.658
Electrical Factor: Qes 0.583
Total Factor: Qts 0.503
Moving Mass: Mms 309.67.g
Compliance: Cms 0.112mm/N
Bl Factor: BL 24.045N/A
VC Inductance: Le 0.6741mH
Diaphragm Area: Sd 814.332cm2
Dc Resistance: Re 3.2+3.2 ohms
Efficiency Bandwidth Product: EBP 46.3

Nominal Diameter:15"
Overall Diameter :15.5" / 394mm
Overall Depth: 9.06" / 230mm
Front Mount Baffle Cutout: 13.98" / 355mm
Mounting Depth: 7.84" / 199mm
Motor Diameter: 6.15"/ 156 mm
