- 12000W RMS Power: Delivers 12,000W RMS at 1 ohm, 7,500W RMS at 2 ohms, or 4,000W RMS at 4 ohms for demanding car audio systems.
- Full-Range Class D Design: Covers 10Hz to 15kHz for dedicated speaker or subwoofer setups with appropriate crossover settings.
- Adjustable Sound Controls: Features high-pass and low-pass filters, plus up to 12dB of bass boost at 50Hz to fine-tune your output.
- Triple Smart Cooling Fans: Help manage heat, while built-in protections monitor thermal, overload, short circuit, voltage input, DC output, and clipping conditions.
- Remote Level Control Included: Adjust output and monitor clipping with the included remote. Choose Blue, Red, or Titanium, and install the included dual input adapter for proper performance.

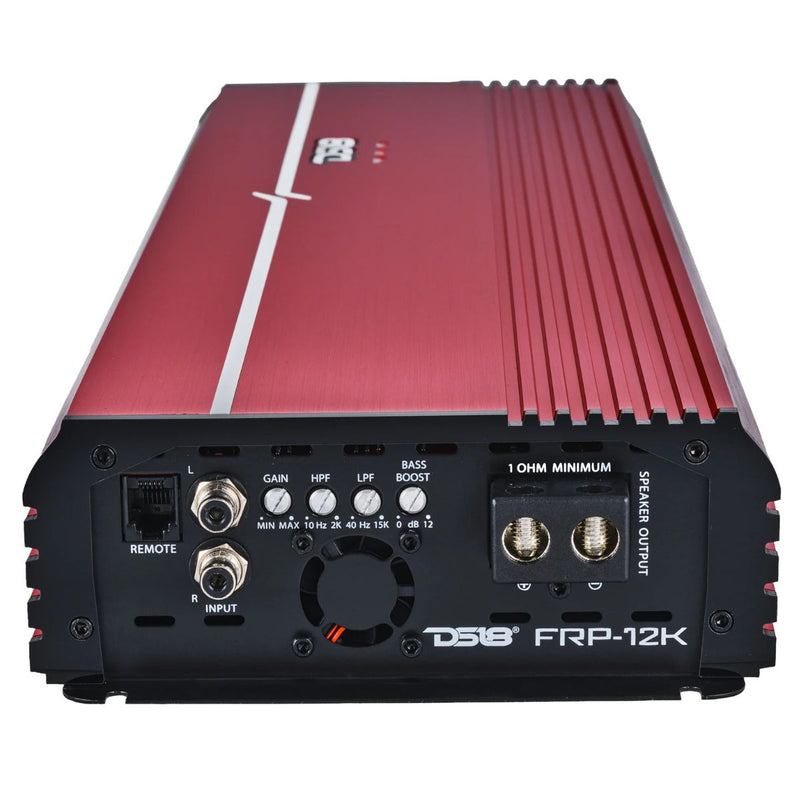

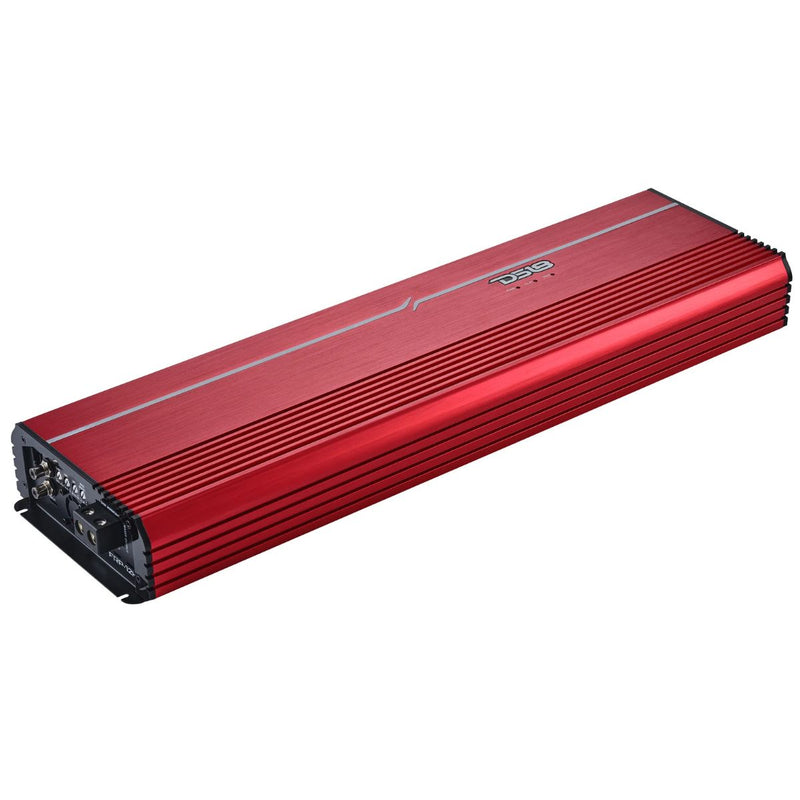

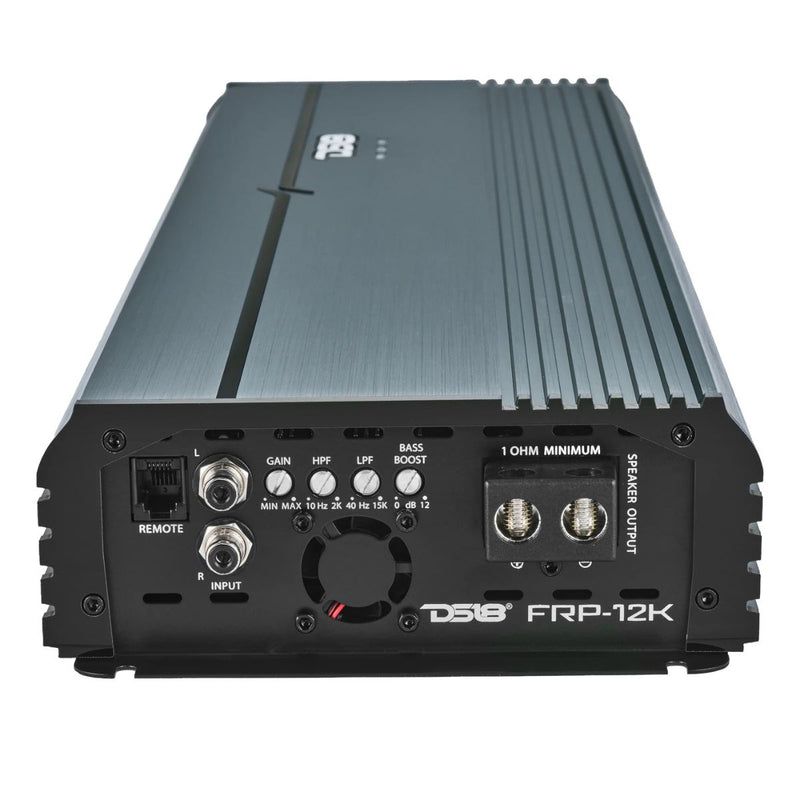

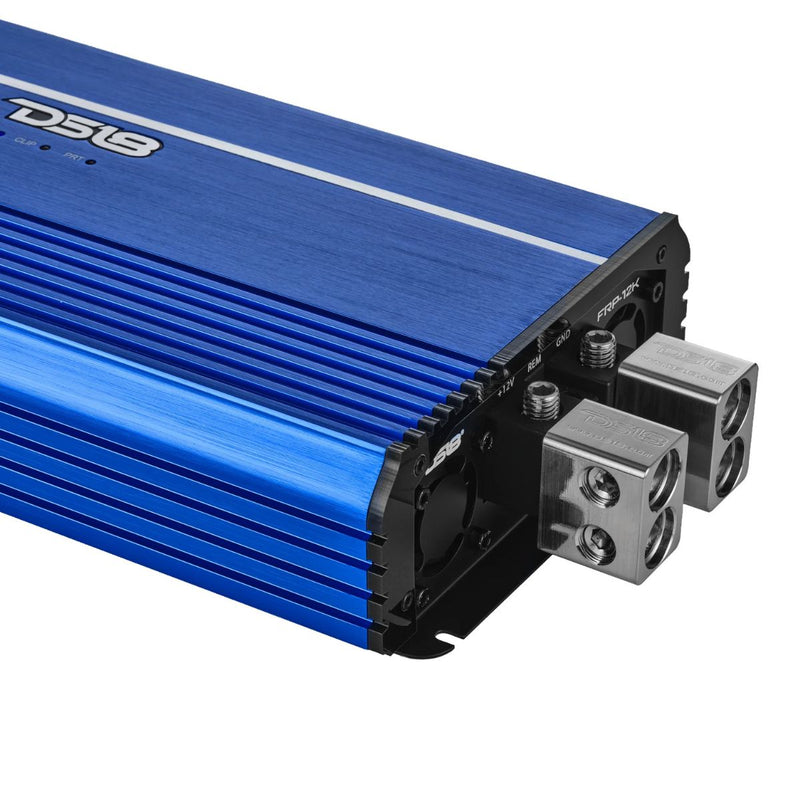

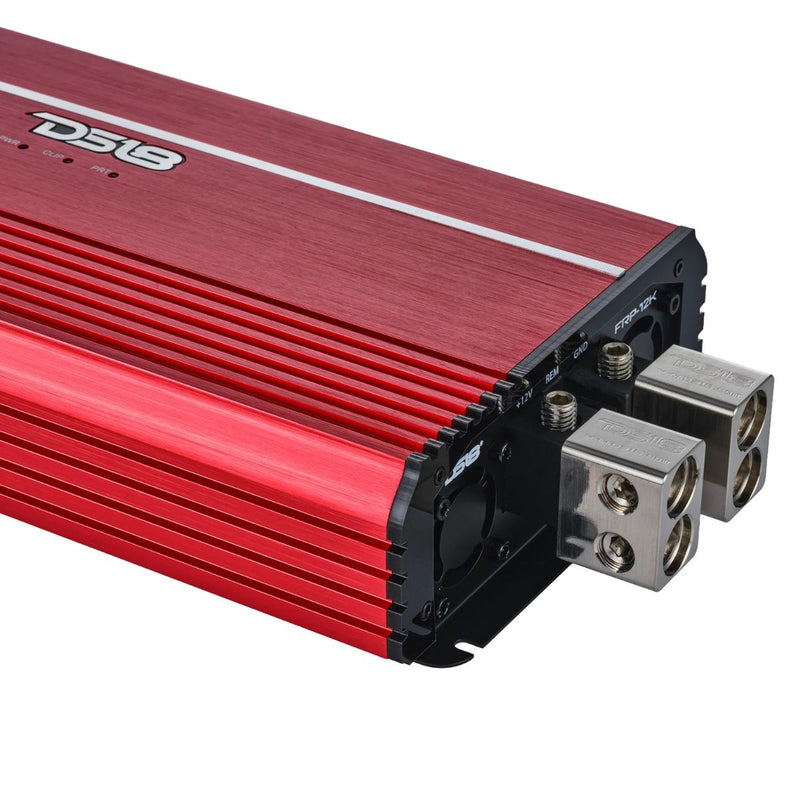

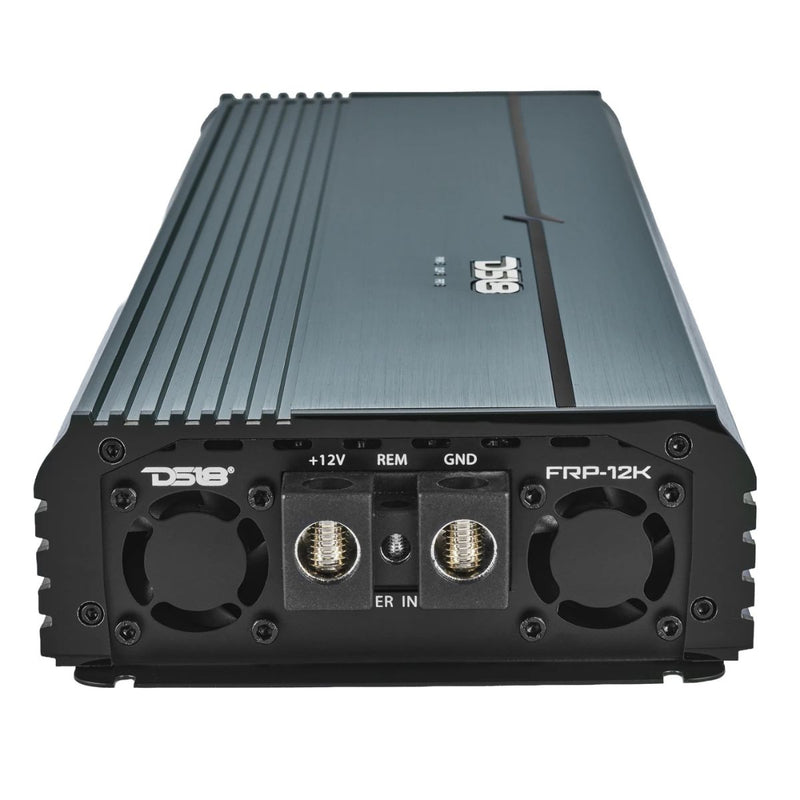

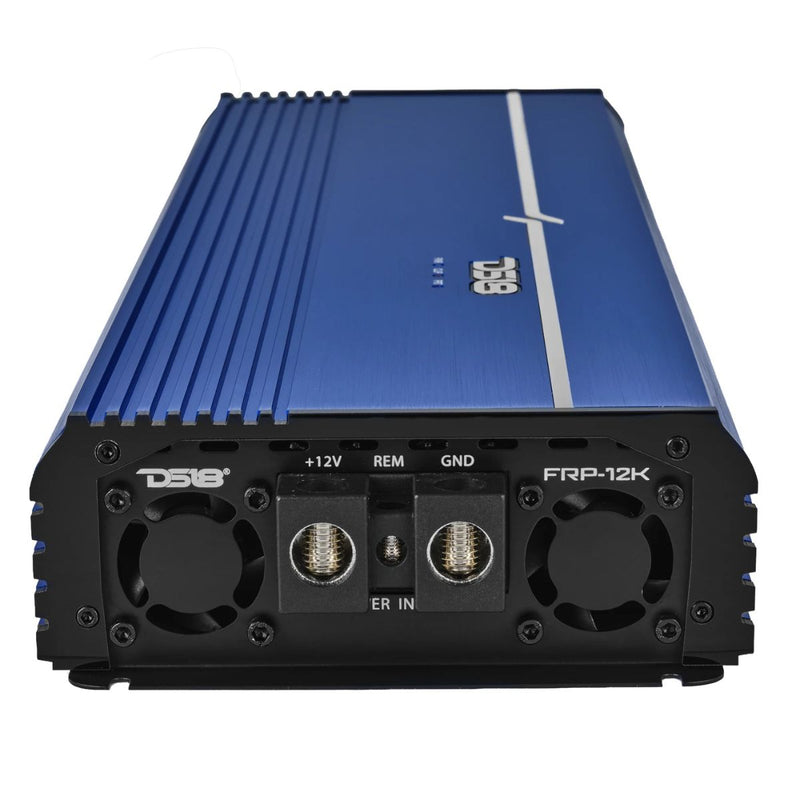

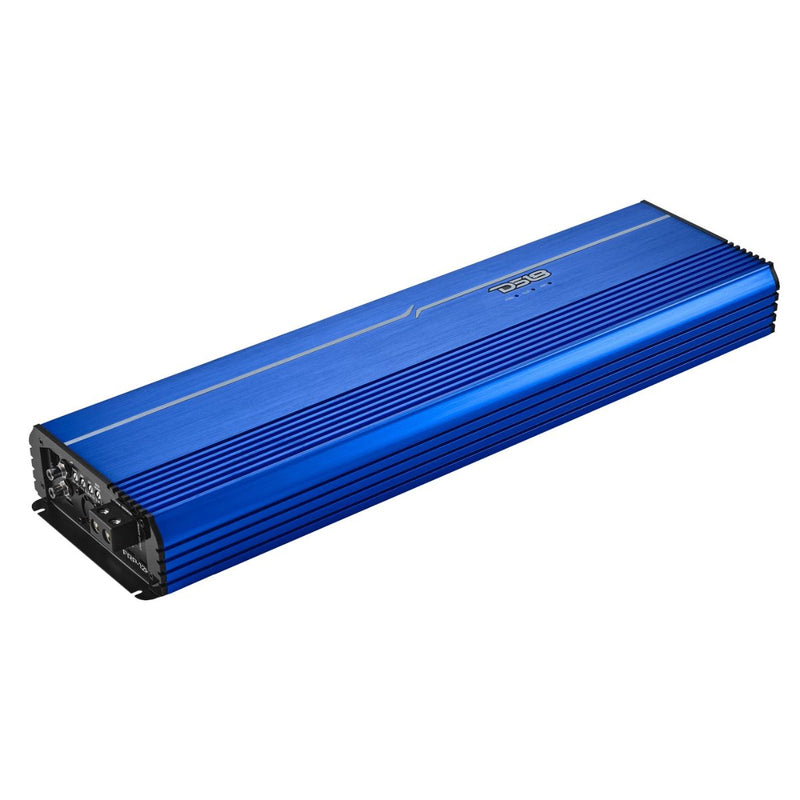

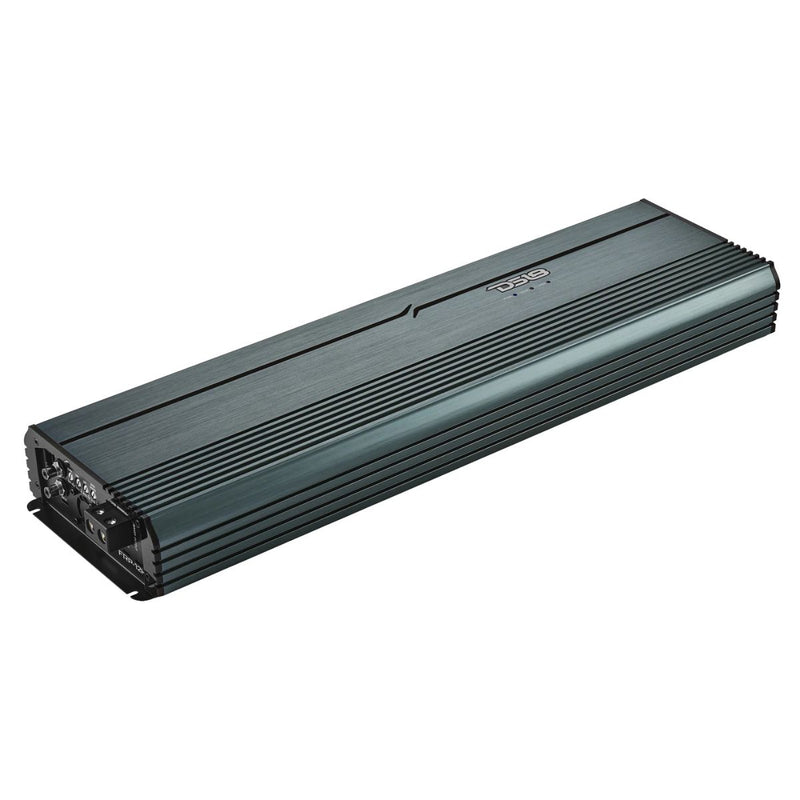

DS18 12000W RMS 1 Ohm Full-Range Class D Monoblock Amplifier FRP-12K

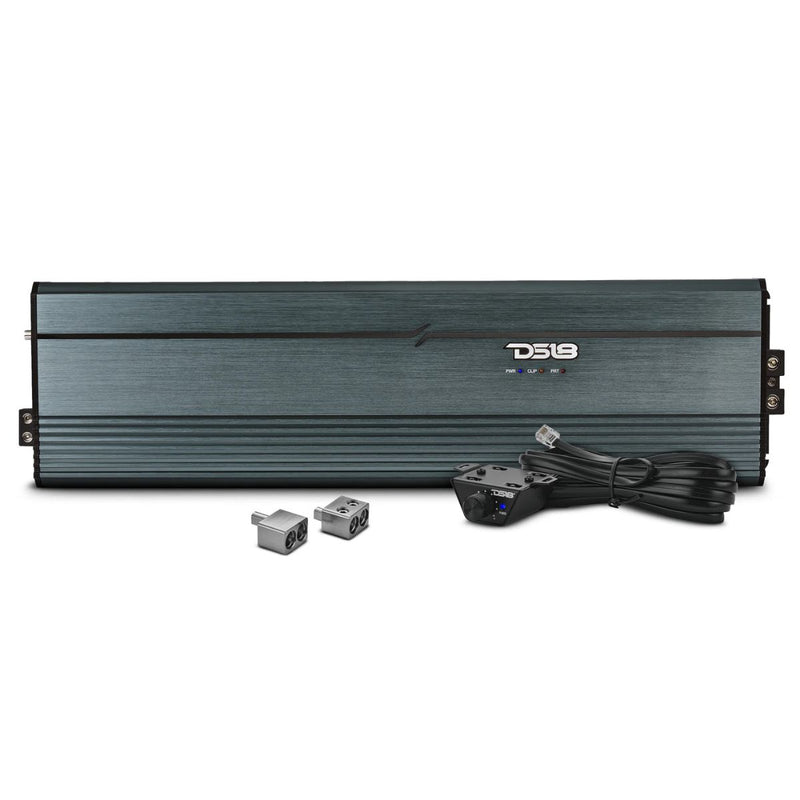

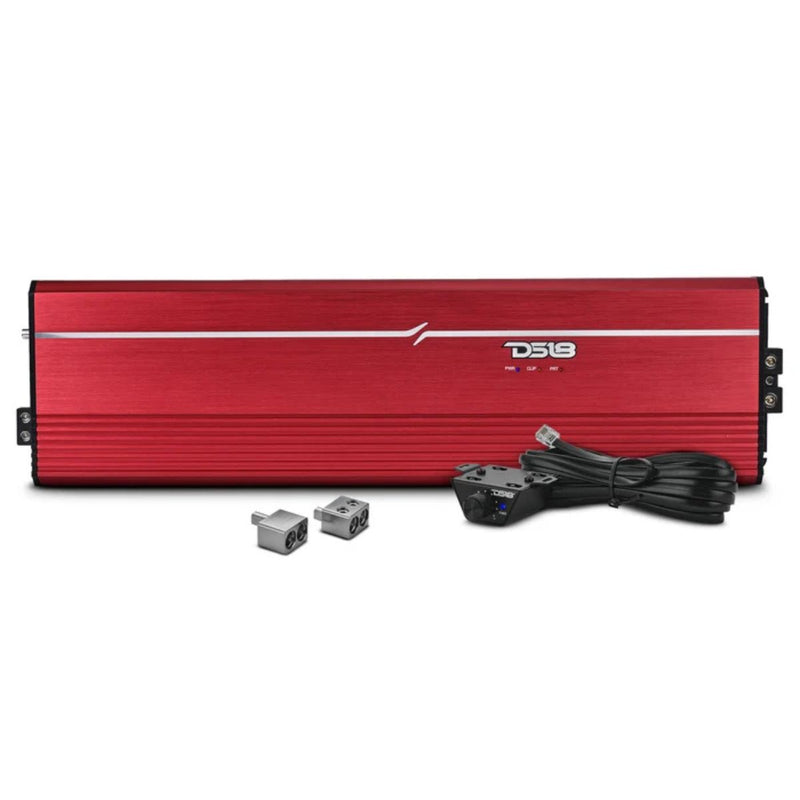

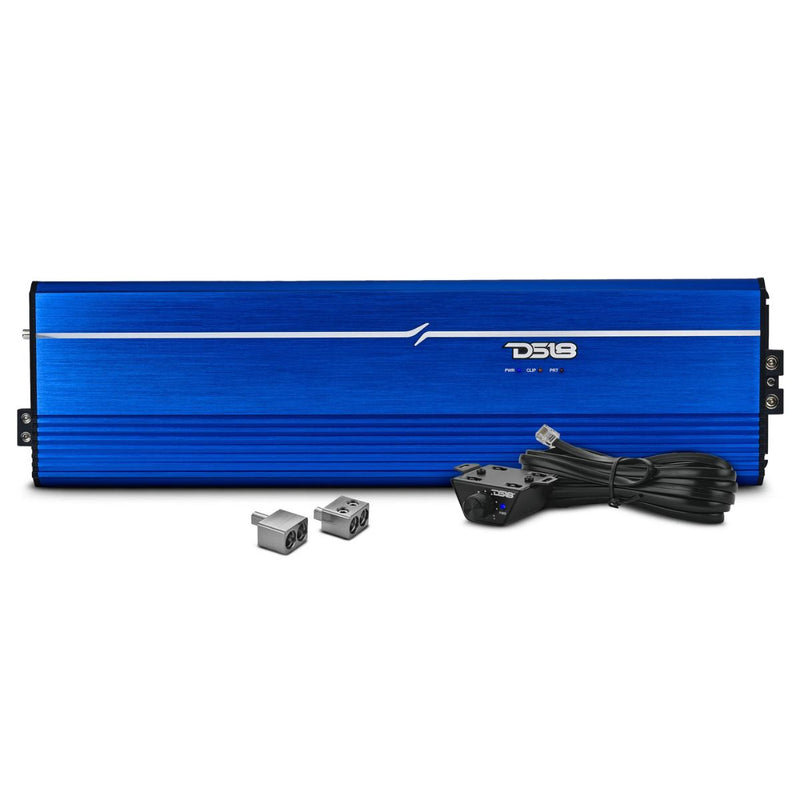

This Listing Includes:
- (1) DS18 FRP-12K Full-Range Class D Monoblock Amplifier in Your Selected Color

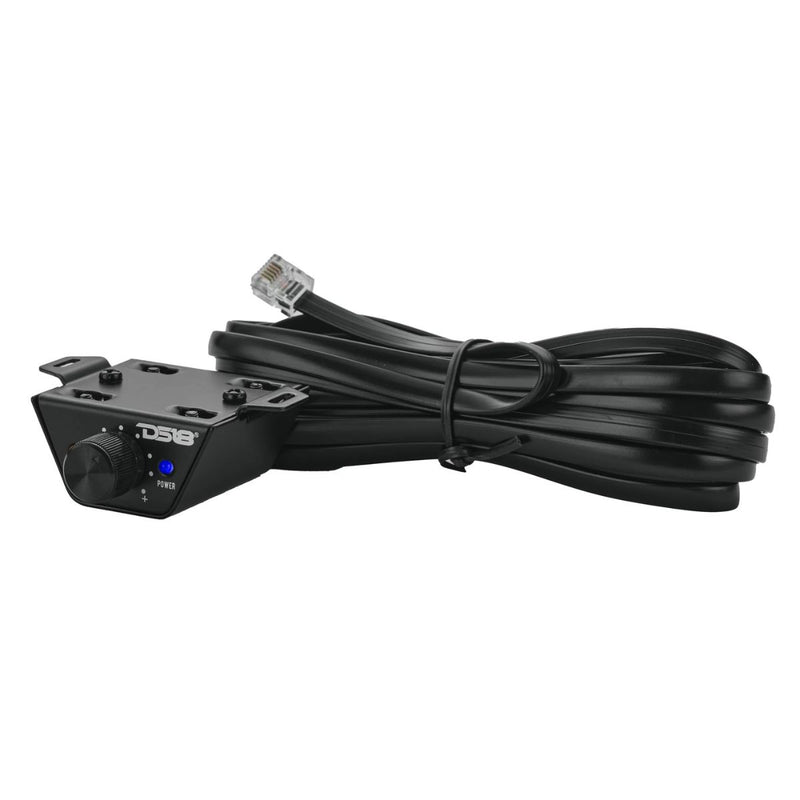

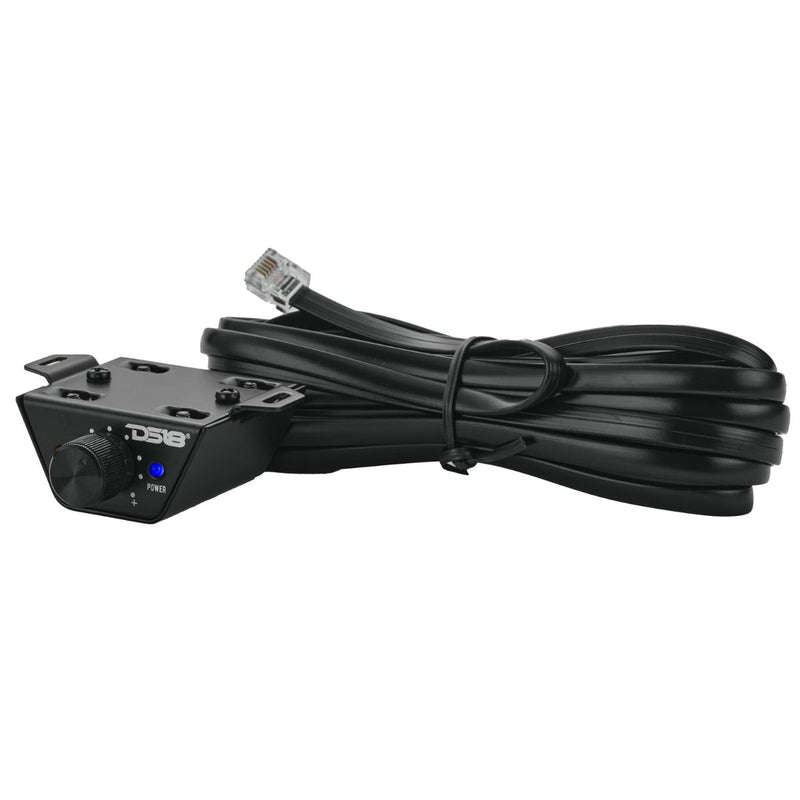

- (1) Remote Level Control with Clip Indicator
- Included Dual Input Adapter
*Available in Titanium, Red or Blue
High-Output Power for Your Car Audio System
The DS18 FRP-12K delivers 12,000W RMS at 1 ohm, with 7,500W RMS at 2 ohms and 4,000W RMS at 4 ohms. Its full-range Class D design covers 10Hz to 15kHz, supporting dedicated speaker or subwoofer setups with appropriate crossover settings.

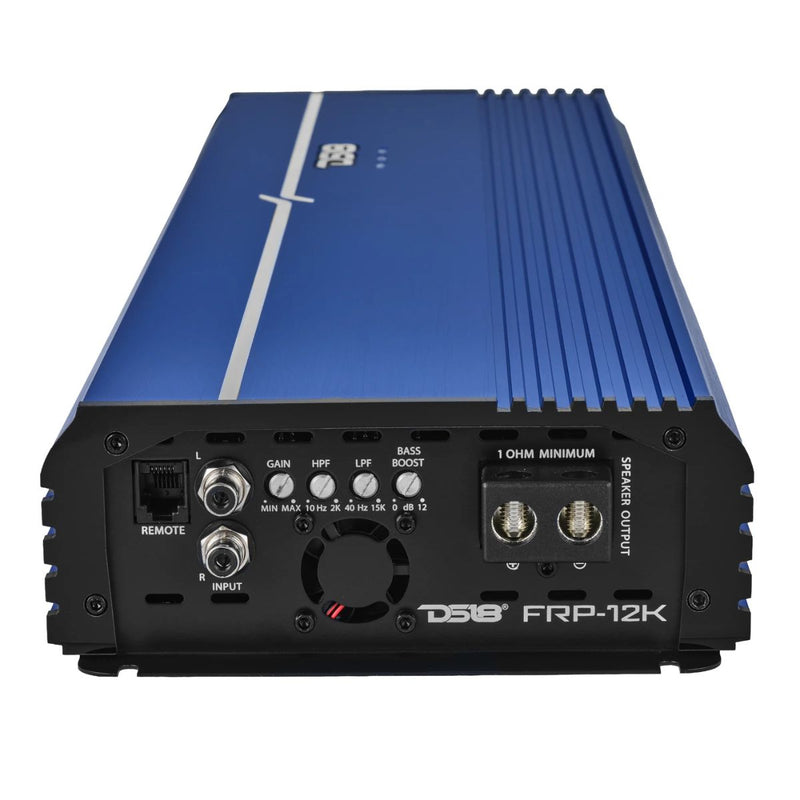

Adjustable high-pass and low-pass filters let you tailor the output to your system, while bass boost provides up to 12dB of adjustment at 50Hz. Three smart cooling fans help manage heat, and built-in protection circuits monitor thermal, overload, DC output, short circuit, voltage input, and clipping conditions.
The included remote level control features a clip indicator for convenient adjustment and monitoring. Choose Blue, Red, or Titanium from the available color options.

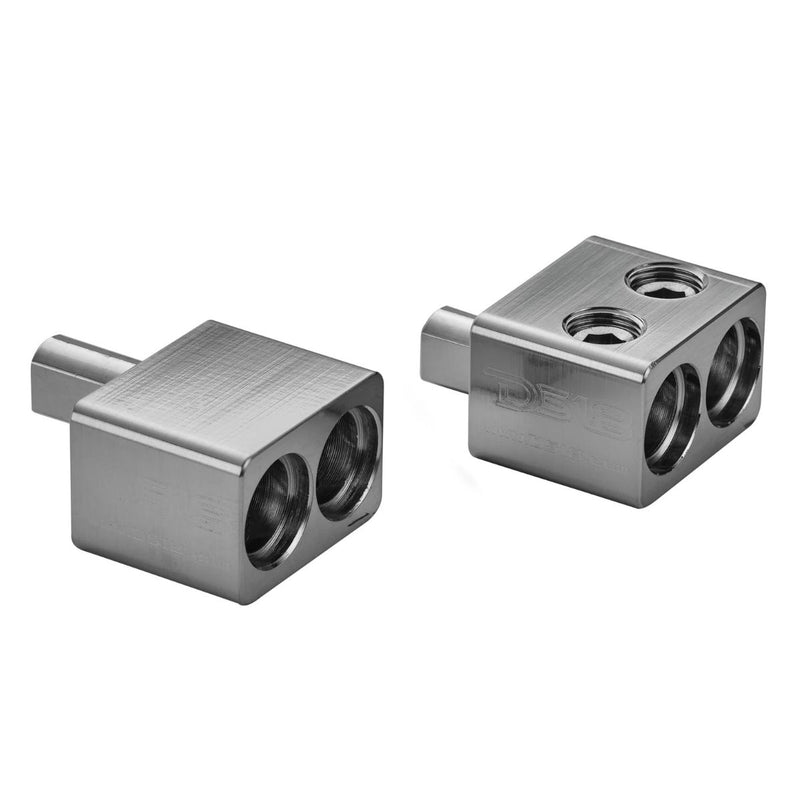

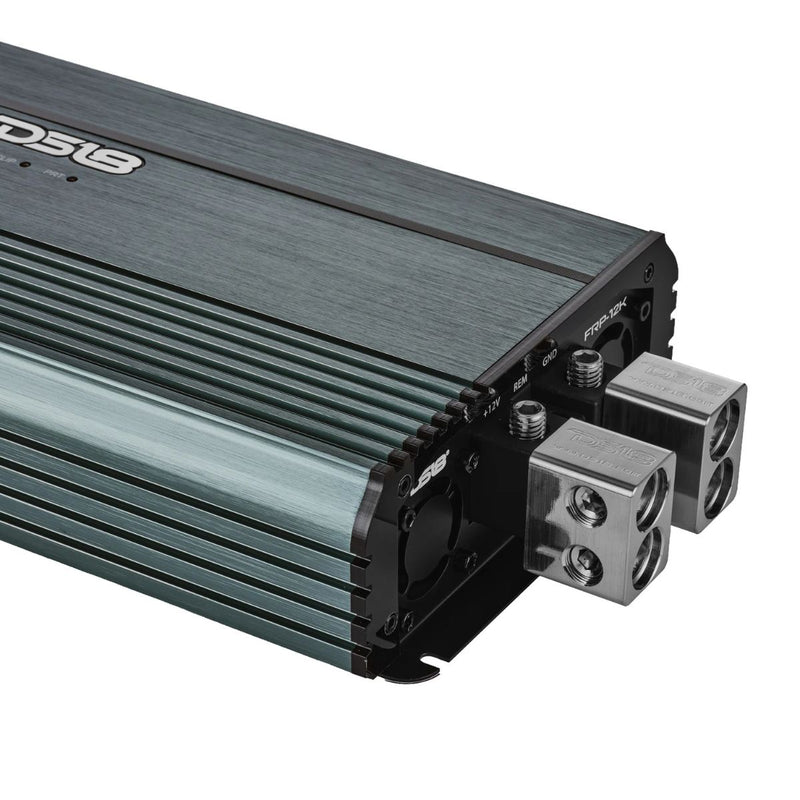

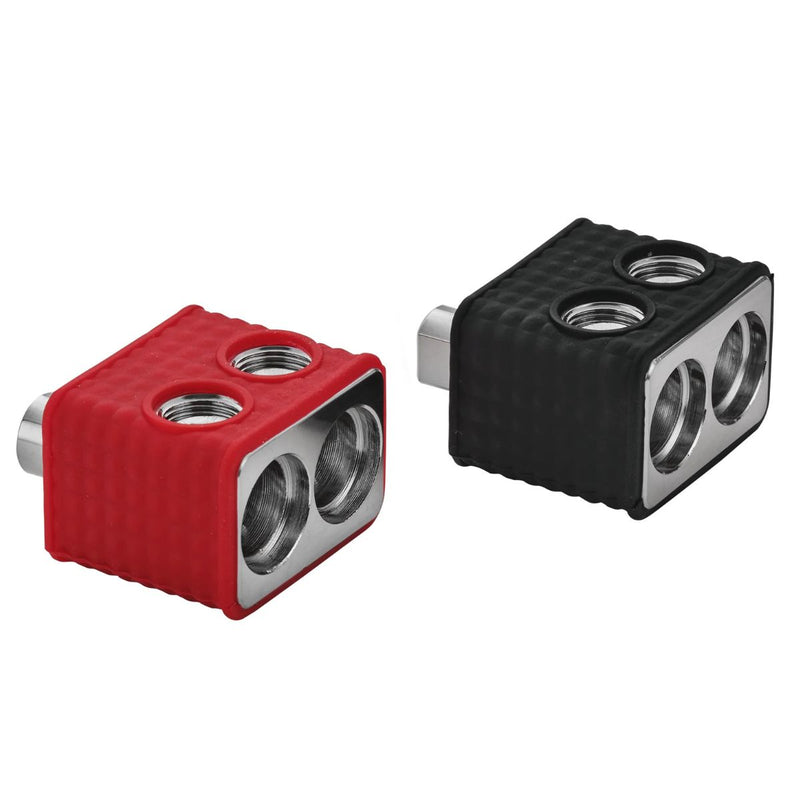

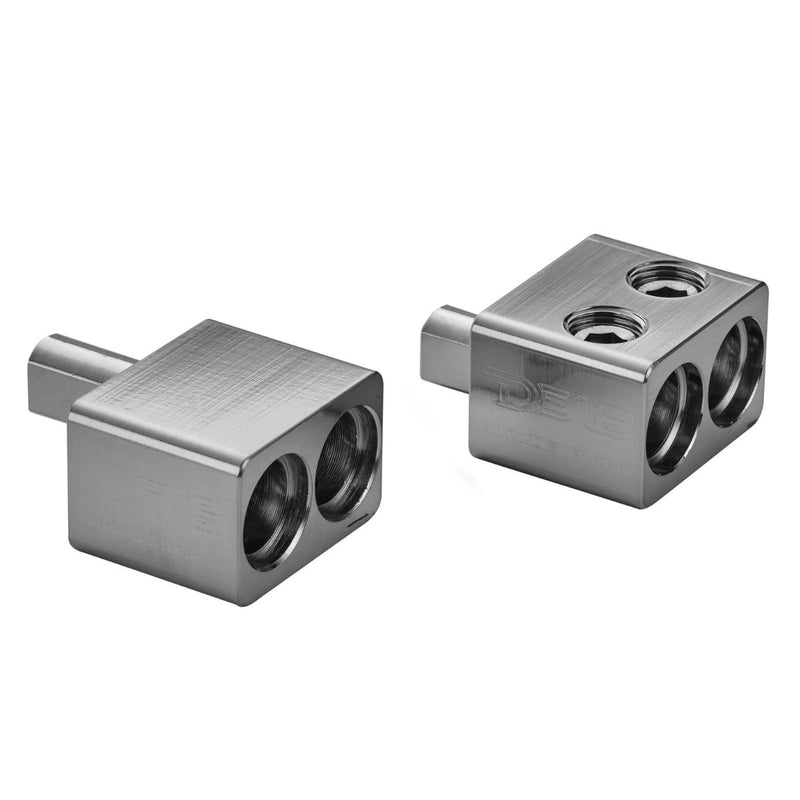

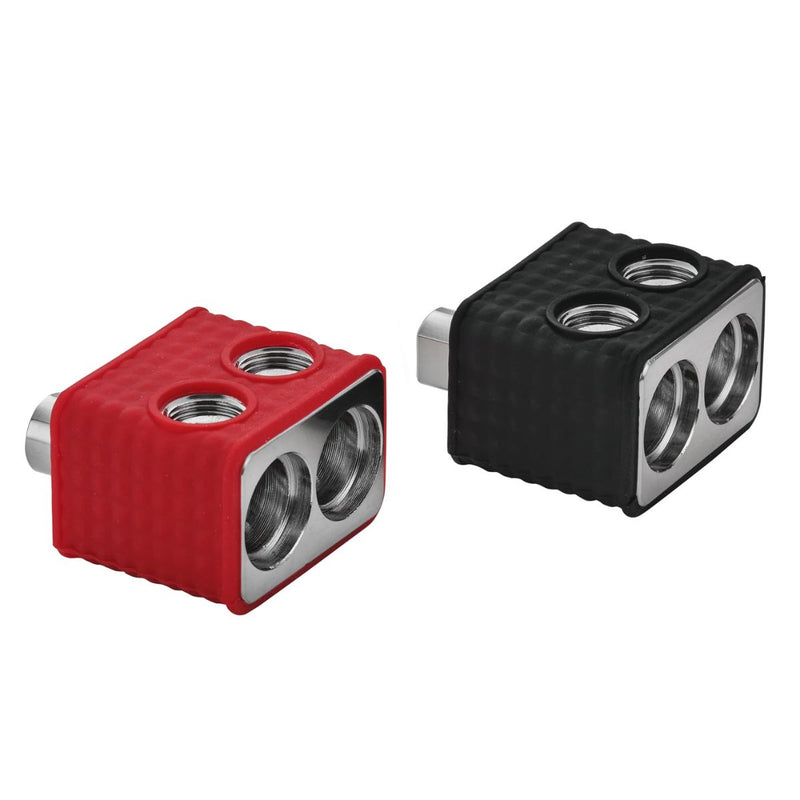

Installation Note: Install the included dual input adapter for proper amplifier performance.
Features:
- 12000W RMS Power: Delivers 12,000W RMS at 1 ohm, 7,500W RMS at 2 ohms, or 4,000W RMS at 4 ohms for demanding car audio systems.
- Full-Range Class D Design: Provides a 10Hz to 15kHz frequency response for dedicated speaker or subwoofer configurations with appropriate crossover settings.
- Adjustable Sound Controls: Fine-tune your output with high-pass and low-pass filters, plus up to 12dB of bass boost at 50Hz.
- Triple Smart Cooling Fans: Help manage operating temperature, supported by multiple protection circuits and Power, Protect, and Clipping indicators.
- Remote Level Control Included: Adjust output and monitor clipping from the included remote. Available in Blue, Red, or Titanium to complement your installation.
Specifications:
Power
- RMS Power at 4 Ohms: 4,000W
- RMS Power at 2 Ohms: 7,500W
- RMS Power at 1 Ohm: 12,000W
- Maximum Burst Power at 1 Ohm: 13,000W
- Minimum Impedance: 1 Ohm
Audio
- Frequency Response: 10Hz to 15kHz
- Signal-to-Noise Ratio: 90dB
- Efficiency at 4 Ohms: 92%
- Damping Factor: 90
- Input Impedance: 10k Ohms
- Total Harmonic Distortion: 0.5%
- Low-Level Input Range: 400mV to 6V
- High-Level Input: No
- Selectable Crossover: Band-Pass
- High-Pass Filter Range: 10Hz to 2kHz
- Low-Pass Filter Range: 40Hz to 15kHz
- Bass Boost Range: 0 to 12dB
- Bass Boost Frequency: 50Hz
- Phase Selector: No
Construction and Features
- Amplifier Class: Class D
- Amplifier Type: Full-Range Monoblock
- Number of Channels: 1

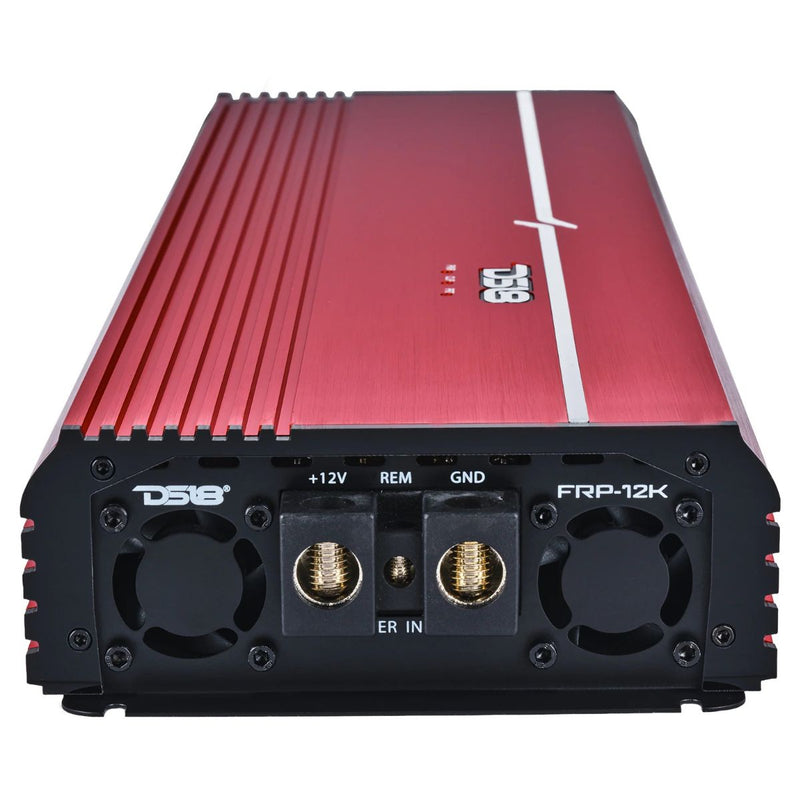

- Power Input Terminal Size: 0 AWG
- Recommended Fuse Size: 1,300A
- Cooling: Three Smart Cooling Fans
- LED Indicators: Power, Protect, Clipping
- Built-In Voltmeter: No
- RCA Terminals: Tiffany
- Control Knobs: Metal with Click Steps

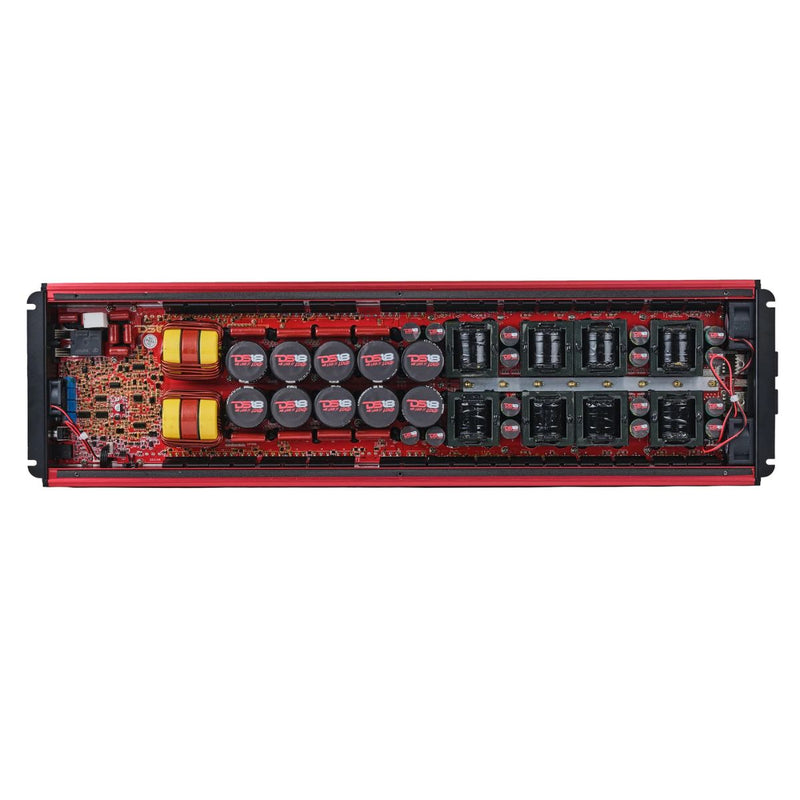

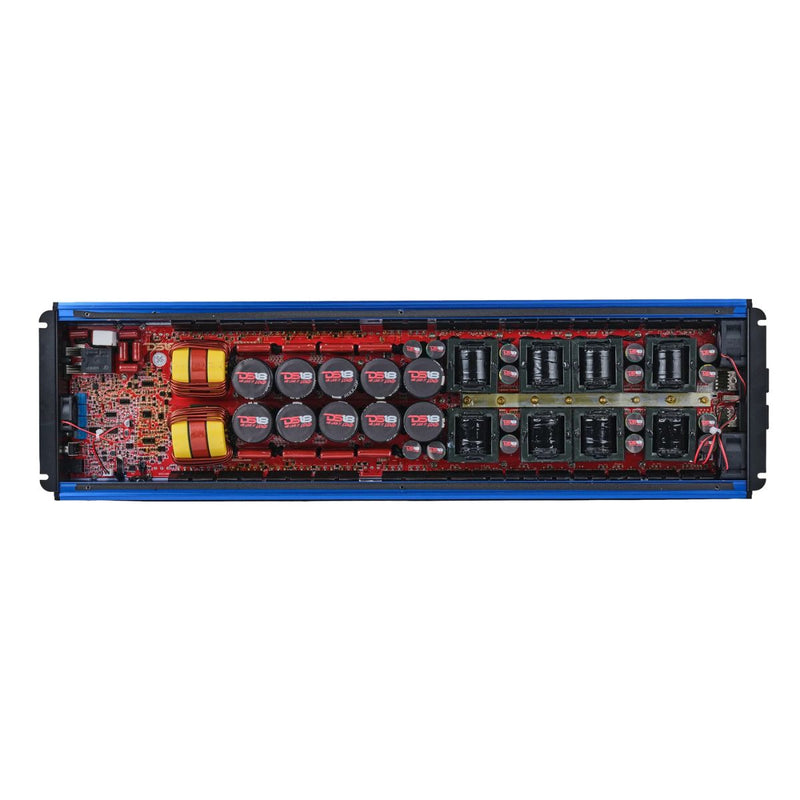

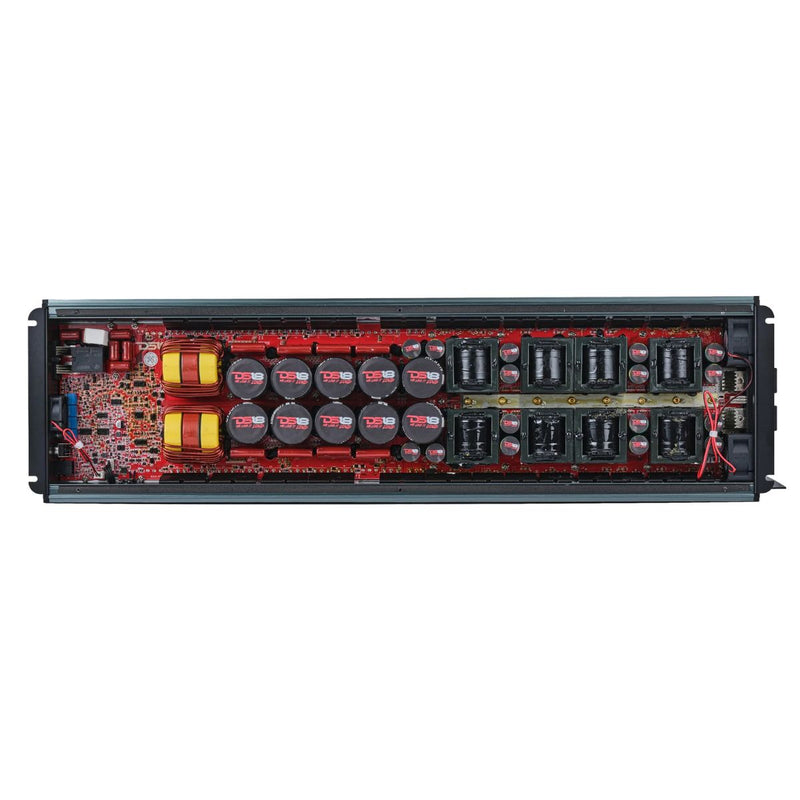

- PCB Design: Four-Layer Traces
- Component Technology: Surface Mount
- Quality Control: Verified Using Audio Precision Instruments
- Protection: Thermal, Overload, DC Output, Short Circuit Output, Voltage Input, Clipping
- Included Remote: Level Control with Clip Indicator
- Optional Remote: Level Control with Clip Indicator and Voltmeter, Sold Separately
Dimensions and Weight
- Overall Length: 24" / 610mm
- Overall Width: 6.5" / 167mm
- Overall Height: 2.4" / 62.5mm
- Heatsink Length: 22.6" / 576mm
- Gross Single Unit Weight: Approximately 16.1 lb / 7.3kg
