- Powerful 12" Midrange Output: The DS18 12XL1500-8 is built to deliver loud, clear midrange performance for custom car audio systems, demo builds, and high-output installs.
- 750W RMS / 1500W MAX Power Handling: Designed for serious power, this XL Series loudspeaker handles 750 watts RMS and 1500 watts max for strong, reliable sound.
- 8-Ohm Impedance: The 8-ohm design makes it a great choice for multi-speaker setups, custom door builds, and pro-style amplifier configurations.
- High-Efficiency 98.7dB Sensitivity: Delivers loud, efficient output with clean vocals, instruments, and midrange detail.
- Built for Demanding Systems: Features a 3.5" Kapton voice coil, 2-layer CCAW winding, non-pressed paper cone, cloth surround, satin black aluminum basket, and 93 oz ferrite magnet.

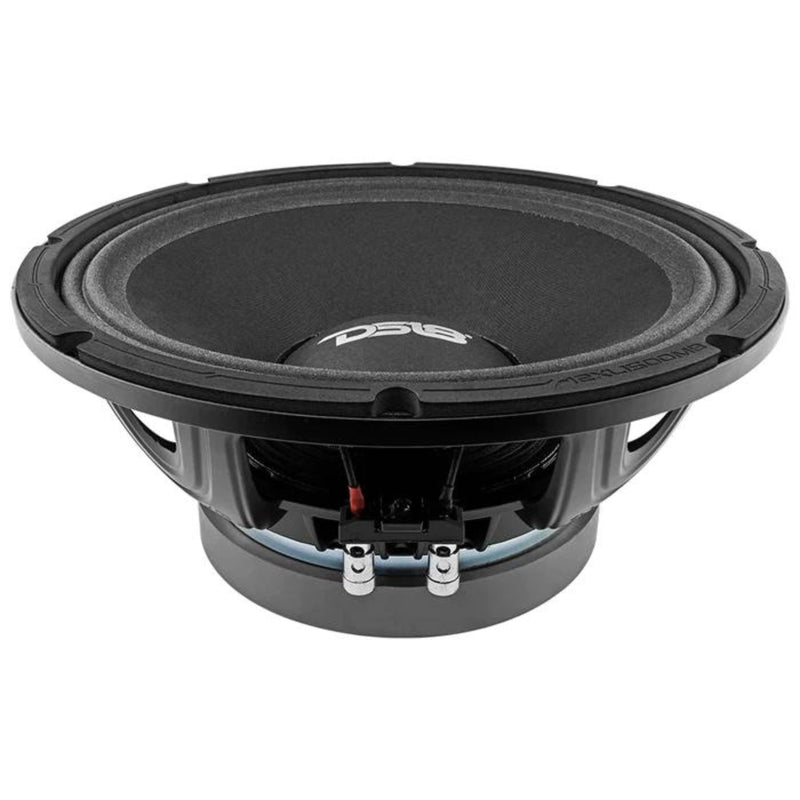

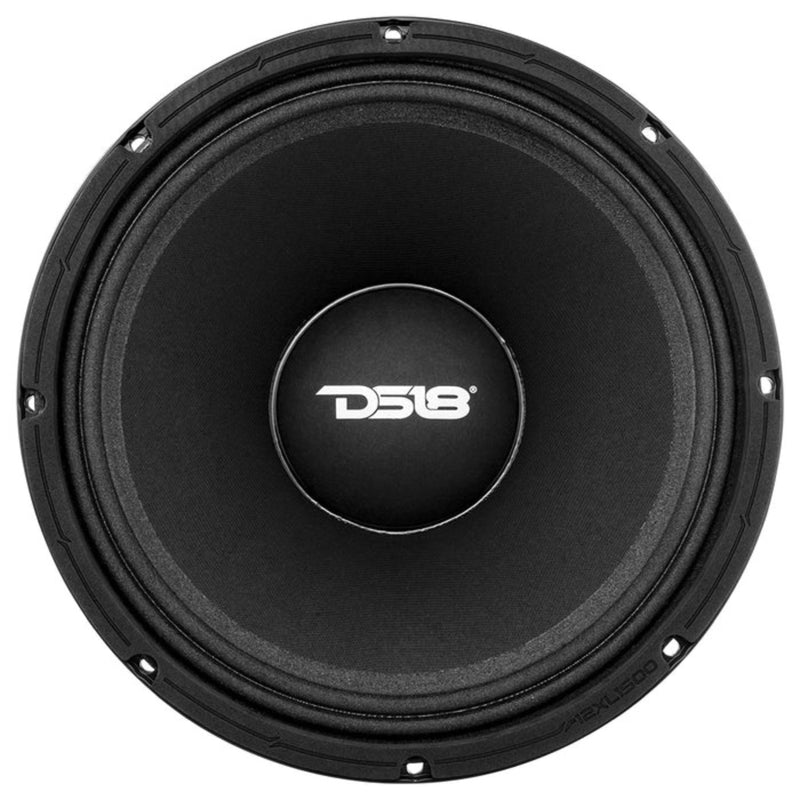

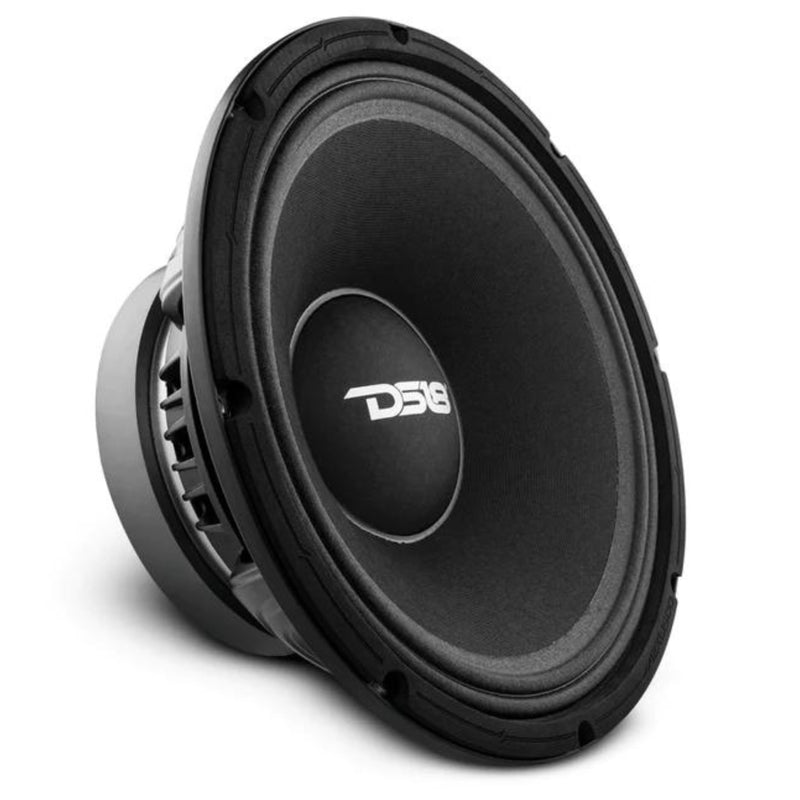

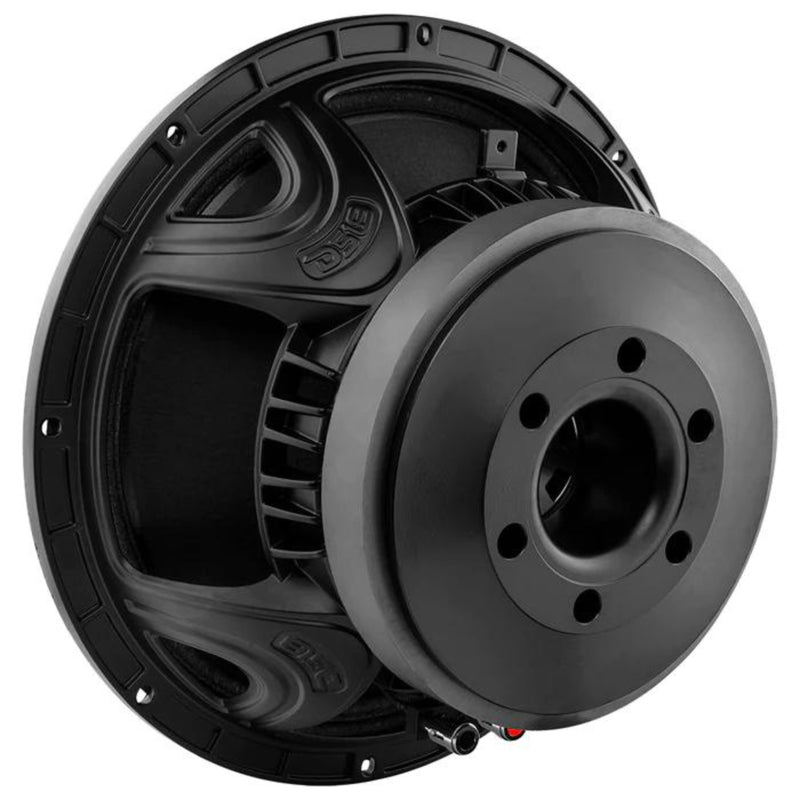

DS18 12" XL Series Mid-Range Loudspeaker 750W RMS 8-Ohm 12XL1500-8
This Listing Includes:
- (1) DS18 12" Loudspeaker 12XL1500-8
The DS18 12XL1500-8 XL 12" Mid-Range Loudspeaker delivers powerful output, clean midrange detail, and the kind of volume serious car audio builds demand. Designed for high-performance systems, this 8-ohm loudspeaker handles 750 watts RMS and 1500 watts max power, giving custom door builds, demo vehicles, and pro-style installs a strong midrange foundation.
With a 98.7dB sensitivity rating and a 45Hz-6.5KHz frequency response, the 12XL1500-8 is built to play loud while keeping vocals, instruments, and midrange detail clear. DS18 recommends a 60Hz high-pass crossover to help protect the speaker and keep output controlled at higher power levels.
The 12XL1500-8 features a 3.5" Kapton voice coil, 2-layer CCAW winding, non-pressed paper cone, cloth surround, satin black aluminum basket, and a 93 oz ferrite magnet. This construction gives the speaker durability, strength, and dependable performance in demanding audio setups.
Built for car audio enthusiasts who want big midrange output without soft little whispers hiding in the door panels, the 12XL1500-8 ย brings serious XL Series energy to your system.
Features
- 12" high-output midrange loudspeaker
- 750 watts RMS power handling
- 1500 watts max power handling
- 8-ohm impedance
- 98.7dB sensitivity for loud, efficient output
- 45Hz-6.5KHz frequency response
- Recommended 60Hz high-pass crossover
- 3.5" Kapton voice coil
- 2-layer CCAW voice coil winding
- Non-pressed paper cone with paper dust cap
- Cloth surround
- Satin black aluminum basket
- 93 oz ferrite magnet
- Sold individually
- Grill not included
Specifications:
- Nominal Diameter: 12" / 305mm
- Nominal Impedance: 8 Ohm
- RMS Power Handling: 750 watts
- MAX Power Handling: 1500 watts
- Sensitivity (1w/1m): 98.7 dB
- Frequency Response: 45Hz-6.5KHz
- Recommended HI Pass Crossover; 60Hz
- Sold in Pair or Single: Single
- Grill Included; No
- Voice Coil Diameter: 3.5" / 89mm
- Voice Coil Former Material: Kapton
- Winding Material: CCAW (2 Layers IN/OUT)
- Cone Material: Non-pressed Paper
- Dust Cap Material: Paper
- Surround Material: Cloth
- Basket Material: Aluminum
- Basket Color/Finish: Satin Black
- Magnet Material: Ferrite
- Magnet Weight: 93 Oz
- Displacement Volume: ย 2.2L / 0.09ft3
THIELE & SMALL PARAMETERS
- Equivalent Volume: 62.7L / 2.21ft3
- Excursion (one way): 4.5mm
- Free Air Resonance: 54Hz
- Mechanical Factor: 6.98
- Electrical Factor: 0.41
- Total Factor: 0.38
- Mechanical Mass: 58.394g
- Mechanical Compliance: 0.16mm/N
- BL Factor: 16.92
- Voice Coil Inductance: 0.12mH
- Cone Area: 526.85cm2
- DC Resistance: 5.8 ohm
- Mechanical Mass w/o air: 60g
Dimensions:
- Overall Diameter: 12.3" / 312mm
- Overall Depth: 5.76" / 146.2mm
- Front Mount Baffle Cutout: 10.9" / 278mm
- Mounting Depth: 5.23" / 133mm
- Motor Diameter: 7.48" / 190mm
