DS18 12" XL Series Mid-Range Loudspeaker 750 Watts Rms 4-Ohm12XL1500-4

SKU DS-12XL1500-4
by DS18
Save 28% Save 28%
Original price $249.95
Original price $249.95 - Original price $249.95
Original price $249.95
Current price $179.96
$179.96 - $179.96
Current price $179.96
Snap Logo Lease for as low as $/week Learn More

Free Gifts when added to Cart

The more you spend, the greater selection of free gifts you'll have at your fingertips when selecting items in your shopping cart!

Spend More, Save More

Big Jeff loves his customers!!!
  • Spend $250, Save 3%
  • Spend $500, Save 5%
  • Spend $1000, Save 10%
  • Spend $1500, Save 11%
  • Spend $2500, Save 12%
  • Spend $5000, Save 15%

*Does not apply to: AudioControl, Sundown, XS power or Kicker products*

*Does not stack with other promotional sales*

This is a Sample Product Title
Was $200.00 Now $100.00
  • 750W RMS and 1500W MAX power handling for an immersive sound experience.
  • 45Hz-6.5KHz frequency response captures music nuances.
  • Massive 93oz ferrite magnet for powerful and accurate bass responses.
  • Satin black aluminum basket enhances aesthetics and provides structural integrity.
  • Crafted with a 3.5" Kapton voice coil and non-pressed paper cone for durability.


DS18 12" XL Series Mid-Range Loudspeaker 750 Watts Rms 4-Ohm12XL1500-4


This Listing Includes:


(1) Mid-Range Loudspeaker 750 Watts

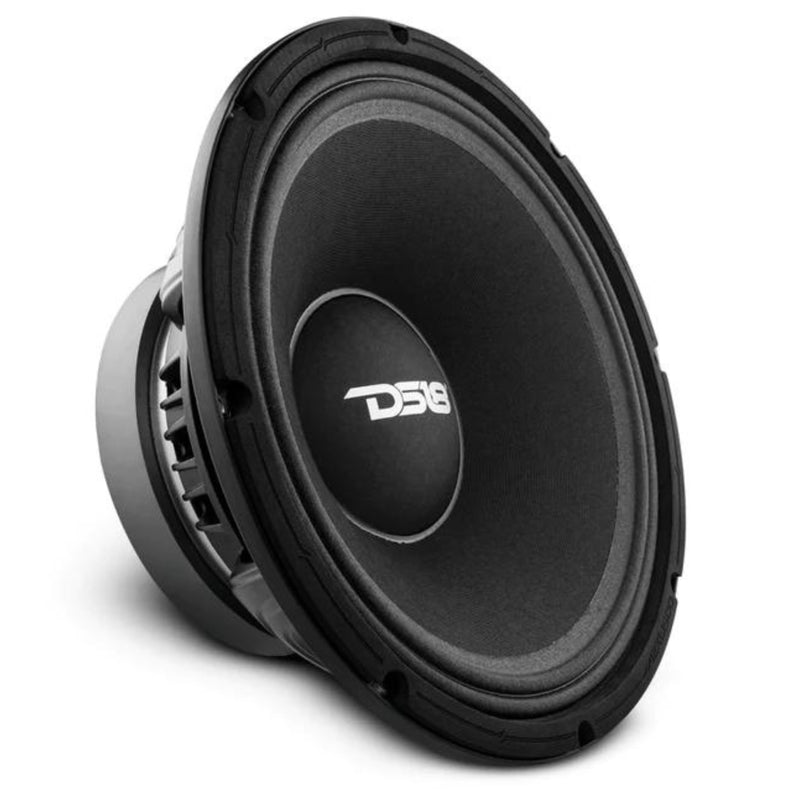

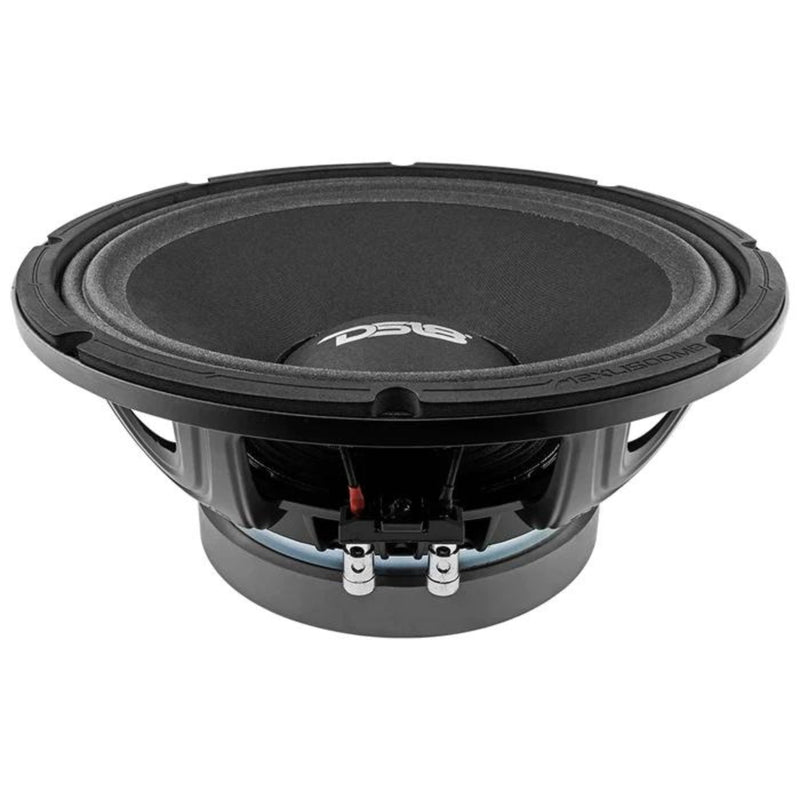

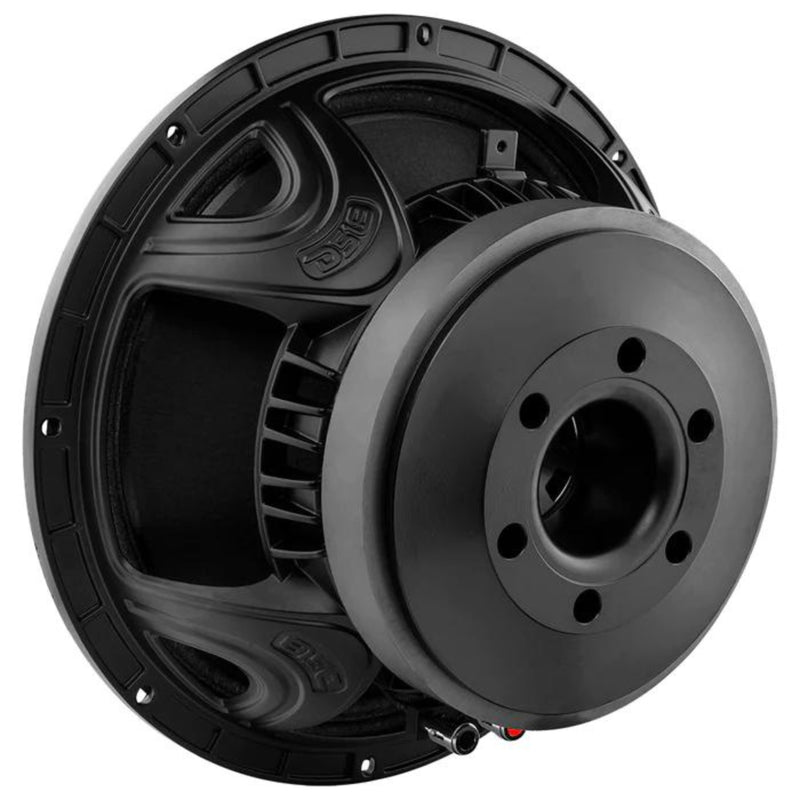

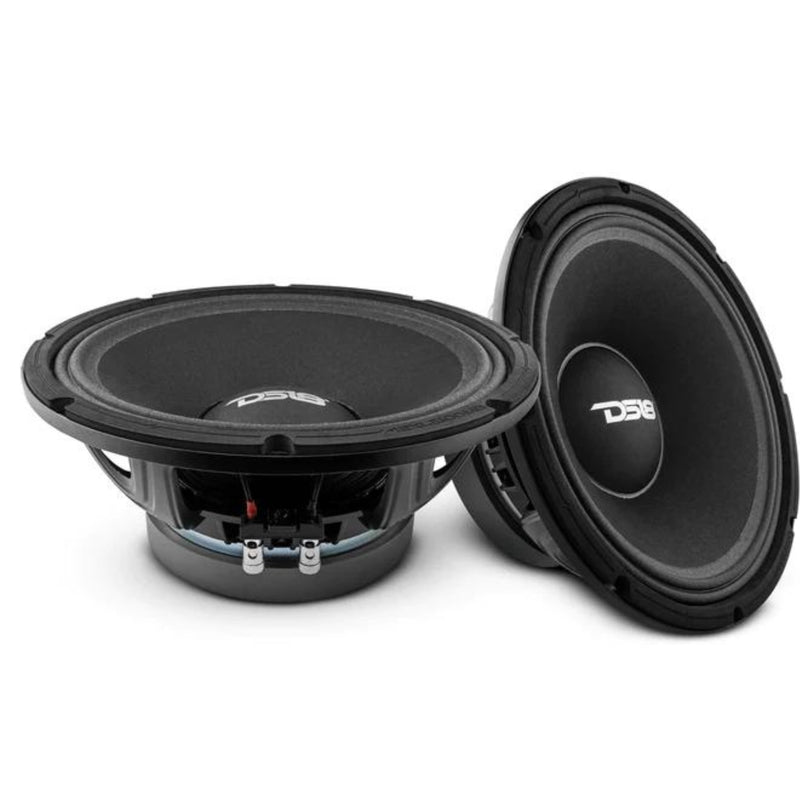

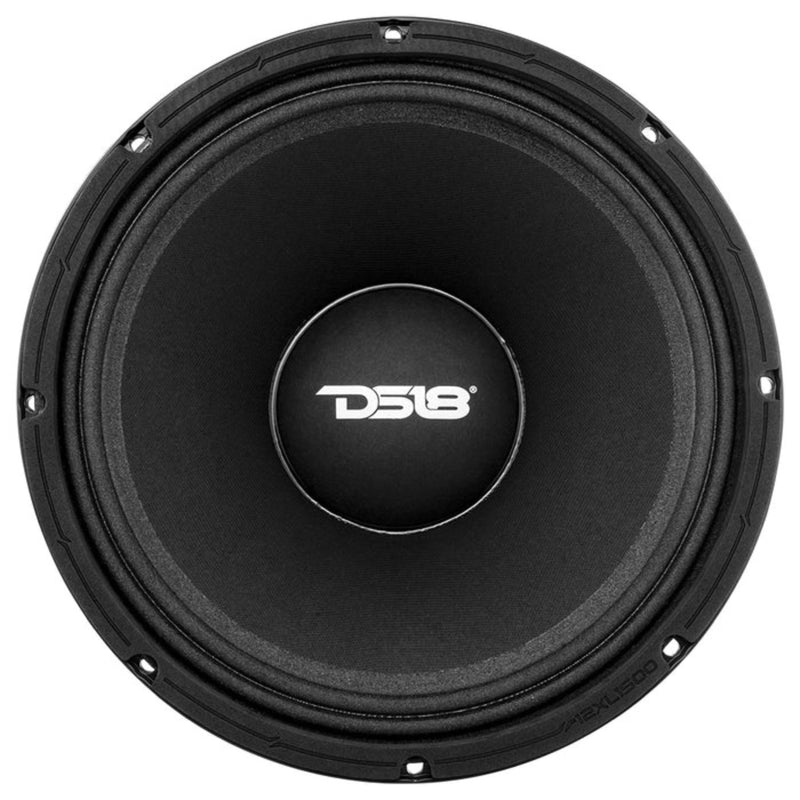

DS18’s 12XL1500-4 revolutionizes your music experience with precision and power. Boasting a 12-inch size, 4-ohm and 750W RMS power, these speakers excel in mid-range competition. Crafted with a 3.5" Kapton voice coil, non-pressed paper cone, and a robust aluminum basket, they deliver durability and optimal sound reproduction. With a massive 93oz ferrite magnet, expect powerful and accurate bass responses. The 45Hz-6.5KHz frequency range ensures nuanced music capture, and a 98.7 dB sensitivity guarantees crystal-clear reproduction, even in large venues.


Specifications:


          12XL1500-4



  • Nominal Diameter: 12" / 305mm

  • Nominal Impedance: 4 Ohm

  • RMS Power Handling: 750 watts

  • MAX Power Handling: 1500 watts

  • Sensitivity (1w/1m): 98.7 dB

  • Frequency Response: 45Hz-6.5KHz

  • Recommended HI Pass Crossover; 60Hz

  • Sold in Pair or Single: Single

  • Grill Included; No


MOTOR



  • Voice Coil Diameter: 3.5" / 89mm

  • Voice Coil Former Material: Kapton

  • Winding Material: CCAW (2 Layers IN/OUT)

  • Cone Material: Non-pressed Paper

  • Dust Cap Material: Paper

  • Surround Material: Cloth

  • Basket Material: Aluminum

  • Basket Color/Finish:Satin Black

  • Magnet MaterialL: Ferrite

  • Magnet Weight: 93 Oz

  • Displacement Volume:  2.2L / 0.09ft3


THIELE & SMALL PARAMETERS



  • Equivalent Volume: 62.7L / 2.21ft3

  • Excursion (one way): 4.5mm

  • Free Air Resonance: 54Hz

  • Mechanical Factor: 6.98

  • Electrical Factor: 0.41

  • Total Factor: 0.38

  • Mechanical Mass: 58.394g

  • Mechanical Compliance: 0.16mm/N

  • BL Factor: 16.92

  • Voice Coil Inductance: 0.12mH

  • Cone Area: 526.85cm2

  • DC Resistance: 3.6 ohm

  • Mechanical Mass w/o air: 60g

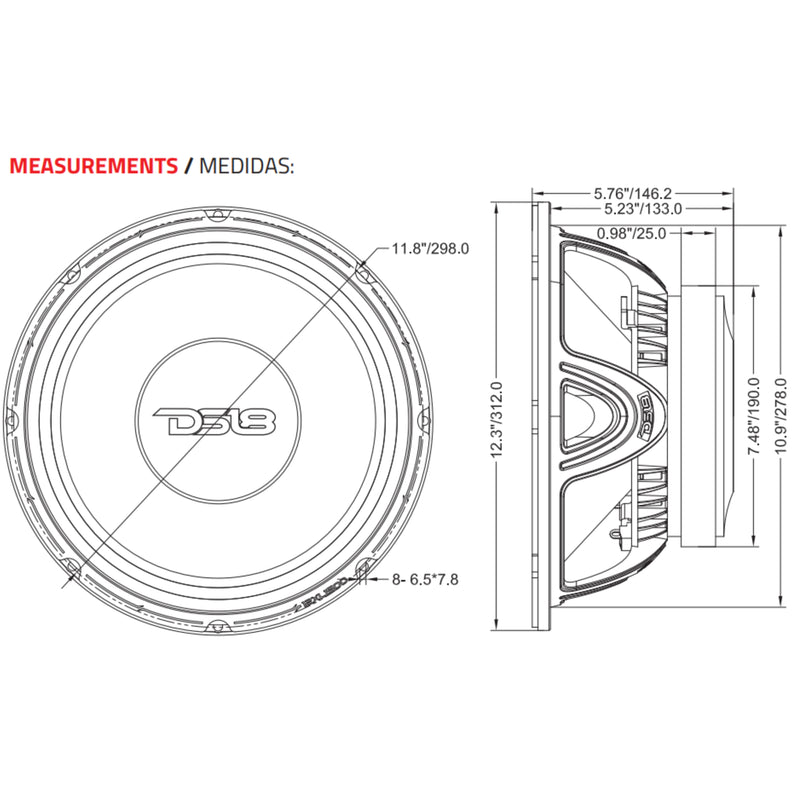

MEASUREMENT


Overall Diameter: 12.3" / 312mm


Overall Depth: 5.76" / 146.2mm


Front Mount Baffle Cutout: 10.9" / 278mm


Mounting Depth: 5.23" / 133mm


Motor Diameter: 7.48" / 190mm
