DS18 12" XL Series Mid-Bass Loudspeaker 750 Watts Rms 4-Ohm 12XL1500MB-4

• DS18 12XL1500MB-4: Power and precision in a 12-inch mid-bass loudspeaker.
• 750W RMS and 1500W MAX power handling for an immersive sound experience.
• Crafted with a 3.5" Kapton voice coil and non-pressed paper cone for enhanced durability.
• Massive 93oz ferrite magnet for powerful and accurate bass responses.
• Satin black aluminum basket enhances aesthetics and provides structural integrity.

DS18 12" XL Series Mid-Bass Loudspeaker 750 Watts Rms 4-Ohm 12XL1500MB-4

This Listing Includes:

(1) Mid-Bass Loudspeaker 750 Watts Rms

DS18’s 12XL1500MB-4 redefines music enjoyment with unparalleled power and precision. This 12-inch mid-bass loudspeaker, available in 4-ohm and 8-ohm options, guarantees compatibility across audio systems. Boasting 750W RMS and 1500W MAX power, it delivers a captivating sound experience with a frequency response of 40Hz-3KHz, ensuring a nuanced rendition of your favorite genres. Crafted with a 3.5" Kapton voice coil, non-pressed paper cone, and a satin black aluminum basket, this speaker exudes durability and optimal sound reproduction. The massive 93oz ferrite magnet ensures powerful and accurate bass responses that will leave you in awe.

SPECS:

• SKU: 12XL1500MB-4


• Nominal Diameter: 12" / 305mm


• Nominal Impedance: 4 Ohm


• RMS Power Handling: 750 watts


• MAX Power Handling: 1500 watts


• Sensitivity (1w/1m): 98.5 dB


• Frequency Response: 40Hz-3KHz


• Recommended HI Pass Crossover: 60Hz


• Sold in Pair or Single: Single


• Grill Included: No

MOTOR:

• Voice Coil Diameter: 3.5" / 89mm


• Voice Coil Former Material: Kapton


• Winding Material: CCAW (2 Layers IN/OUT)


• Cone Material: Non-pressed Paper


• Dust Cap Material: Paper


• Bullet Material: N/A


• Bullet Color/Finish: N/A


• Surround Material: Cloth


• Basket Material: Aluminum


• Basket Color/Finish: Satin Black


• Magnet Material: Ferrite


• Magnet Weight: 93 Oz


• Displacement Volume: 2.2L / 0.09ft3

THIELE & SMALL PARAMETERS:

• Equivalent Volume: 55.8L / 1.97ft3


• Excursion (one way): 4.5mm


• Free Air Resonance: 55Hz


• Mechanical Factor: 8.92


• Electrical Factor: 0.44


• Total Factor: 0.41


• Mechanical Mass: 56g


• Mechanical Compliance: 0.14mm/N


• BL Factor: 17.23


• Voice Coil Inductance: 0.90mH


• Cone Area: 526.85cm2


• DC Resistance: 5.8 ohm


• Mechanical Mass w/o air: 57g

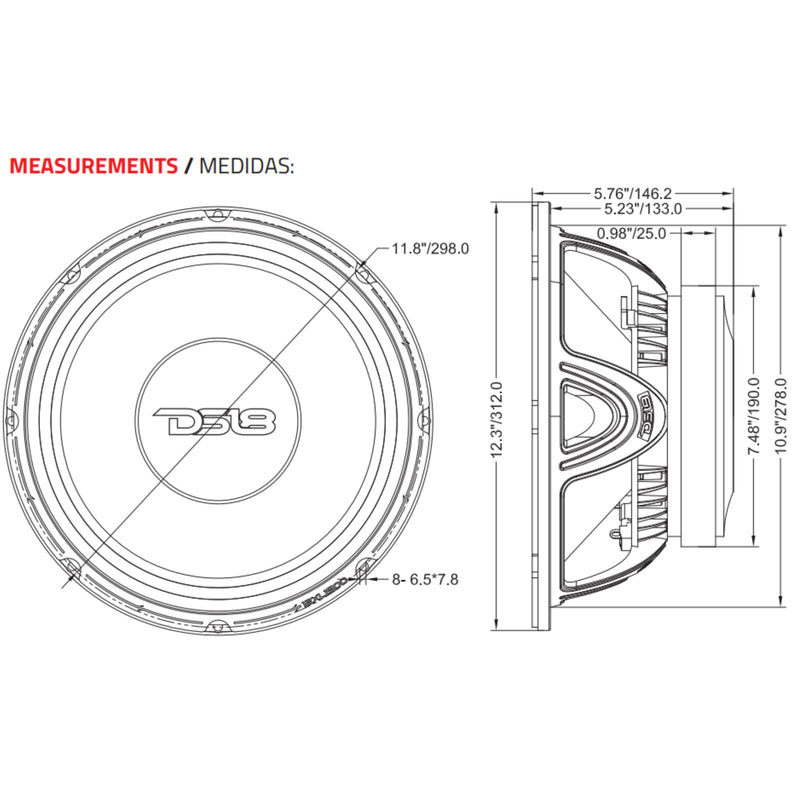

MEASUREMENT:

• Overall Diameter: 12.3" / 312mm


• Overall Depth: 5.76" / 146.2mm


• Front Mount Baffle Cutout: 10.9" / 278mm


• Mounting Depth: 5.23" / 133mm


• Motor Diameter: 7.48" / 190mm
