DS18 12" Subwoofer Ported Box w/ 1 CH Amp & 4 GA Amp Kit Car Audio Bass Package

DS18 12" Subwoofer Ported Box w/ 1 CH Amp & 4 GA Amp Kit Car Audio Bass Package

If you are looking for that perfect bass box, subwoofer, and amp combo but are overwhelmed with all the options? DS18 has made it easy with this loaded subwoofer combo, the ZR112LD, combined with our ZR1000.1D and easy to use 4 gauge installation kit! This is a prefabricated box that comes with one of our best selling subwoofers. Included is a beautiful carpeted box with DS18 designs tuned to 29 hz. The box is constructed of thick 3/4 MDF for great sound and acoustical resonance. The subwoofer included is the very popular ZR12.2D that is a dual voice coil 2 ohm subwoofer wired in parallel for a final nominal impedance of 1 ohm that will require 800 W RMS and 1600 W MAX. This loaded box is a great solution to hard hitting heavy bass for all to enjoy. To power this combo, we use the ZR1000.1D amplifier that pushes out 1000 watts RMS in this configuration maximizing your box and subwoofers full potential. The included AMPKIT4 includes everything you need to install the amplifier!

This Listing Includes:

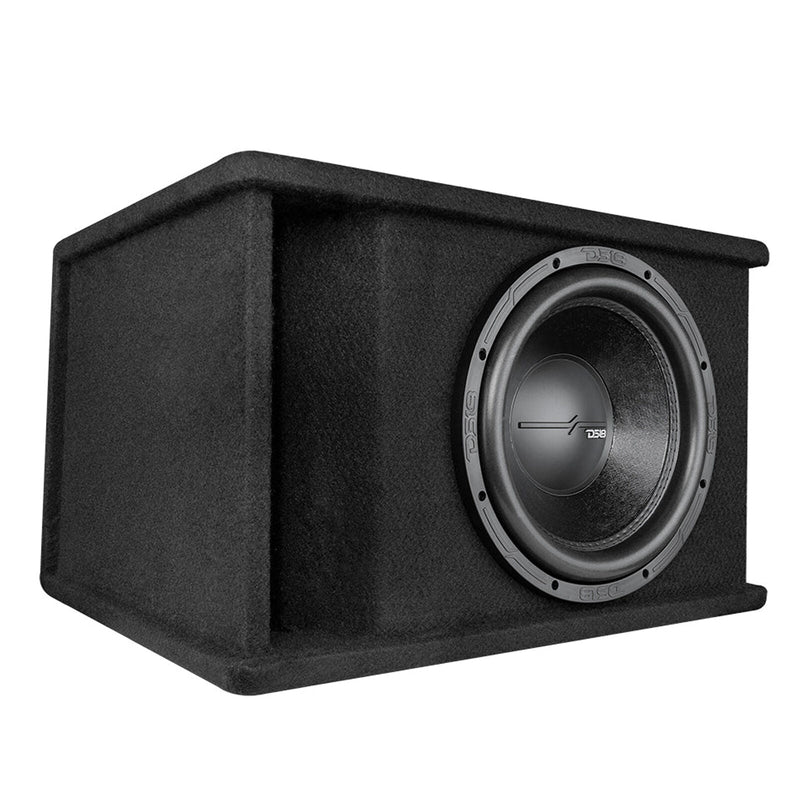

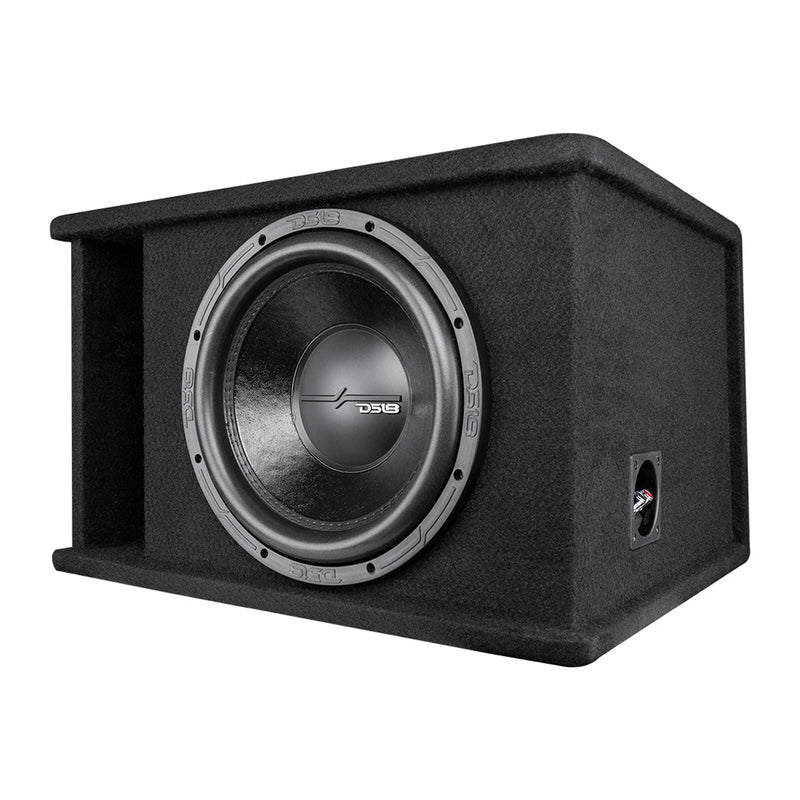

(1) ZR112LD Bass Package 1 x ZR12D2 12" Subwoofers In a Ported Box

(1) ZR1000.1D Class D 1-Channel Monoblock Amplifier

(1) AMPKIT4 4-GA Amplifier Installation Kit

FEATURES:

-The box is constructed of thick 3/4 inch MDF for great strength, resonance, and tuned to 29hz for low and hard hitting bass.

-One ZR12.2D 12 inch subwoofer that will give you the cone area to push out great sounding bass without a lot of power requirements.

-ZR1000.1D amplifier producing 1000 watts RMS that will maximize your bass output to the fullest. ZR112LD Subwoofer In a Ported Box

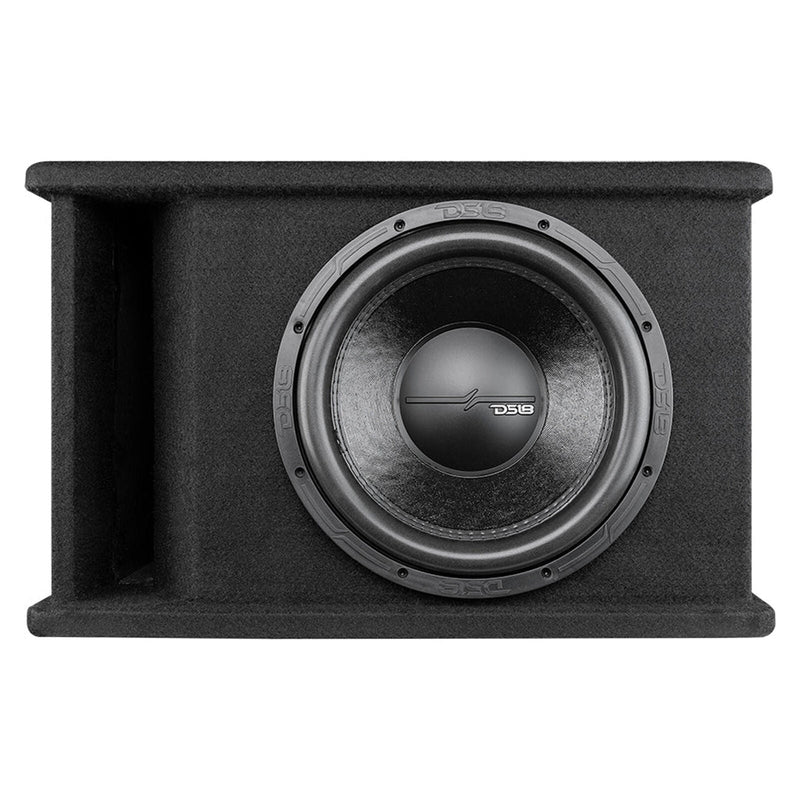

*ZR112LD Subwoofer In a Ported Box*

SPECIFICATIONS:

Total Impedance: 1 ohm

Total RMS Power Handling: 800w

Total MAX Power Handling: 1600w

Sensitivity (1w/1m): 84 db

Frequency Response: 20-200 Hz

Recommended Lo Pass Crossover: 70Hz

MOTOR:

Voice Coil Diameter: 2.5"

Voice Coil Former Material: Aluminum

Winding Material: Copper

Cone Material: Non-Pressed Paper

Dust Cap Material: PPI

Surround Material: Foam

Basket Material: Steel

Magnet Material: Ferrite

Magnet Weight: 100 Oz

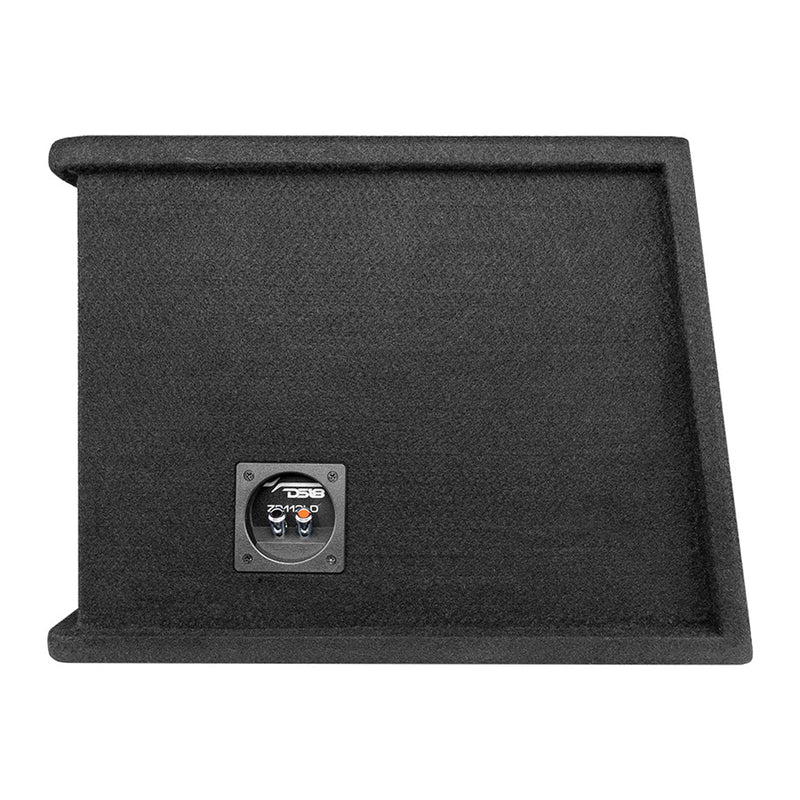

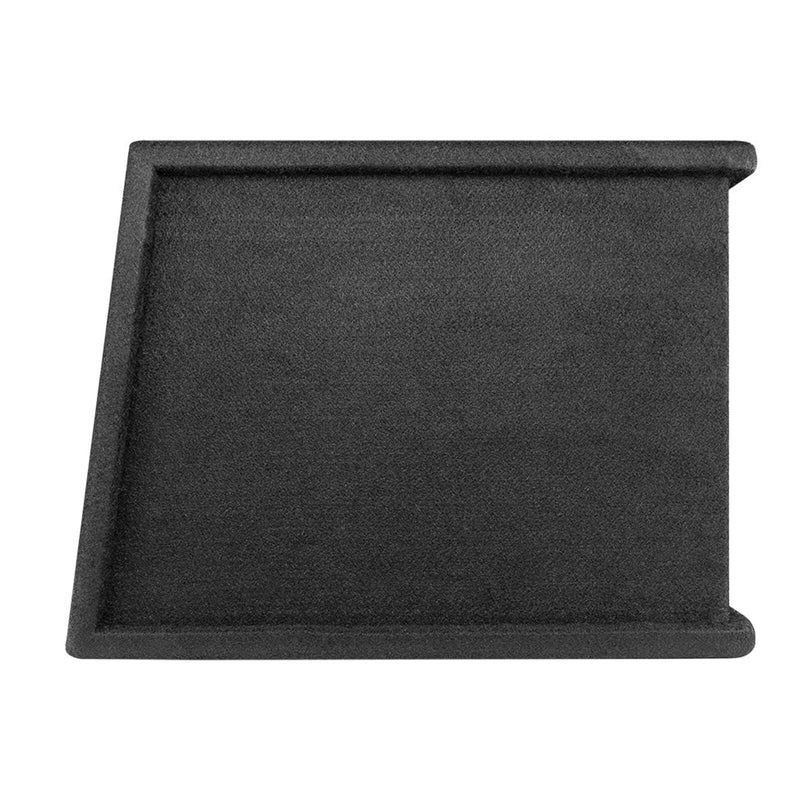

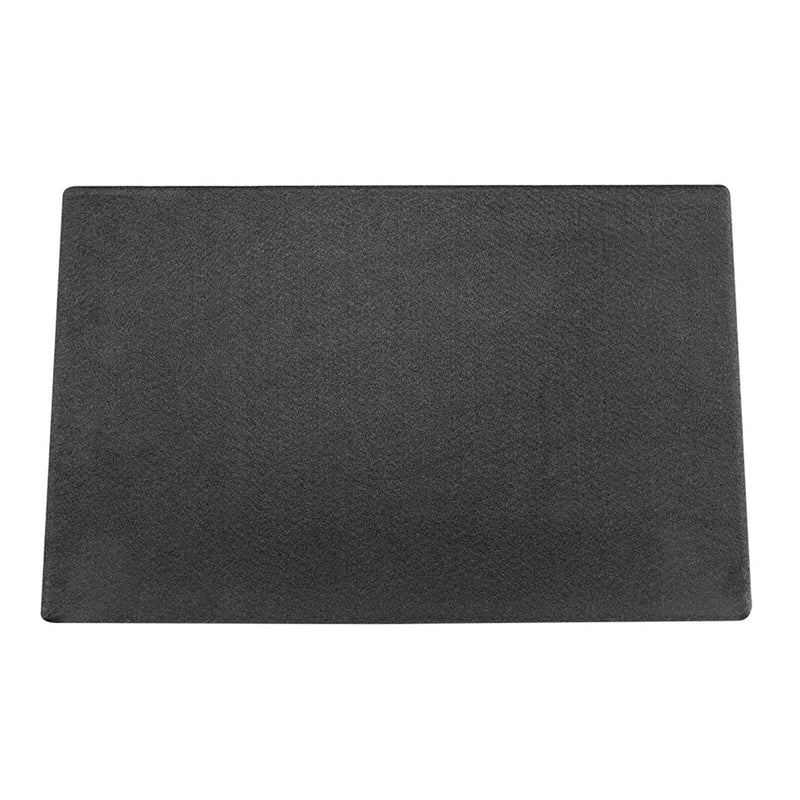

BOX SPECIFICATIONS:

Internal Volume: 79.3L / 2.8 ft3

Port Tune: 29 Hz

Load Configuration: Ported Box

Box Type: Single 12"

Box Material: 3/4" (19mm) MDF

Finish Material: Black Carpet

Logo: Red Stitched

-3Db Dropping Point: 24 Hz

DIMENSIONS:

Height: 14.48"

Width: 23.14"

Depth 1: 17.71"

Depth 2: 19.68"

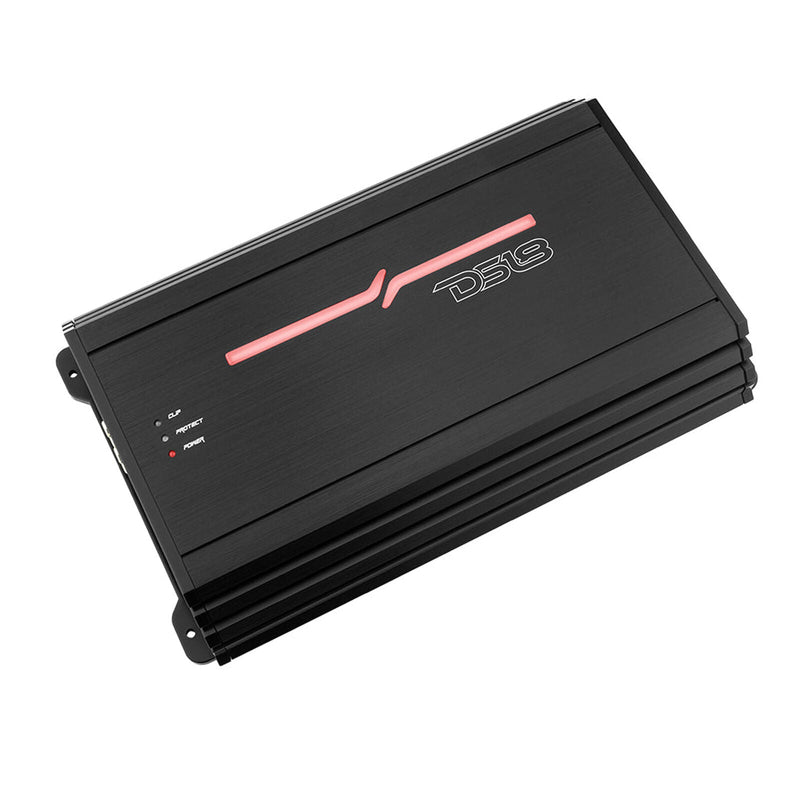

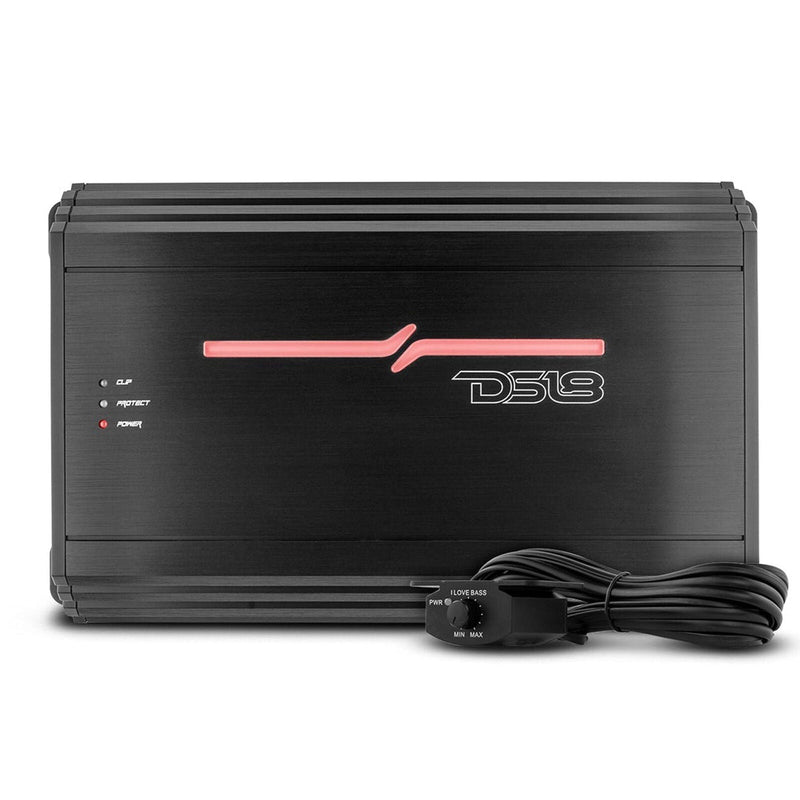

*ZR1000.1D Monoblock Amplifier*

POWER:

Total Watts (Peak): 3000W

RMS Power @ 4 ohm: 380W

RMS Power @ 2 ohm: 650W

RMS Power @ 1 ohm: 1000W

AUDIO:

Frequency Response:10-220Hz

Signal to Noise Ratio: Greater than 95dB

Efficiency @ 4ohm: 80%

Damping Factor: 220

Input Impedance: 20K ohm

Channel Separation: N/A

Total Harmonic Distortion (THD): 0.01%

Low Level Input Range: 0.2-6V4

FEATURES:

Amplifier Class: Digital

Amplifier Type: Monoblock Subwoofer

Number of Channels: 1

Minimum Impedance: 1 ohm

Led Indicator: clipping/protect/power

Power Input Terminal Size: 4ga

Fuse Size: 100A

DIMENSIONS:

Overall Length: 11.8"

Overall Wide: 7.24"

Overall Height: 2"

Heatsink Length : 10.47"

Gross Single Unit Weight: 5.8 lb.

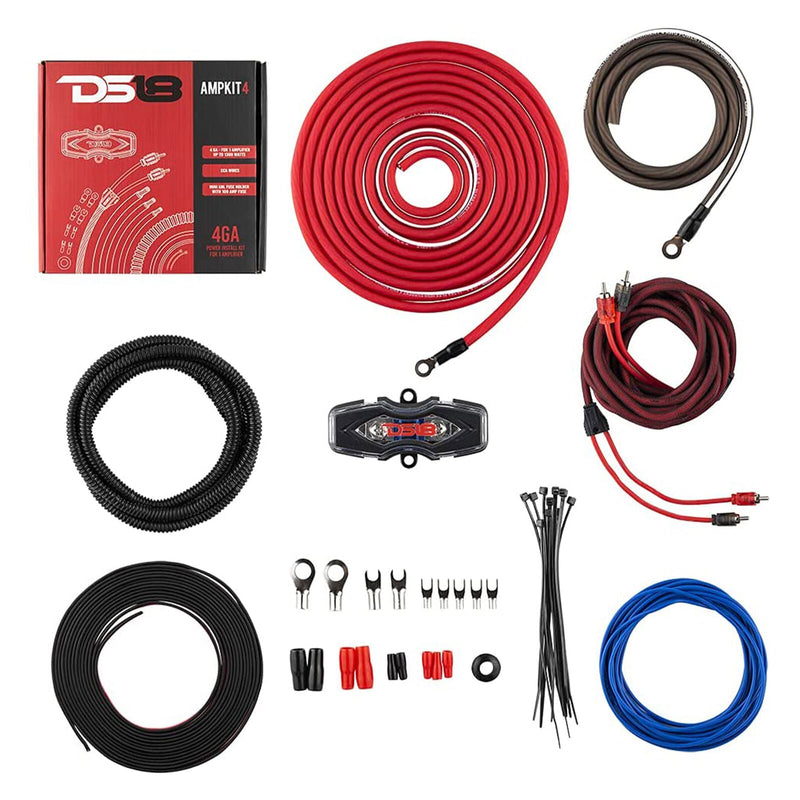

*AMPKIT4*

Includes:

-ANL fuse holder with ANL-100A

-6 ft. 4-GA Loom Tube

-Rubber Grommet

-17 ft. Red Power Cable: 21mm OD: 10mm

-3 ft. Black Ground Cable: 21mm OD:10mm

-17 ft. Red/Black Twisted RCA Cable

-17 ft. Remote Cable 20 x 0.15mm

-17 ft. Red/Black Speaker Cable 1.31mm x 2 wires OD 3.2 x 6.4mm
