DS18 12" Shallow Subwoofer Bass Package 700 Watts 2 Ohm with Built In Amplifier

DS18 12" Shallow Subwoofer Bass Package 700 Watts 2 Ohm with Built In Amplifier

Some audio enthusiasts do not have a lot of room for big subs, for example, in single cab trucks or small cars. Now we have a solution for people craving great bass but do not have much space for it! This DS18 SB12A is a slim 12 inch subwoofer in a sealed box that is powered by a powerful, built in 350w RMS, 700w MAX amplifier that is sure to get the bass thumping hard in the minimal space that you have available available in your vehicle. Only " high for a wide variety of applications.

This Listing Includes:

(1) DS18 Subwoofer Bass Package SB12A

FEATURES:

-Strong slim 12 inch sub that will bring earth pounding bass where there is not much space

-Compact sealed box made of .6 inch MDF with included built in 350w RMS 700w max high power amplifier

-Easy to hook up and integrate with any system with the use of high level inputs or RCA jacks, whichever is easiest for you

BOX SPECIFICATIONS:

Internal Volume: 16L / 0.56ft3

Load Configuration: Parallel In

Box Type: Sealed Box

Box Material: 0.59" MDF

Finish Material: Non-Woven fabric

(-3dB) Dropping Point: 45Hz

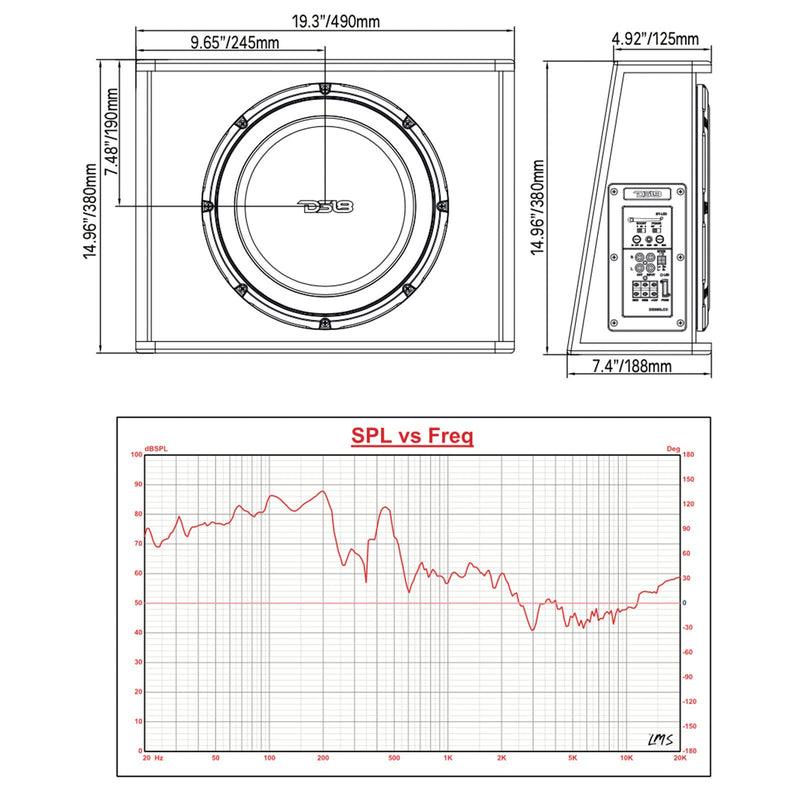

MEASUREMENTS:

Height: 14.96" / 380mm

Width: 19.3" / 490mm

Depth 1: 4.92" / 125mm

Depth 2: 7.4" / 188mm

SPECIFICATIONS:

Speaker Size: 12" / 312mm

Total Impedance: 2 ohms

RMS Power Handling: 350W

MAX Power Handling: 700W

Sensitivity (1w/1m): 87dB

Frequency Response: 30-250Hz

MOTOR:

Voice Coil Diameter: 1.75" / 44.43mm

Voice Coil Former Material: Aluminum

Winding Material: EISV

Cone Material: IPP

Surround Material: Rubber

Basket Material: SPCC

Magnet Material: Ferrite

Magnet Weight: 50 Oz

AMPLIFIER:

Amplifier Class: Digital

Amplifier Type: Monoblock Subwoofer

Number of Channels:1 CH

Minimum Impedance: 2 Ohms

Signal to Noise Ratio: 75 dB

Efficiency @ 4 ohms: 75%

Total Harmonic Distortion (T.H.D): 0.30%

Low Level Input Range: 0.1-0.6 V

High Level Input Range: Yes

Selectable X-Over: LPF Fixed

X-Over Filter Range: 51 - 200 Hz

Bass Boost Range: 0-6 dB

Bass Boost Frequency: 50Hz

Phase Selector: 0-180

Led Indicator: Power - Protection

Power Input Terminal Size: 8 GA

Fuse Size: 30 A

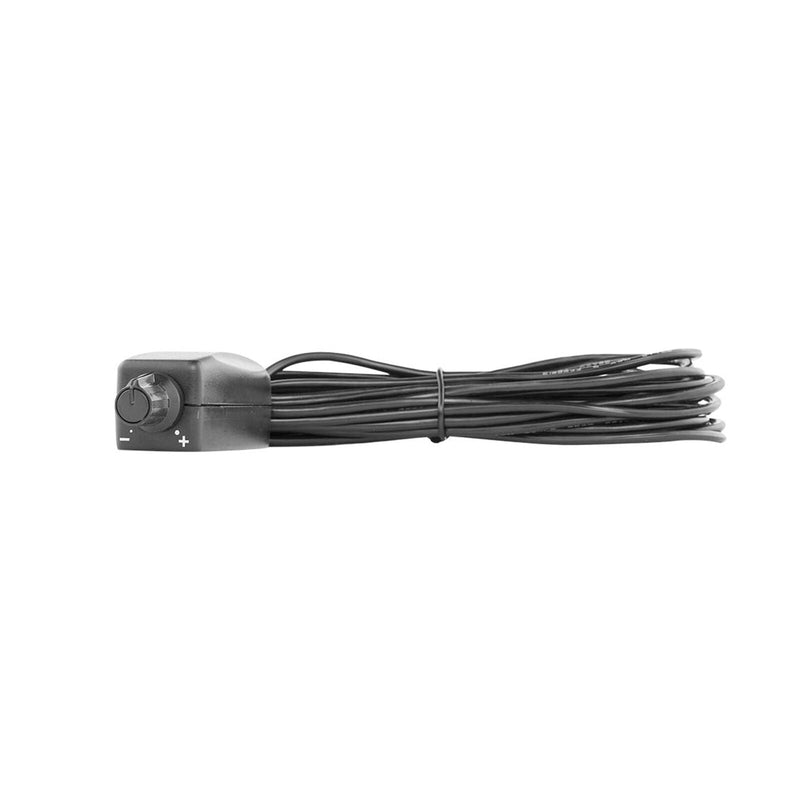

Remote Level Control: Yes

Thermal Protection: Yes (75C / 167F)

Over-Load Protection: Yes

DC Output Protection: Yes

Short Circuit Output Protection: Yes
