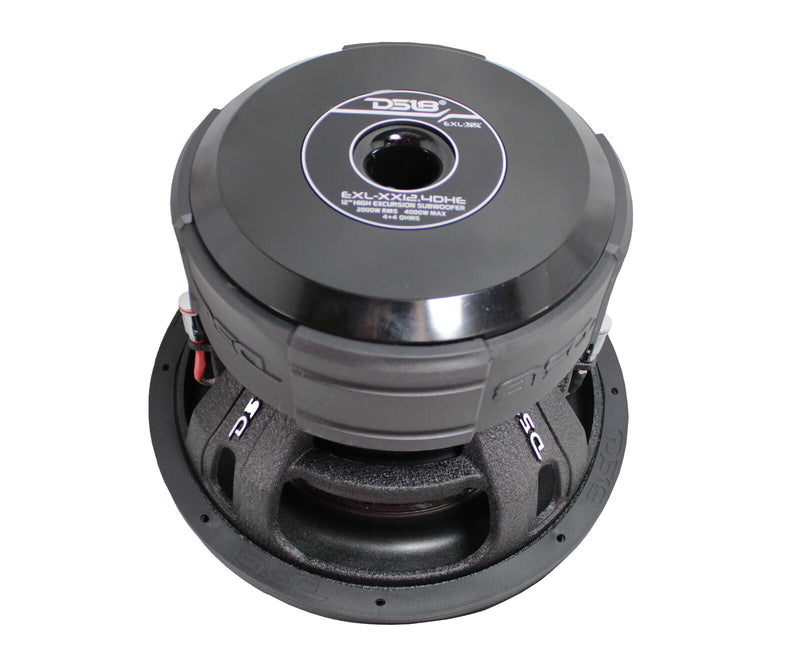

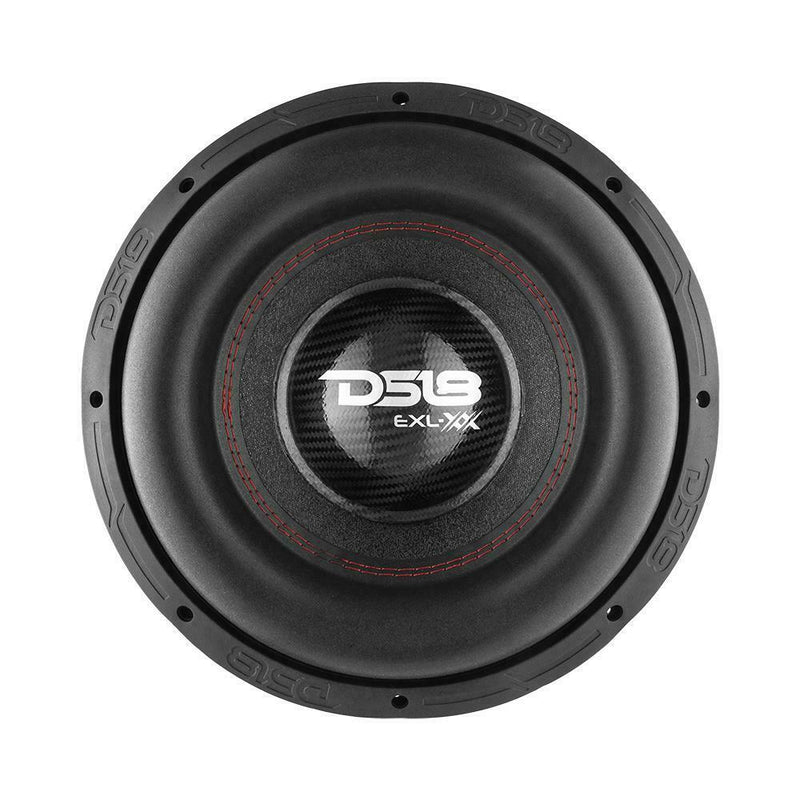

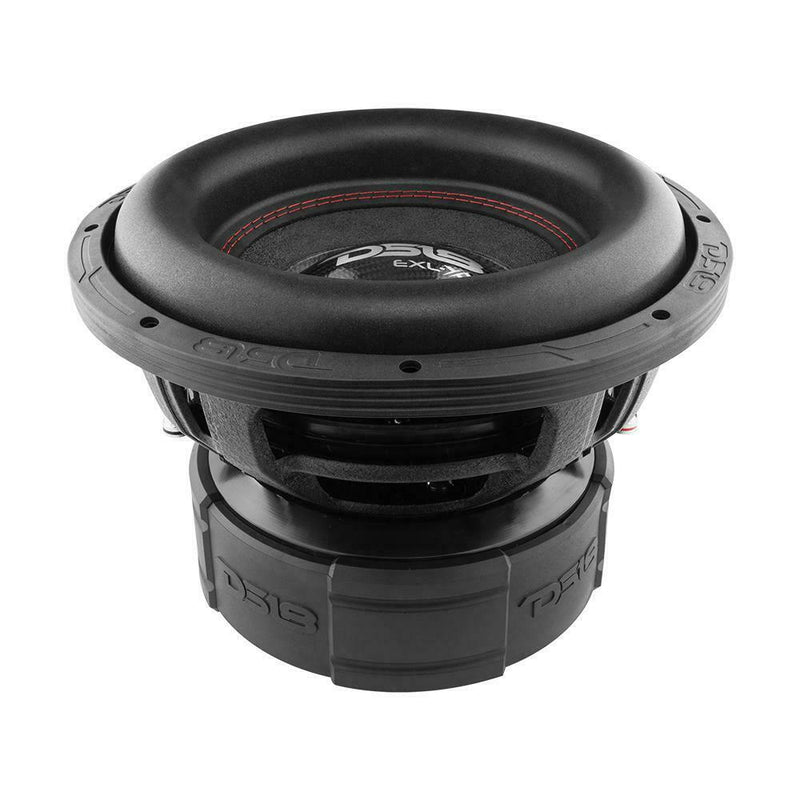

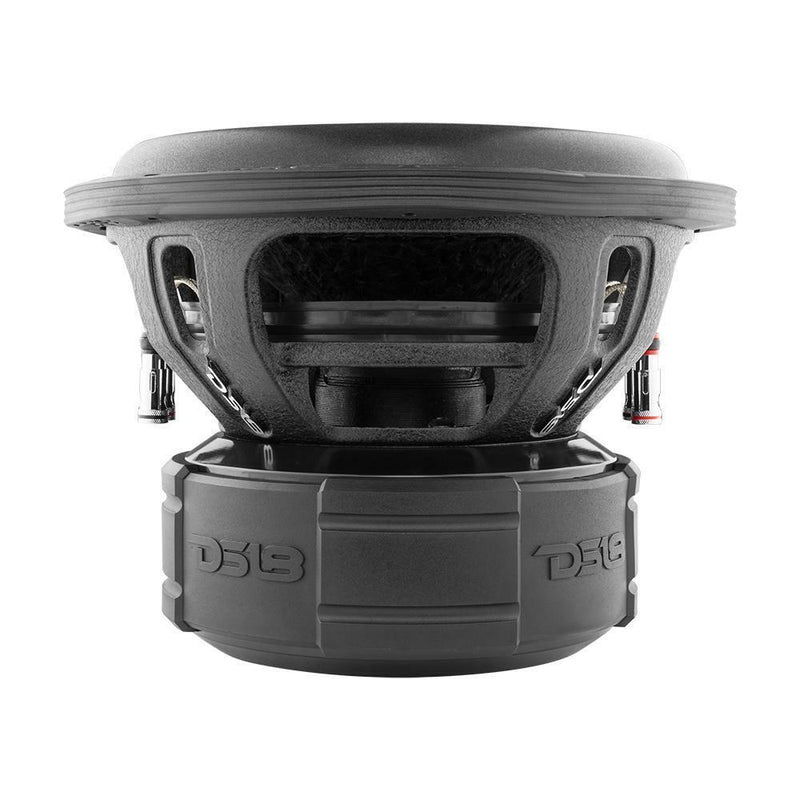

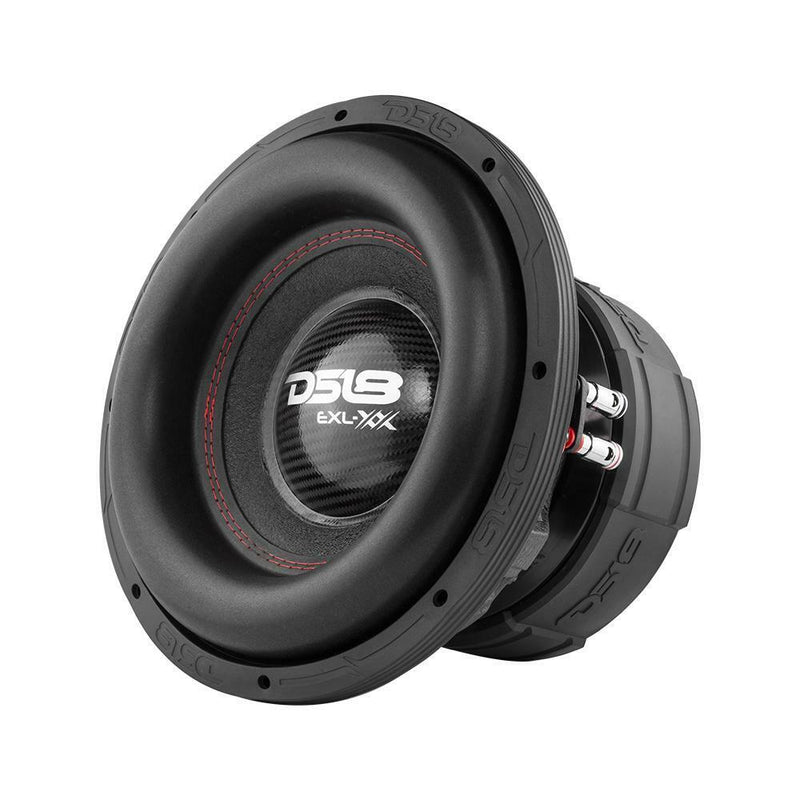

DS18 12" 4000 Watts High Excursion Subwoofer Dual Voice Coil 4-Ohm EXL-XX12.4DHE

DS18 12" 4000 Watts High Excursion Subwoofer Dual Voice Coil 4-Ohm EXL-XX12.4DHE



High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point.  The EXL-XX12.4DHE is the answer to that. This subwoofer is a high tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with.

Also, with a power rating of 2000w RMS and 4000w Max, with the right power this sub will have increased excursion, decibels, and loudness altogether for a real competition bass experience. DS18 stands out from other brands with  progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market.



This Listing Includes:

(1) Subwoofer



Features:

-High Excursion surround for a very high amount of xmax.

-Great power handling of 2000w RMS and 4000w max.

-Three inch black aluminum voice coil for high power handling and great efficiency.

-FS of 39 hz so you can easily dip in the subsonic range with no issues along as your box is tuned accordingly.



Specifications:

Nominal Impedance: 4+4 ohms

Power Handling:4000W Max

Power Handling: 2000W RMS

Sensitivity (1w/1m): 87 dB

Frequency Response: 20-1.3KHz

Recommended Lo Pass Crossover: 80 Hz



Motor Specifications:

VC Diameter: 3"

VC Former Material: Black Aluminum

Winding Material: CCAW

Cone Material: Paper

Dust Cap Material: Glass Fiber

Surround Material: Foam

Basket Material: Aluminum

Basket Color/Finish: Black

Magnet Material:Ferrite

Magnet Weight: 306 Oz

Displacement Volume: 3.26L



Thiele & Small Parameters Specifications:

Equivilant Vol :Vas 20.738L

Excursion (one way): Xmax 42 mm

Free Air Resonance: Fs  41.3 Hz

Mechanical Factor: Qms 4.525

Electrical Factor: Qes 0.511

Total Factor: Qts 0.459

Moving Mass: Mms 285.433g

Compliance: Cms 0.026mm/N

Bl Factor: BL 17.166

VC Inductance: Le 9.8mH

Diaphragm Area:  Sd  433.74cm2

Dc Resistance: Re 3.6+3.6 ohms

Efficiency Bandwidth Product: EBP 80.8



Dimensions:

Nominal Diameter:12"

Overall Diameter :12.63" / 321mm

Overall Depth: 9.25" / 235mm

Front Mount Baffle Cutout: 11.1" / 282mm

Mounting Depth: 7.87" / 200mm

Motor Diameter: 8.89"/ 226 mm
