- 12" High Excursion Subwoofer: The DS18 EXL-XX12.2DHE is built for powerful car audio bass systems that need serious cone movement, deep low-frequency response, and high-output performance.
- 2000W RMS / 4000W MAX Power: Designed to handle extreme power with a massive ferrite motor structure, making it ideal for bassheads, SPL builds, and custom car audio systems.
- Dual 2-Ohm 3" Voice Coil: Features a large 3-inch black aluminum voice coil with a dual 2-ohm configuration for flexible amplifier wiring options.
- Massive 306 oz Ferrite Magnet: Engineered with a heavy-duty motor system to help control cone movement and deliver loud, accurate, hard-hitting bass.
- Built for Extreme Bass Builds: Paper cone, glass fiber dust cap, foam surround, and black aluminum basket provide the strength and control needed for high-excursion performance.

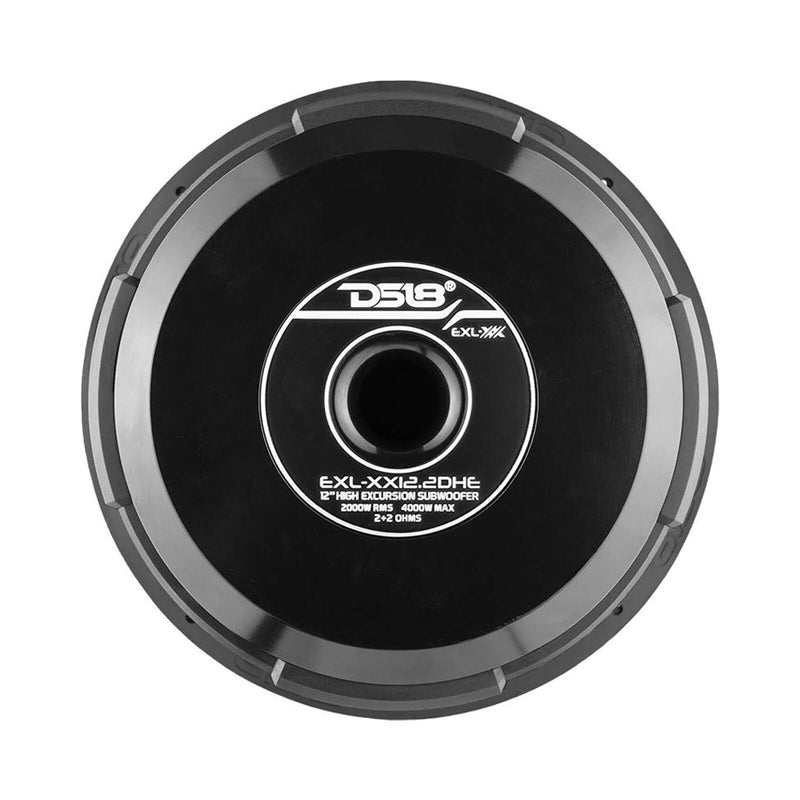

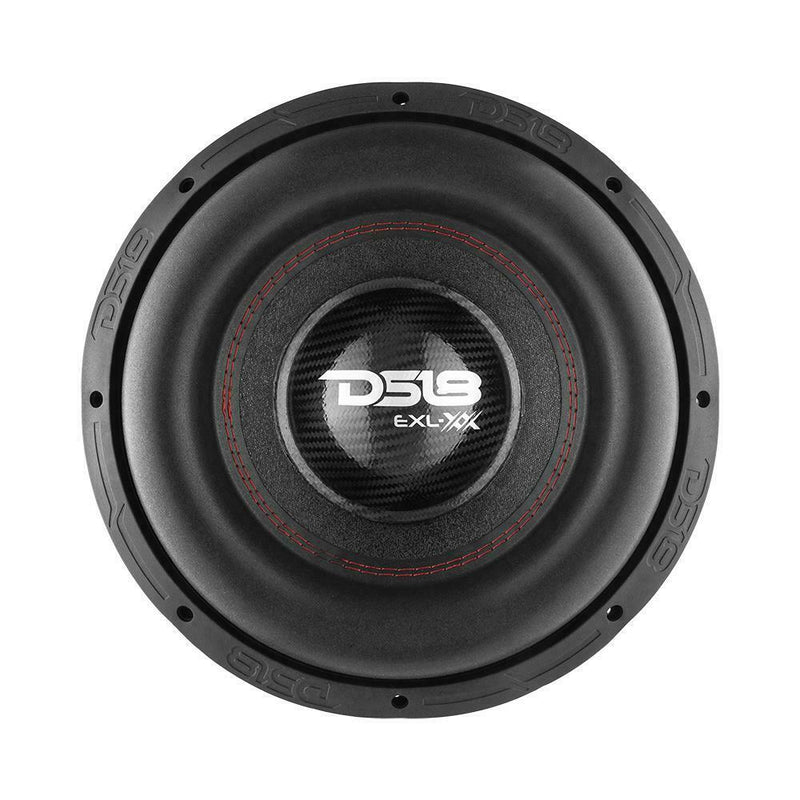

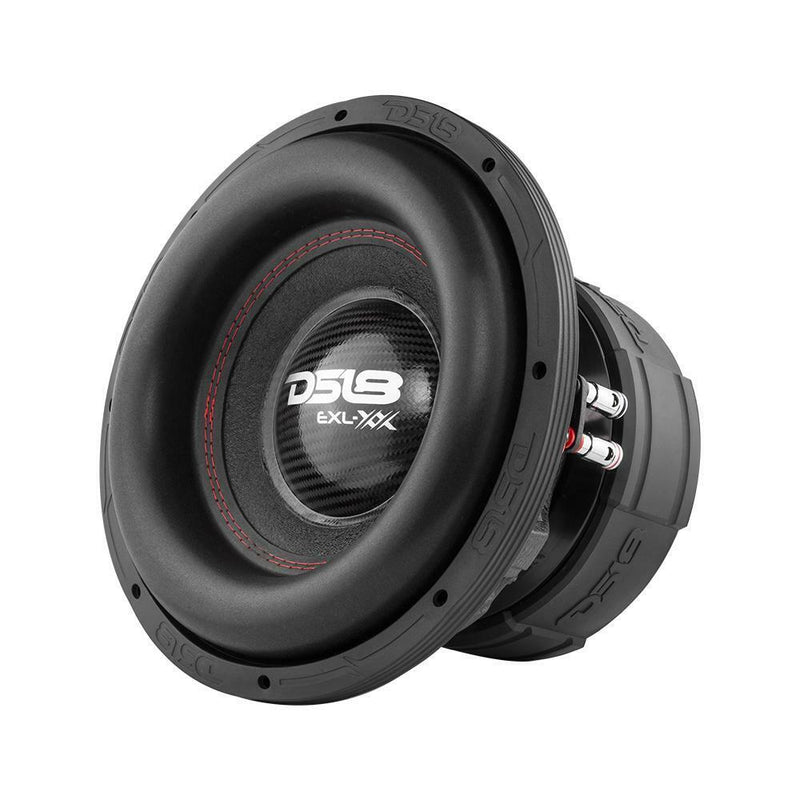

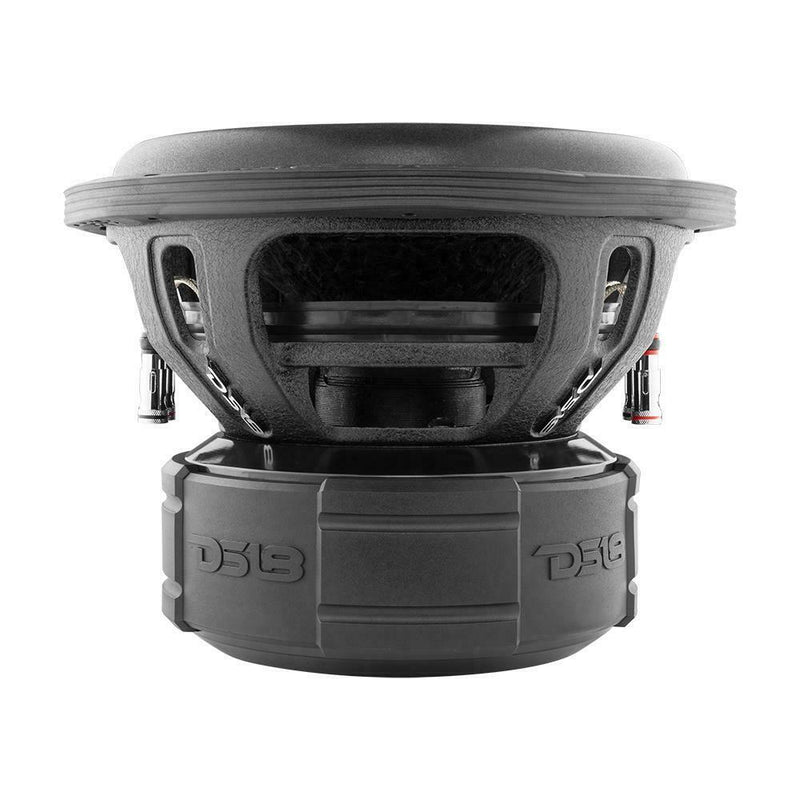

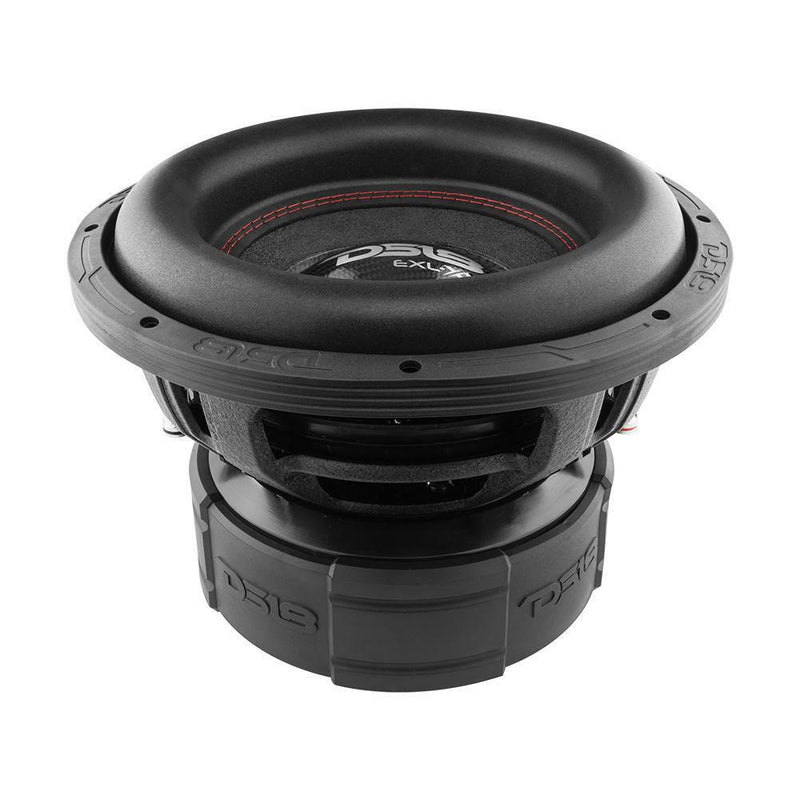

DS18 12" 2000W RMS Dual 2-Ohm High-Excursion Subwoofer EXL-XX12.2DHE
This Listing Includes:
- (1) DS18 EXL-XX12.2DHE 12" 2 Ohms DVC Subwoofer
The DS18 EXL-XX12.2DHE is a high-excursion 12-inch car subwoofer built for extreme bass output, serious cone movement, and powerful low-frequency performance. Designed for car audio enthusiasts who want deep, hard-hitting bass in a compact 12-inch platform, this EXL-XX Series subwoofer delivers 2000 watts RMS and 4000 watts MAX power handling.
Built with a massive 306 oz ferrite magnet and a 3-inch dual 2-ohm black aluminum voice coil, the EXL-XX12.2DHE is engineered to handle high power while maintaining strong control over cone movement. Its paper cone, glass fiber dust cap, foam surround, and black aluminum basket work together to create a durable, high-output subwoofer capable of delivering loud, accurate, and aggressive bass.
With a frequency response of 20Hz - 1.3KHz, 87dB sensitivity, and a recommended low-pass crossover of 80Hz, this subwoofer is designed for custom car audio systems that demand serious low-end authority. The high-excursion surround allows the EXL-XX12.2DHE to move air with force, making it an excellent choice for SPL builds, basshead systems, and powerful daily driver setups.
Whether you are upgrading your current bass system or building a custom enclosure from the ground up, the DS18 EXL-XX12.2DHE brings power, precision, and high-excursion performance to your vehicle audio setup.
Features
- 12-inch high-excursion EXL-XX Series subwoofer
- 2000W RMS power handling
- 4000W MAX power handling
- Dual 2-ohm voice coil configuration
- Large 3-inch black aluminum voice coil
- Massive 306 oz ferrite magnet
- High-excursion foam surround
- Paper cone with glass fiber dust cap
- Strong black aluminum basket
- Designed for high-output bass systems
- 87dB sensitivity
- Frequency response: 20Hz - 1.3KHz
- Recommended low-pass crossover: 80Hz
- Ideal for SPL builds, basshead systems, competition setups, and powerful daily drivers
Specifications:
- Model: EXL-XX12.2DHE
- Product Type: High Excursion Subwoofer
- Nominal Diameter: 12"
- Nominal Impedance: 2+2 Ohms
- RMS Power Handling: 2000W
- MAX Power Handling: 4000W
- Sensitivity: 87dB
- Frequency Response: 20Hz - 1.3KHz
- Recommended Low-Pass Crossover: 80Hz
- Voice Coil Diameter: 3" / 75.6mm
- Voice Coil Former Material: Black Aluminum
- Winding Material: CCAW
- Cone Material: Paper
- Dust Cap Material: Glass Fiber
- Surround Material: Foam
- Basket Material: Aluminum
- Color/Finish: Black
- Magnet Material: Ferrite
- Magnet Weight: 306 oz
- Displacement Volume: 3.26L
Thiele & Small Parameters
- Equivalent Volume Vas: 21.986L
- Free Air Resonance Fs: 39.8Hz
- Mechanical Factor Qms: 5.128
- Electrical Factor Qes: 0.529
- Total Factor Qts: 0.468
- Moving Mass Mms: 302.158g
- Compliance Cms: 0.025mm/N
- BL Factor: 16.523
- Voice Coil Inductance Le: 6.9mH
- Diaphragm Area Sd: 433.74cm
- DC Resistance Re: 2+2 Ohms
- Efficiency Bandwidth Product EBP: 75.2
Dimensions:
- Overall Diameter: 12.63" / 321m
- Overall Depth: 9.25" / 235mm
- Front Mount Baffle Cutout: 11.1" / 282mm
- Mounting Depth: 7.87" / 200mm
- Motor Diameter: 8.89" / 226mm
