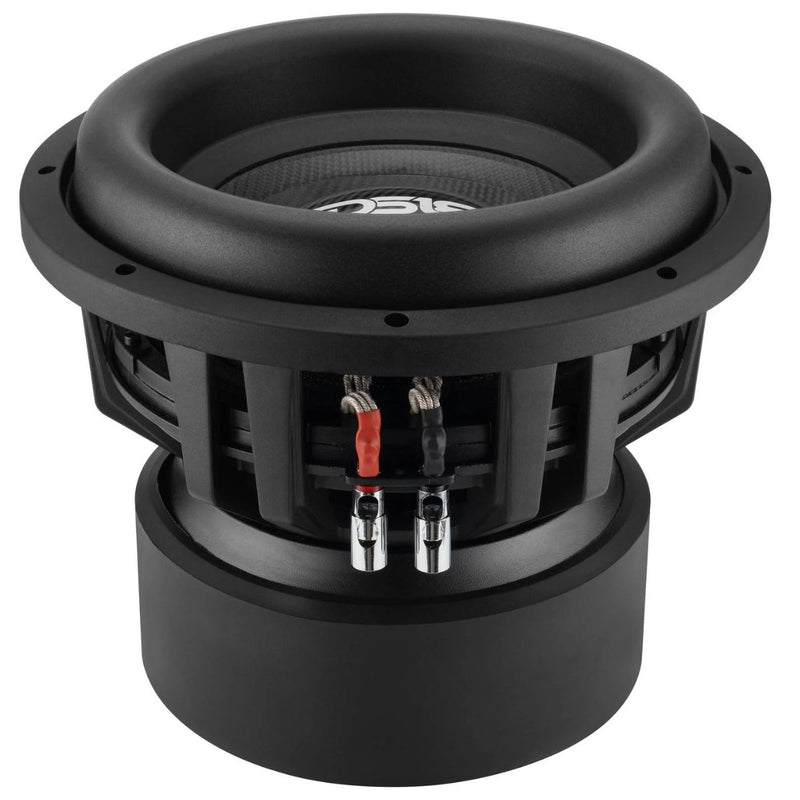

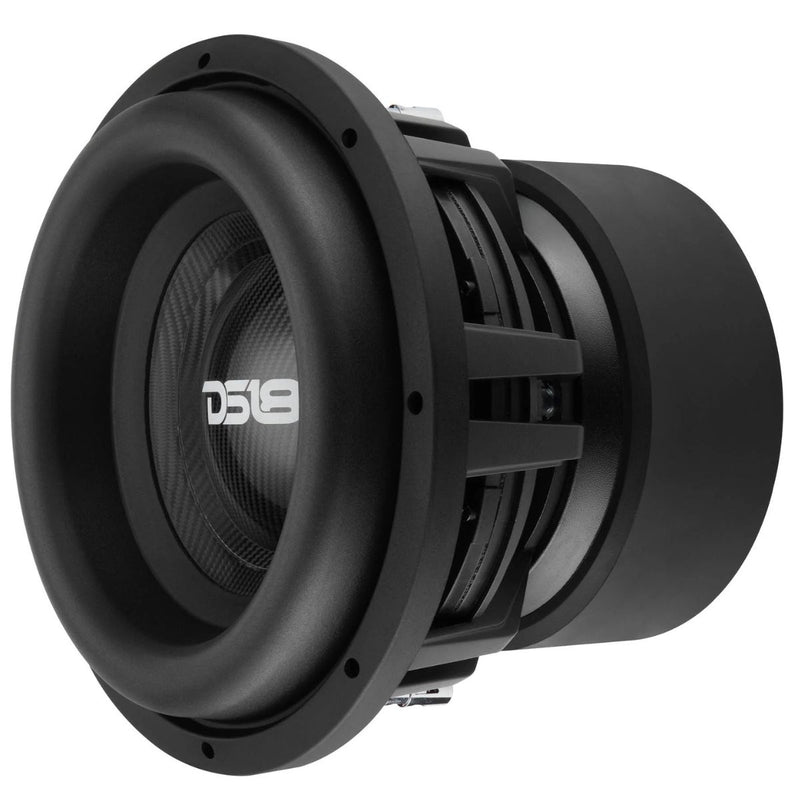

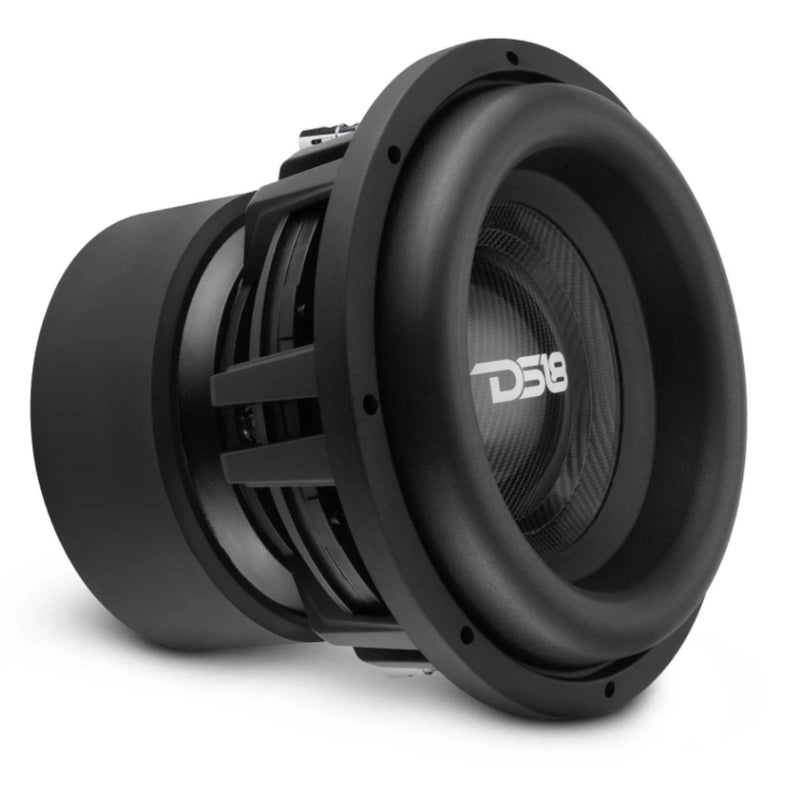

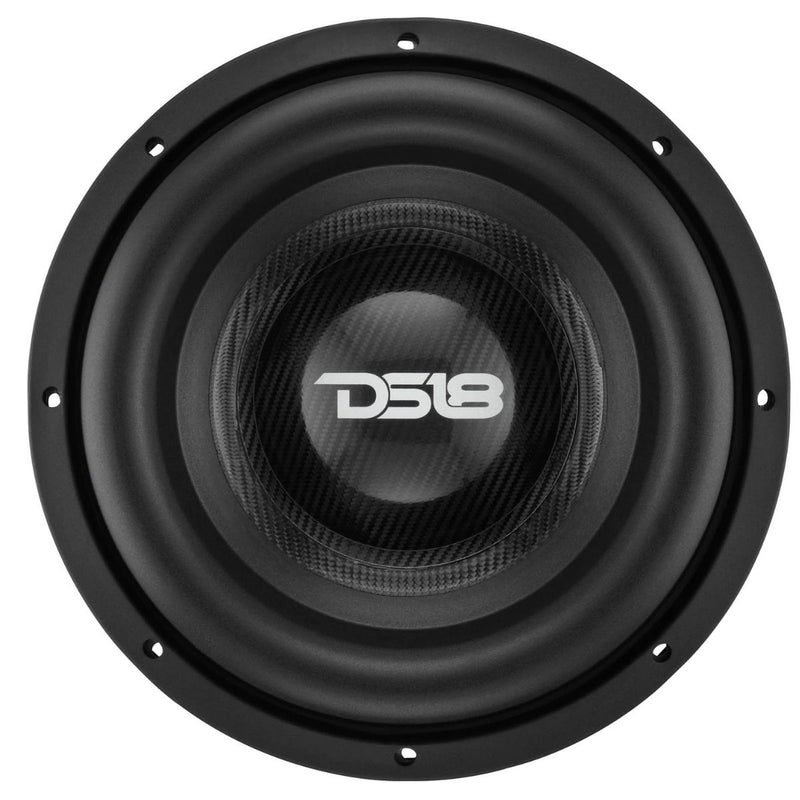

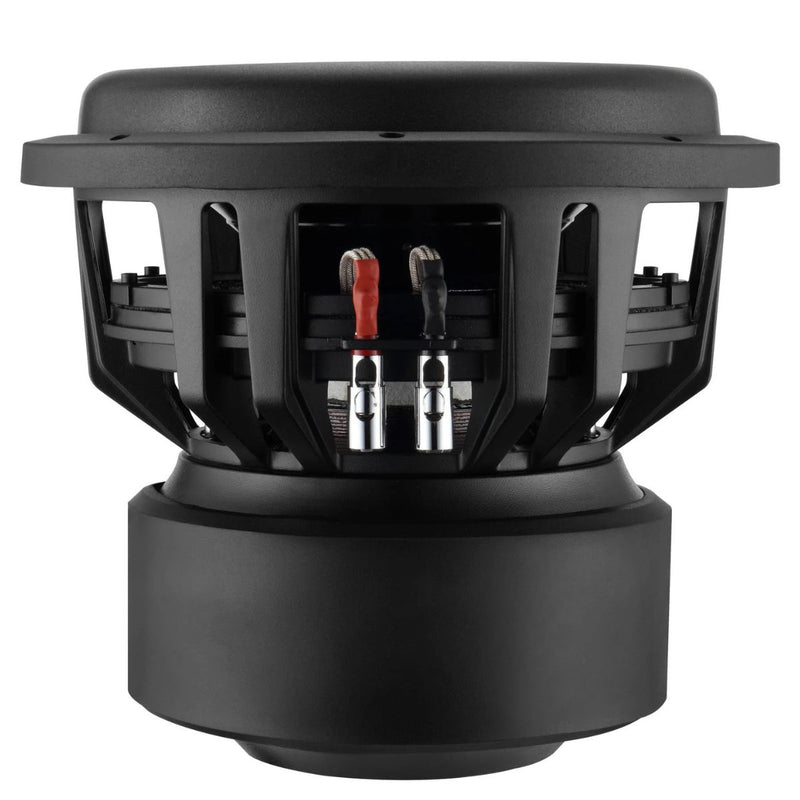

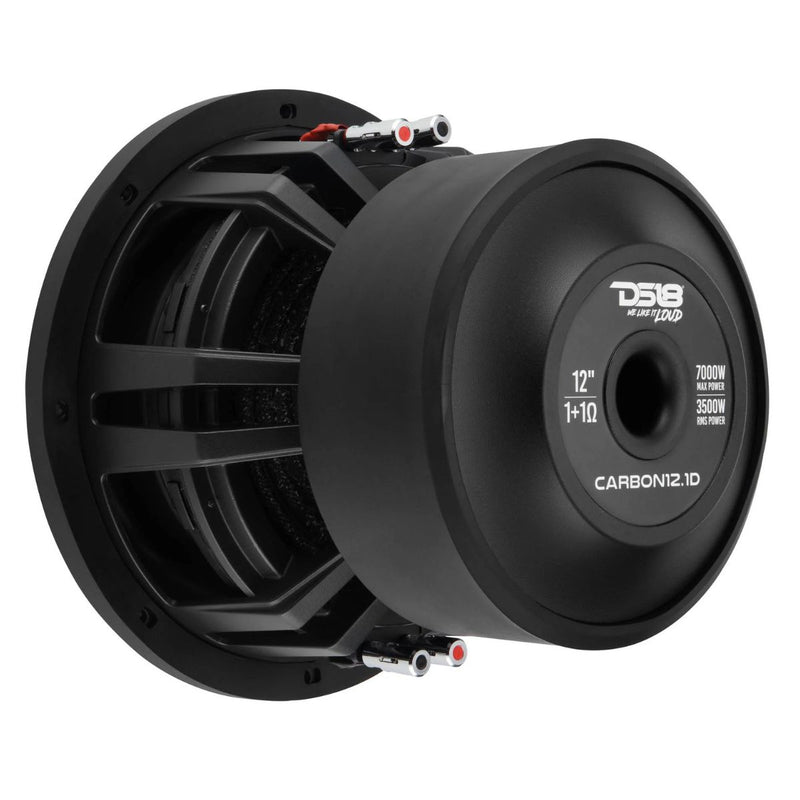

DS18 12" 3500W RMS Dual 1-Ohm Carbon Fiber Car Subwoofer CARBON12.1D

• 3500 WATTS RMS POWER HANDLING: Built for demanding car audio systems, this 12-inch subwoofer handles 3500 watts RMS and up to 7000 watts maximum power.
• HIGH-EXCURSION BASS PERFORMANCE: Provides up to 22.5mm of one-way excursion to move serious air and produce powerful low-frequency output.
• CARBON-FIBER CONSTRUCTION: A rigid carbon-fiber cone and matching 6-inch dust cap provide controlled response and dependable performance under heavy use.
• DUAL 1-OHM VOICE COILS: Flexible wiring options make it easier to match the subwoofer with compatible high-powered car audio amplifiers.
• BUILT FOR HIGH-POWER SYSTEMS: Features a 3.5-inch voice coil, improved heat dissipation, 4-gauge terminals, an aluminum basket, and a massive 425-ounce ferrite magnet.

DS18 12" 3500W RMS Dual 1-Ohm Carbon Fiber Car Subwoofer CARBON12.1D

This Listing Includes:

• (1) DS18 CARBON12.1D 12" High-Excursion Car Subwoofer

Built for serious output, the DS18 CARBON12.1D delivers powerful, vehicle-shaking bass with 3500 watts RMS and 7000 watts maximum power handling. Its high-excursion design provides up to 22.5mm of one-way cone movement, allowing the subwoofer to move large amounts of air and produce forceful low-frequency output.

The carbon-fiber cone and dust cap provide the strength and rigidity needed to maintain controlled performance under demanding conditions. A 3.5-inch voice coil with an aluminum former, improved heat dissipation, and a massive 425-ounce ferrite magnet help support dependable performance during extended high-power use.

Dual 1-ohm voice coils provide flexible wiring options for compatible high-output amplifiers. Heavy-duty 4-gauge push terminals accommodate oversized speaker wire for a secure connection. The cast-aluminum basket, foam surround, and crossed spider leads complete a durable platform designed for powerful car audio systems.

Features:

• High-excursion 12-inch car subwoofer


• 3500 watts RMS power handling


• 7000 watts maximum power handling


• Dual 1-ohm voice coils


• Carbon-fiber cone and dust cap


• 22.5mm one-way excursion


• Improved heat-dissipation design


• 3.5-inch voice coil with aluminum former


• Heavy-duty 4-gauge push terminals


• Cast-aluminum basket


• Large 425-ounce ferrite magnet


• Compatible with sealed and ported enclosures

Specifications:

• Brand: DS18


• Model: CARBON12.1D


• Product Type: High-Excursion Car Subwoofer


• Nominal Diameter: 12 inches / 305mm


• Voice-Coil Configuration: Dual 1 Ohm


• Nominal Impedance: 1 + 1 Ohm


• RMS Power Handling: 3500 Watts


• Maximum Power Handling: 7000 Watts


• Sensitivity: 82dB at 1W/1m


• Frequency Response: 10Hz to 200Hz


• Recommended Low-Pass Crossover: 60Hz


• Cone Shape: Conical


• Improved Heat Dissipation: Yes


• Speaker Terminals: 4-gauge push terminals

Motor Specifications:

• Voice-Coil Diameter: 3.5 inches / 89mm


• Voice-Coil Former Material: Aluminum


• Voice-Coil Winding Material: CCAR


• Cone Material: Carbon fiber


• Dust-Cap Material: Carbon fiber


• Dust-Cap Diameter: 6 inches / 150mm


• Surround Material: Foam


• Spider Diameter: 9 inches / 228mm


• Lead Connection Type: Crossed through spider


• Basket Material: Aluminum


• Basket Color and Finish: Black aluminum


• Magnet Material: Ferrite


• Magnet Weight: 425 ounces

Thiele and Small Parameters:

• Equivalent Compliance Volume, Vas: 15.8L / 0.557 cubic feet


• One-Way Excursion, Xmax: 22.5mm


• Free-Air Resonance, Fs: 38Hz


• Mechanical Q, Qms: 4.878


• Electrical Q, Qes: 0.816


• Total Q, Qts: 0.699


• Moving Mass, Mms: 349.305g


• Compliance, Cms: 50.114mm/N


• BL Factor: 14.3


• Voice-Coil Inductance, Le: 0.98mH


• Diaphragm Area, Sd: 471.4cm


• DC Resistance, Re: 1 + 1 Ohm


• Efficiency Bandwidth Product, EBP: 46.5

Recommended Enclosures:

• Sealed Internal Volume: 37L / 1.3 cubic feet


• Sealed Enclosure Output Response: 38Hz


• Ported Internal Volume: 56.6L / 2.0 cubic feet


• Square Port Dimensions: 2" W x 12" H x 20.7" L


• Port Tuning Frequency: 35Hz


• Ported Enclosure Output Response: 27Hz

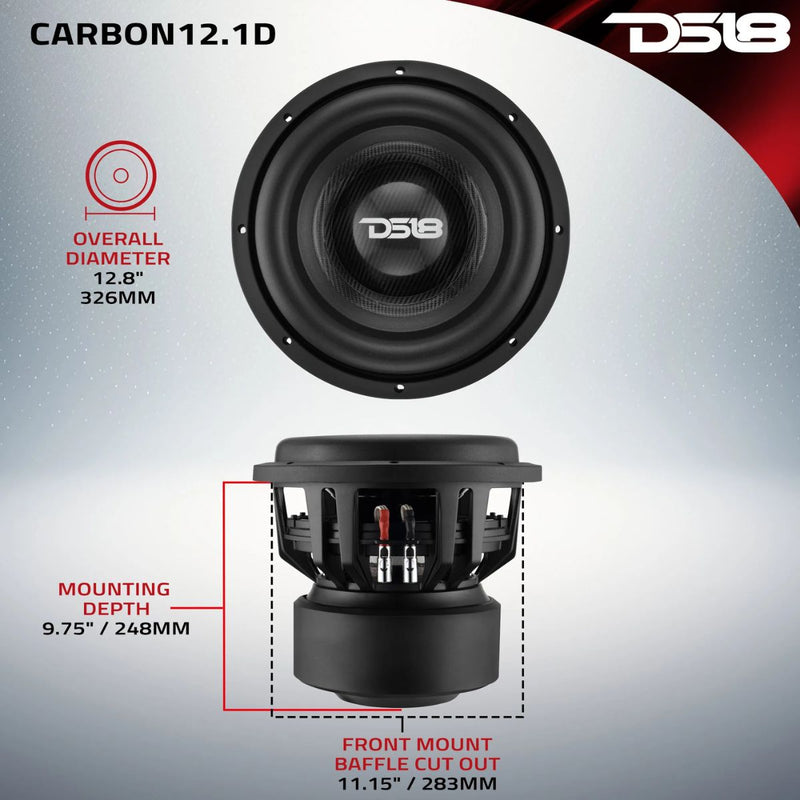

Measurements:

• Overall Diameter: 12.8 inches / 326mm


• Overall Depth: 11.65 inches / 296mm


• Front Mounting Baffle Cutout: 11.15 inches / 283mm


• Mounting Depth: 9.75 inches / 248mm


• Motor Diameter: 9 inches / 230mm
