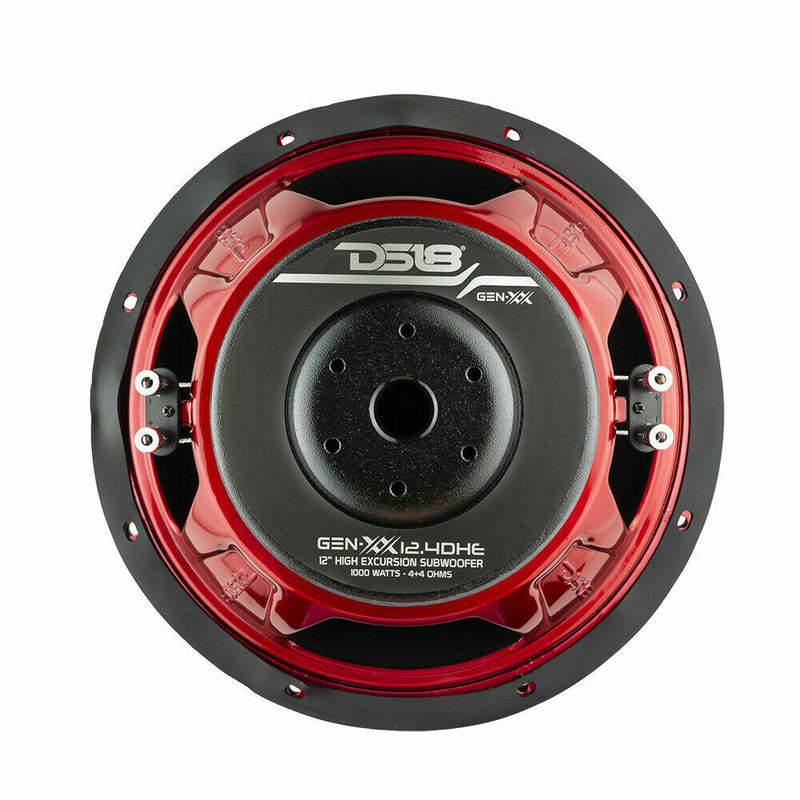

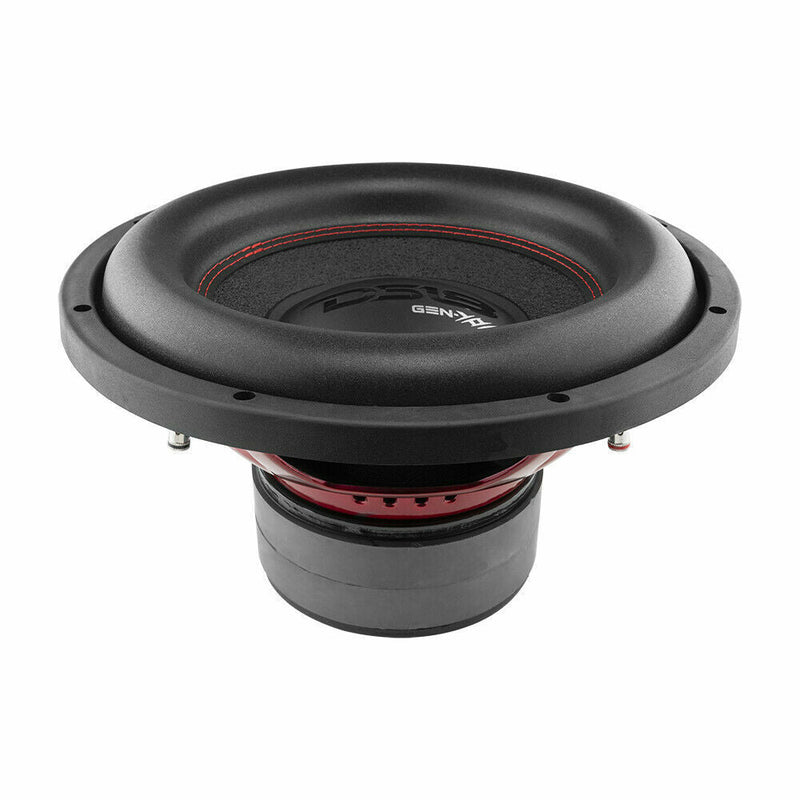

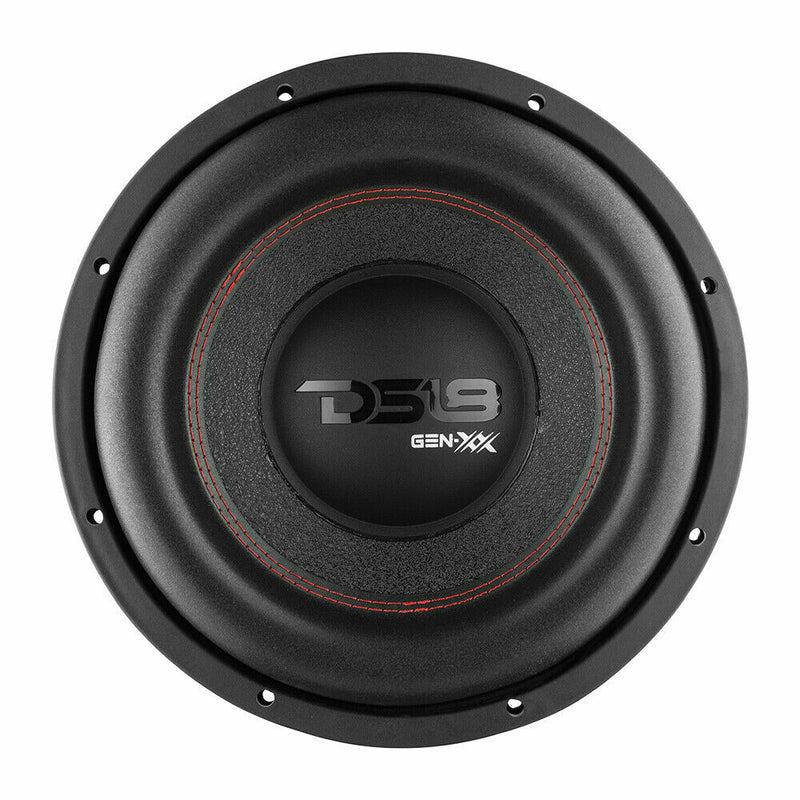

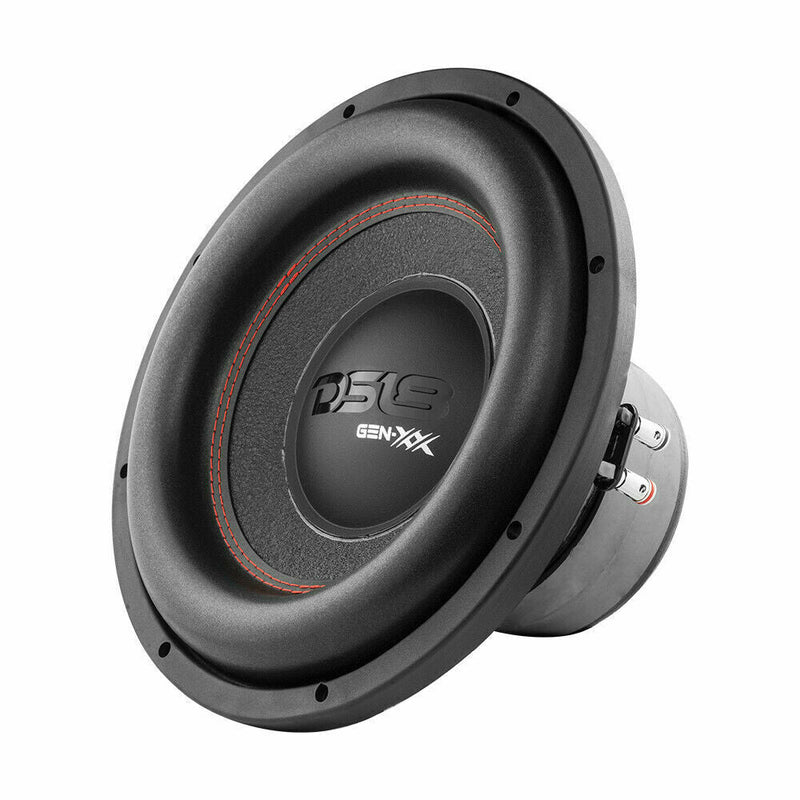

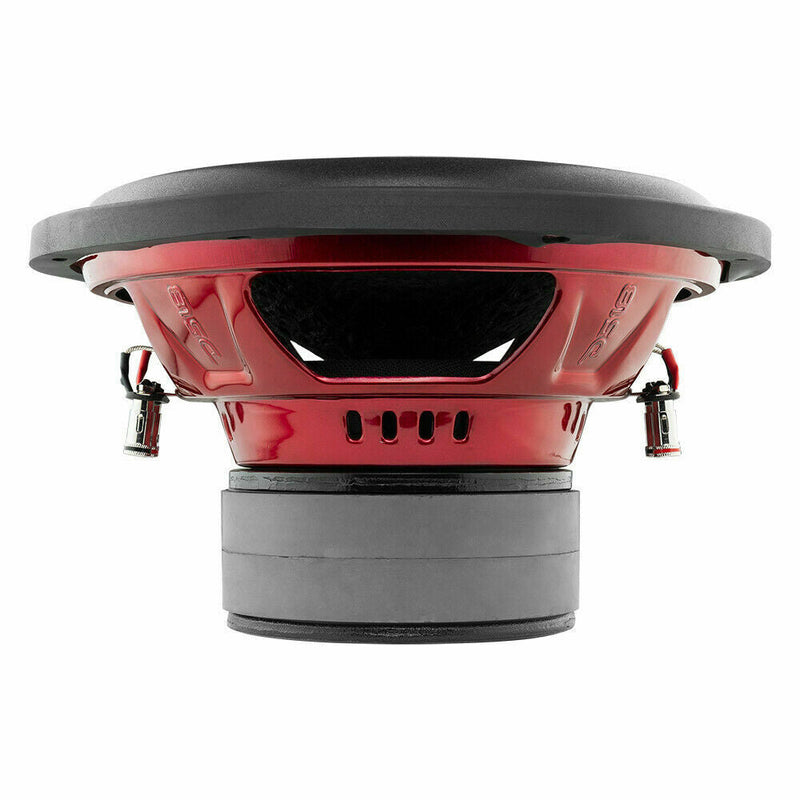

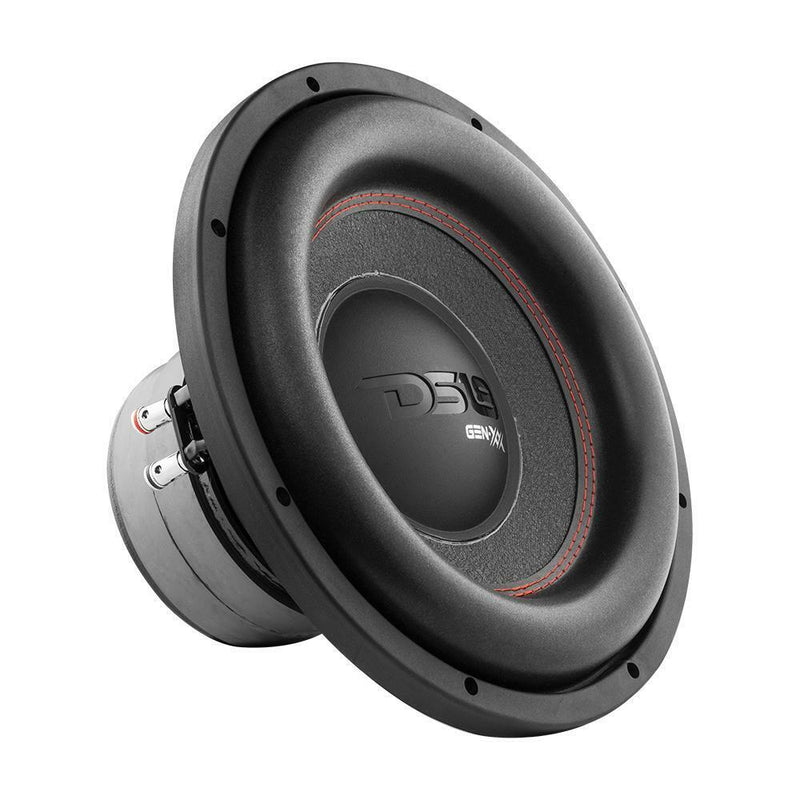

DS18 12" 1000 Watts High Excursion Subwoofer Dual Voice Coil 4-Ohm GEN-XX12.4DHE

This DS18 12" Subwoofer is ready and able for hi-power applications with a 1000 Watt max! High excursion is now the mainstream. and we want to bring the experience of low frequency bass to even the entry level user. The GEN-XX12.4DHE is the answer you have been looking for. This subwoofer is a mid-tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with. DS18 stands out from other brands with progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market.

This Listing Includes:
(1) Subwoofer

-High Excursion surround for a very high amount of xmax.
-Long three voice coil and extended magnet to accommodate the xmax increase.
-FS of 30 hz so you can easily dip in the subsonic range with no issues along as your box is tuned correctly.
-Ferrite Magnet
-Black Aluminum Basket Design
-Black Aluminum Voice Coil

Nominal Impedance: 4+4 ohms
Power Handling:1000W Max
Power Handling: 500W RMS
Sensitivity (1w/1m): 86.7 dB
Frequency Response: 20-1.5KHz
Recommended Lo Pass Crossover: 80 Hz

Motor Specifications:
VC Diameter: 2"
VC Former Material: Black Aluminum
Winding Material: SV
Cone Material: Paper
Dust Cap Material: PPI
Surround Material: Foam
Basket Material: Steel
Basket Color/Finish: Glossy Red
Magnet Material:Ferrite
Magnet Weight: 136 Oz
Displacement Volume: 1.69L

Thiele & Small Parameters Specifications:
Equivilant Vol :Vas 56.436L
Excursion (one way): Xmax 25 mm
Free Air Resonance: Fs 30.5 Hz
Mechanical Factor: Qms 3.991
Electrical Factor: Qes 0.532
Total Factor: Qts 0.469
Moving Mass: Mms 154.38g
Compliance: Cms 0.175mm/N
Bl Factor: BL 19.173N/A
VC Inductance: Le 0.6741mH
Diaphragm Area: Sd 475.29cm2
Dc Resistance: Re 3.2+3.2 ohms
Efficiency Bandwidth Product: EBP 57.3

Nominal Diameter:12"
Overall Diameter :12.44" / 316mm
Overall Depth: 7.6" / 193mm
Front Mount Baffle Cutout: 10.9" / 277mm
Mounting Depth: 6.5" / 165mm
Motor Diameter: 6.14"/ 156 mm
