DS18 10" Shallow Subwoofer Bass Package 700 Watts 2 Ohm with Built In Amplifier

Some audio enthusiasts do not have a lot of room for big subs, for example, in single cab trucks or small cars. Now DS18 has a solution for people craving great bass but do not have much space for it! This new DS18 SB10A is a slim 10 inch subwoofer in a sealed box that is powered by a powerful, built in 350w RMS, 700w MAX amplifier that is sure to get the bass thumping hard in the minimal space that you have available available in your vehicle. Only 13.6 "high for a wide variety of installation options.

This Listing Includes:
(1) DS18 Subwoofer Bass Package SB10A

-Strong slim 10 inch sub that will bring earth pounding bass where there is not much space
-Compact sealed box made of .6 inch MDF with included built in 350w RMS 700w max high power amplifier

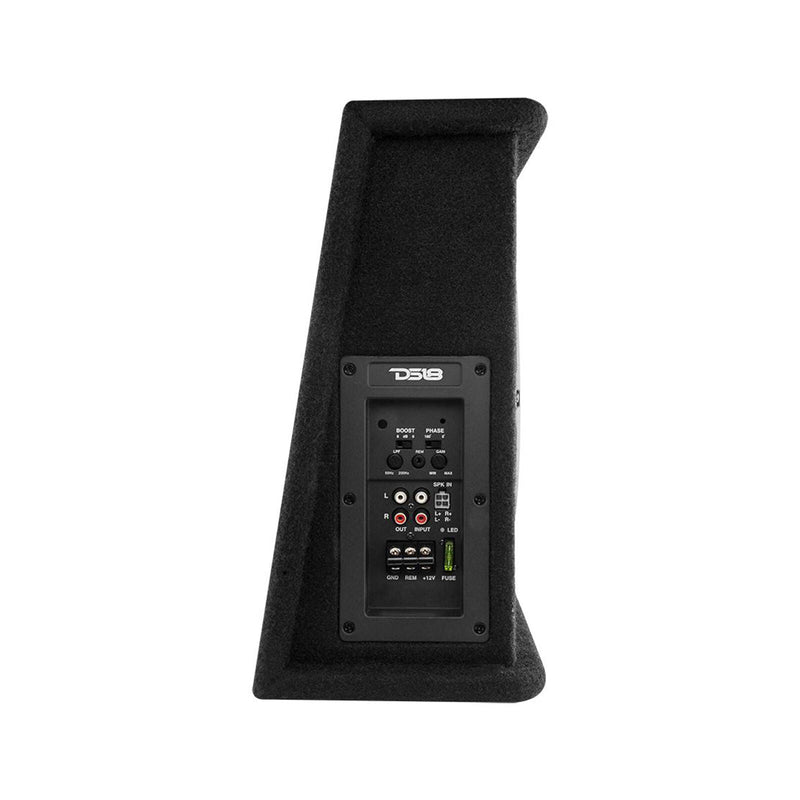

-Easy to hook up and integrate with any system with the use of high level inputs or RCA jacks, whichever is easiest for you

Internal Volume: 12L / 0.42ft3
Load Configuration: Parallel In
Box Type: Sealed Box
Box Material: 0.59" MDF
Finish Material : Non-Woven fabric
(-3bB) Dropping Point: 48Hz

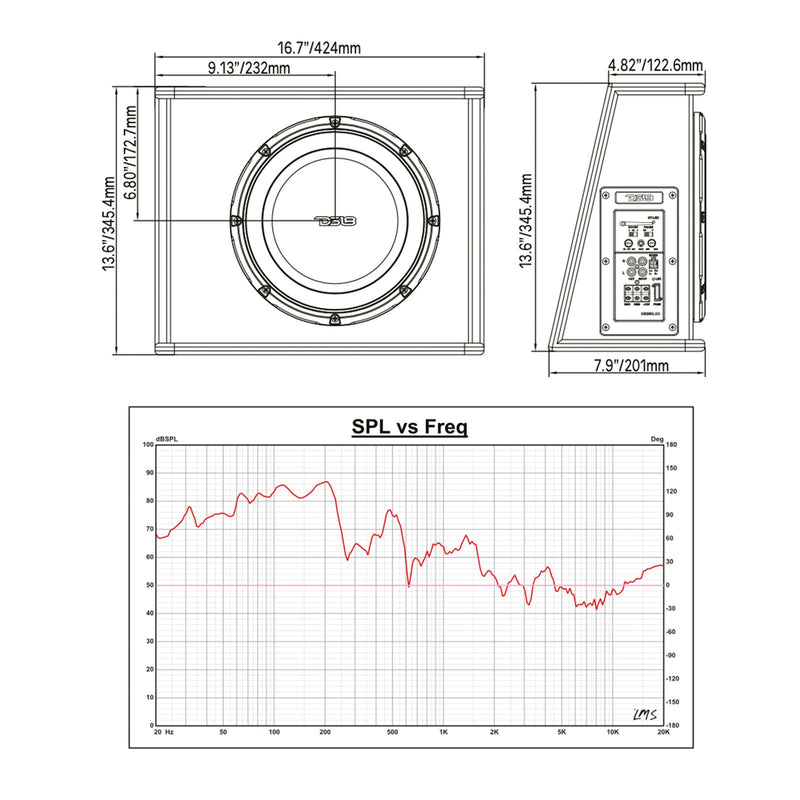

Height: 13.6" / 345.4mm
Width: 16.7" / 424mm
Depth 1: 4.82" / 122.6mm
Depth 2: 7.9" / 201mm

Speaker Size :10" / 261mm
Total Impedance: 2 ohms
RMS Power Handling: 350W
MAX Power Handling: 700W
Sensitivity (1w/1m): 83dB
Frequency Response: 38-250Hz

Voice Coil Diameter:1.5" / 38.6mm
Voice Coil Former Material: Aluminum
Winding Material: EISV
Cone Material: IPP
Surround Material: Rubber
Basket Material: SPCC
Magnet Material: Ferrite
Magnet Weight: 40 Oz

Amplifier Class: Digital
Amplifier Type: Monoblock Subwoofer
Number of Channels: 1 CH
Minimum Impedance: 2 ohms
Signal to Noise Ratio:75 dB
Efficiency @ 4 ohms: 75%
Total Harmonic Distortion (T.H.D): 0.30%
Low Level Input Range: 0.1-0.6 V
High Level Input Range: Yes
Selectable X-Over RMS a 2 OHMS: LPF Fixed
X-Over Filter Range: 50 - 200 Hz
Bass Boost Range: 0-6 dB
Bass Boost Frequency: 50 Hz
Phase Selector: 0-180°
Led Indicator: Power - Protection
Power Input Terminal Size: 8 GA
Fuse Size: 30 A

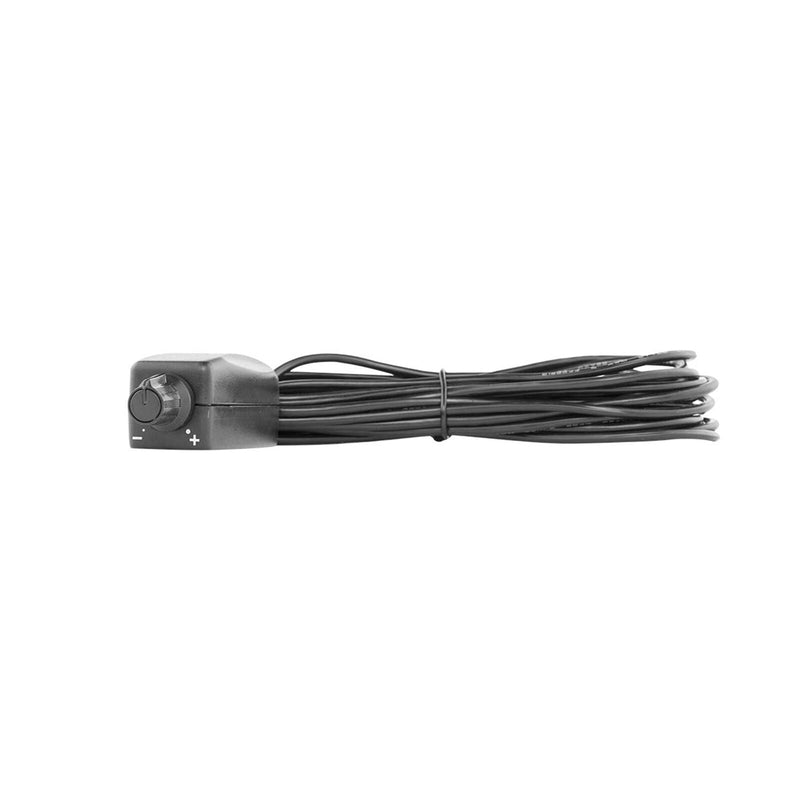

Remote Level Control: Yes
Thermal Protection: Yes (75°C / 167°F)
Over-Load Protection: Yes
DC Output Protection :Yes
Short Circuit Output Protection: Yes
