- Powerful 10" Mid-Range Performance: The DS18 10XL1400-4 is built to deliver loud, clear, and aggressive mid-range sound for custom car audio systems, demo builds, and high-output setups.
- 700W RMS / 1400W MAX Power Handling: Designed for serious power, this 10" loudspeaker handles 700 watts RMS and 1400 watts max for strong, reliable output.
- 4-Ohm Impedance: The 4-ohm design makes this speaker easy to integrate into a wide range of amplifier and speaker system configurations.
- High-Efficiency 98dB Sensitivity: With a 98dB sensitivity rating, this mid-range speaker delivers loud output with excellent efficiency, helping your system stay crisp and powerful.
- Built for Durability: Features a 3.5" Kapton voice coil, non-pressed paper cone, cloth surround, satin black aluminum basket, and a 93 oz ferrite magnet for dependable performance under demanding conditions.

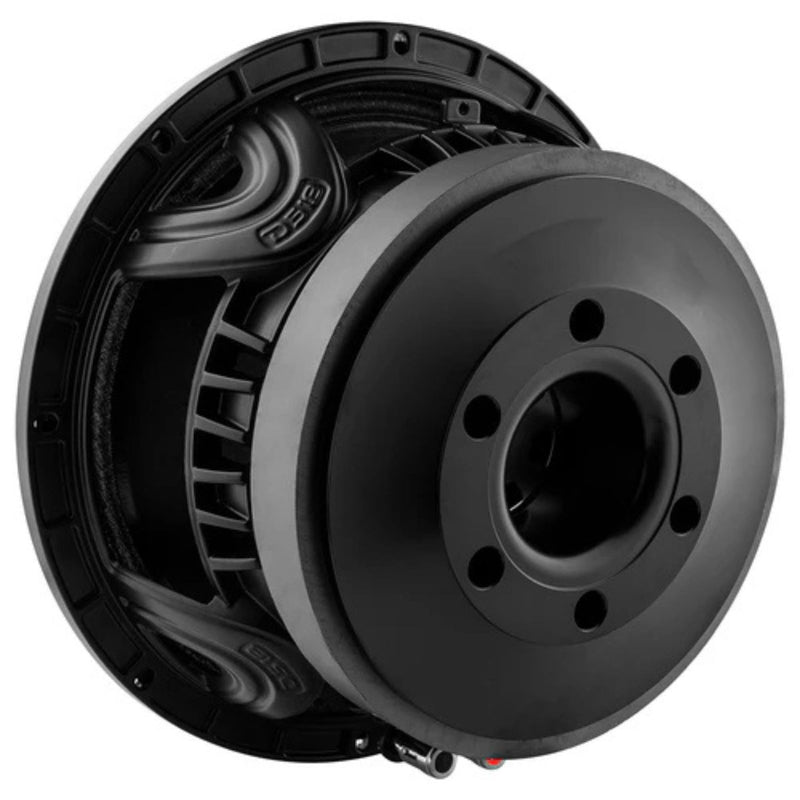

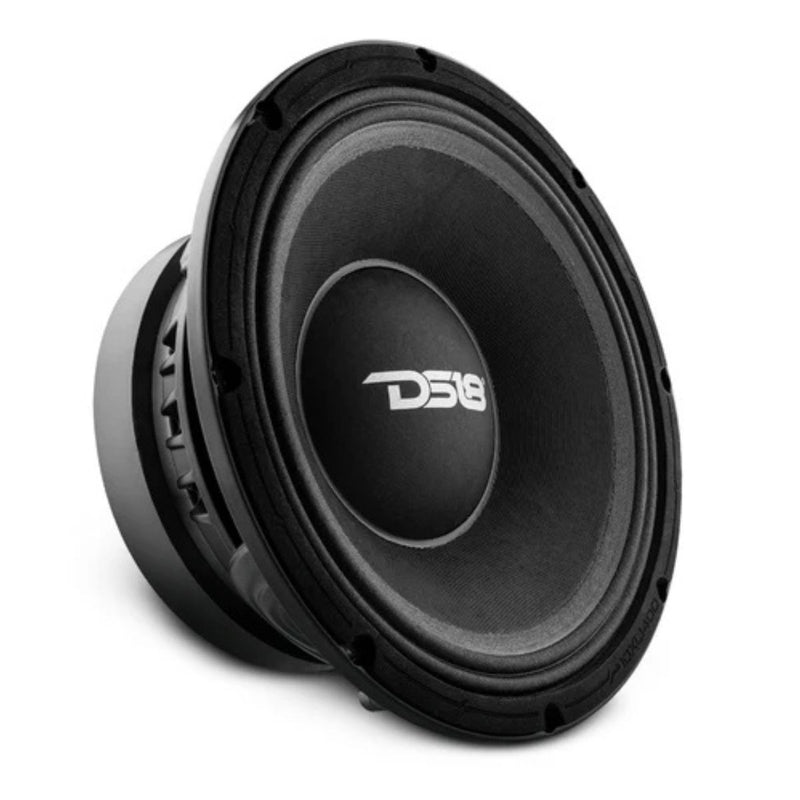

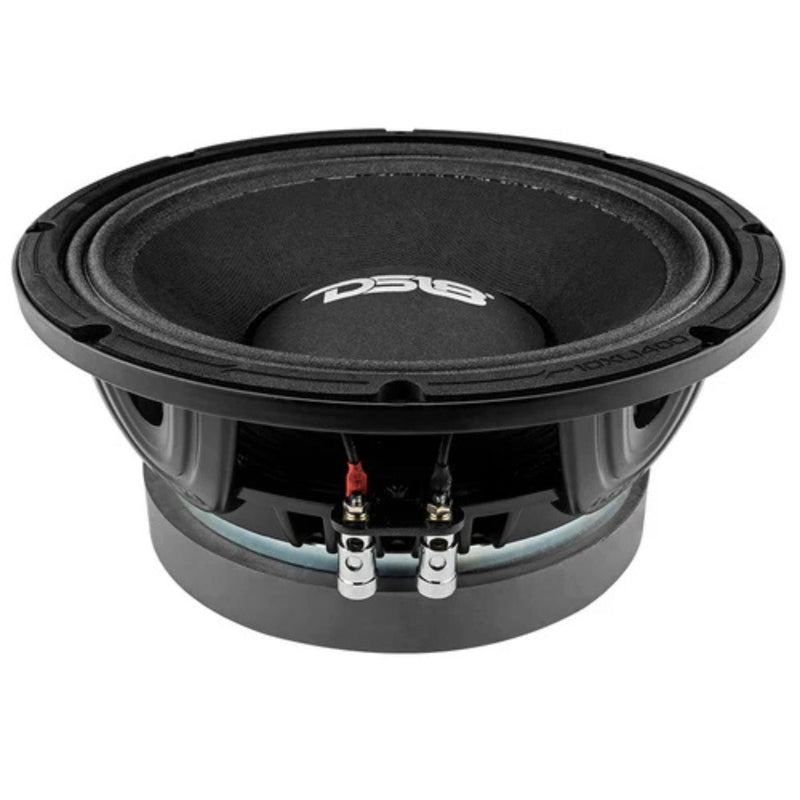

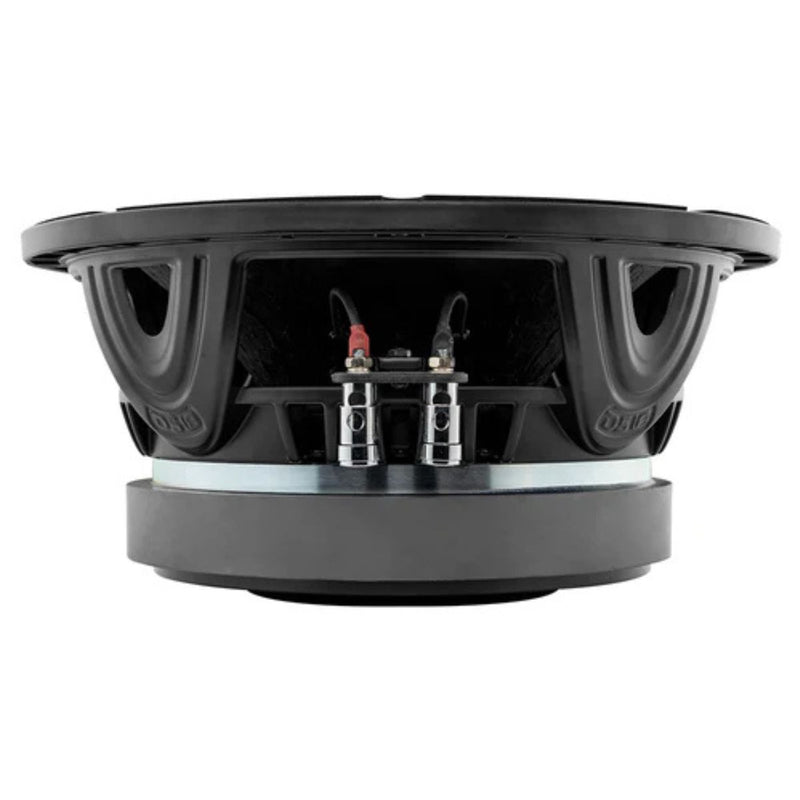

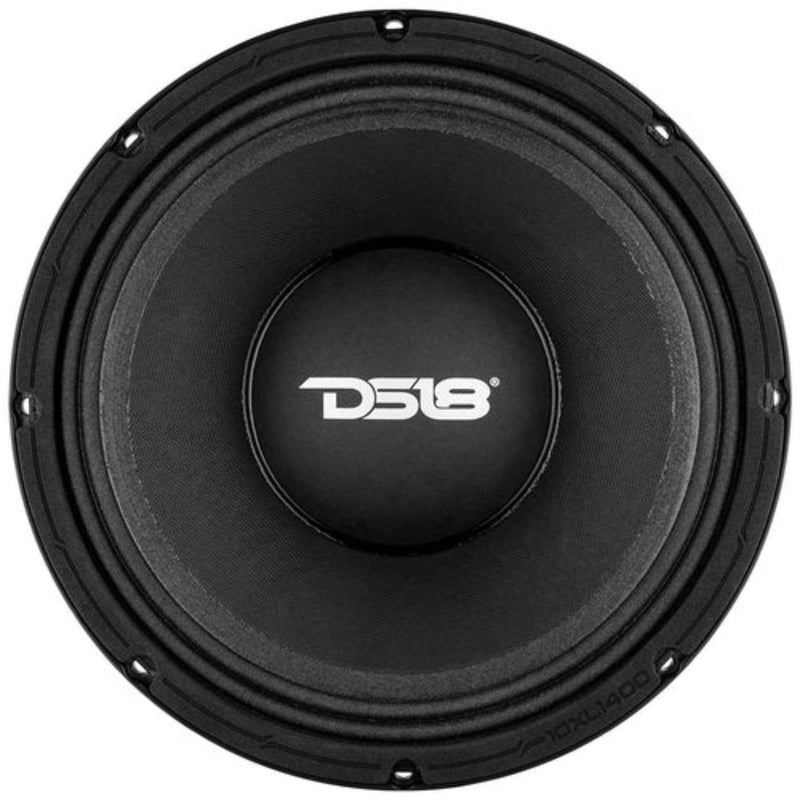

DS18 10" Midrange Loudspeaker 4 Ohm 700 Watts RMS Car Audio Speaker 10XL1400-4
This Listing Includes
- (1) DS18 10" Speaker 10XL1400-4
The DS18 10XL1400-4 10" Mid-Range Loudspeaker brings serious output and clean musical detail to high-performance audio systems. Built for power, precision, and durability, this 4-ohm mid-range speaker handles 700 watts RMS and 1400 watts max power, making it a strong choice for loud custom builds that need clear vocals, strong midbass presence, and aggressive mid-range performance.
With a 98dB sensitivity rating, the 10XL1400-4 delivers impressive volume with excellent efficiency. Its frequency response of 60Hz to 6KHz allows it to cover a wide range of musical detail, while the recommended 80Hz high-pass crossover helps protect the speaker and keep performance clean at higher power levels.
DS18 equipped this loudspeaker with a 3.5" Kapton voice coil, CCAW winding, non-pressed paper cone, cloth surround, satin black aluminum basket, and a massive 93 oz ferrite magnet. The result is a rugged mid-range driver built to handle demanding systems while keeping your sound loud, crisp, and controlled.
Whether you are upgrading a custom door setup, building a loud demo vehicle, or adding serious mid-range authority to your system, the DS18 10XL1400-4 is built to bring the noise with confidence.
Features
- 10" mid-range loudspeaker
- 700 watts RMS /
- 1400 watts MAX power
- 4-ohm impedance
- 98dB sensitivity for loud, efficient output
- 60Hz-6KHz frequency response
- 3.5" Kapton voice coil
- Non-pressed paper cone with a cloth surround
- Satin black aluminum basket
- 93 oz ferrite magnet
- Recommended 80Hz high-pass crossover
- Sold individually
- Grill not included
Specifications
- Speaker Size: 10"
- Speaker Type: Mid-Range Loudspeaker
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 700 Watts
- MAX Power Handling: 1400 Watts
- Sensitivity: 98dB
- Frequency Response: 60Hz-6KHz
- Recommended High-Pass Crossover: 80Hz
- Voice Coil Diameter: 3.5" / 89mm
- Voice Coil Former Material: Kapton
- Winding Material: 2-Layer CCAW In/Out
- Cone Material: Non-Pressed Paper
- Dust Cap Material: Paper
- Surround Material: Cloth
- Basket Material: Aluminum
- Basket Finish: Satin Black
- Magnet Material: Ferrite
- Magnet Weight: 93 oz
- Sold As: Single
- Grill Included: No
Dimensions:
- Overall Diameter: 10.3" / 261.5mm
- Overall Depth: 4.93" / 125mm
- Front Mount Baffle Cutout: 9.2" / 233mm
- Mounting Depth: 4.4" / 114mm
- Motor Diameter: 7.48" / 190mm
