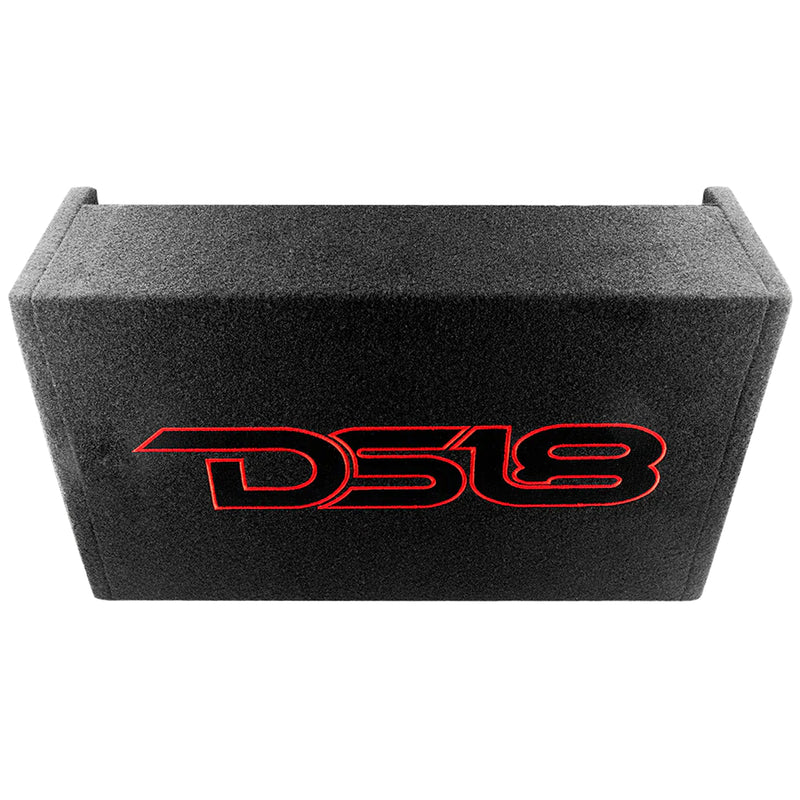

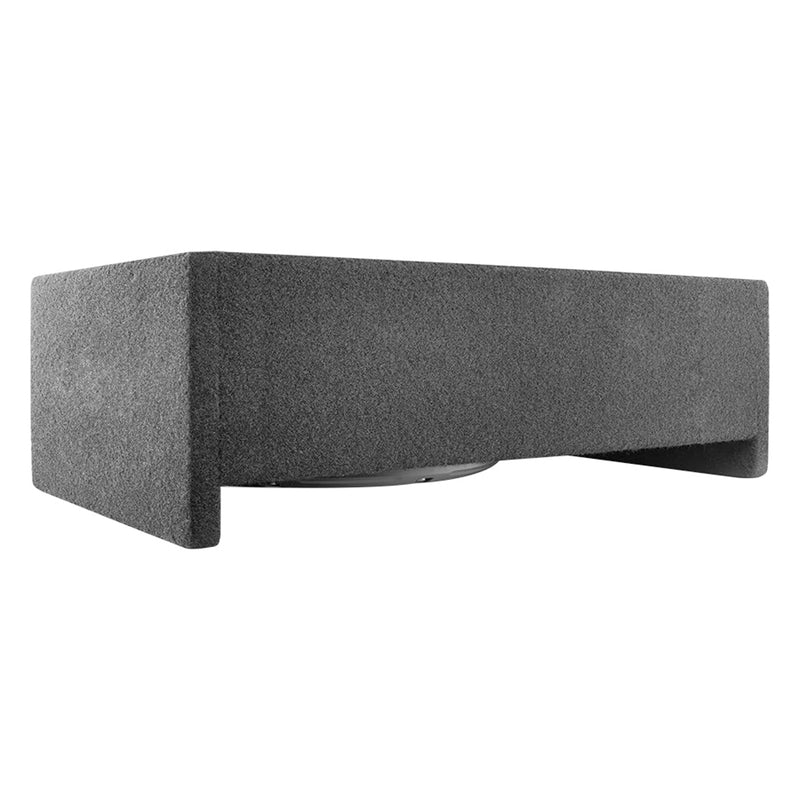

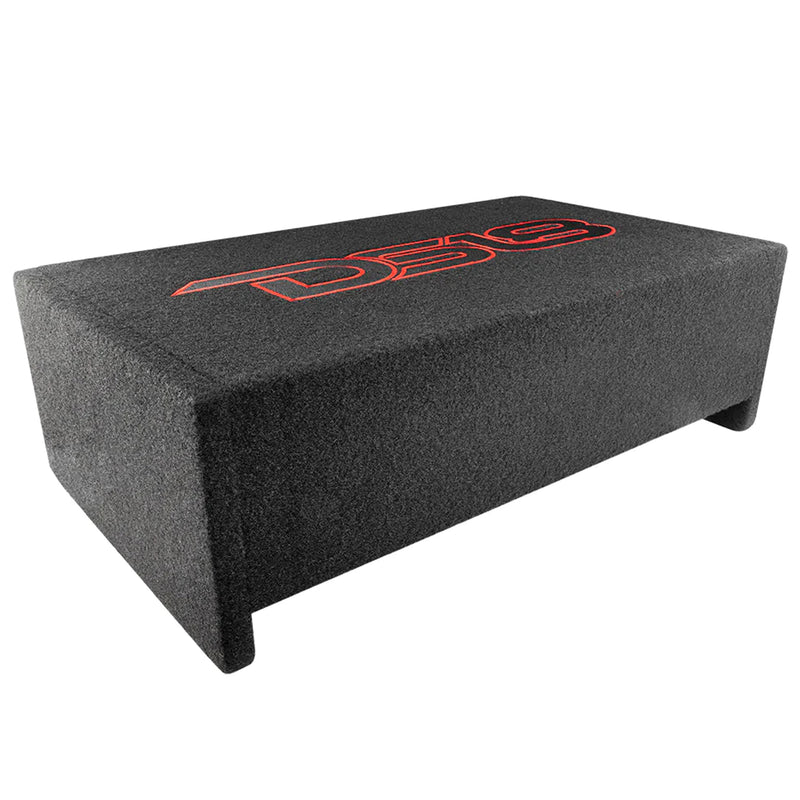

DS18 10" Amplified 500 Watt Down Firing Shallow Subwoofer Enclosure Box 2Ohm
Designed to add magnificent bass to vehicles with minimal amounts of room for larger sized subs and boxes.
The EN-DF10A utilizes a 10 inch subwoofer in a compact enclosure
(sized at 20” x 11” x 6”) to help extend and elaborate the bass for your music!
The built in amp requires power (250W RMS and 500W MAX Power Handling) before allowing you access to dB boosting, phase adjusting, and low pass filtration settings. The included low pass filter promotes clarity in your audio by filtering out high frequency noise for distortion free audio when you need it.
This enclosure housed subwoofer is sure to bring nothing but good vibes when the beat drops.
Speaker Type & Size: 10" Active Subwoofer
Total Impedance: 2 ohms
Total RMS Power Handling: 250 watts (14.4V)
Total MAX Power Handling: 500 watts
Sensitivity (1w/1m) 86dB
Frequency Response: 25-250Hz
Recommended Lo Pass Crossover: 80Hz
Voice Coil Diameter: 1.52"/38.6mm
Voice Coil Former Material: Aluminum
Winding Material: Copper
Cone Material: Injection PP Cone
Surround Material: Rubber
Basket Material: Steel
Basket Color: Wrinkle Black
Magnet Material: Ferrite
Magnet Weight: 40 oz
Amplifier Class: Digital
Amplifier Type: Subwoofer Monoblock
Number of Channels: 1
Minimum Impedance: 2 ohms
Signal to Noise Ratio: 80dB
Efficiency @4ohm: 75%
Total Harmonic Distortion (THD): 0.50%
Low Level Input Range: 200mV-6V
High Level Input: Yes
Auto Turn-On: Yes
Selectable X-Over: LPF Fixed
X-Over Filter Range: 30-150Hz
Bass Boost Range: 0-12db
Bass Boot Frequency: 80Hz
Phase Selector: 0 -180 degrees
LED Indicator: Power/Protection
Power input Terminal Size: 8Ga
Fuse Size: 30A
Remote Level Control: Yes, Dash Mount
Thermal Protection: Yes (>75 degrees)
Over-Load Protection: Yes
DC Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes
Internal Volume: 12L/0.42ft3
Load Configuation: Single 2 ohm
Box Type: 10" Down-Firing Sealed
Box Material: 5/8"/ 15mm MDF
Finish Material: Black Carpet
-3dB Dropping Point: 39Hz
Overall Height: 11.6"/295mm
Overall Width: 20.27"/515mm
Overall Depth: 6.3"/160mm
