- 5 (Wide 16:9) Full HD (1280x720 pixels) Single-Din touchscreen to maximize your viewing and allow perfect fit modular mounting.
Full 14 Band EQ and Subwoofer LPF
- Built in , Aux, SD Reader (64GB), 1.5a USB charging, AUX Input, AM/FM Tuner, and USB connections (1 front and 2 rear)
HDMI Outputs for full size monitor use
- Wireless remote control for easy operation.
RCA inputs so you can view external sources video easily via source.
- Multi Colored Backlit Keys for easy use in dim settings
MIC in options for easy phone operation and built in controls.
- Camera Inputs included so you can plug and play most types of back up cameras.
Apple and Android compatible.
DS18 10.5" Bluetooth Radio 2DIN Mirror-Link USB/SD/AUX w/ Remote & DSP DDX10.5ML
DS18s DDX10.5ML Receiver takes everything our customers loved about the DDX6.9ML Double Din Multimedia Receiver but upgraded the screen from 6.9 to an incredible 10.5 inches!
The Flawless Touch Screen Control supported by all DS18s Receivers returns for seamless maneuvering through the numerous features available in this upgraded model.
This receiver will include everything you need to bring your multimedia dreams including Wi-Fi, Bluetooth, AUX, USB, SD, phone controls, and all your AM / FM stations.
Connecting your head unit to your mobile hotspot makes accessing the downloadable apps available to this receiver much easier.
These receivers are mechless; this means that they dont support the play of compact discs and only play music back from digital media players. Thats why weve included so many options for playing music back from your digital devices.
This receiver built in DSP (Digital Signal Processor) 8 Channel 6 Volt output allows you to tune signals from various inputs various inputs in conjunction with your Equalizer and get your speakers to play the way they were designed to: without distortion and extremely LOUD!
The built in Digital Video Recorder built for the cameras installed in this receiver guarantees your safety and authority on the road.
Features:
- 5 (Wide 16:9) Full HD (1280x720 pixels) Single-Din touchscreen to maximize your viewing and allow perfect fit modular mounting.
- Full 14 Band EQ and Subwoofer LPF
- Built in, Aux, SD Reader (64GB), 1.5a USB charging, AUX Input, AM/FM Tuner, -and USB connections (1 front and 2 rear)
- HDMI Outputs for full size monitor use

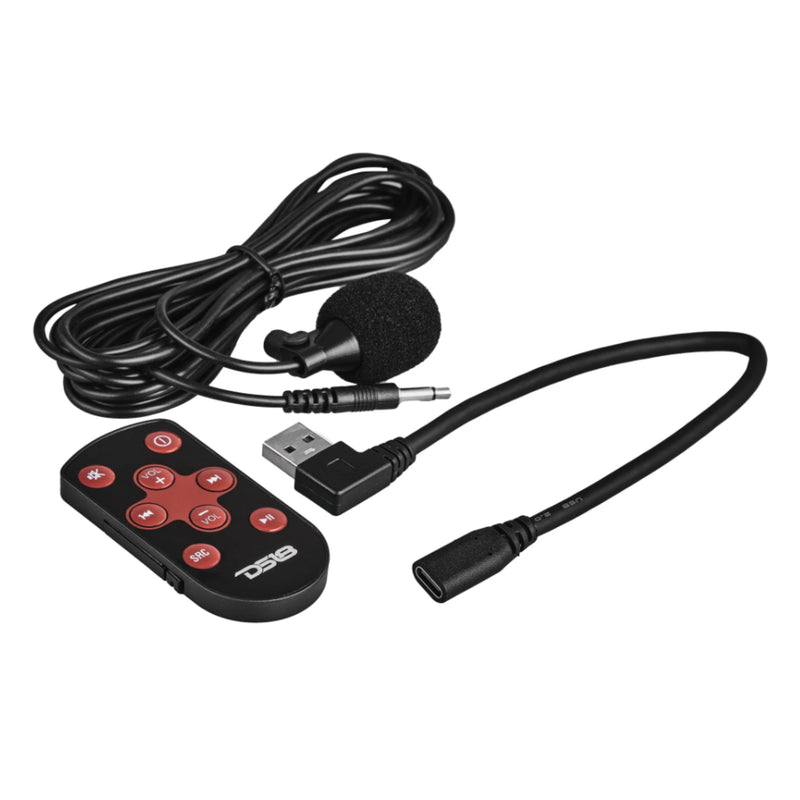

- Wireless remote control for easy operation.
- RCA inputs so you can view external sources video easily via source.
- Multicolored Backlit Keys for easy use in dim settings
- MIC in options for easy phone operation and built-in controls.
- Camera Inputs included so you can plug and play most types of back up cameras.
- Apple and Android compatible.
Specs:
GENERAL
Rated power source: 14.4V DC (10.8V to 15V operation)
Maximum Current Consumption: 10 Amp
DISPLAY
Screen Size / Aspect Ratio: 10,5 inch / Wide 16:9
Pixels: 1280x720
Display Type: TFT / Full HD / Capacitive Touch Screen
Temperature Operation: -20C to +60C (14F to 140F)
AUDIO
Maximum Power Output: 40W x 4 Ch / 4 ohm
Continuous Power Output: 15W x 4 Ch / 4 ohm
Pre-output Level: 4.5 Volts (Front, Rear) 7 Volts (Subwoofer)

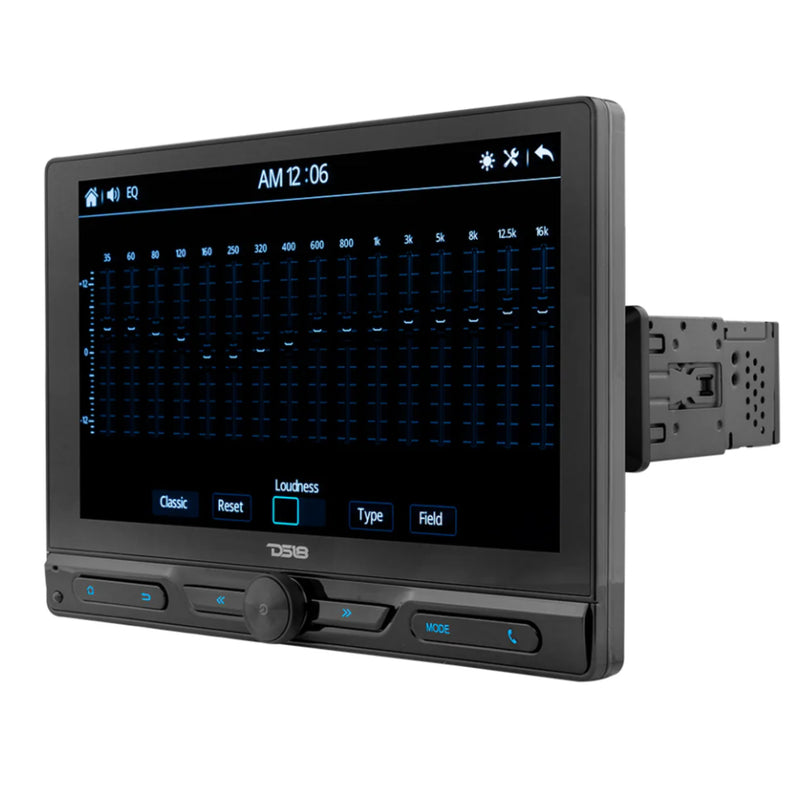

Equalizer: 16 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz, 250Hz, 320Hz, 400Hz, 600Hz, 800Hz, 1KHz, 3KHz, 5KHz, 8KHz, 12.5Khz, 16Khz)
Gain: +/- 12dB
Audio Control: Volume / Balance / Fader / Loudness

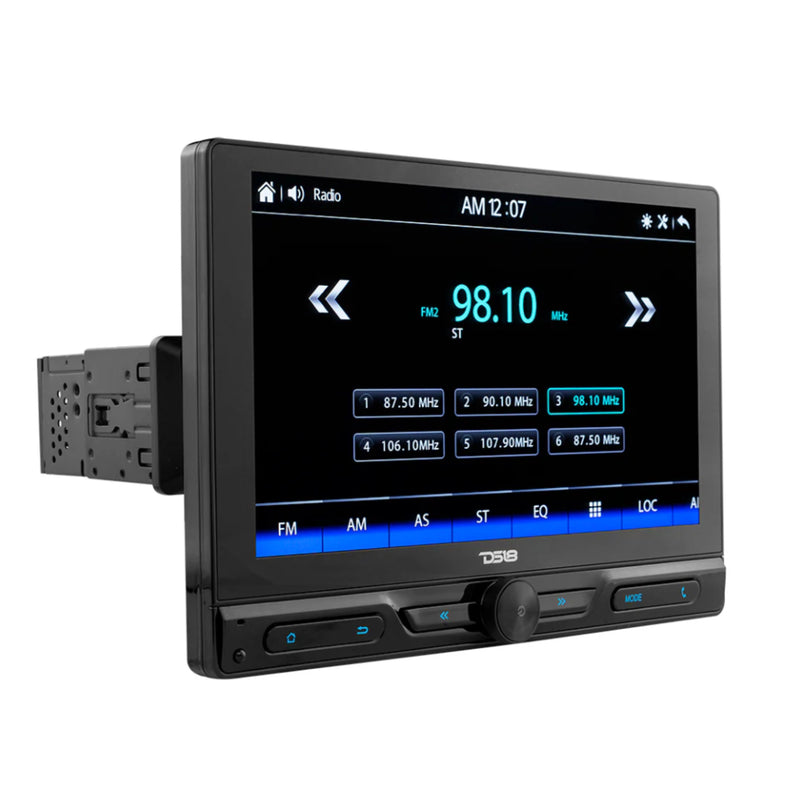

TUNER
Frequency Range: FM: 87.5 ~ 107.9 KHz AM:530 ~ 1710 KHz
Presets Memory: 30 Stations (18 FM/12 AM)
Region: Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)
Sensitivity Adjustment: LOC (On/Off) / ST (On/Off)
USB / SD PLAYER
Type / Class V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Format Files Supported: RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX
Resolution Supported: 1080P Video
Memory Size Reader: up to 64 Gb
Max Current Supply: 1.5 Amp (USB)
Number of USB Ports: 2 (1 x Front, 1 x Rear)
CONNECTIVITY
Bluetooth Version / Services: V5.1 / Audio Streaming / Hands Free calls

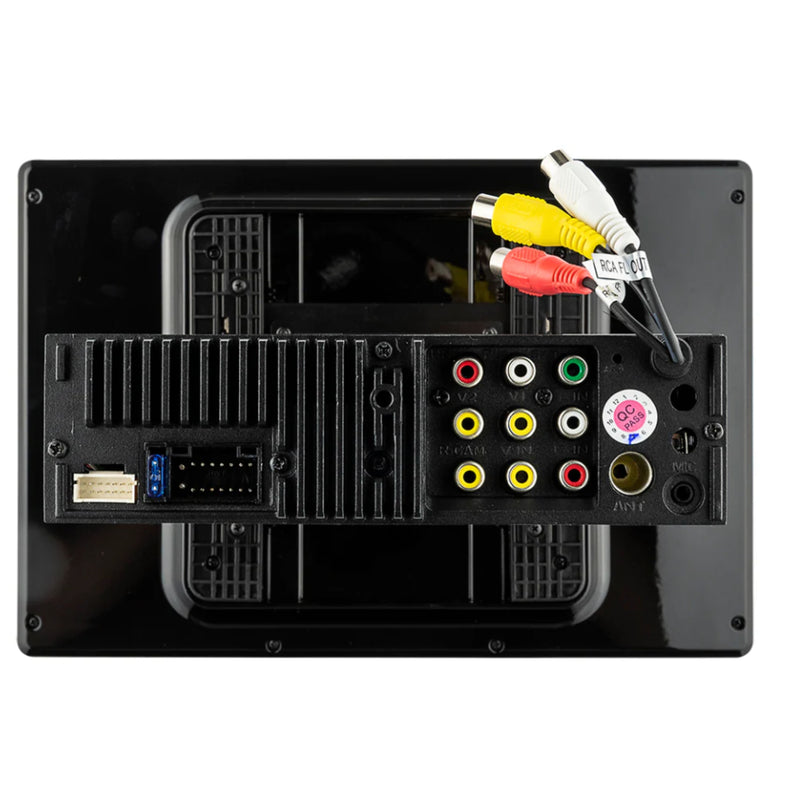

Camera Input: RCA Analog Video up to HD 720p (Front/Rear)
Video Output: Dual RCA (1 Volt/75 ohm)
AV Aux Input: Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio
Microphone: 3.5mm Jack external MIC Input
Remote Control: Frontal IR Receptor / Wired (3.5mm jack) Input
Package Dimensions: (in inches)
Length: 13
Width: 11.25
Height: 10
Package Weight:(in pounds) 7 lbs.
Item Dimensions:
Length: 5.5
Width: 7
Height: 4
Item Weight: (in pounds) 5.5 lbs.
