DS18 10" 400Watt 4 Ohm Loaded Ported Enclosure w/ Amplifier and Amp kit LSE-110A

DS18 SKU: DS-LSE-110A

$299.95

Shipping calculated at checkout

Sold Out

DS18 10" 400Watt 4 Ohm Loaded Ported Enclosure w/ Amplifier and Amp kit LSE-110A

Looking for that perfect bass package but are overwhelmed by all the options? We have made it easy with our loaded subwoofer box the LSE110A! This is a prefabricated box that comes with one of our best selling subwoofers. Included is a beautiful carpeted box with DS18 logo designs tuned to 42 Hz. The box is constructed by thick 1/2 MDF for great sound and resonance. The sub included is the very popular MD10 that is a single voice coil 4 ohm sub with a nominal impedance of 4 ohms and can handle up to 400 watts. This loaded box is a great entry level solution to hard hitting heavy bass for all to enjoy.

This listing includes:
(1) S-1500.1 Amplifier

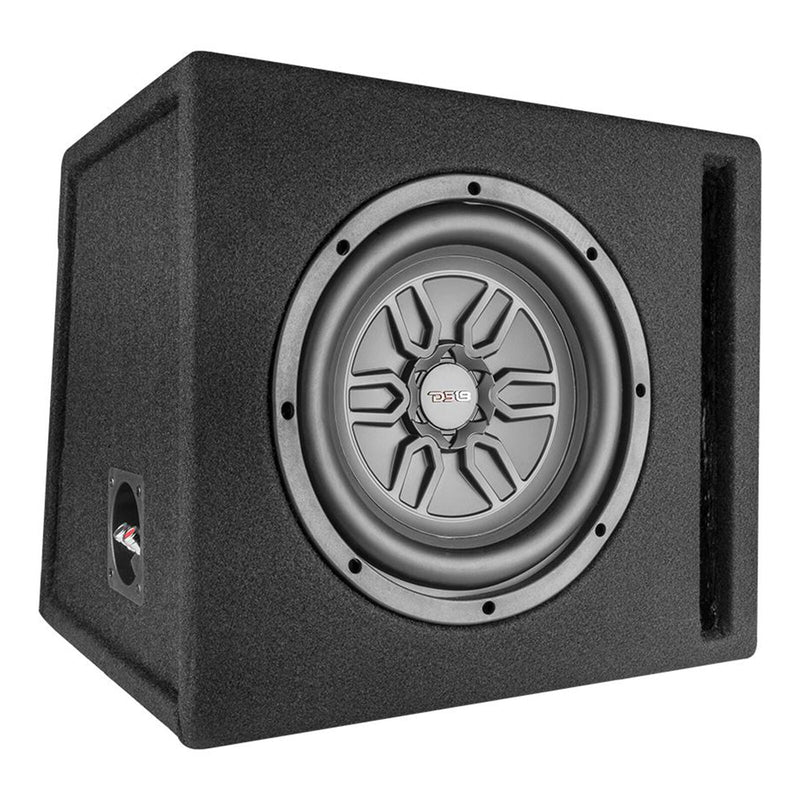

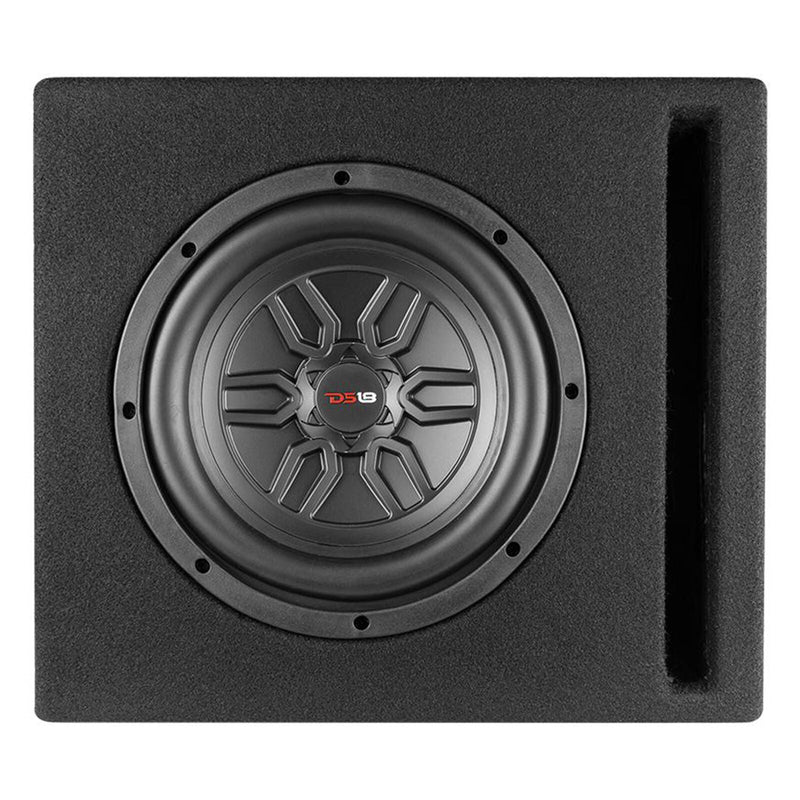

(1) SLC-MD10 Subwoofer Loaded Ported Box

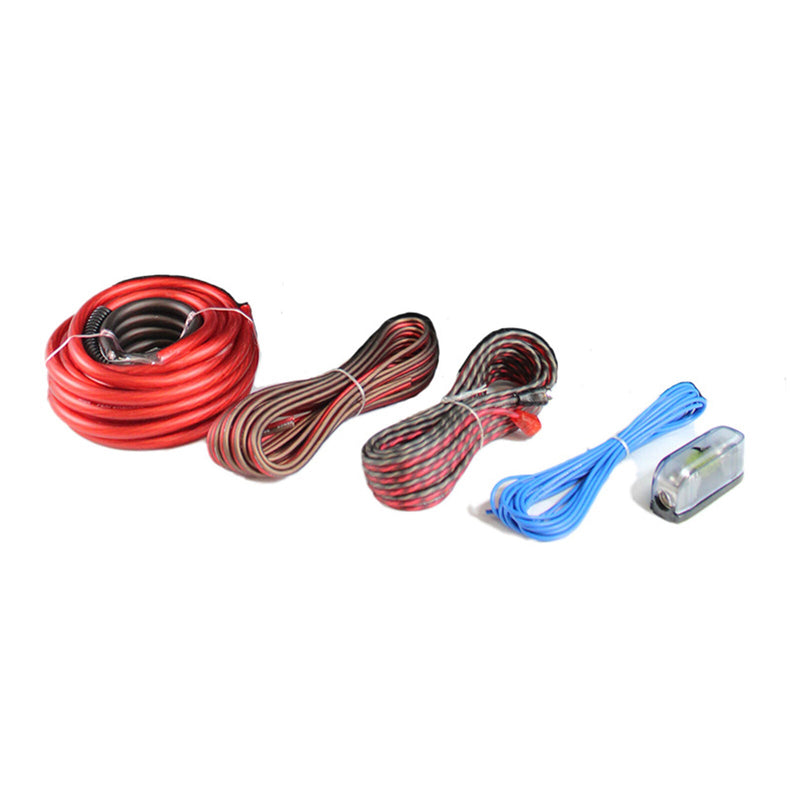

(1) 4-GA Amp Kit Which Includes:
- AGU Fuse Holder with AGU-100A
- 6ft. 4GA Loom Tube
- Rubber Grommet
- 17ft. Red power cable: 21mm² od: 10mm
- 3ft. Black ground cable: 21mm² od: 10mm
- 17ft. Red/black twisted RCA cable
- 17ft. Turn-on cable: 20*0.15mm
- 17ft. Red/black speaker cable: 1.31mm² x 2 wires od 3.2 x 6.4mm

Features:
- The box is constructed of 1/2 inch MDF for great strength, resonance, and tuned to 42hz for low hitting bass.
- One SLC 10-inch sub will give you the cone area to push out great-sounding bass without a lot of power requirements.

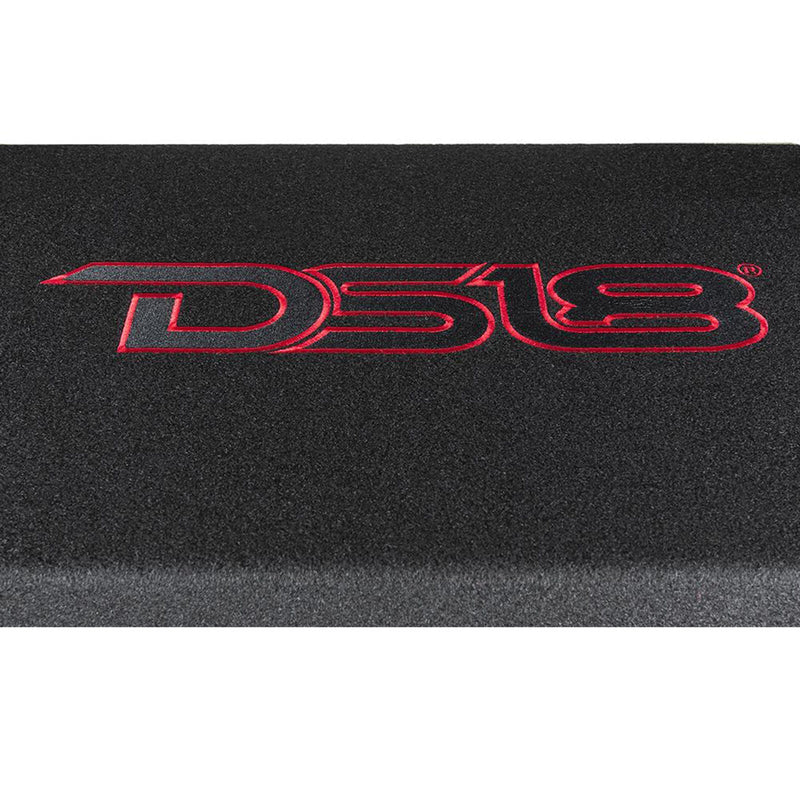

- Great design and carpeting with DS18 logos to give your system the flair it deserves and also bring a show-quality look.
- Great durability so you can enjoy hard-hitting bass for years to come.

General Specifications:
Speaker Size: Single 10"
Total Impedance: 4 ohms
Total RMS Power Handling: 200 watts
Total MAX Power Handling: 400 watts
Sensitivity (1w/1m): 90 db
Frequency Response: 35-250hz
Recommended Lo Pass Crossover:90Hz

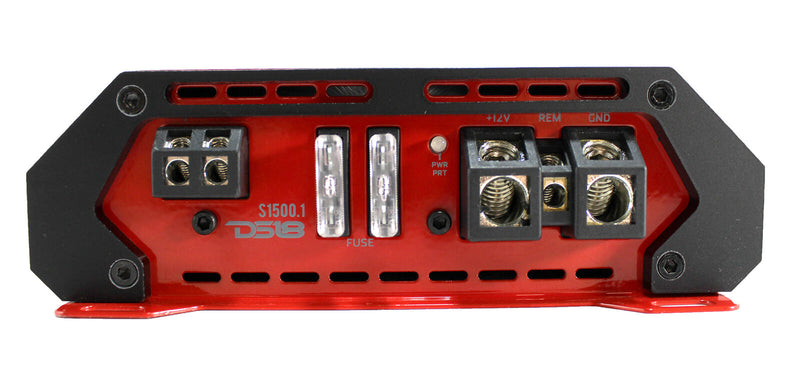

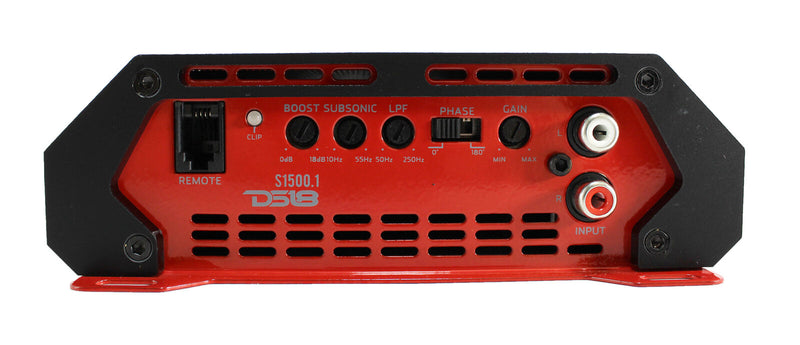

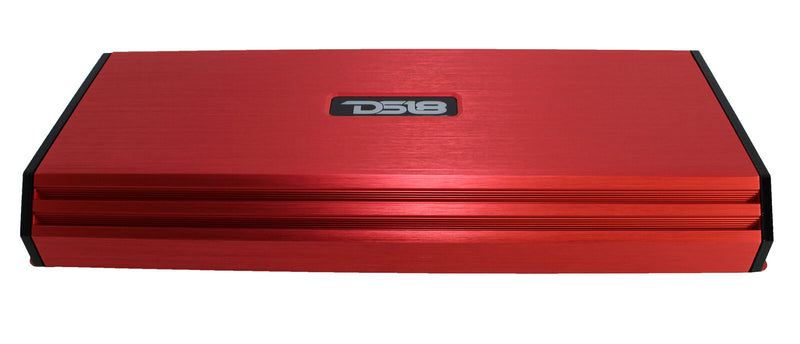

Amplifier Specifications:
Model: S-1500.1
Circuit Topology: Class AB Monoblock Amplifier
RMS Power Output @ 2 OHMS: 350 watts
RMS Power Output @ 4 OHMS: 220 watts
Total Harmonic Distortion: Less Than 3%
S/N Ratio Ref 1w @ 4 OHMS: More Than 90 db
Gain Range: 0.2-6V
Crossover Range: 50-250hz
Frequency Range: 20Hz-500 Hz
Dimensions: 13.7"/348mm x 5.8"/148mm x 1.8" / 47.5mm

Subwoofer Specifications:
Model: SLC-MD10
Type: Subwoofer
Size: 10"
RMS Power: 200W
MAX Power: 400W
Impedance: 4 Ohms
Voice Coil Size: 2"
Magnet: Ferrite
Magnet Size: 32 oz
Voice Coil Diameter: 2"
Voice Coil Former Material: Aluminum
Cone Material: PPI
Surround Material: Rubber
Basket Material: Steel
Magnet Material: Ferrite
Magnet Weight: 32 oz.

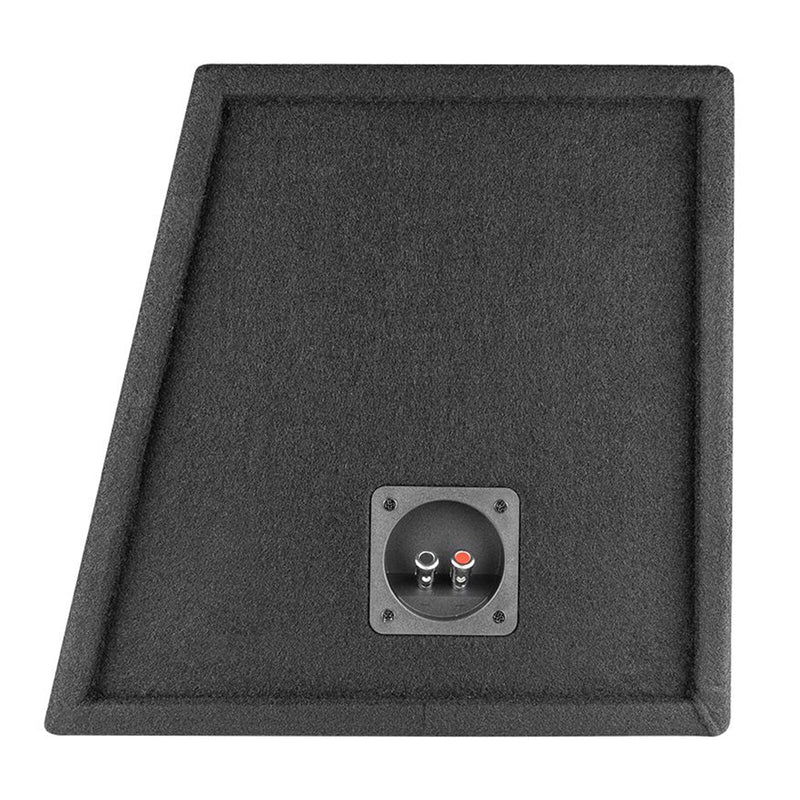

Box Specifications:
Port Tune: 42Hz
Internal Volume: 34L
Load Configuration: Front Ported
Box Material: 1/2" MDF
Finish Material: Carpet

Dimensions/Measurements:
Height: 13.78" / 350mm
Width: 15.75" / 400mm
Depth 1: 11" / 280mm
Depth 2: 14" / 356mm
