DS18 Power 4000 Watts 1-Channel 1-Ohm Class D Amplifier Made In Korea
Blast away your music with extreme efficiency and power with our NEW EXL-P series amps for crazy loud sound that is driven by Korean Power. Korean amps have been proven time over time to be the best amps if you want pure power driven by high quality parts assembled by our factory that has the longest proven track history. Our Korean Facilities take a more time in the manufacturing process while also using the highest quality parts for the best results. This helps the amplifier live a long life all while producing more than rated power if installed and tuned correctly. These amps are for enthusiasts that accept no compromises for their sound and power levels for your car.
The EXL-P series is made to produce some serious power. These Monoblock amps will be sure to blast your subwoofers away with high amounts of clean power for maximum sound and bass for car audio.
This Listing Includes:

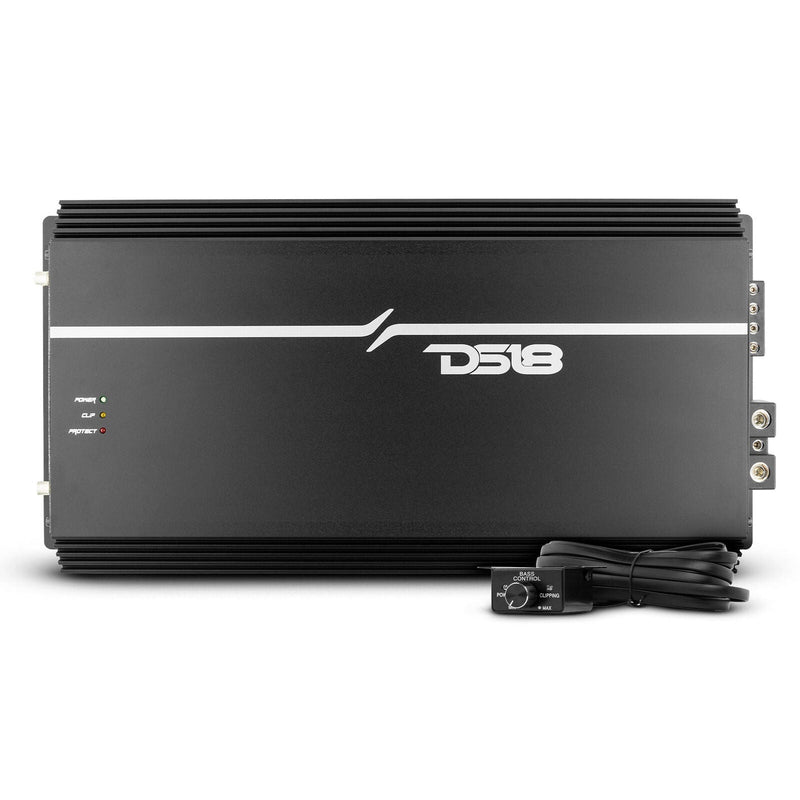

(1) DS18 1-Channel Class D Amplifier EXL-P4000X1D

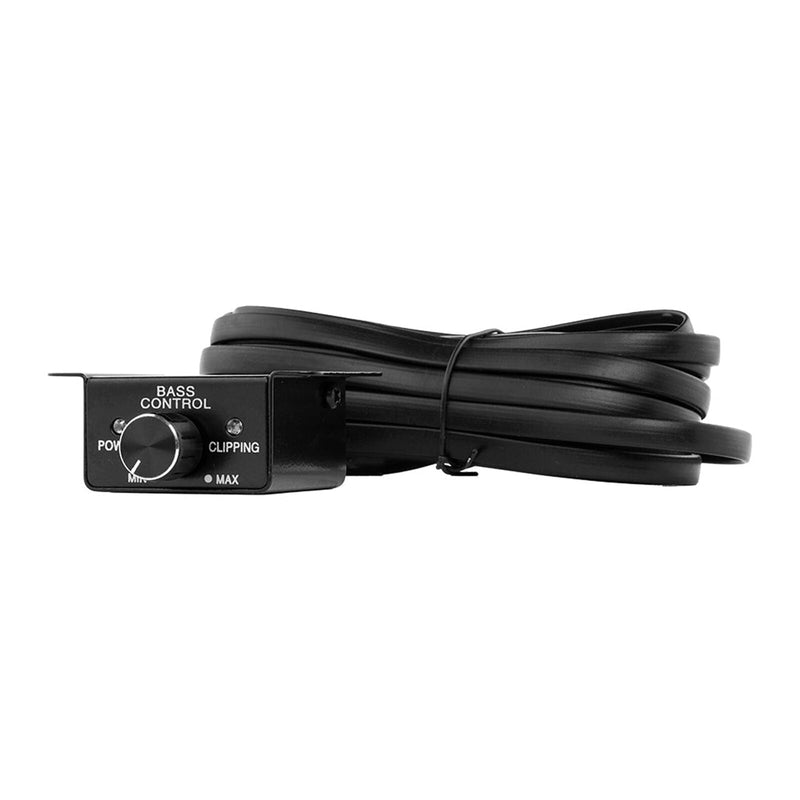

(1) Bass Knob with Clipping Indicator
FEATURES:
- Competition SPL Monoblock Class-D Subwoofer Amplifier
- Protection Circuit: Thermal, Over-Load, DC, Short Circuit, Voltage and Clipping
- LED indicate working status: Power/Protection/Clipping
- Tiffany RCA Connectors
- Strap Mode Connection
- Remote Bass Knob with Power and Clip LED Indicator included
- Latest SMC and MOSFET Technology
- Reliable Heavy duty Korean Circuit Board design

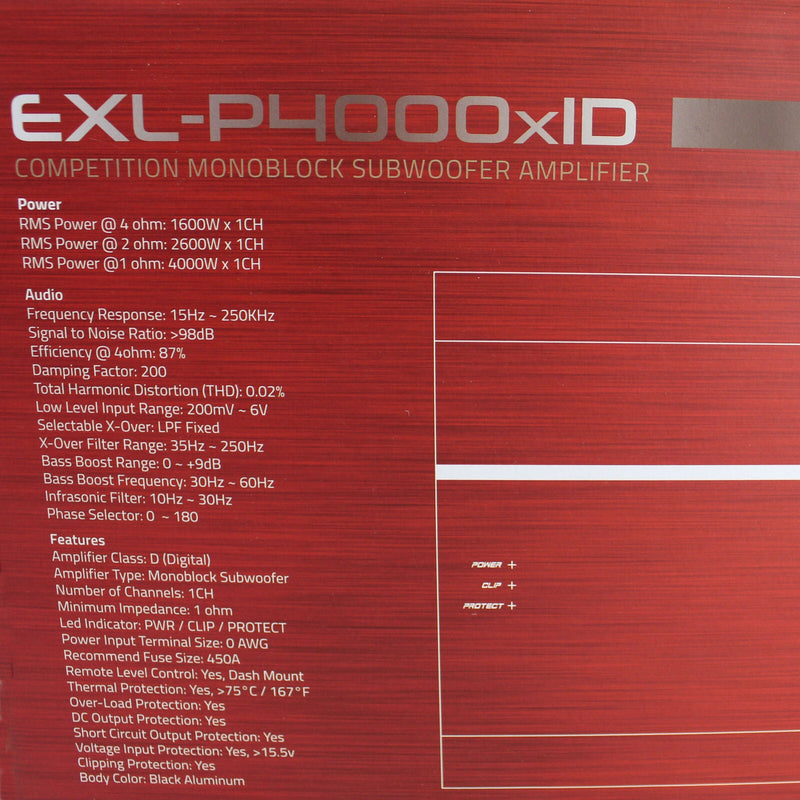

SPECIFICATIONS:
RMS Power @ 4 Ohm: 1600W x 1CH
RMS Power @ 2 Ohm: 2600W x 1CH
RMS Power @ 1 Ohm: 4000W x 1CH
Frequency Response : 15Hz-250Hz
Signal/Noise Ratio: Greater than 98dB
Efficiency@4 0hm: Greater than 87%
Damping Factor: 200
THD : Less than: 0.02%
Low Level Input Range: 200MV-6V
Selectable X-Over: LPF Fixed
X-Over Filter Range: 35Hz - 250Hz
Bass Boost Range: 0-+9dB
Bass Boost Frequency: 30Hz - 60Hz
Infrasonic Filter:10Hz - 30Hz
Phase Selector: 0-180
Class: D (Digital)
Amplifier Type: Monoblock Subwoofer
Channels: 1CH
Minimum Impedance: 1 Ohm
Led Indicator: PWR / CLIP / PROTECT
Power Input Size: 0 AWG
Fuse Rating: 450A
Remote Level Control: Yes - Dash Mount
Cooling Fan: No
Thermal Protection: Yes >75C / 167F
Over-Load Protection: Yes
Dc Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes >15.5V
Clipping Protection: Yes
Body Color / Finish: Black Aluminum
DIMENSIONS:
(L x W x H) 17.4" x 8.77" x 2.67"
HEATSINK LENGTH: 15.75"
