DS18 NXL Monoblock Class D IP67 Marine 1000 Watt 1-Ohm Bass Amplifier

• The included a marine grade fuse and fuse holder that is connected inline with your main power wire will help with ultimate protection against the elements.
• The NXL Marine Amplifier series is exactly what the outdoors lover will need for their vehicle's audio that needs a strong versatile waterproof amplifier
• All our marine units have stable and reliable 4-layer PCB layouts, IP67 waterproof rating for power sports, has an ultra-compact size for easy installation
• The NXL Series of amps are one of our most efficient lines with great power output all while withstanding the elements
• Latest Digital Amplifier Design With SMC Technology

DS18 NXL Monoblock Class D IP67 Marine 1000 Watt 1-Ohm Amplifier

This listing includes:

• (1) DS18 NXL-X1000.1 Marine Amplifier

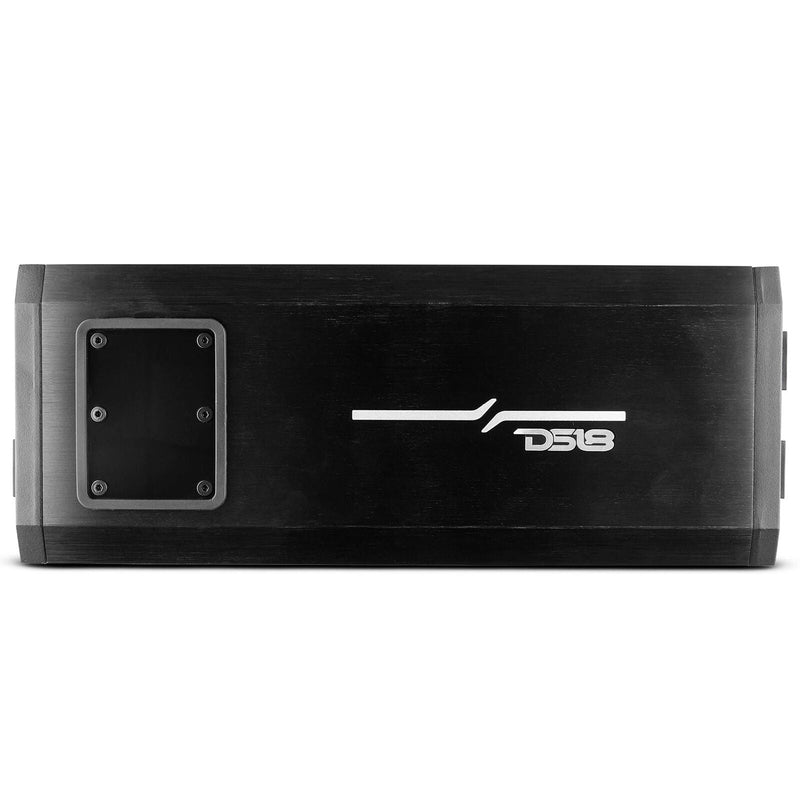

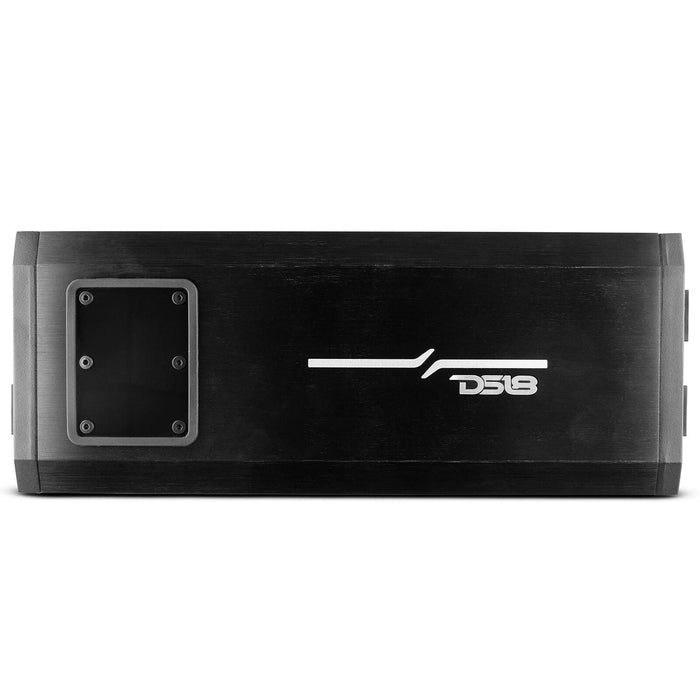

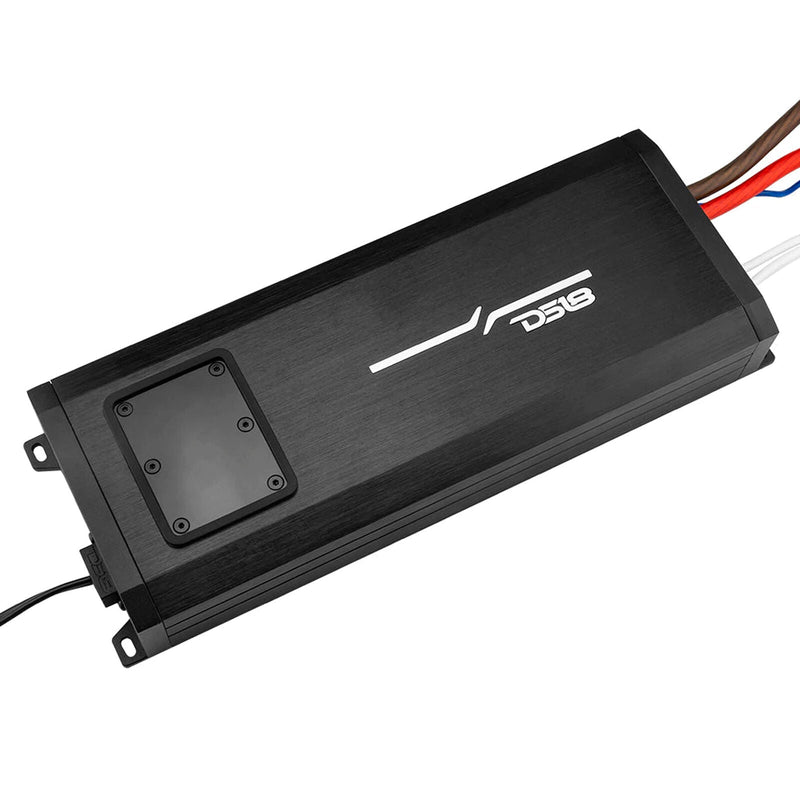

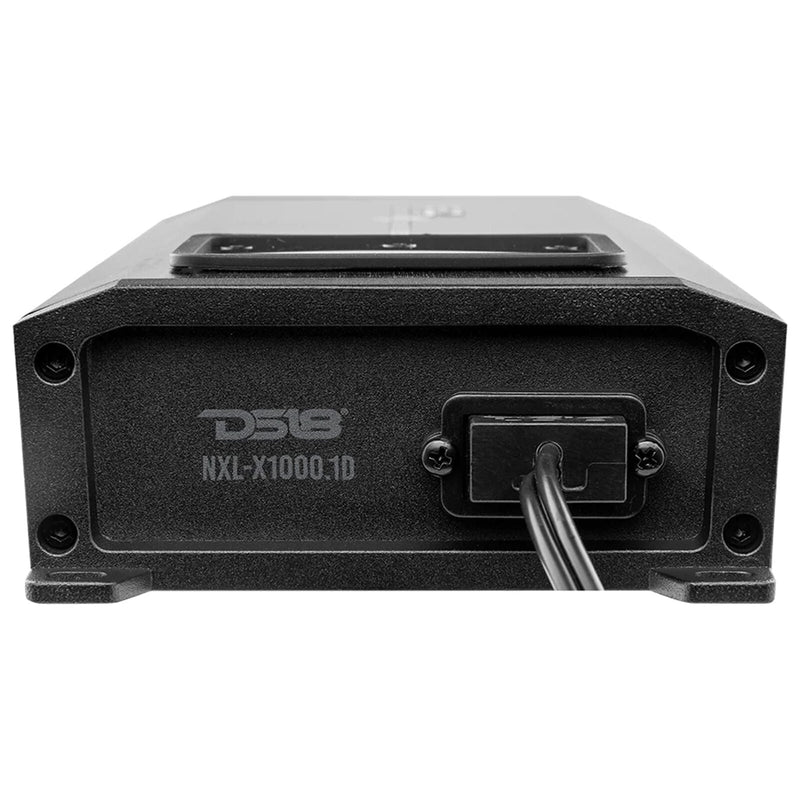

DS18's HYDRO NXL-X1000.1D is a powerhouse designed for those who crave a compact audio solution that doesn't compromise on power or sound quality.

With its high pass and low pass filters, the NXL-X1000.1D allows you to fine-tune your speaker setup for crystal-clear audio at any volume level. Featuring the latest digital amplifier design with SMC technology, this amplifier delivers powerful and efficient performance while minimizing distortion. The stable and reliable 4-layer PCB layout ensures optimal signal flow for exceptional audio precision.

One of the standout features of this amplifier is its IP67 waterproof rating, ensuring reliable performance even in wet and challenging conditions. UV, salt, and fog protection further enhance its durability, making it perfect for marine applications and off-road excursions.

With a peak power output of 2000W and RMS power ranging from 350W to an impressive 1000W at 1 ohm, you can enjoy immersive sound and enhanced bass that will elevate your audio experience to new heights.

The direct power harness design with marine-grade OFC tinned wires guarantees a secure and efficient connection, but also offers convenience. Its ultra-compact size makes installation a breeze, while the included marine-grade fuse and fuse holder provide ultimate protection against electrical surges.

Experience the DS18 difference with DS18's HYDRO NXL-X1000.1D and take your sound system to the next level.

Specifications:

• Peak Output Power: 2000 Watts


• RMS Power @ 4 Ohm: 1 x 350 Watts


• RMS Power @ 2 Ohm: 1 x 600 Watts


• RMS Power @ 1 Ohm: 1x 1000 Watts


• Frequency Response: 10 Hz - 250 Hz


• Signal to Noise Ratio (1W @ 4 Ohm): >82 dB


• Efficiency @ 4 Ohm: 83%


• Input Impedance: 20K Ohm


• Total Harmonic Distortion: < 0.05%


• Low Level Input Range: 200mV - 5V

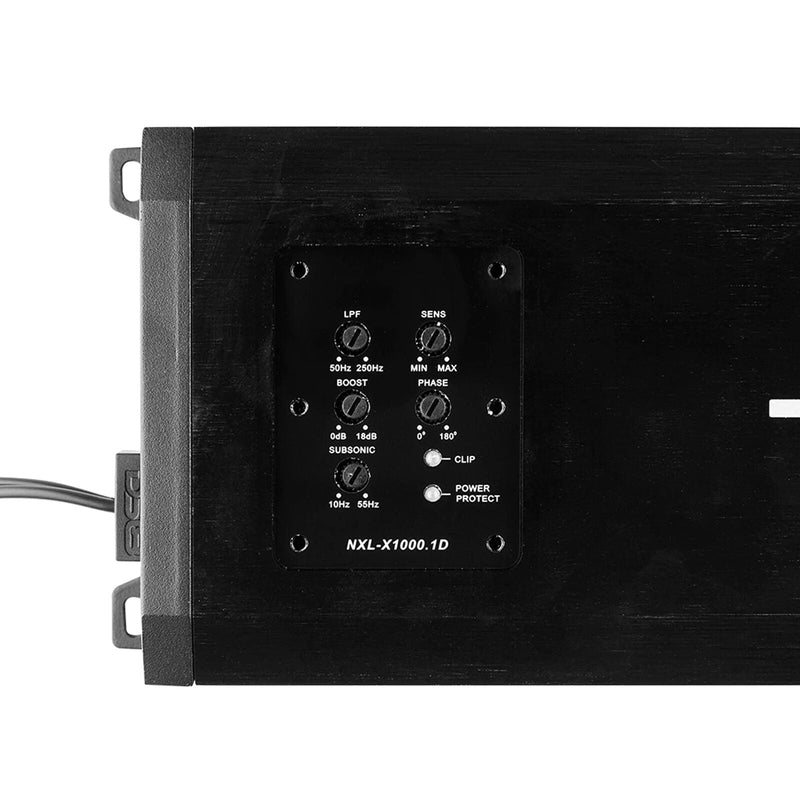

• X-Over Filter Range: 50 Hz - 250 Hz


• Bass Boost Range: 0-18 dB


• Bass Boost Frequency: 42 Hz


• Infrasonic Filter: 10 Hz - 55 Hz


• Phase Selector: 0 - 180


• Selectable X-Over: LPF Fixed


• Power / Protect / Clipping LED Indicators


• 4GA Tinned OFC Power Inputs

Features:

• Fuse Size: 2x 50A (100A)


• Thermal Protection: Yes (75 Celcius)


• Over-Load Protection: Yes


• Short Circuit Output Protection: Yes


• Voltage Input Protection: Yes (7 - 16V)


• Body Color / Finish: Black Brushed Aluminum


• RCA Audio Output: No


• Waterproof Rating: IP67


• UV / Salt Fog Protection: Yes

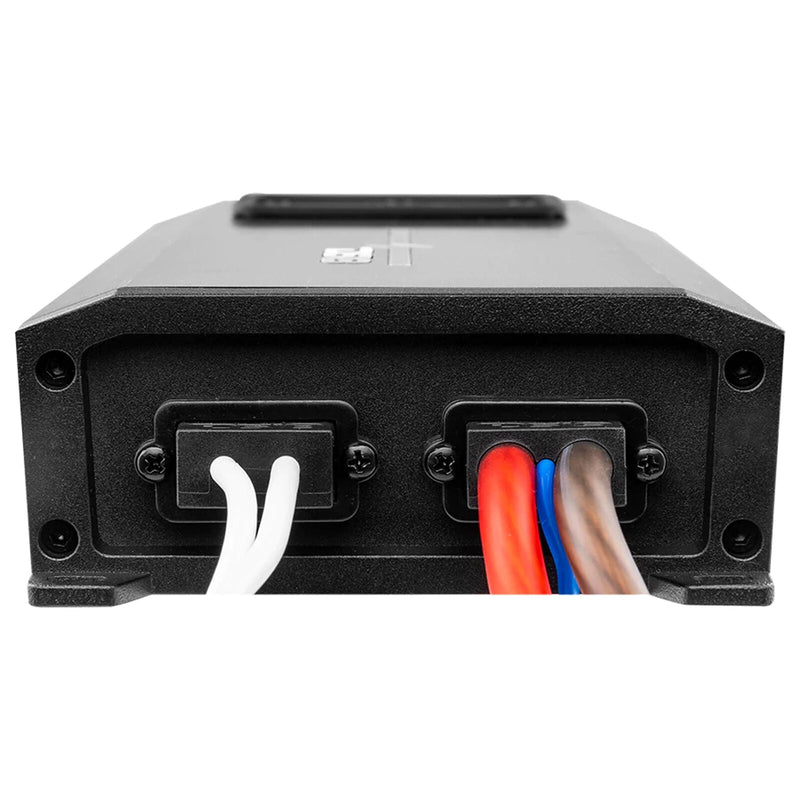

• Direct Power Harness Design: Yes


• Quick Connect Plug: Yes


• Surface Mount Component Technology: Yes

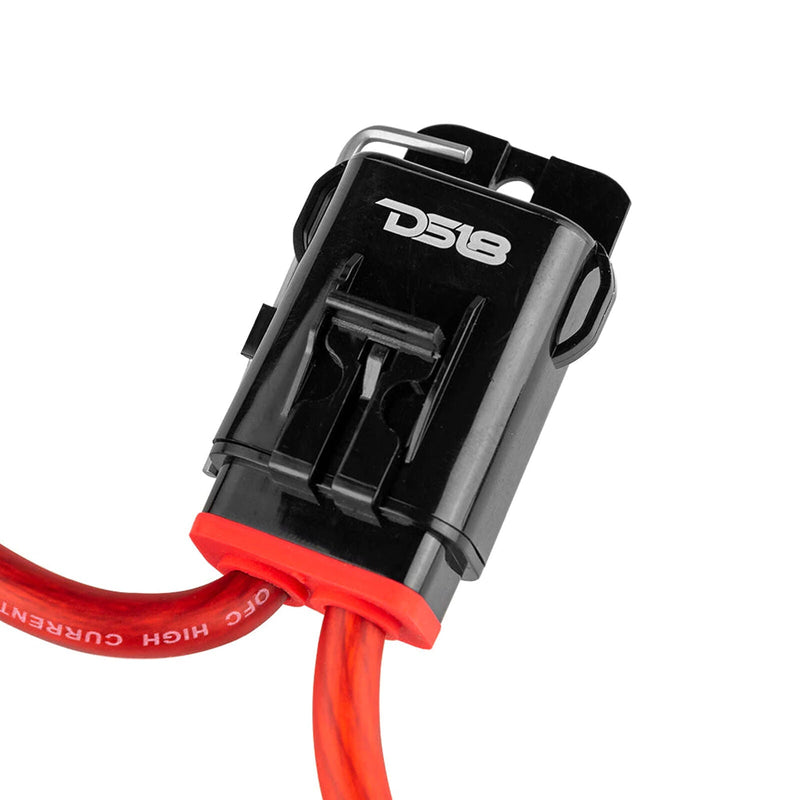

• Marine Grade Fuse Holder

Dimensions:

• Overall Length: 11.8" / 302mm


• Overall Width: 4.4" / 112mm


• Overall Height: 1.77" / 45mm


• Heatsink Length: 11" / 281.6mm


• Gross single unit weight: 2.21 kg


• Product weight: 6 lb
