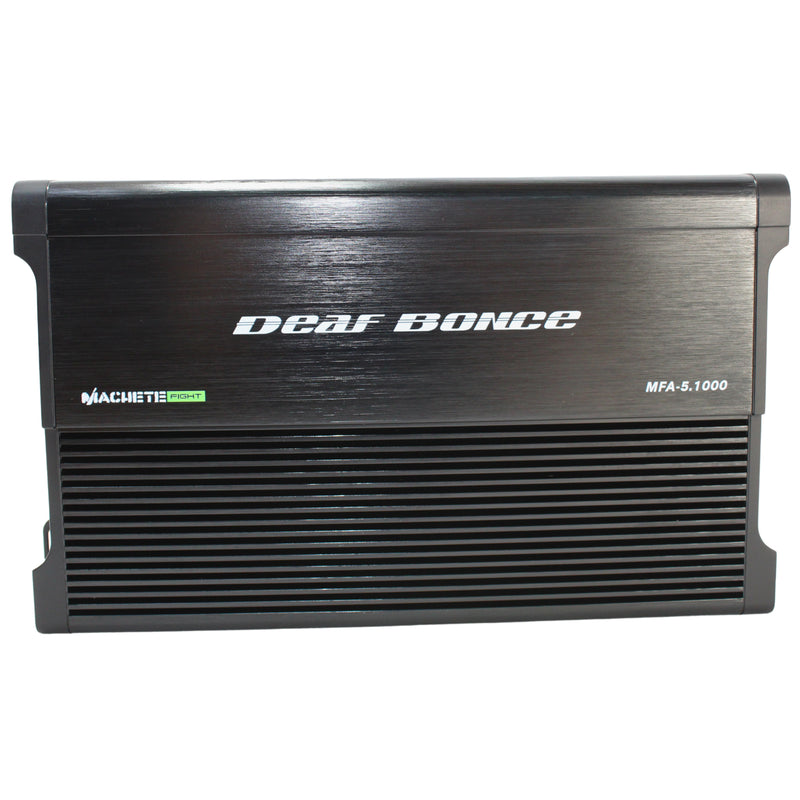

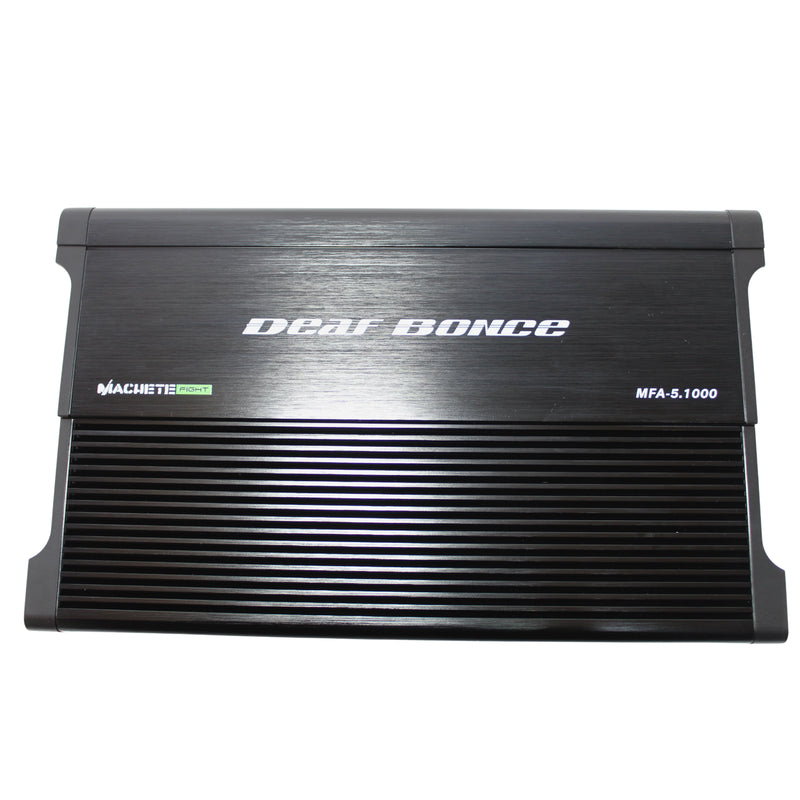

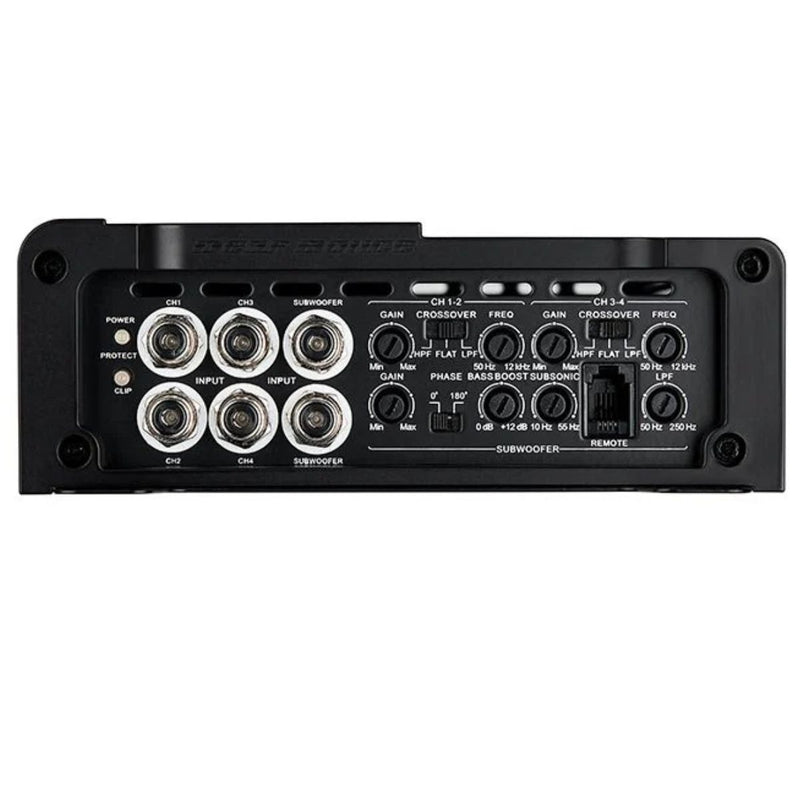

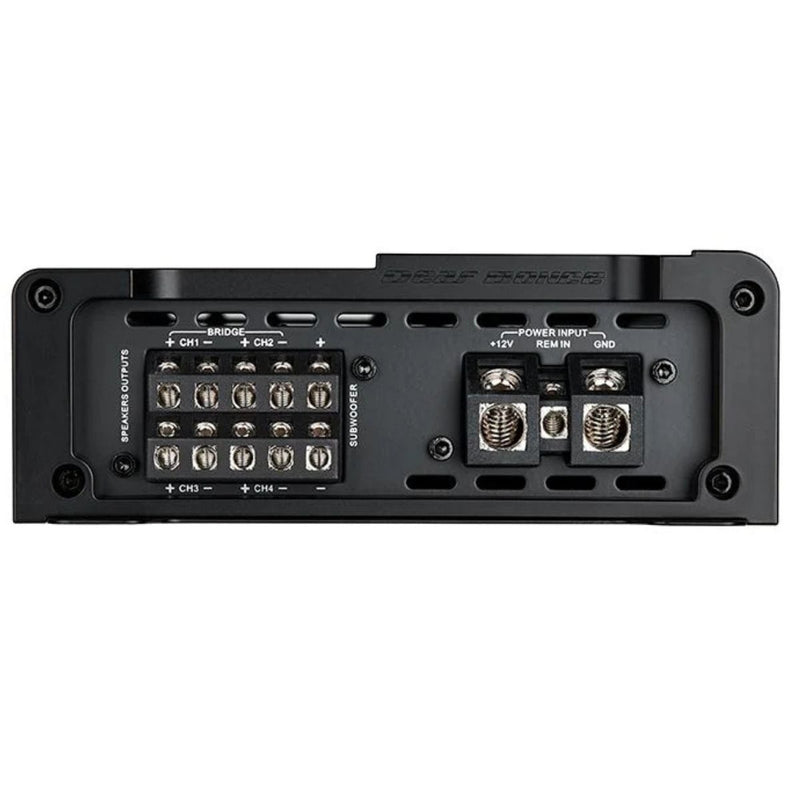

Deaf Bonce 980 Watts RMS 2-Ohm 5-Channel Class-D Machete Amplifier Full Range

• ALL IN ONE 5 CHANNEL CLASS D POWER: Deaf Bonce Machete MFA-5.1000 delivers full range performance to power 4 speakers plus a subwoofer from one compact amplifier.
• STRONG RMS OUTPUT FOR FULL SYSTEMS: At 4 Ohm it provides 4 x 80W RMS for channels 1-4 plus 1 x 300W RMS for channel 5. At 2 Ohm it increases to 4 x 120W RMS plus 1 x 500W RMS for the sub channel.
• BRIDGED MODE FOR MORE SPEAKER POWER: Bridge channels 1-4 to get 2 x 240W RMS at 4 Ohm for a louder front stage or midbass setup while keeping channel 5 for the subwoofer.

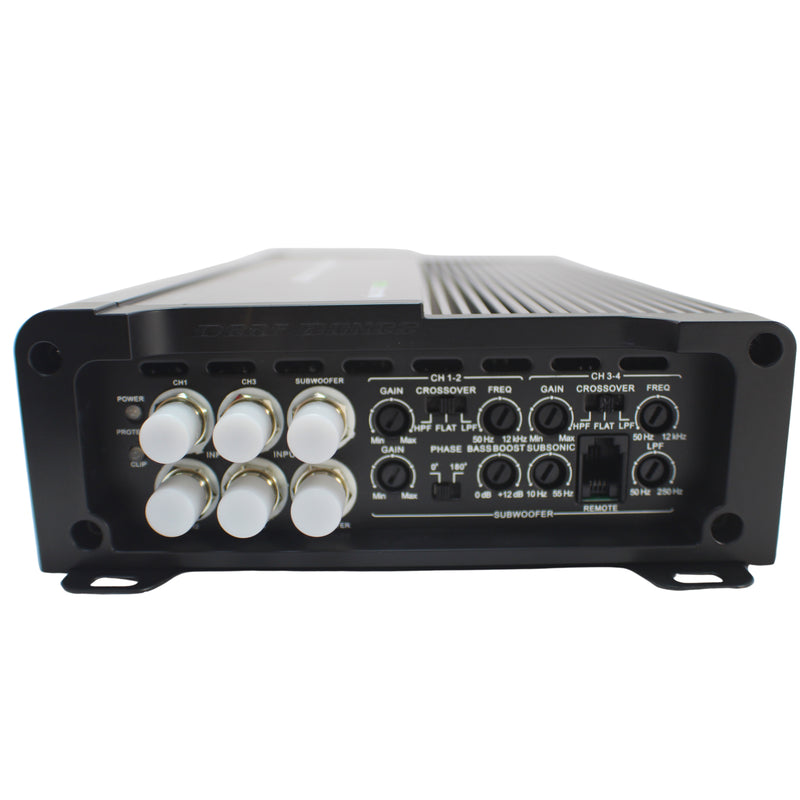

• BUILT IN FILTERS AND SUBSONIC CONTROL: Channels 1-4 include high pass and low pass filters from 50 to 12000 Hz with 24 dB per octave crossover. Channel 5 includes low pass filter 50 to 250 Hz and subsonic 10 to 55 Hz with 24 dB per octave slope.
• INSTALL FRIENDLY AND COMPATIBLE: 0.4 to 6V input sensitivity, 4 gauge power input, 8 gauge speaker outputs, 9 to 15V working voltage, and over 90 dB signal to noise ratio for clean everyday performance.

Deaf Bonce 980 Watts RMS 2-Ohm 5-Channel Class-D Machete Amplifier Full Range MFA-5.1000

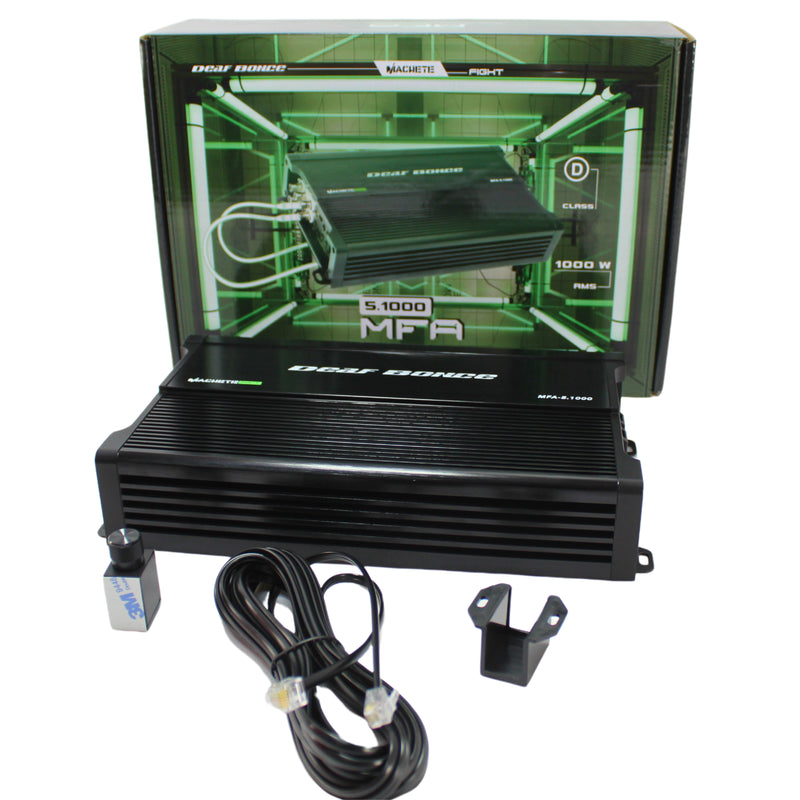

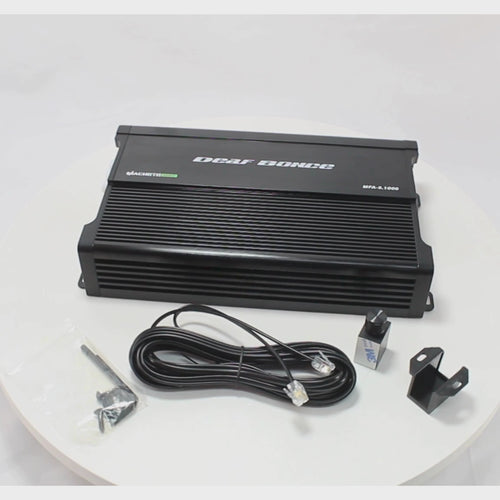

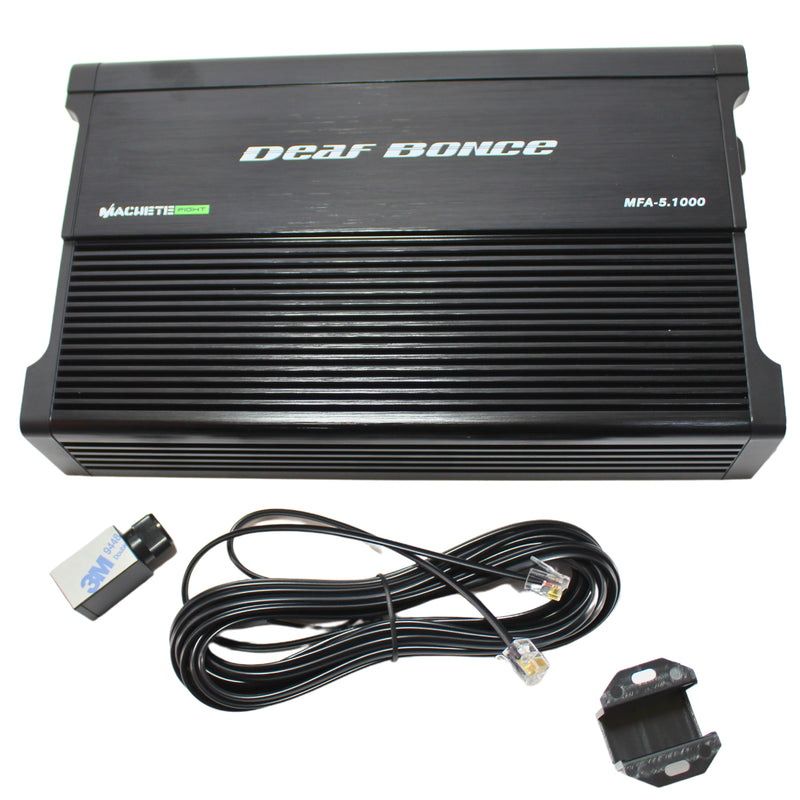

This Listing Includes:

• (1) MFA-5.1000 5-Channel Class D Amplifier

A powerhouse in the Class D category with 5 channels of pure audio excellence. This full-range amplifier delivers clear sound. Powering at 4-Ohms, experience 4 x 80W for channels 1-4 and an additional 1 x 300W for channel 5. At 2-Ohms, the performance rises to 4 x 120W and 1 x 500W, showcasing its versatility. Bridged mode unleashes 2 x 240W for an immersive audio experience. Tailor your audio with high- and low-pass filters, crossovers, and subsonic adjustments. Operating at a minimum permissible load of 2-Ohms, this amplifier provides flexibility without compromising power. Input SPL ranges from 0.4 to 6V, while the amplifier's compact size ensures seamless integration into any setup.

Features

• Full range 5-channel Class D amplifier for a complete system in one chassis


• Powers 4 speakers plus a subwoofer channel (channels 1-4 plus channel 5)


• 4 x 120W RMS at 2 Ohm plus 1 x 500W RMS at 2 Ohm for strong output


• Built-in crossovers for speakers and sub with 24 dB per octave slopes


• Compact size: 10.69 x 5.98 x 2.15 inch for easy installs

Specifications:

• Class: D


• Number of Channels: 5


• Frequency Response: 10Hz-20kHz


• Power RMS 4-Ohm (W): 4 x 80 + 1 x 300


• Power RMS 2-Ohm (W): 4 x 120 + 1 x 500


• Power RMS 4-Ohm Bridged Mode (W): 2 x 240


• 1-4 Channel High Pass Filter (Hz): 50 - 12000


• 1-4 Channel Low Pass Filter (Hz): 50 - 12000


• 1-4 Channel Crossover (dB/oct): 24


• 5-Channel Low Pass Filter (Hz): 50 - 250


• 5-Channel Subsonic (Hz): 10 - 55


• 5-Channel Crossover (dB/oct): 24


• Minimum Permissible Load on the Channel: 2-Ohm


• Minimum Permissible Load in a Bridge Connection: 4-Ohm


• LPF and HPF Simultaneous Operation: No


• Input SPL: 0.4 - 6V


• Input Terminal: 4Ga


• Output Terminal: 8Ga


• Working Voltage: 9 - 15V


• Signal-to-Noise Ratio: > 90 dB

Dimensions:

• Width: 5.98"


• Length: 10.69"


• Height: 2.15"
