- Nominal Diameter: 6.5"
- Frequency Response: 100Hz ~ 12KHz
- Voice Coil Diameter: 1"
- Magnet Material: Ferrite
- Force Factor: BL - 4.8

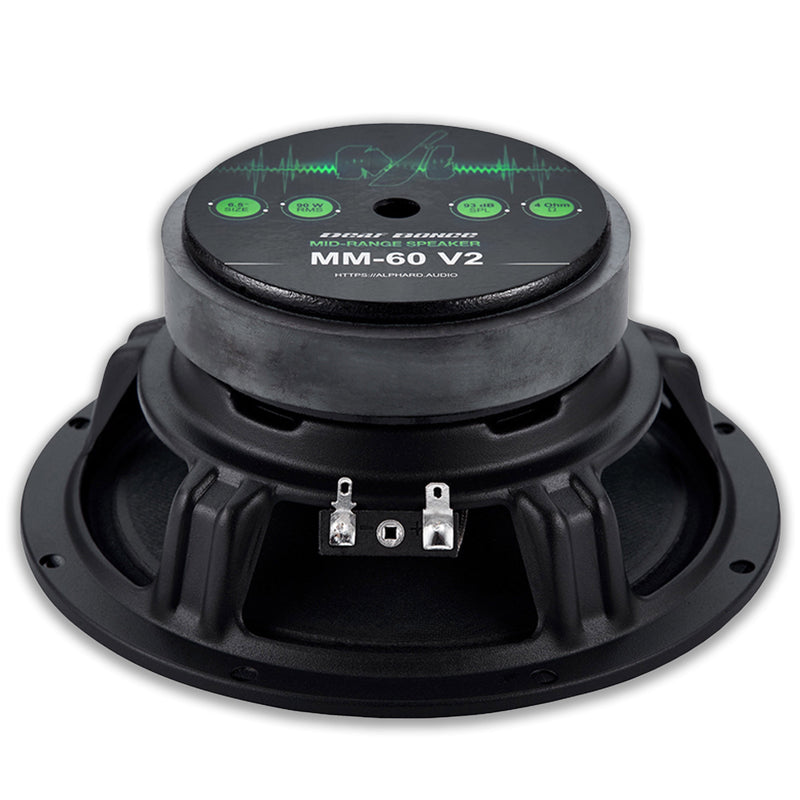

Deaf Bonce Car Audio 6.5" 4 Ohm Midrange Speakers MM-60-V2 & 4 Channel Class AB Amplifier Package MLA-4120

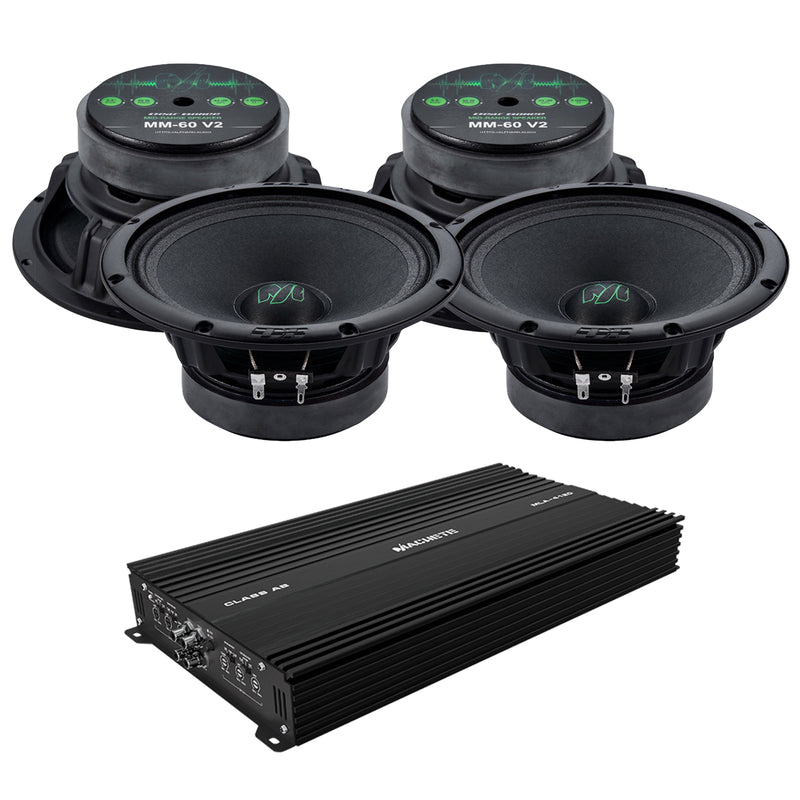

This listing includes :

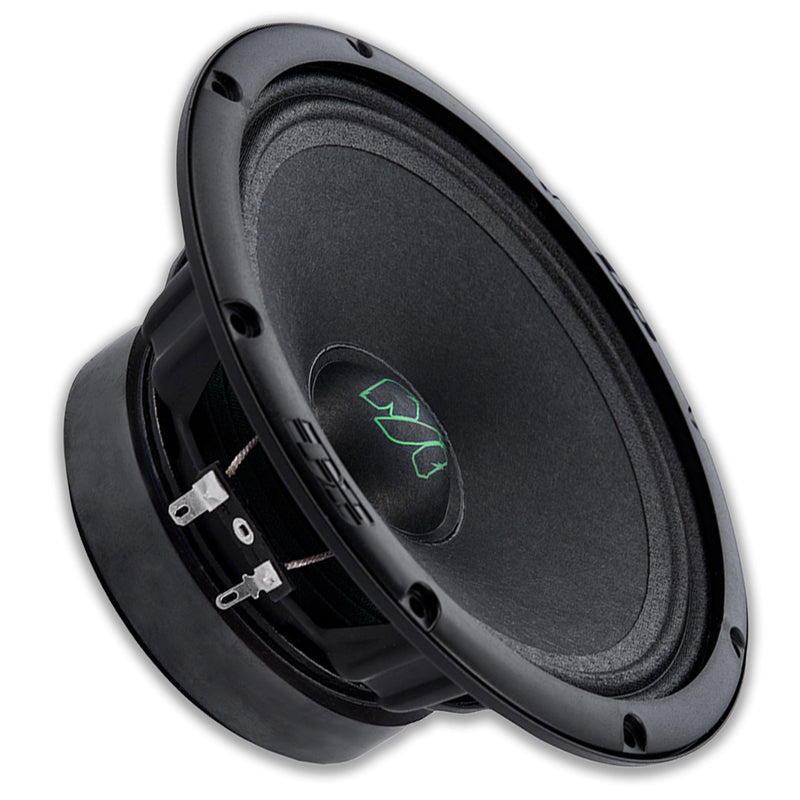

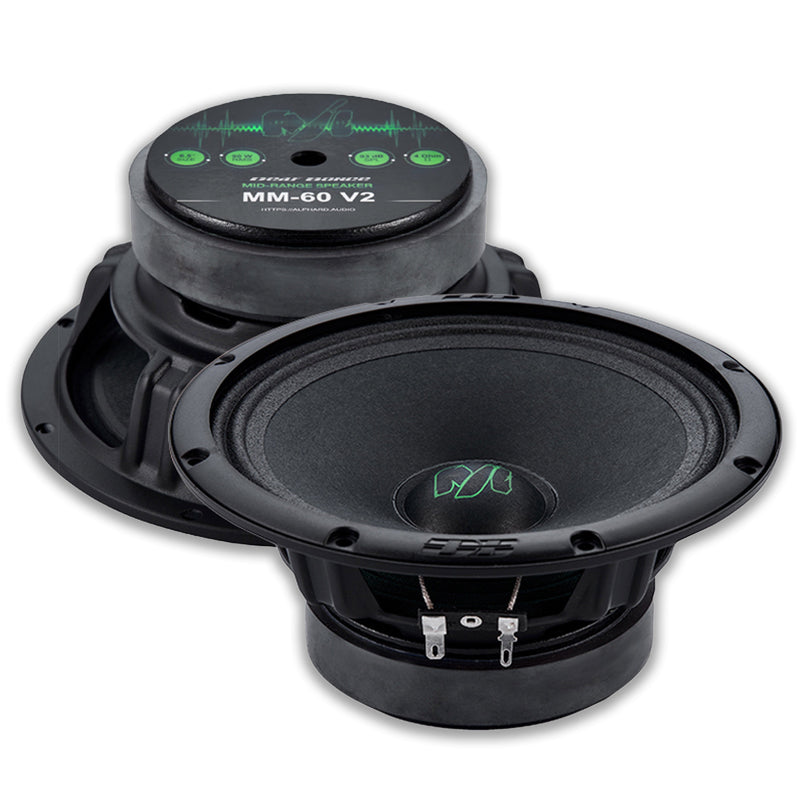

- (4) 6.5" 4 Ohm Midrange Speakers MM-60-V2

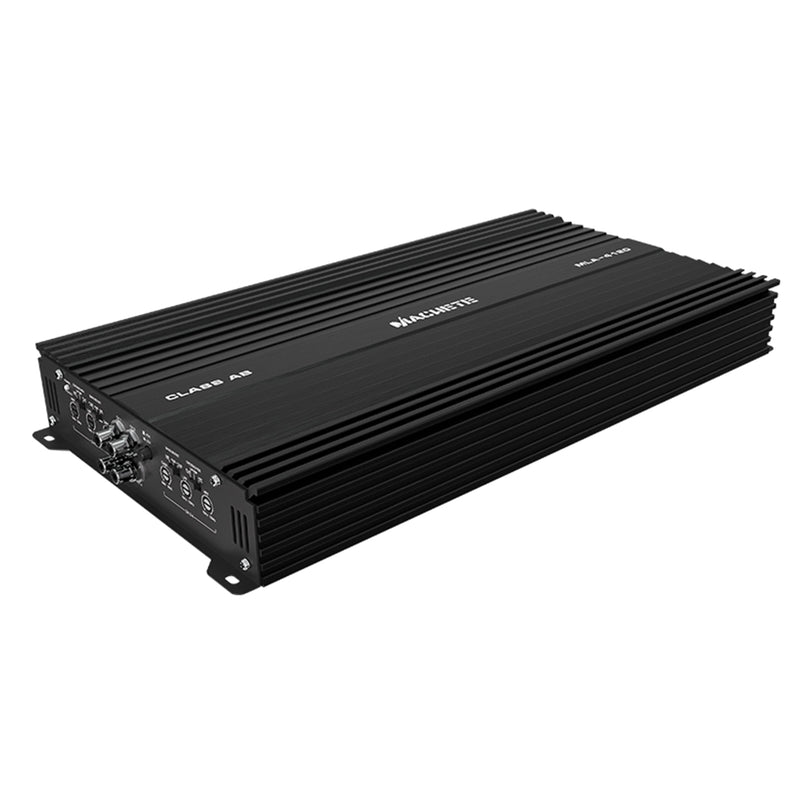

- (1) 4 Channel Class AB Amplifier MLA-4120
SPECIFICATIONS PER SPEAKER:
Nominal Diameter: 6.5"
Nominal Impedance: 4 Ohm
MAX Power Handling: 180 Watts
RMS Power Handling: 90 Watts
Sensitivity (1w/1m): 93dB
Frequency Response: 100Hz ~ 12KHz
MOTOR:
Voice Coil Diameter: 1"
Winding Material: CCAW
Cone Material: Pressed Paper
Surround Material: Cloth
Basket Material: Stamped Steel
Magnet Material: Ferrite
THIELE & SMALL PARAMETERS:
Equivalent Volume: Vas - 6.5L
Free Air Resonance: Fs - 116Hz
Total Factor: Qts - 0.72
Force Factor: BL - 4.8
DIMENSIONS PER SPEAKER:
Overall Diameter: 6.69" (170mm)
Front Mount Baffle Cutout: 5.89 (149.5mm)
Mounting Depth: 2.83" (72mm)
Overall Depth: 3.07" (78mm)
SPECIFICATIONS FOR AMPLIFIER :
Class: AB
Number of channels: 4
Frequency response: 10-20000 Hz
2 Ohm RMS Power (14.4 V): 150 W x 4
4 Ohm RMS Power (14.4 V): 120 W x 4
4 Ohm RMS Power (Bridge): 300 W x 2
Minimum permissible load on the channel: 2 Ohm
Minimum permissible load in a bridge connection: 4 Ohm
Input SPL: 0.2 - 6 V

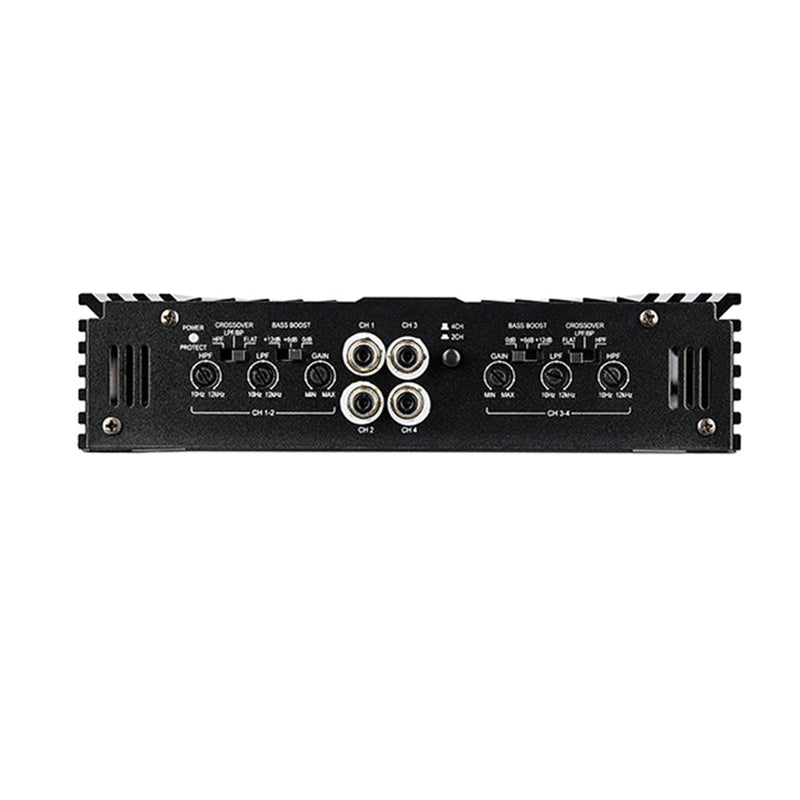

Low pass filter: 10-12000 Hz
High pass filter: 10-12000 Hz
LPF and HPF simultaneous operation: True
Crossover: 12 dB/Oct

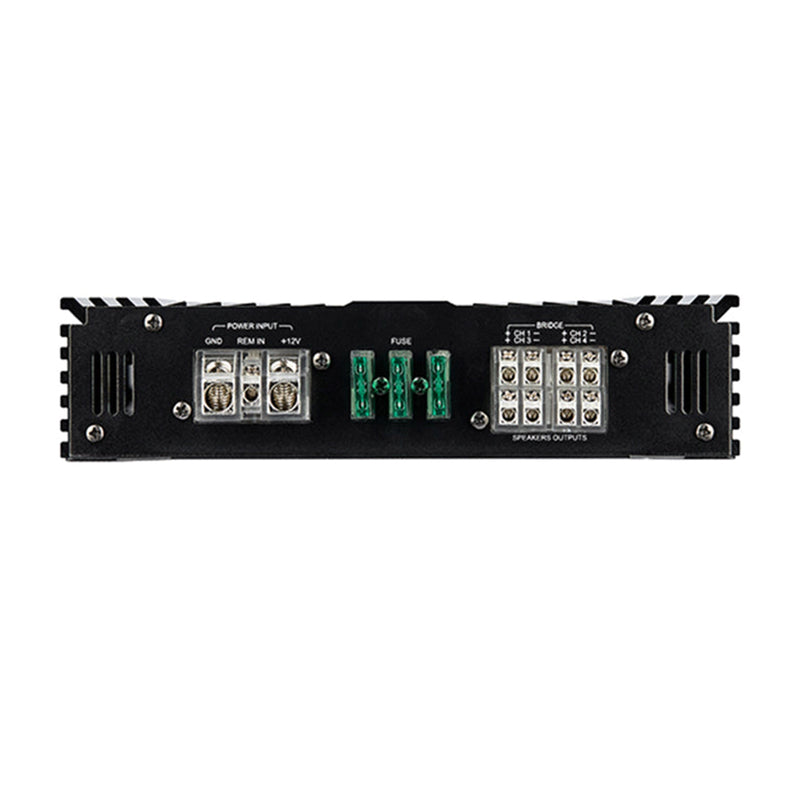

Input terminal: 4 Ga
Output terminal: 8 Ga
Working voltage: 10-15V
Signal-to-noise ratio: Greater than91 dB
DIMENSIONS:
Size (W x L x H): 15.55" x 8.50" x 1.96"
