Deaf Bonce Car Audio 12" 2 Ohm Subwoofer SA302-D2 & Monoblock Amplifier Package

• MAX Power Handling: 4000 Watts RMS Power Handling: 2000 Watts
• Nominal Impedance: 2+2 Ohm
• Magnet Material: Ferrite
• Mounting Depth: 7" (179.5mm)

Deaf Bonce Car Audio 12" 2 Ohm Subwoofer 4000W SA302-D2 & Monoblock Class D Amplifier Package AAP-2100.1D

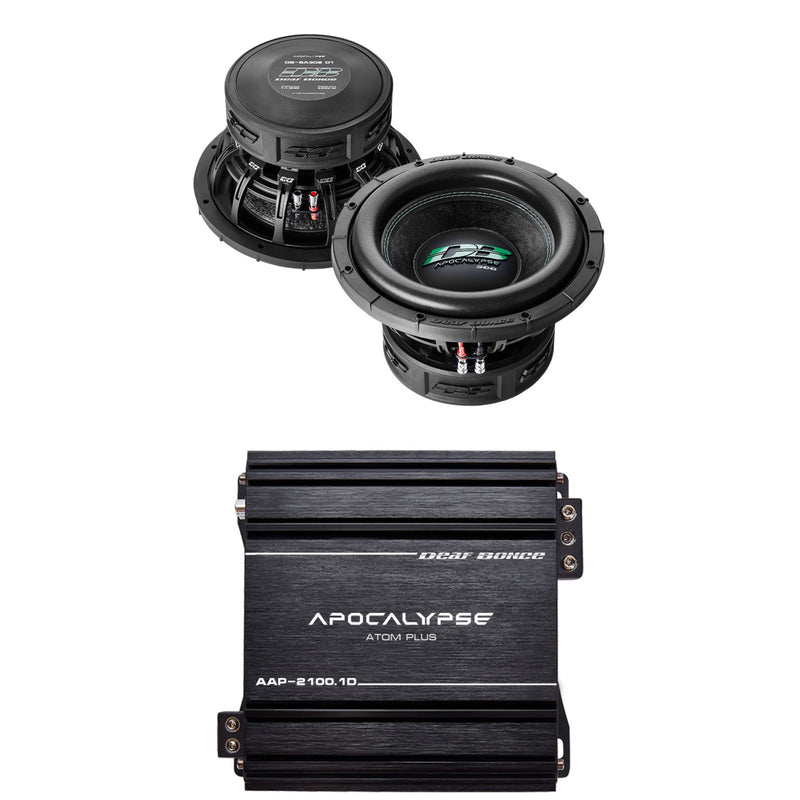

This listing includes :

(1) 12" 2 Ohm 4000W Subwoofer SA302-D2

(1) Monoblock Class D Amplifier AAP-2100.1D

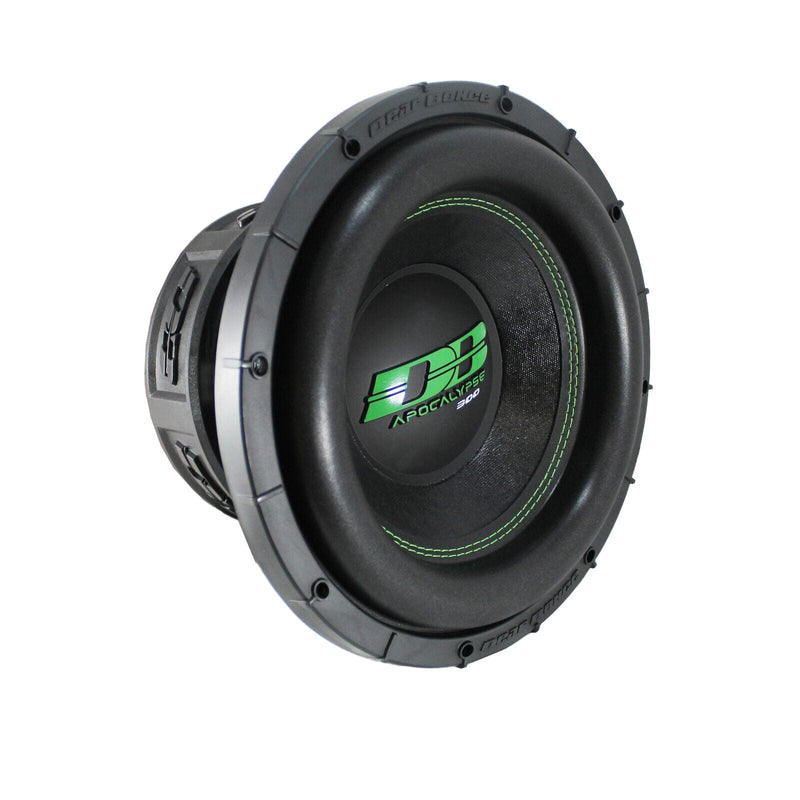

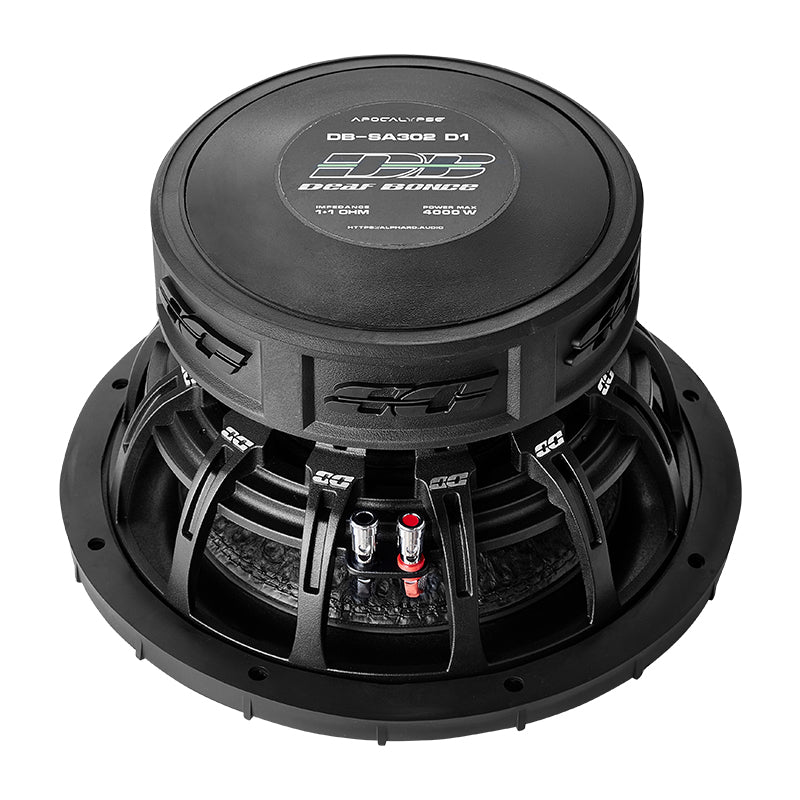

SPECIFICATIONS PER SUBWOOFER:



Nominal Diameter: 12"

Nominal Impedance: 2+2 Ohm

MAX Power Handling: 4000 Watts

RMS Power Handling: 2000 Watts

Sensitivity (1w/1m): 86.70dB

Frequency Response: 35.67Hz



MOTOR:

Voice Coil Diameter: 3"

Winding Material: CCAW

Cone Material: Pressed Paper

Surround Material: Foam

Basket Material: Aluminum

Magnet Material: Ferrite



THIELE & SMALL PARAMETERS:

Equivalent Volume: Vas - 24L

Excursion: X-max - 18mm

Free Air Resonance: Fs - 35.7Hz

Total Factor: Qts - 0.34

DC Resistance: Re - 1.9+1.9 Ohm

Force Factor: BL - 20.8

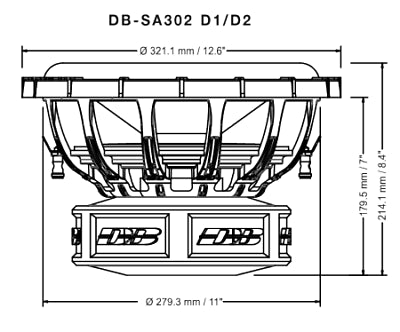

DIMENSIONS PER SUBWOOFER:

Overall Diameter: 12.6" (321.1mm)

Front Mount Baffle Cutout: 11" (279.3mm)

Mounting Depth: 7" (179.5mm)

Overall Depth: 8.4" (214.1mm)



-----------------------------------------------------------

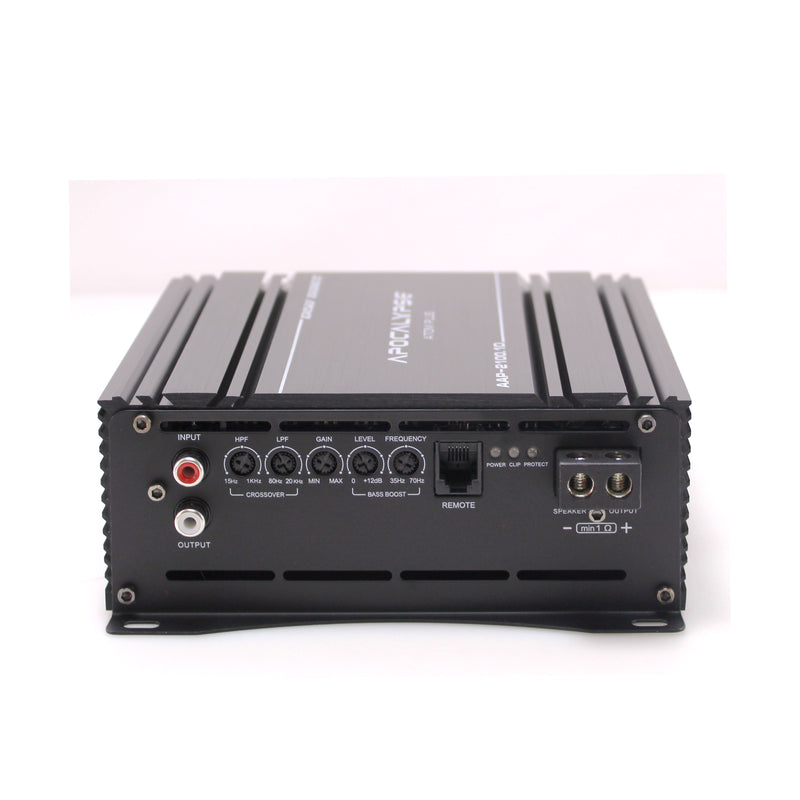

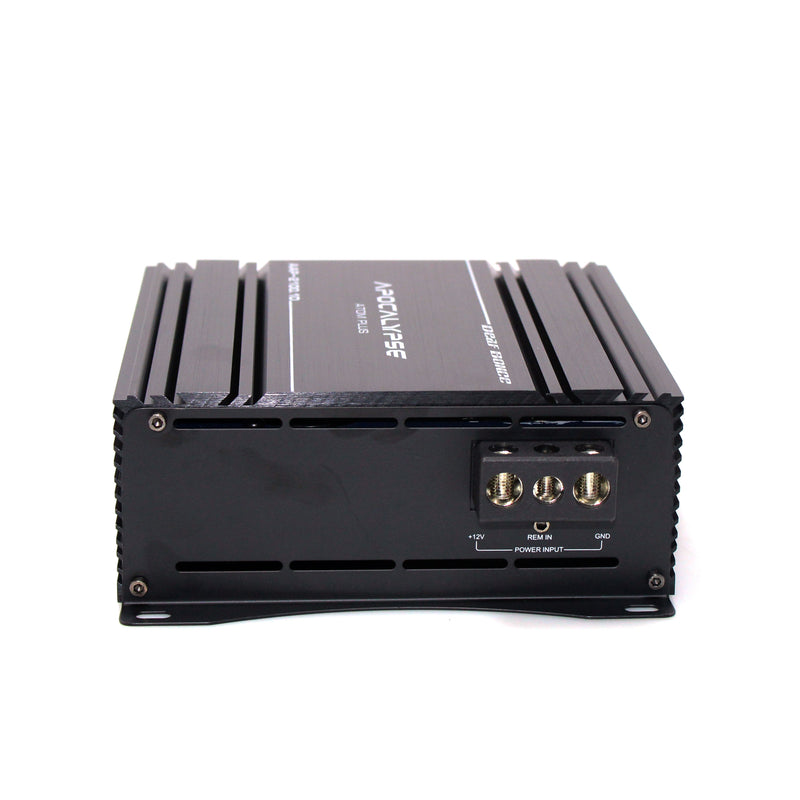

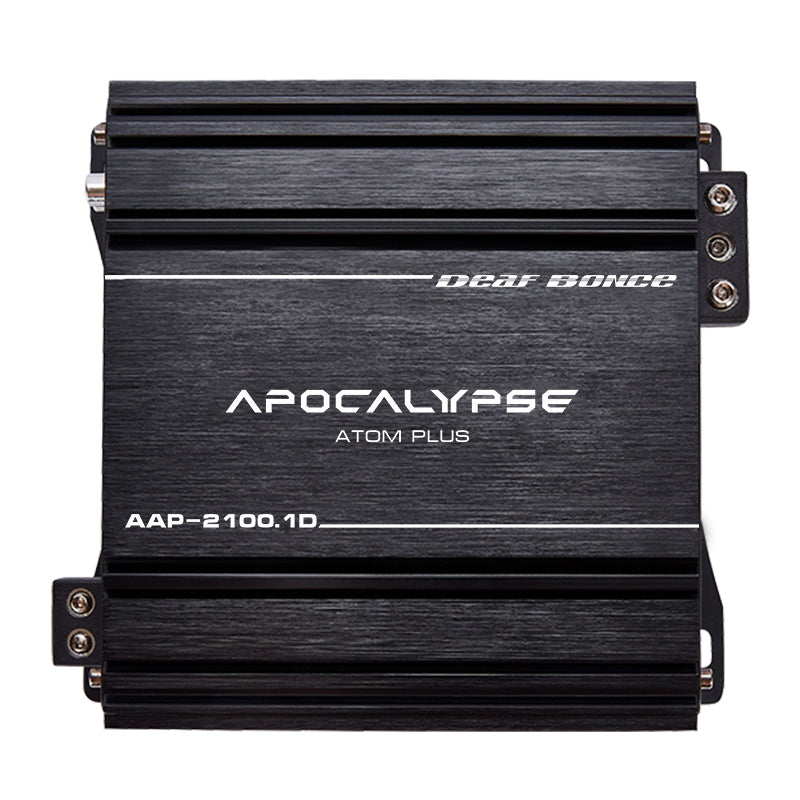

SPECIFICATIONS FOR AMPLIFIER :



Model: AAP-2100.1D Atom Plus

Class: D

Number of the channels: 1

1 Ohm RMS Power (14.4 V): 2100 W

1 Ohm RMS Power (12 V): 1820 W

2 Ohm RMS Power (14.4 V): 1350 W

4 Ohm RMS Power (14.4 V): 800 W

Crossover: 12 dB/Oct

High pass filter: 15-1000 Hz

Low pass filter: 80-20000 Hz

Bass Level Adjustment (Hz): 0 - 12

Bass frequency adjustment: 35-70 Hz

Frequency response: 15-20000 Hz

Input Sensitivity: 0.2-6 V

Signal-to-noise ratio: 100 dB

Damping factor: 210

Input Terminal Connection (AWG/mm): 4/21.2

Output Terminal Connection (AWG/mm): 8/8.37

Working voltage: 9 - 15 V

Minimum permissible load impedance: 1 Ohm



Dimensions (W L H): 6.30" 6.89" 2.50" (175 160 63.5)

Gross weight: 4.67 lb (2.12 kg)
