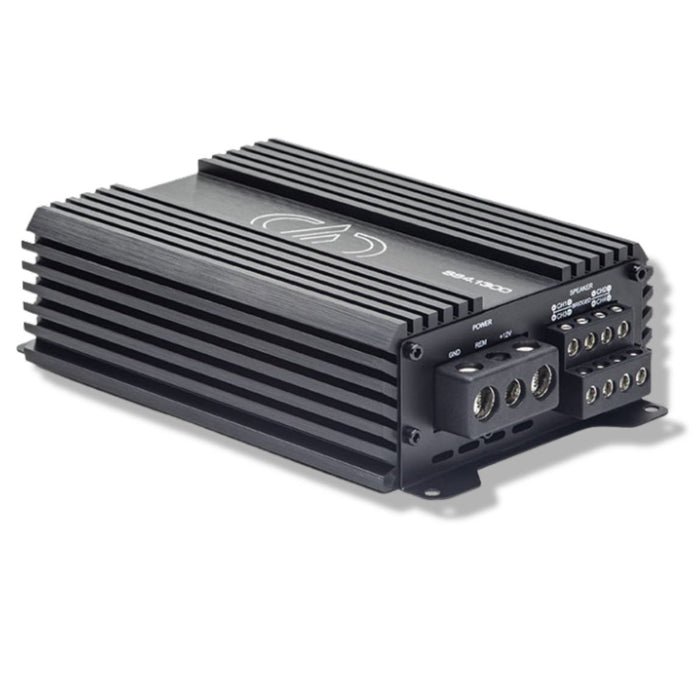

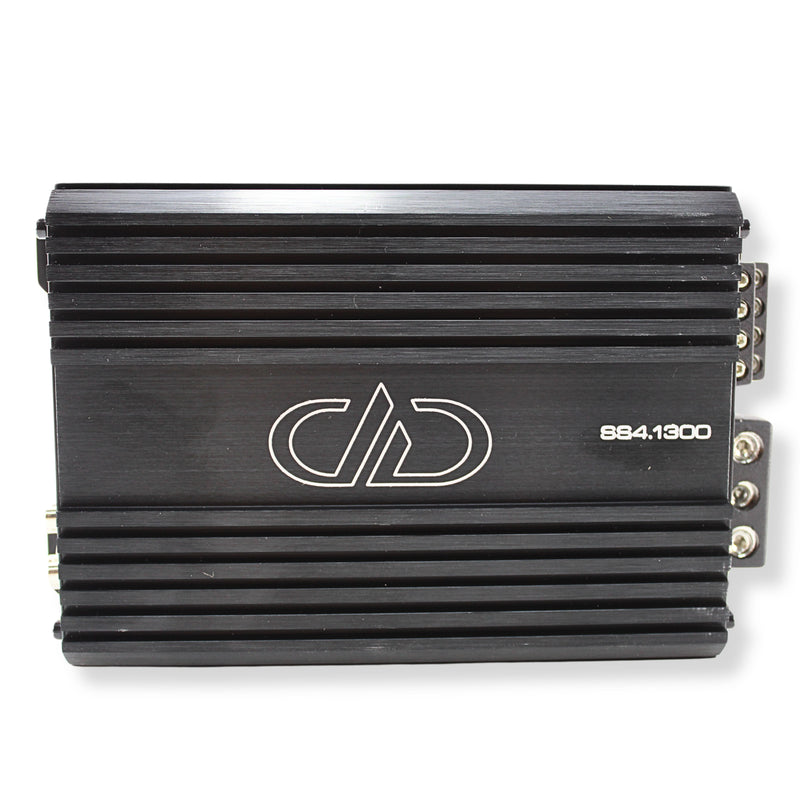

DD Audio SS4.1300 1300W 4-Channel Class D Full Range Amplifier

• High Power Output: Delivers nearly 200 watts per channel at 4 Ohms and over 325 watts at 2 Ohms, ideal for pro audio and motorcycle systems.
• Compact Design: High-speed, high-current Class D design ensures powerful performance and superior sound quality in a small footprint.
• Efficient Cooling: Features DD AUDIO’s classic heat sink with 50% thicker side walls and extra-long fins for optimal cooling and thermal management.
• Premium Components: Utilizes high-current MOSFETs, upgraded output devices, larger power capacitors, and a robust transformer for enhanced performance and durability.
• Advanced Thermal Management: Improved venting and PCB with double the thermal capacity for reliable operation and longevity.

DD Audio SS4.1300 1300W 4-Channel Class D Full Range Amplifier

This Listing Includes:

• (1) SS4.1300 Amplifier

The new SS4.1300 amplifier elevates the multi-channel segment of the SS Series to new heights. Delivering nearly 200 watts per channel at 4 Ohms and over 325 watts at 2 Ohms, this compact amplifier is engineered to push pro audio and motorcycle systems to their limits while maintaining exceptional sound quality.

SS amplifiers have quickly gained a reputation for delivering impressive, clean power in a small package. Their high-speed, high-current Class D design ensures both high power output and superior sound quality within a compact footprint. The classic DD AUDIO heat sink features 50% thicker side walls and extra-long fins to maximize cooling efficiency and surface area. True to DD AUDIO's standards, the SS4.1300 utilizes premium components, including high-current MOSFETs, upgraded output devices, larger power capacitors, a more robust transformer, and enhanced venting with a PCB that has double the thermal capacity.

These state-of-the-art mini amplifiers offer unparalleled power-to-size ratios, delivering transformative audio performance that is both visibly impressive and audibly remarkable.

Features:

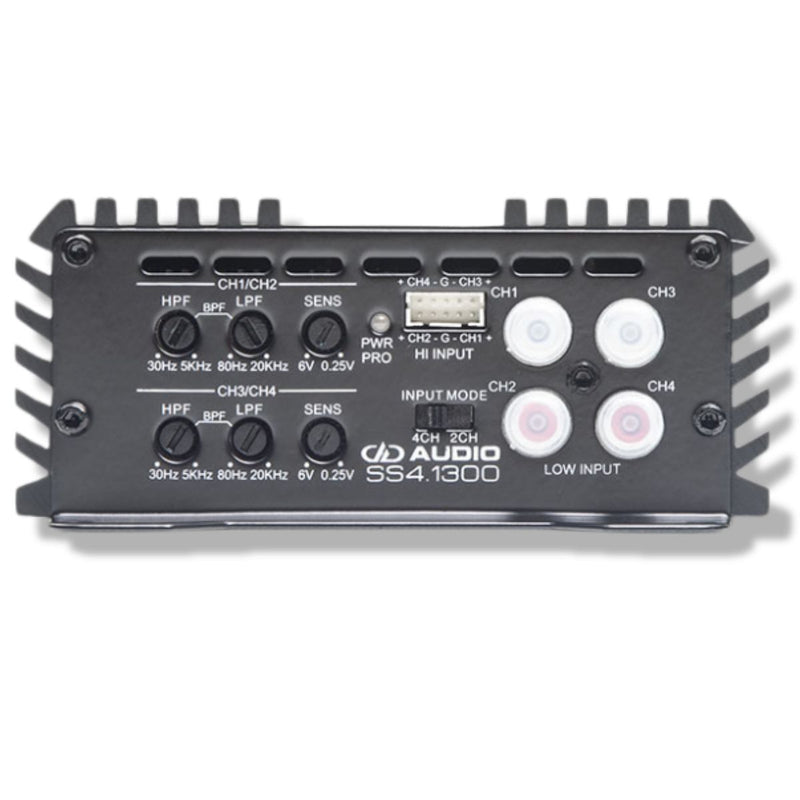

• High Level Inputs


• 12dB/Oct High Pass/Low Pass X-Overs


• Heavyweight DD Aluminum Chassis

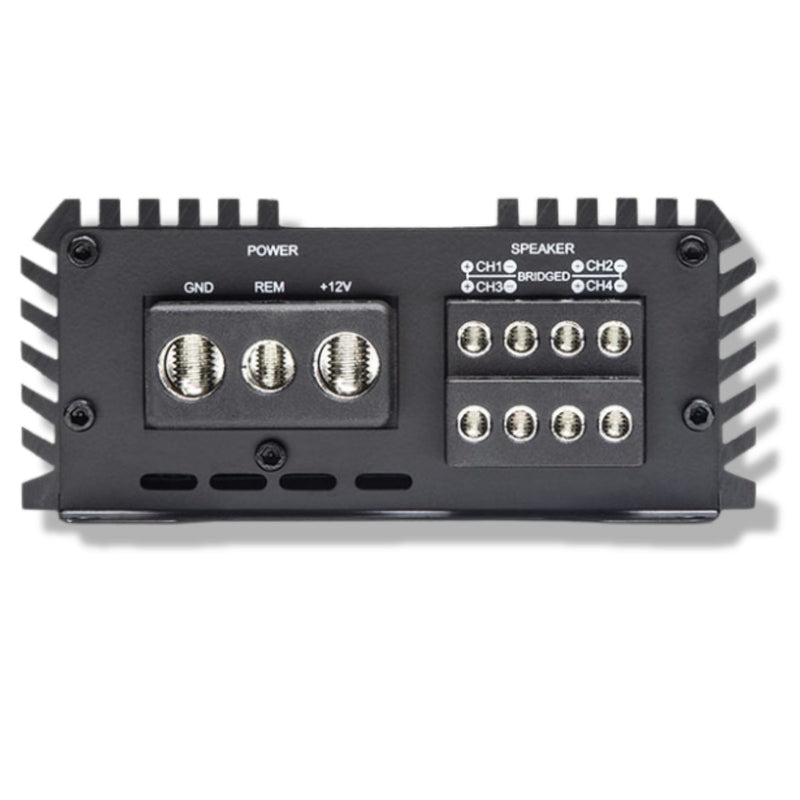

• Set Screw Power and Speaker Terminals


• 4 AWG Power Terminals

Specifications:

• Operating Voltage: 9 - 16


• Test Voltage: 14.4


• Input Channel(s): 4


• Output Channel(s): 4


• Continuous Wattage @4ohm: 180 x 4 / 650 x 2


• Continuous Wattage @2ohm: 325 x 4


• Max Current Draw (Amps): 150


• RCA Input Voltage Sensitivity: 6 - 0.25


• High-Level Input Voltage Sensitivity: 20 - 1.1


• RCA Input S/N: > 95


• Damping Factor: > 100


• THD: < 1.0%


• Frequency Response (Hz): 20 - 20k


• High Pass Filter: 35 - 600


• Low-Pass Filter: 35 - 600


• Power Wire Gauge: 4


• Speaker Wire Gauge: 14

Measurements:

• Dimensions (Inches): 6.25 x 4.6 x 2


• Dimensions (MM): 159 x 117 x 50
