DD Audio SS Series 500 Watt Class D 4 Channel 2 Ohm Amplifier SS4.500

SKU DD-SS4-500
Save 20% Save 20%
Original price $286.99
Original price $286.99 - Original price $286.99
Original price $286.99
Current price $229.00
$229.00 - $229.00
Current price $229.00
Snap Logo Lease for as low as $/week Learn More

Free Gifts when added to Cart

The more you spend, the greater selection of free gifts you'll have at your fingertips when selecting items in your shopping cart!

Spend More, Save More

Big Jeff loves his customers!!!
  • Spend $250, Save 3%
  • Spend $500, Save 5%
  • Spend $1000, Save 10%
  • Spend $1500, Save 11%
  • Spend $2500, Save 12%
  • Spend $5000, Save 15%

*Does not apply to: AudioControl, Sundown, XS power or Kicker products*

*Does not stack with other promotional sales*

This is a Sample Product Title
Was $200.00 Now $100.00
  • High Level Inputs
  • 12dB/Oct High Pass/Low Pass X-Overs
  • Set Screw Power and Speaker Terminals
  • 4 AWG Power Terminals

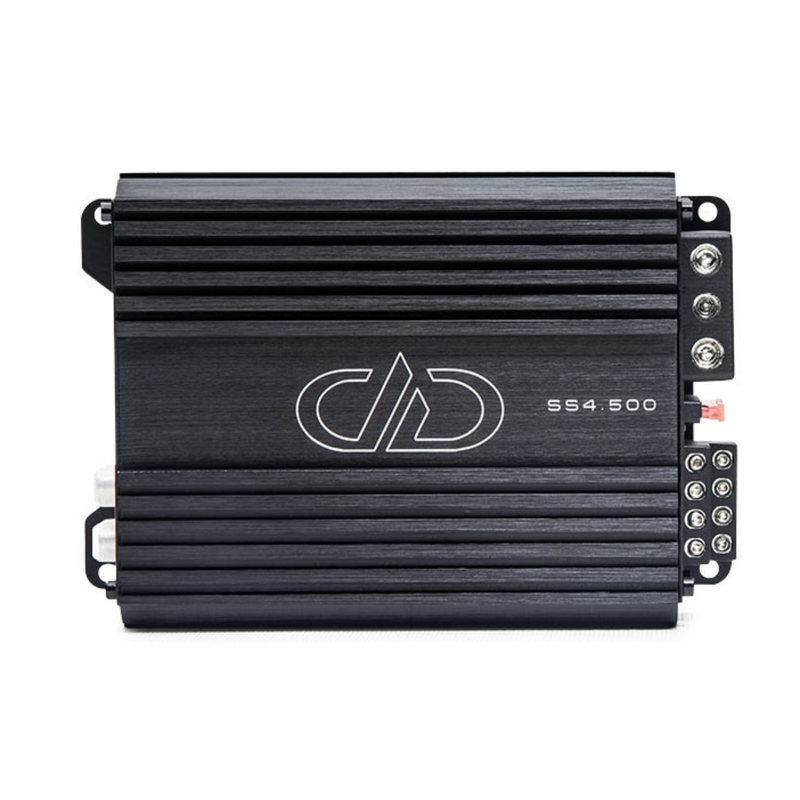

DD Audio Digital Designs SS Series 500 Watt Class D 4 Channel Amplifier SS4.500


This listing includes:


(1) 500 Watt Class D 4 Channel Amplifier


The new SS amplifiers are the latest in high speed, high current class D designs offering high power and superior sound quality in compact footprints. The classic DD AUDIO style heat sink is used in this upgrade for max cooling with 50% more side wall thickness than industry norms and extra long fins to increase surface area. All major components have been upgraded; higher current mosfets and output devices, increased power capacitors, a more powerful transformer, plus improved venting and PCB with twice the thermal capability. These new high-end mini amps are state of the art, no compromise designs yielding the best sound with unparalleled power to size ratio. The transformation is not only tangible, but audibly apparent. The SS4.500 is a 4 channel amplifier delivering a minimum of 125 Watts per channel from a mere 30 square inch footprint. This versatile, high speed, class D design can drive full range components and subwoofers through selectable high pass and low pass crossovers. These super small amplifiers are the ultimate combination of precision sound quality and installation ease.


Features:



  • High Level Inputs

  • 12dB/Oct High Pass/Low Pass X-Overs

  • Heavyweight DD Aluminum Chassis

  • Set Screw Power and Speaker Terminals

  • 4 AWG Power Terminals


Specifications:



  • Operating Voltage: 9 - 16

  • Test Voltage: 14.4

  • Input Channel(s): 4

  • Output Channel(s): 4

  • Continuous Wattage @4ohm: 75 x 4

  • Continuous Wattage @2ohm: 125 x 4

  • Max Current Draw (Amps): 40

  • RCA Input Voltage Sensitivity: 6 - 0.25

  • High-Level Input Voltage Sensitivity: 20 - 1.1

  • RCA Input S/N: > 95

  • Damping Factor: > 100

  • THD: < 0.1%

  • Frequency Response (Hz): 20 - 20k

  • High Pass Filter: 35 - 250

  • Low-Pass Filter: 35 - 250

  • ZVL Input: No

  • Pass Thru Output: No

  • Power Wire Gauge: 4

  • Speaker Wire Gauge: 12

  • Dimensions (Inches): 5.75 x 4.5 x 2

  • Dimensions (MM): 146 x 115 x 50

  • Shipping Weight (Lbs): 4
