DD Audio Digital Designs 8 Inch 600 Watt Hi-Def Tuned Shallow Subwoofer SL608-D4

SKU DD-SL608-D4
Save 20% Save 20%
Original price $211.99
Original price $211.99 - Original price $211.99
Original price $211.99
Current price $169.00
$169.00 - $169.00
Current price $169.00
Snap Logo Lease for as low as $/week Learn More

Free Gifts when added to Cart

The more you spend, the greater selection of free gifts you'll have at your fingertips when selecting items in your shopping cart!

Spend More, Save More

Big Jeff loves his customers!!!
  • Spend $250, Save 3%
  • Spend $500, Save 5%
  • Spend $1000, Save 10%
  • Spend $1500, Save 11%
  • Spend $2500, Save 12%
  • Spend $5000, Save 15%

*Does not apply to: Sundown, XS power & Kicker products*

*Does not stack with other promotional sales*

This is a Sample Product Title
Was $200.00 Now $100.00
  • Shallow Mounting Depths
  • 2.5″ high temperature voice coil
  • 72oz magnet, back plate coil gap venting
  • EROM surround

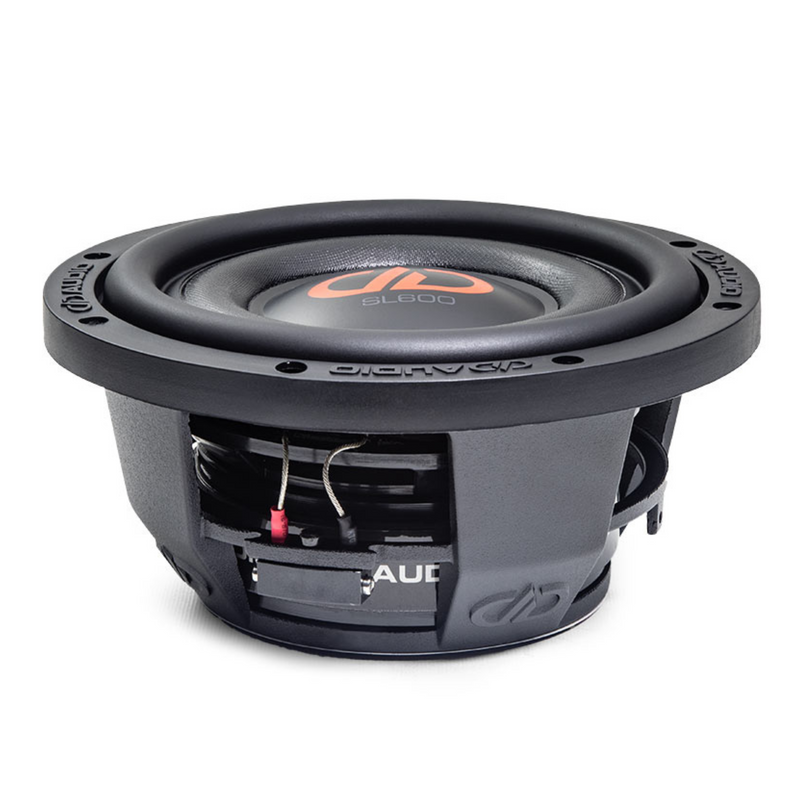

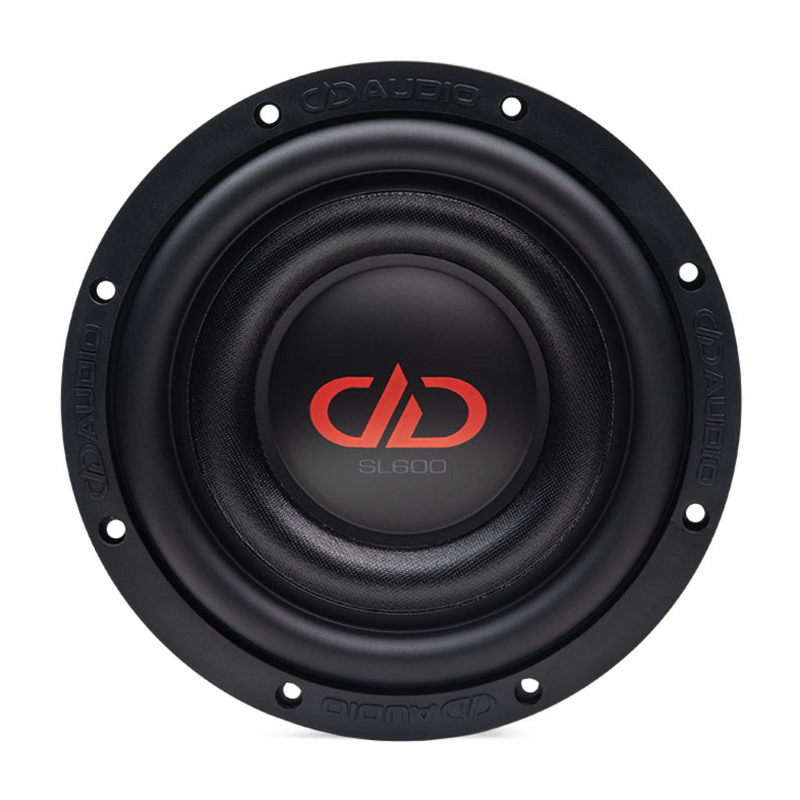

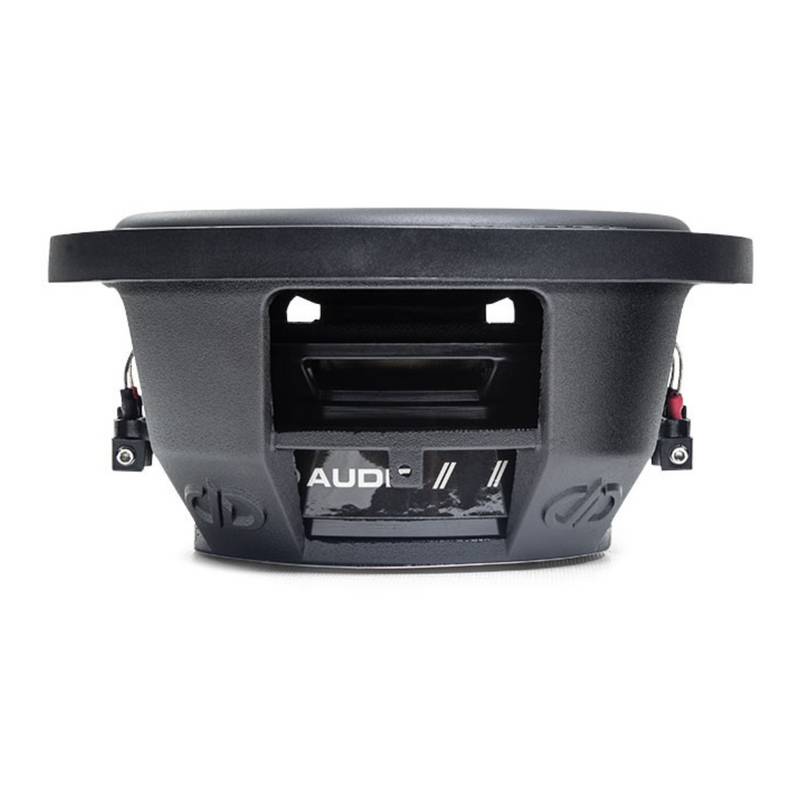

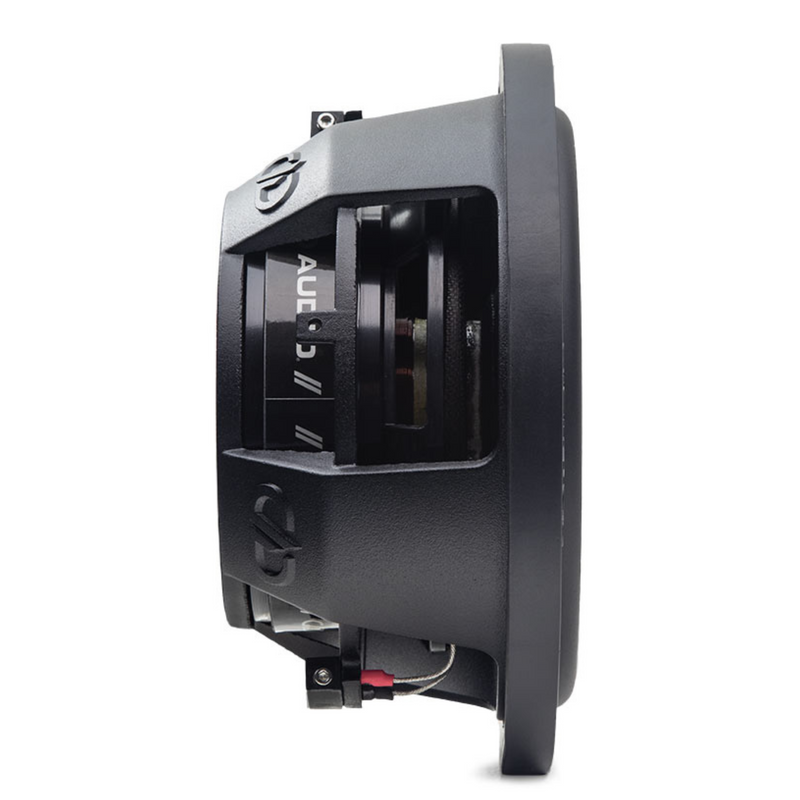

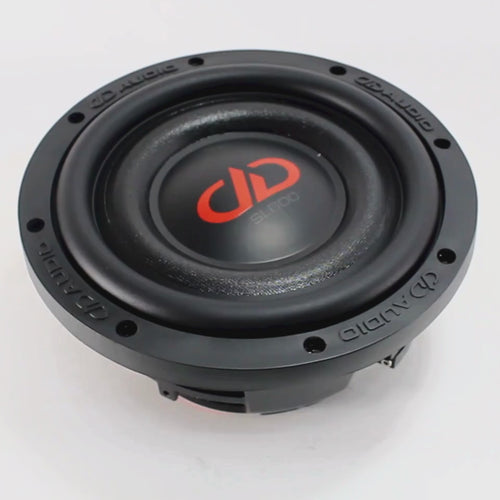

DD Audio Digital Designs 8 Inch 600 Watt Hi-Def Tuned Shallow Subwoofer SL608-D4


This listing includes:


(1) 8 Inch 600 Watt Hi-Def Tuned Shallow Subwoofer


The new SL608 opens new opportunities in achieving great sound in space limited applications. The cast 8 inch DD frame houses a full size 134mm OD motor with a 25mm thick magnet combined with a deep bump back plate with 12mm Xmax. This state of the art subwoofer pushes 38mm excursion from a minimal 3.5 inch mounting depth. The triple layer composite sandwich cone is coupled to a Santoprene rubber surround to give low distortion output in the most discerning sound quality applications. Following the standard DD AUDIO procedure, cutting-edge components are combined with state of the art engineering to create new standards in making the best sound systems possible. The new SL608 is the latest in a long line of excellent audio tools to unleash creative imagination in audio engineering.


Features:



  • Shallow Mounting Depths

  • 2.5†high temperature voice coil

  • 72oz magnet, back plate coil gap venting

  • EROM surround


Specifications:



  • Speaker Size (In): 8

  • Watts RMS: 100 - 300

  • Watts Peak: 600

  • Impedance: D4

  • VCD (In): 2

  • Piston Diameter (In): 6.5

  • Fs (Hz): 34

  • Qms: 5.139

  • Qes: 0.432

  • Qts: 0.398

  • Vas (Liters): 13.106

  • dBSPL: 84

  • Xmech (MM): 38

  • Xmax (MM): 12

  • Frame OD (In): 8.31

  • Frame OD (MM): 211.074

  • Frame OD w/Gasket (In): 8.5

  • Frame OD w/Gasket (MM): 215.9

  • Mounting Diameter (In): 7.37

  • Mounting Diameter (MM): 187.198

  • Mounting Depth (In): 3.5

  • Mounting Depth (MM): 88.9

  • Motor Diameter (In): 5.276

  • Motor Diameter (MM): 134.0104

  • Motor Depth (In): 1

  • Motor Depth (MM): 25.4

  • Magnet Weight (Oz): 50

  • Magnet Weight (Gm): 1417.48

  • Woofer Displacement (CuFt): 0.04

  • Woofer Displacement (Liters): 1.133

  • Sealed Enclosure (CuFt): 0.30 - 0.70

  • Sealed Enclosure (Liters): 8.495 - 19.822

  • Ported Enclosure (CuFt): 0.4 - 1.0

  • Ported Enclosure (Liters): 11.327 - 28.317

  • Item Weight (Lbs): 9.42
