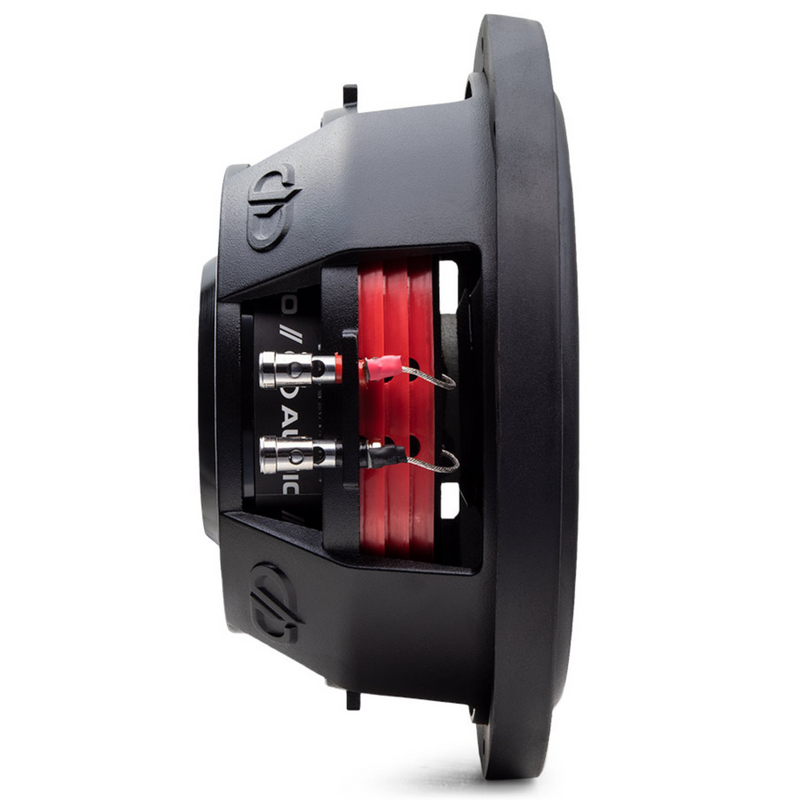

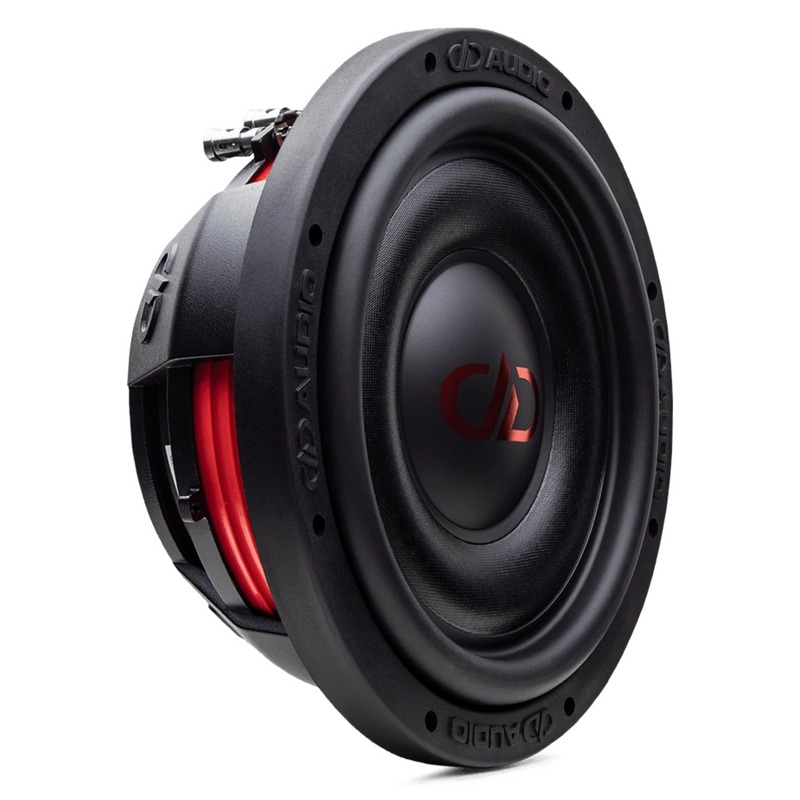

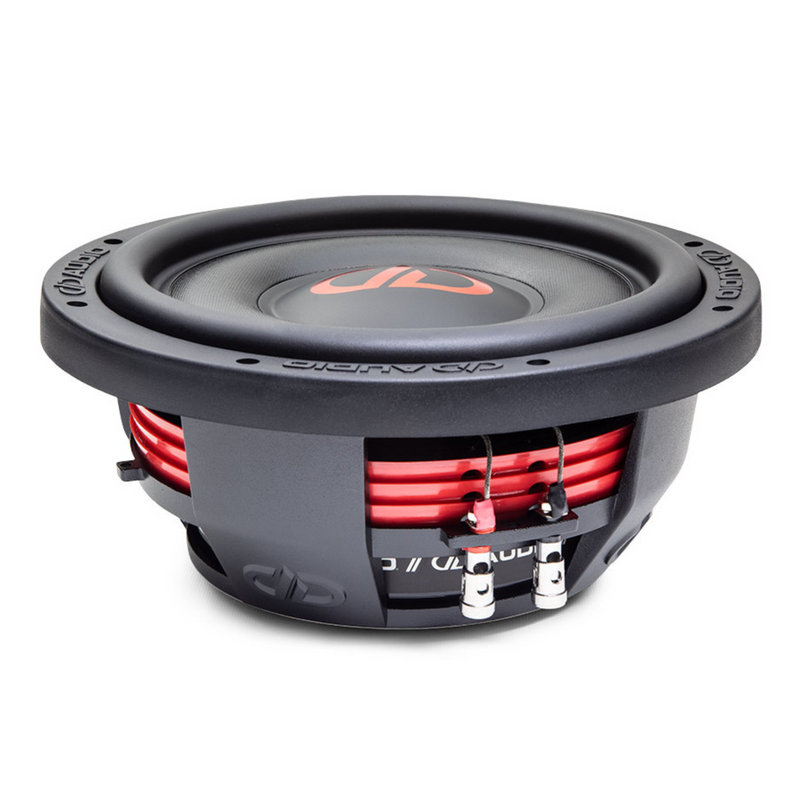

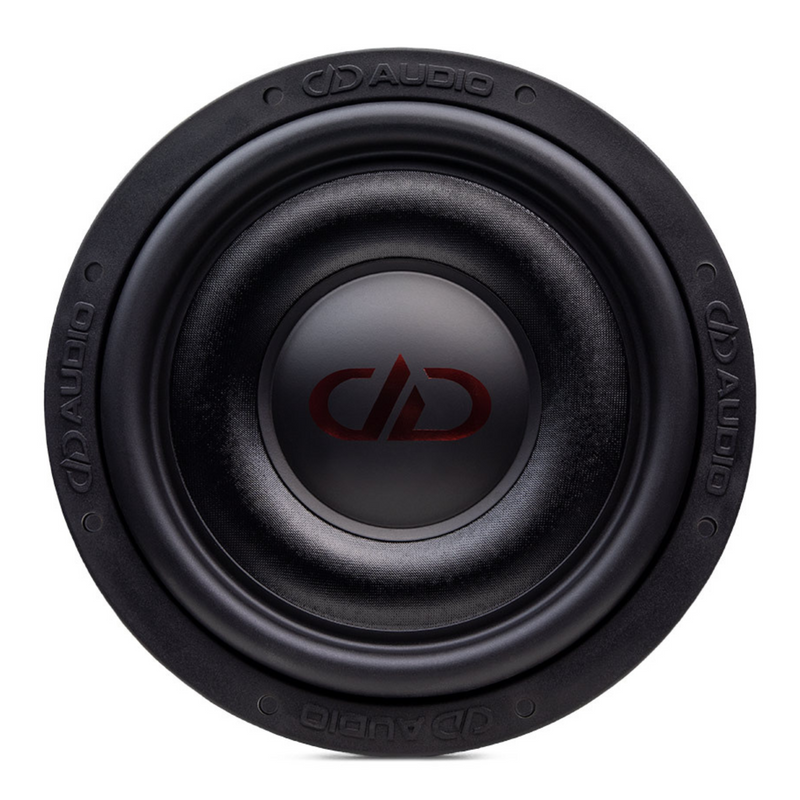

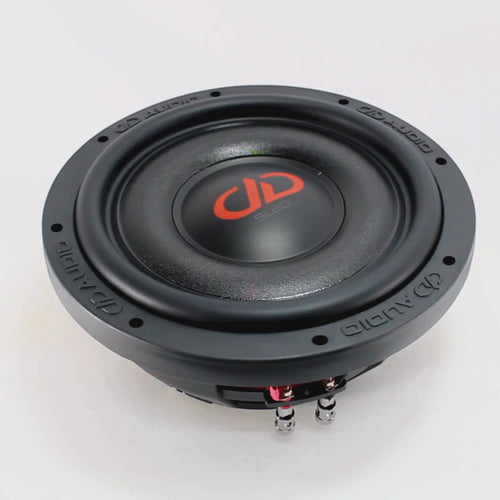

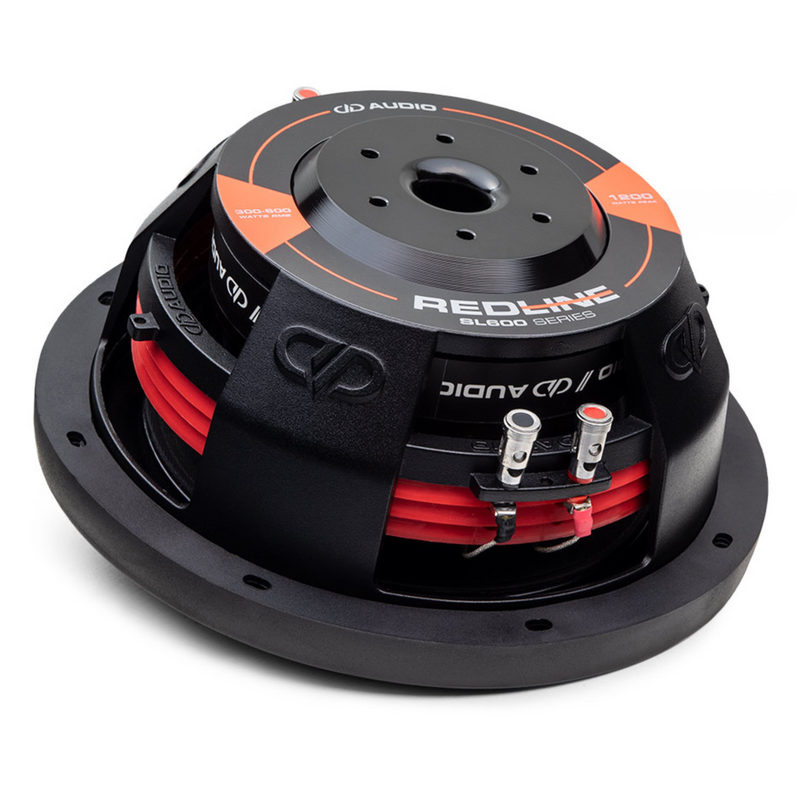

DD Audio Digital Designs 10 Inch 1200 Watts Shallow Subwoofer SL610-D4

• EROM surround, High temperature 2.5" voice coil
• Double layer spider system, Triple layer shallow body cone
• 72oz magnet, Back plate coil gap venting
• DD cast aluminum frame

DD Audio Digital Designs 10 Inch 1200 Watts Shallow Subwoofer SL610-D4

This listing includes:

• (1) 10 Inch 1200 Watts Shallow Subwoofer

The SL600 Series subwoofers that give you the bass you want, in almost any space you want to put it. They feature super shallow mounting  depths, and the suspensions have been tuned to perform in sealed and  small vented enclosures. To maintain power handling, cooling and excursion the SL600s utilize full size sub features such as 2.5" high  temperature voice coil, 72oz magnet, back plate coil gap venting, and an EROM surround. One of the features unique to the SL600s is the triple  layer shallow body cone. By compressing a layer of foam between two  layers of pulp the cone is kept as light and rigid as a standard cone,  yet shallow enough to allow suspension travel equal to a full size sub.

Features:

• EROM surround


• High temperature 2.5" voice coil


• Double layer spider system


• Triple layer shallow body cone


• 72oz magnet


• Back plate coil gap venting


• DD cast aluminum frame

Specifications:

• Speaker Size (In): 10


• Watts RMS: 300 - 600


• Watts Peak: 1200


• Impedance: D4


• VCD (In): 2.5


• Piston Diameter (In): 8.32


• Fs (Hz): 29


• Qms: 6.878


• Qes: 0.393


• Qts: 0.372


• Vas (Liters): 26.769


• dBSPL: 84


• Xmech (MM): 40


• Xmax (MM): 14.5


• Frame OD (In): 10.6


• Frame OD (MM): 269.24


• Frame OD w/Gasket (In): 10.827


• Frame OD w/Gasket (MM): 275.006


• Mounting Diameter (In): 9.252


• Mounting Diameter (MM): 235.001


• Mounting Depth (In): 3.976


• Mounting Depth (MM): 100.990


• Motor Diameter (In): 6.496


• Motor Diameter (MM): 164.998


• Motor Depth (In): 1.5


• Motor Depth (MM): 38.1


• Magnet Weight (Oz): 80


• Magnet Weight (Gm): 2267.96


• Woofer Displacement (CuFt): 0.03


• Woofer Displacement (Liters): 0.850


• Sealed Enclosure (CuFt): 0.5 - 1.0


• Sealed Enclosure (Liters): 14.16 - 28.32


• Ported Enclosure (CuFt): 0.5 - 1.25


• Ported Enclosure (Liters): 21.23 - 35.40


• Item Weight (Lbs): 15.49


• Shipping Weight (Lbs): 17
