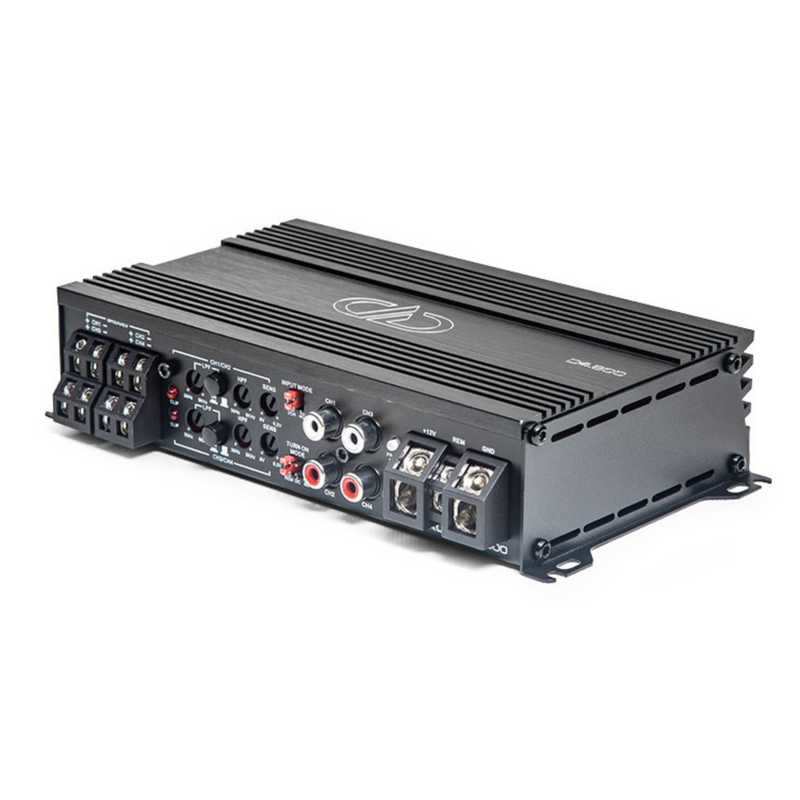

DD Audio D-Series 800W Dynamic Power 4-Ch 2-Ohm Compact Amplifier / D4.800

DD Audio D-Series 800W Dynamic Power 4-Ch 2-Ohm Compact Amplifier / D4.800

This Listing Includes:

• (1) D-Series 800 Watt Max Power 4 Channel Compact Amplifier

Description:

In today’s installations, amplifier wattage per square inch often determines the best fit for the job. For the D4.800, DD Audio’s engineers have managed to enhance the output by 20% while retaining the compact dimensions of the original model—just 7” x 4” x 1.7”. The D4.800 delivers a clean 200 watts per channel, totaling an impressive 800 watts of power. Beyond its remarkable power-to-size ratio, this amplifier is loaded with features typically not found in such a small and affordable package.

The D4.800 is also equipped with conformal coated internal components and sealed back switches, making it ideal for motorcycle, boat, and powersport applications. Additionally, DD Audio offers a line of Harley Davidson-specific mounting brackets, allowing the D4.800 to be securely and neatly installed in 2014 and newer Harley Road Glides and Street Glides.

Download Owner's Manual

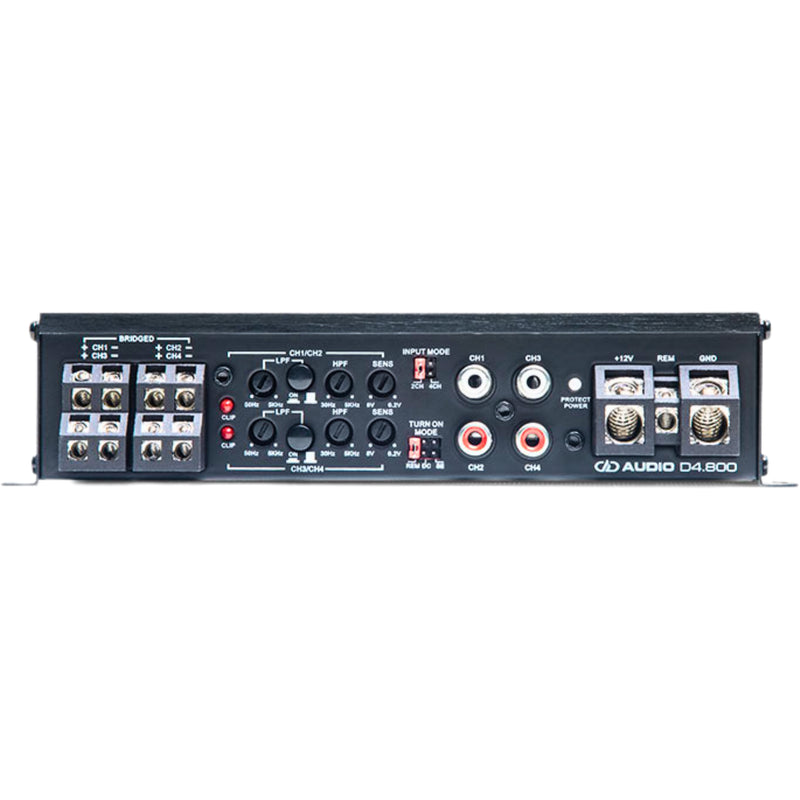

Features:

• Bandpass Crossovers
• Clipping Indicators
• Input Mode
• Auto Turn On
• Set Screw Power Connections
• Set Screw Speaker Connections
• Differential RCA Inputs
• Discrete Outputs

Specifications:

• Operating Voltage: 9 - 16
• Test Voltage: 14.4
• Output Channel(s): 4
• Continuous Wattage @4ohm: 4 x 125 / 2 x 400
• Continuous Wattage @2ohm: 4 x 200
• Max Current Draw (Amps): 80
• RCA Input Voltage Sensitivity: 8 - 0.2
• RCA Input S/N: > 90dB
• Damping Factor: > 100
• THD: < 0.2%
• Frequency Response (Hz): 30 - 30k
• Sub-Sonic Filter: 30 - 5k
• Low-Pass Filter: 50 - 5k
• Pass Thru Output: No
• Power Wire Gauge: 4
• Speaker Wire Gauge: 12
• Dimensions (Inches): 7 x 4 x 1.7
• Dimensions (MM): 180 x 104 x 43
• Item Weight: 2.53
