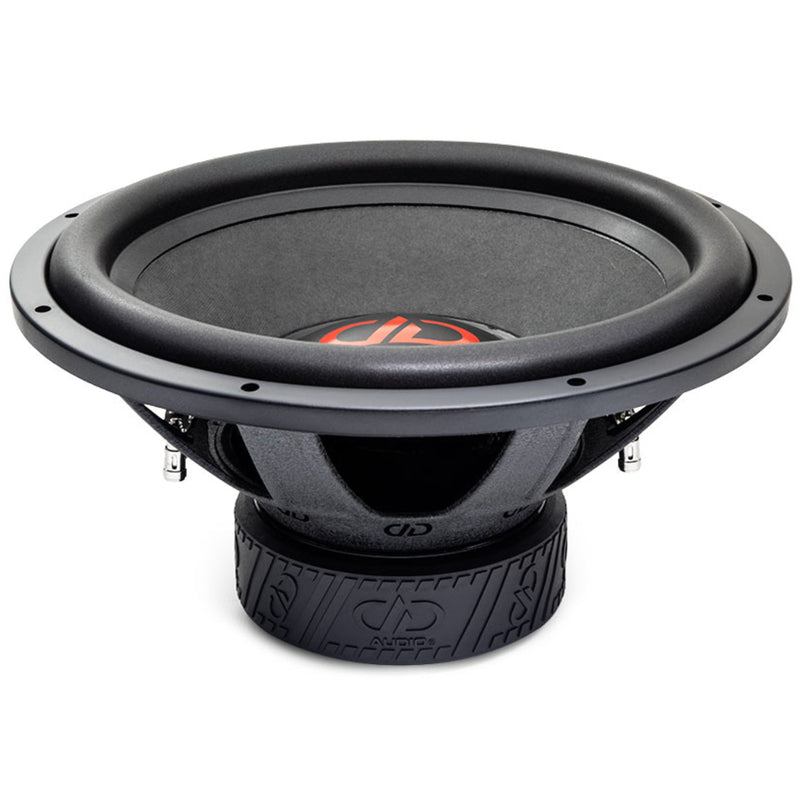

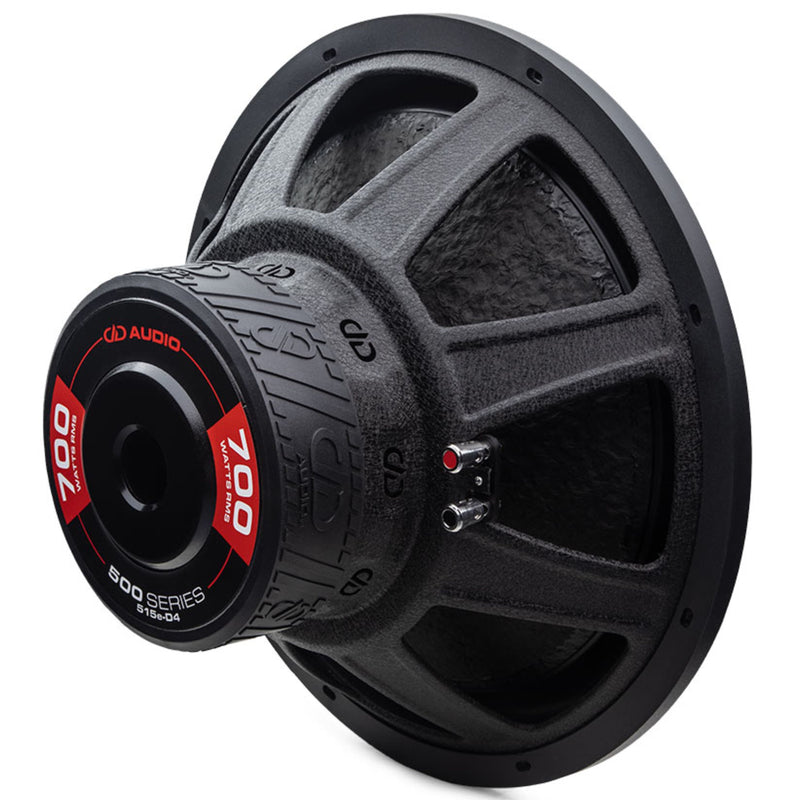

DD Audio 500 E Series 15" 700W RMS 2-Ohm DVC Power Tuned Subwoofer / DD-515E-D2

• Impressive Power: Delivers a potent 700W RMS for deep, resonant bass that elevates your audio experience.
• Dual Voice Coil: DVC design enhances efficiency and offers versatile wiring options for customized setups.
• Durable Construction: Built with robust materials to withstand rigorous use and ensure long-lasting performance.
• Power Tuned Precision: Engineered for precision, this subwoofer ensures every beat and note is clear and impactful.

DD Audio 500 E Series 15" 700W RMS 2-Ohm DVC Power Tuned Subwoofer / DD-515E-D2

This Listing Includes:

• (1) DD-515E-D2 Subwoofer

Description:

The all-new 500 Series "e" revision now features the 15" model with a 3" voice coil and a 120oz magnet motor. This new driver comes with a 12mm top plate and longer coil windings, resulting in a 50% increase in Xmax. The power handling increases to 700 Watts on the 515. Upgrades to this series include cones with fiberglass-loaded non-pressed treated paper, taller and thicker EROM surrounds with black stitching, heavier dual-layer spiders with integrated tinsel leads, and new basket and motor boot designs elevating cosmetics with DD branding.

Features:

• Free Flow Cooling System


• High-temp Voice Coil


• Dual Layer Spider System With Integrated Tinsel Leads


• Extended Pole Piece


• DD Logo Basket


• Fiberglass Loaded Non-Pressed Cones


• Embossed DDesign Magnet Boot


• 700W RMS

Specifications:

• Speaker Size (In): 15


• Watts RMS: 700


• Watts Peak: 2100


• Impedance: D2


• VCD (In): 3

Thiele and Small Parameters:

• Fs (Hz): 29


• Qms: 6.2


• Qes: 0.89


• Qts: 0.77


• Vas (Liters): 93.33


• BL (TM): 25


• Xmech (MM): 30


• Xmax (MM): 18

Dimensions:

• Frame OD (In): 15.02


• Frame OD w/ Gasket (In): 15.4


• Mounting Diameter (In): 13.89


• Mounting Depth (In): 7.32


• Motor Diameter (In): 7


• Motor Depth (In): 2.375


• Magnet Weight (Oz): 120


• Woofer Displacement (CuFt): 0.1


• Ported Enclosure (CuFt): 3.0 - 5.0
