DD Audio 400 Watt Class D Amplified Mini Terminal Cup w/ Remote ATC-400

• POWERED ENCLOSURE UPGRADE: Transforms any standard speaker or subwoofer box into a fully powered system by replacing the terminal cup with a built-in Class D amplifier for a clean, space-saving install
• COMPACT HIGH OUTPUT DESIGN: Delivers up to 325W RMS at 1 ohm and 500W dynamic power from a tiny footprint, perfect for tight builds, custom boxes, and portable audio setups
• SUB OR FULL RANGE MODES: Switch between dedicated subwoofer mode (30–80 Hz) or full range mode (80 Hz–20 kHz) for flexible use in bass systems, mids/highs, or full DJ-style party boxes
• BUILT FOR 1, 2, AND 4 OHM LOADS: Stable across multiple impedance configurations, making it easy to pair with subwoofers or pro audio drivers like VO Series speakers
• CLEAN SIGNAL INPUT OPTIONS: Equipped with both RCA low-level and high-level inputs for seamless integration with factory or aftermarket systems
• ALL ALUMINUM HEAT SINK DESIGN: Integrated aluminum chassis improves heat dissipation and reliability while maintaining a compact and durable build
• COMPLETE CONTROL INCLUDED: Comes with a remote controller for convenient system adjustment and tuning on the fly

DD Audio 400 Watt Class D Amplified Mini Terminal Cup w/ Remote ATC-400

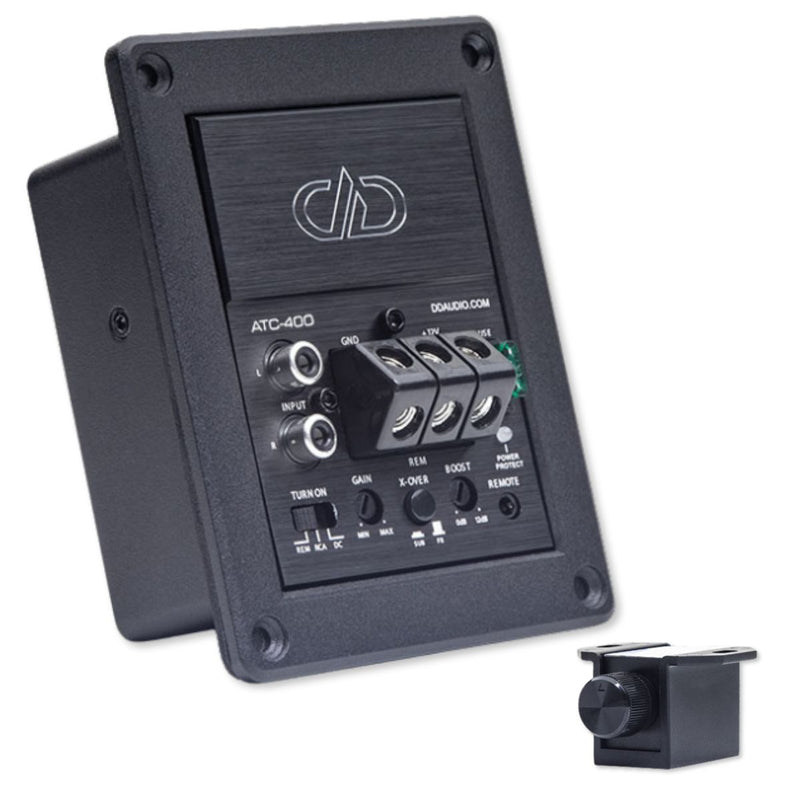

This Listing Includes

• (1)  DD Audio Terminal Cup ATC-400

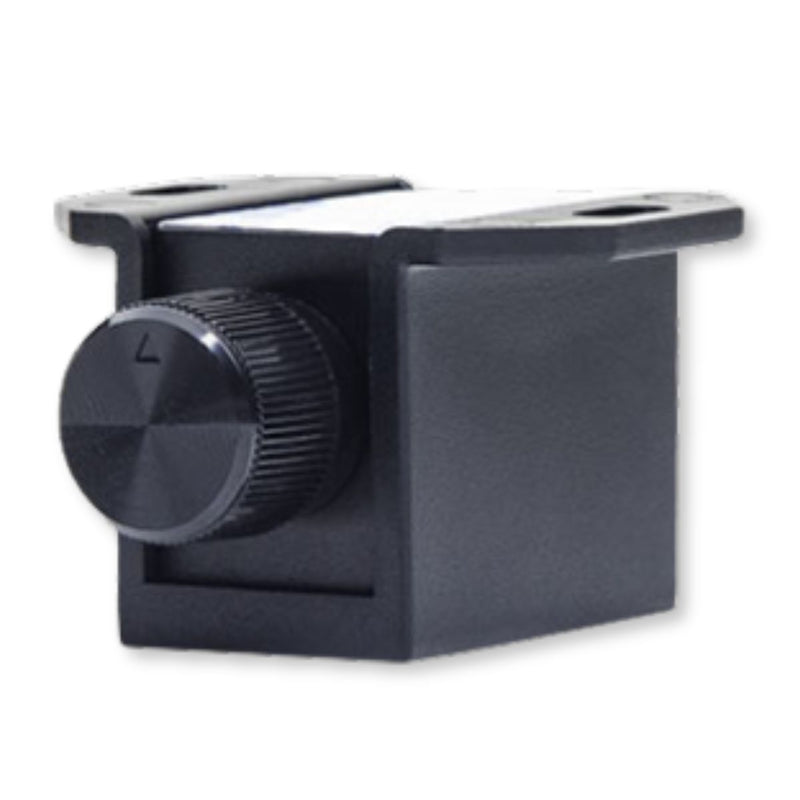

• (1) Bass Remote

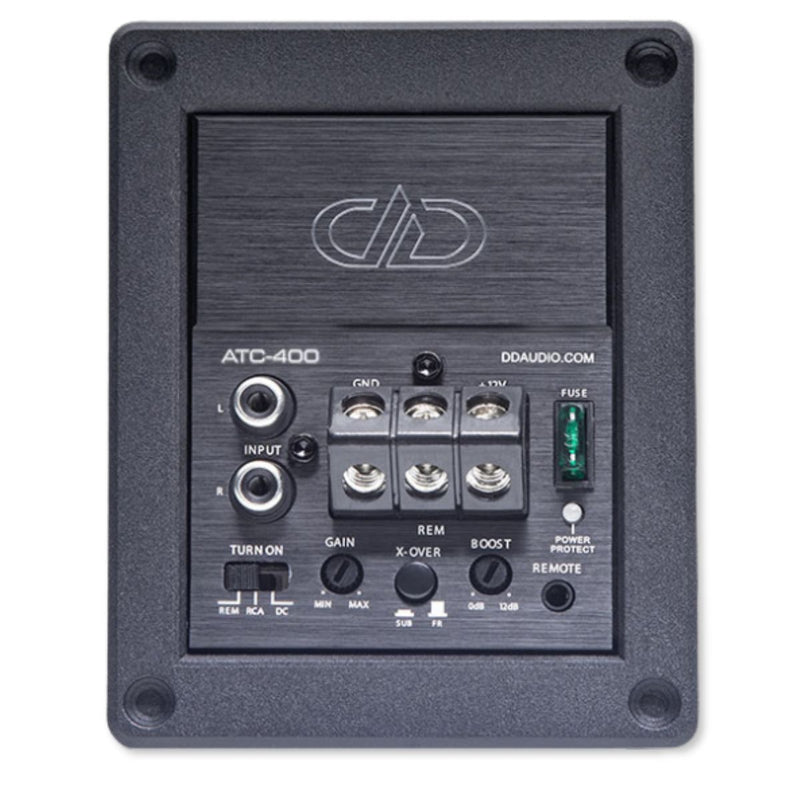

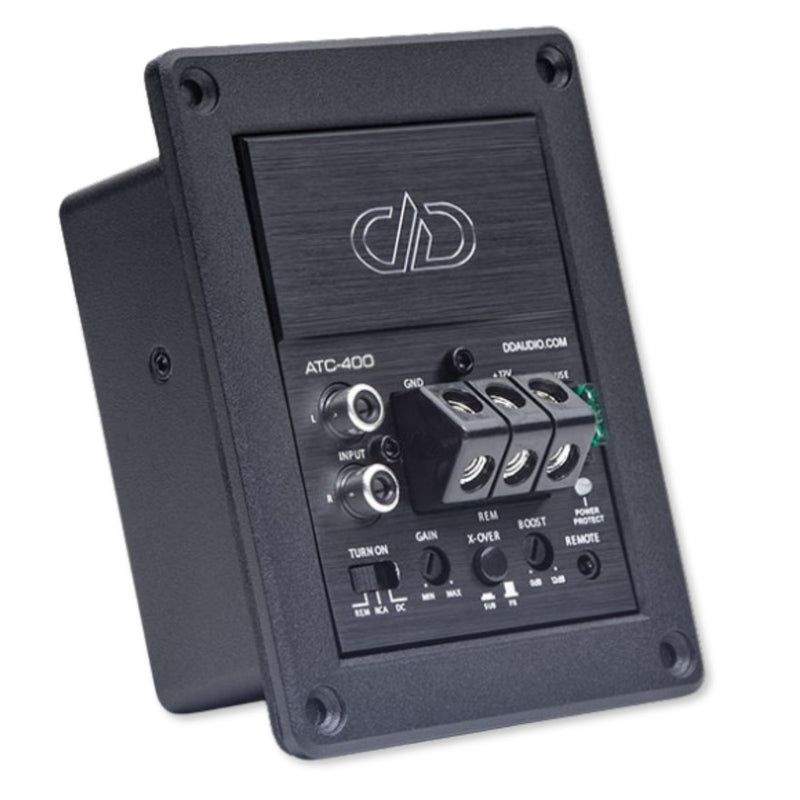

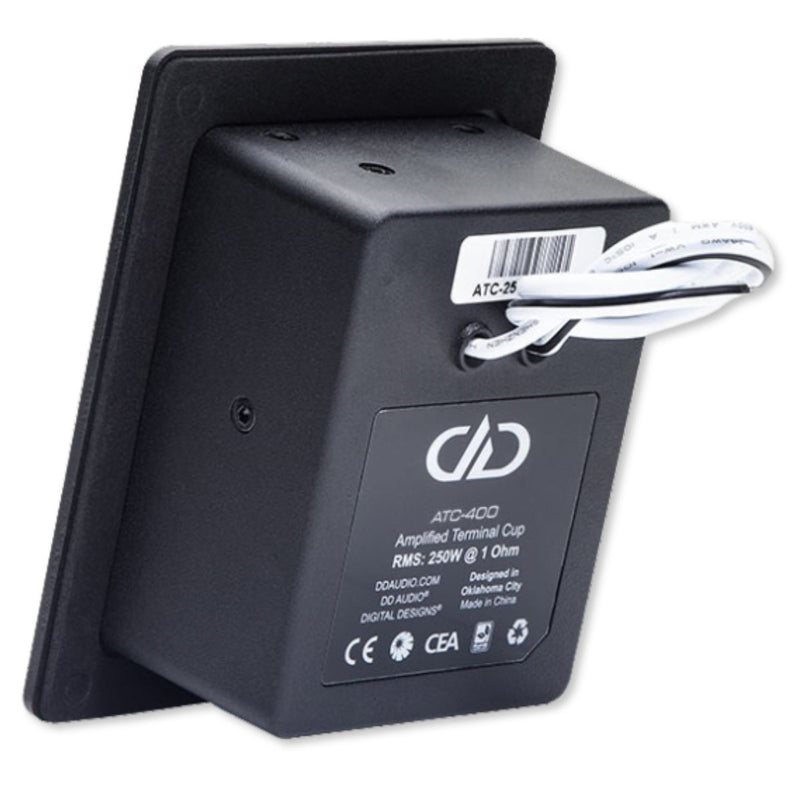

The DD Audio ATC-400 Amplified Terminal Cup turns a standard speaker enclosure into a powered audio system. This compact Class D amplifier replaces the passive terminal cup position on an enclosure, giving builders a clean, space-saving way to add serious power without mounting a traditional external amp.

Designed for both subwoofer and full-range applications, the ATC-400 can power low-end bass setups or full-range pro audio builds. With up to 325 watts continuous power at 1 ohm and 500 watts dynamic power, this tiny powerhouse is ideal for party boxes, portable DJ-style systems, VO Series speaker builds, and custom powered enclosures.

Its all-aluminum chassis acts as an integrated heat sink, helping manage temperature while keeping the design compact and efficient.

Features

• Amplified terminal cup design for powered enclosure builds


• Compact high-speed Class D amplifier


• Works in subwoofer or full-range mode


• Delivers power into 4 ohm, 2 ohm, and 1 ohm loads


• Up to 325W continuous power at 1 ohm


• 500W dynamic power output


• RCA and high-level inputs


• All-aluminum chassis with integrated heat sink


• DD engraved logo faceplate


• Remote controller included


• Great for party boxes, pro audio builds, and powered sub enclosures

Specifications:

• Amplifier Class: Class D


• Output Channels: 1


• Total Wattage: 400W


• Dynamic Wattage: 500W


• Continuous Power @ 4 Ohms: 100W


• Continuous Power @ 2 Ohms: 225W


• Continuous Power @ 1 Ohm: 325W


• Frequency Response: Sub Mode: 30 Hz - 80 Hz / Full Range Mode: 80 Hz - 20 kHz


• Operating Voltage: 8V - 16V


• Test Voltage: 14.4V


• RCA Input Voltage Sensitivity: 8V - 0.2V


• RCA Input Signal-to-Noise Ratio: >100 dB


• THD: <1%


• High-Pass Filter: 80 Hz


• Sub-Sonic Filter: 30 Hz


• Low-Pass Filter: 80 Hz


• Power Wire Gauge Input: 4 AWG


• Speaker Wire Gauge Output: 12 AWG

Faceplate Dimensions:

• Width: 3.78"


• Length: 4.8"

Overall Dimensions:

• Width: 2.93"


• Length: 3.75"


• Depth: 2"
