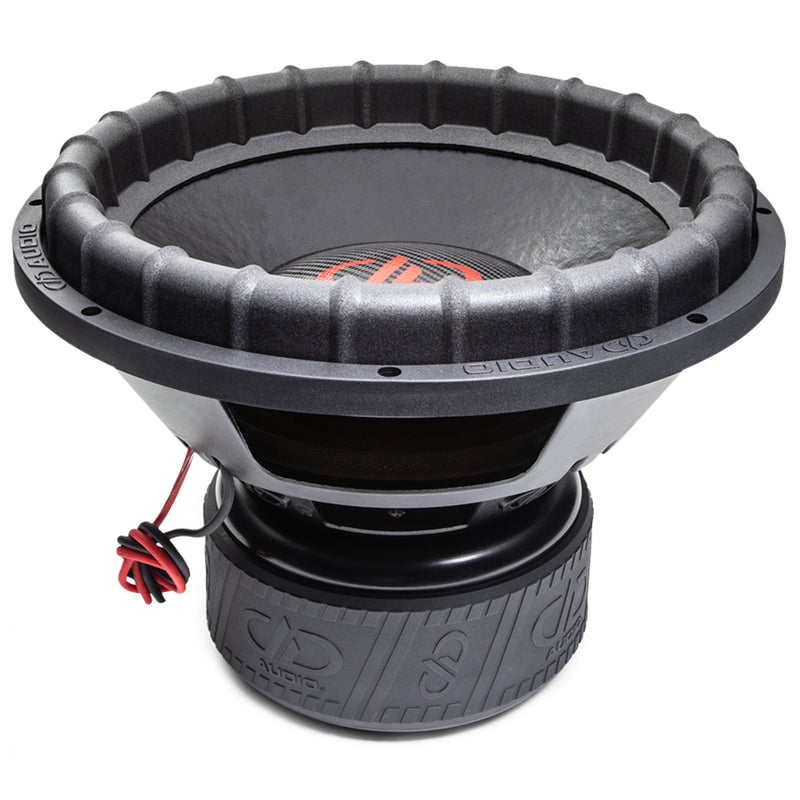

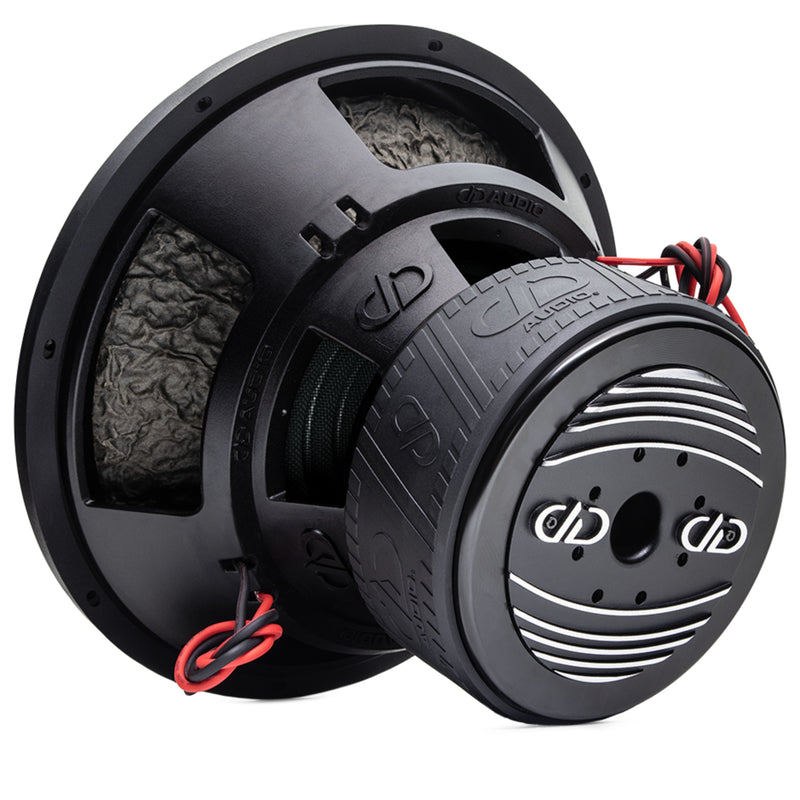

DD Audio 15" USA Built Dual 1-Ohm 3.35” Voice Coil 2500-Watt RMS Subwoofer 9515L

• Unparalleled Power Handling: 2500W RMS, with peak bursts up to 8000W for exceptional performance.
• Advanced Cooling System: Dual Stage Heat Sink and Free Flow Cooling System prevent overheating during extended use.
• USA-Made Quality: Features USA-made 5-layer voice coil, cone, and dust cap for superior durability and clarity.
• Enhanced Excursion: 2nd Gen V-ROM surround maximizes cone area and movement for deeper bass.
• Optimized Enclosure Support: Designed for ported enclosures of 3.0–6.0 cu. ft., allowing for flexible installation.
• Professional Audio-Grade Specs: Qts: 0.666, Fs: 39.03 Hz, and 22mm Xmax for precise sound reproduction.

DD Audio 15" USA Built Dual 1-Ohm 3.35†Voice Coil 2500-Watt RMS Subwoofer 9515L

This Listing includes:

• (1) DD Audio 15" 1-Ohm, 2500 RMS/7500 Peak USA Built Subwoofer

The all-new DD Audio 9500L Series subwoofer sets a new benchmark in audio excellence with cutting-edge technology and premium materials. Designed for audiophiles and competitors alike, this 15-inch subwoofer features groundbreaking advancements like the Dual Stage Heat Sink and the USA-made Iron Cloth Spider System. Its powerful motor with a Free Flow Cooling System ensures optimal heat dissipation, enabling the subwoofer to deliver superior performance even under intense conditions. The 9500L’s USA-made 5-layer voice coil and cone guarantee durability and sound clarity. The second-generation V-ROM surround maximizes excursion and cone surface area, producing a deep, precise bass response. This subwoofer effortlessly handles up to 2500W RMS and bursts up to 8000W peak power, making it a top-tier choice for high-demand setups.

Perfect for custom installations, the 9500L supports ported enclosures ranging from 3.0 to 6.0 cu. ft. Its robust design, combined with precision engineering, ensures unmatched reliability and sound quality, ideal for those seeking to elevate their car audio experience.

Key Features

• NEW Aluminum 2 Stage Motor Heatsink


• 230mm Magnet Diameter


• Multi-Vent Free Flow Cooling Motor


• Shorting Ring Motor


• 3.35†High-Temp Voice Coil


• Excursion Optimized ESP Frame


• V-ROM Vario-Density Surround


• Non-Pressed Composite Reinforced Pulp Cone


• Dual/Triple Layer Iron Cloth Spider


• Laminated Tinsel Leads


• Handmade Composite Dust Cap


• Embossed DDesign Magnet Boot


• Made In USA

Specifications

• Speaker Size: 15 inches


• Watts RMS: 2500


• Watts Peak: 7500


• Impedance: Dual 1-ohm / Dual 2-ohm


• Voice Coil Diameter (VCD): 3.35 inches


• Piston Diameter: 14 1/4 inches


• Resonant Frequency (Fs): 39.03 Hz


• Qms: 6.915


• Qes: 0.738


• Qts: 0.666


• Vas: 52.97 liters


• Xmech (Maximum Excursion): 92 mm


• Xmax (Linear Excursion): 22 mm


• Frame Outer Diameter (OD): 16 5/8 inches


• Frame OD with Gasket: 16 3/4 inches


• Mounting Diameter: 15 3/16 inches


• Mounting Depth: 10 3/8 inches


• Motor Diameter: 9 5/16 inches


• Motor Depth: 4 5/8 inches


• Woofer Displacement: 0.37 cu. ft.


• Recommended Ported Enclosure: 3.0–6.0 cu. ft.


• Shipping Weight: 77 lbs
