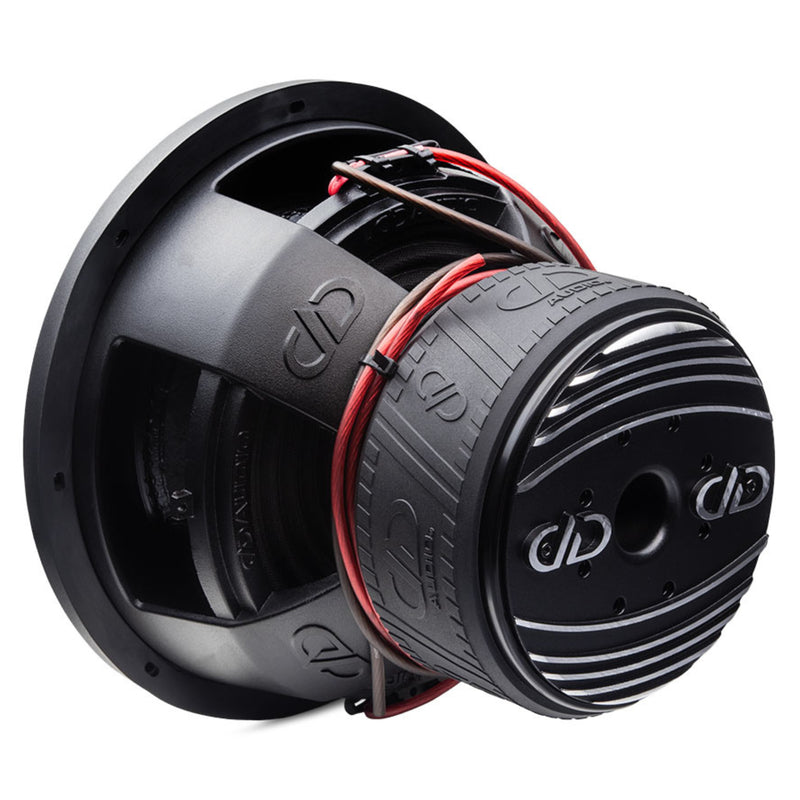

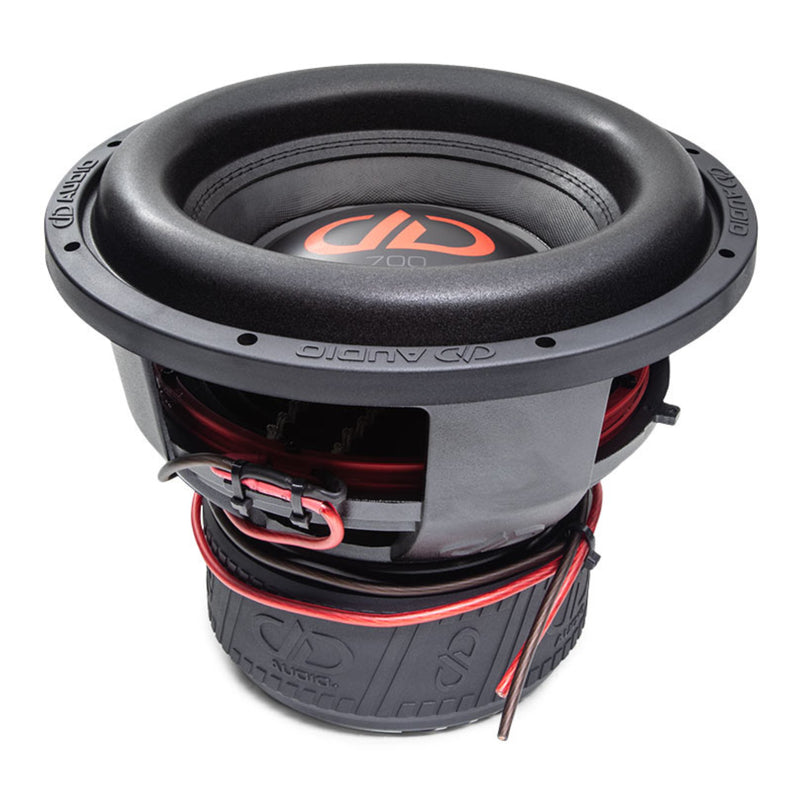

DD Audio 12 Inch Dual 4 Ohm 1500 Watt RMS Power Tuned Subwoofer 712F-D4

• THERMAL CONTROL UPGRADE: Vented aluminum coil insert and heatsink design keep performance consistent
• 1500W RMS POWER: Delivers strong, accurate bass across all frequencies
• LONG-THROW PERFORMANCE: Tall surround and reinforced cone handle heavy excursion effortlessly
• DURABILITY BUILT-IN: High-temp coils and reinforced suspension for long-term reliability
• CLEAN DD AESTHETIC: Signature aluminum logos and motor boot finish
• SMART WIRING (D4): Dual 4-ohm coils allow 2-ohm or 8-ohm configurations
• SYSTEM FLEXIBILITY: Perfect for multi-sub setups and complex builds

DD Audio 12 Inch Dual 4 Ohm 1500 Watt RMS Power Tuned Subwoofer 712F-D4

This Listing Includes

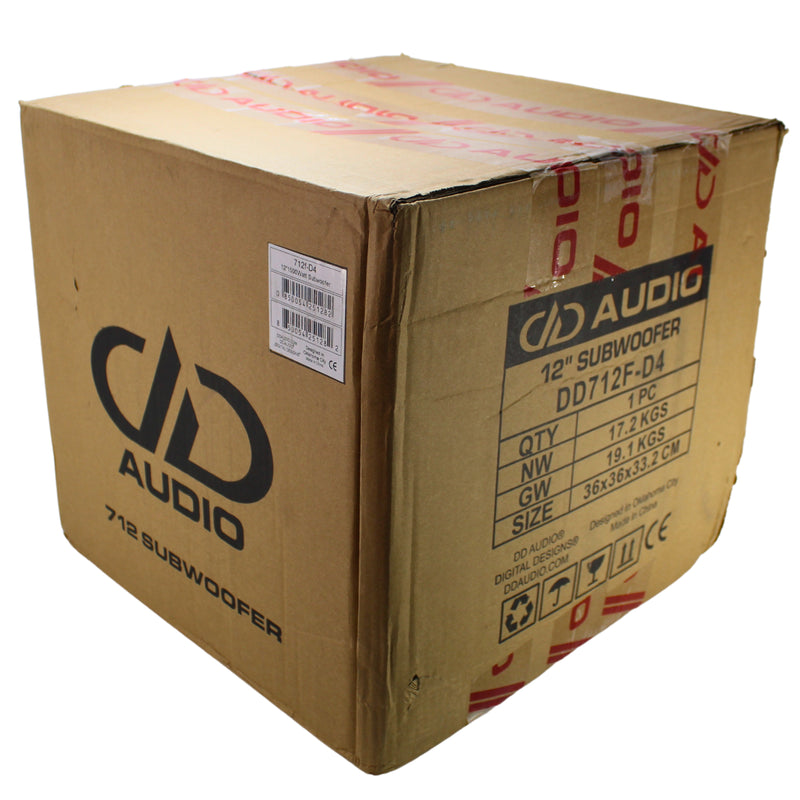

• (1) DD Audio 12" Subwoofer 712F-D4

DD Audio's 700 Series subwoofers have undergone a transformative "f" revision, elevating their already impressive performance. The latest enhancements focus on thermal cooling and cutting-edge design. Precision meets punishment. The DD Audio 712F-D4 takes the upgraded 700 Series platform and delivers clean, controlled, high-output bass with unmatched reliability. The “f†revision enhances cooling and durability, making this sub a long-play powerhouse.

The Dual 4 Ohm configuration is ideal for multi-sub systems or higher impedance builds, giving you flexibility without sacrificing output.gn, ensuring these subwoofers meet the demanding standards for loud and continuous play.

Features

• Vented aluminum voice coil insert and finned heatsink for advanced cooling.


• Tall surround and double-stitched cone for increased excursion and durability.


• High-temp voice coils for consistent performance under intense power.


• Elegant design with polished aluminum DD logos and embossed motor boot.


• Optimized for both daily driving and show-stopping builds.

Specifications:

• Speaker Size: 12 Inches


• RMS Power: 1500 Watts


• Peak Power: 4500 Watts


• Impedance: D4


• Voice Coil Diameter: 3 Inches


• Piston Diameter: 10.25 Inches


• Frequency Response (Fs): 32.13 Hz


• Qms: 6.463


• Qes: 0.5125


• Qts: 0.4749


• Equivalent Volume (Vas): 24.23 Liters


• Maximum Excursion (Xmech): 100 MM


• Maximum Linear Excursion (Xmax): 22 MM

Enclosure Recommendations:

• Woofer Displacement: 0.17 CuFt


• Ported Enclosure Range: 1.75 - 3.0 CuFt

Dimensions:

• Frame Outer Diameter: 12.625 Inches


• Frame OD with Gasket: 12.875 Inches


• Mounting Diameter: 11.375 Inches


• Mounting Depth: 9 Inches


• Motor Diameter: 7.562 Inches


• Motor Depth: 4 Inches
