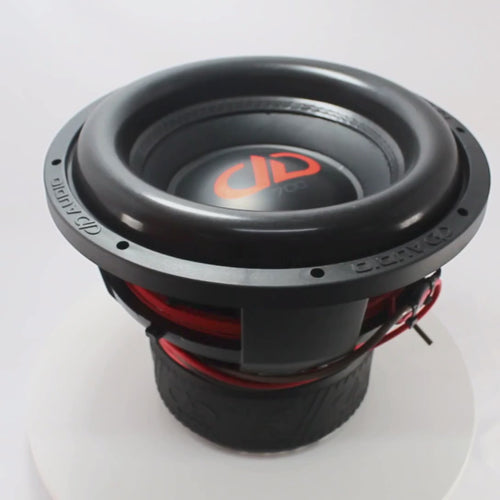

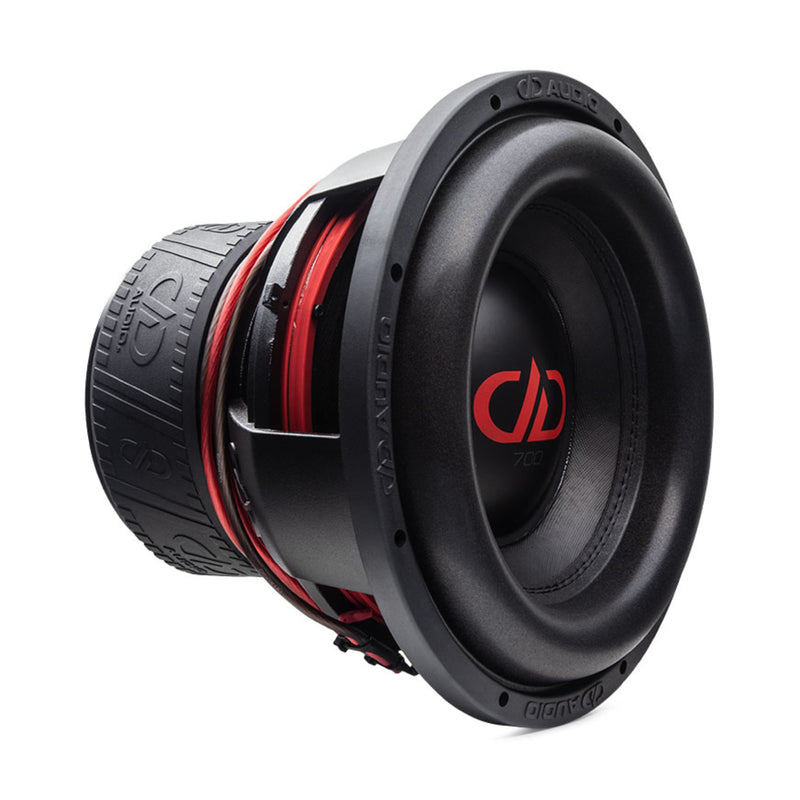

DD Audio 12 Inch Dual 2 Ohm 1500 Watt RMS Power Tuned Subwoofer 712F-D2

• ADVANCED COOLING SYSTEM: Vented aluminum voice coil insert with finned heatsink keeps temps down during extreme play
• HIGH-POWER PERFORMANCE: 1500W RMS handling delivers deep, aggressive bass with authority
• EXTREME EXCURSION DESIGN: Tall surround and reinforced cone allow massive movement without distortion
• HIGH-TEMP VOICE COILS: Built to handle sustained power without performance loss
• PREMIUM DD BUILD: Polished aluminum logos and embossed motor boot for a clean, aggressive look
• VERSATILE WIRING (D2): Dual 2-ohm coils allow 1-ohm or 4-ohm configurations
• DAILY OR DEMO READY: Designed for both everyday systems and high-output builds

DD Audio 12 Inch Dual 2 Ohm 1500 Watt RMS Power Tuned Subwoofer 712F-D2

This Listing Includes

• (1) DD Audio 12" Subwoofer 712F-D2

The DD Audio 700 Series just leveled up. The “f†revision takes everything that made this lineup a monster and sharpens it into a precision weapon. With upgraded thermal management and structural refinements, the 712F-D2 is built for relentless output, brutal lows, and daily abuse without flinching.

The Dual 2 Ohm configuration gives you flexible wiring options to dial in max power from your amplifier. Whether you're chasing hair tricks or clean daily bass, this sub delivers with authority.

Features

• Vented aluminum voice coil insert and finned heatsink for advanced cooling.


• Tall surround and double-stitched cone for increased excursion and durability.


• High-temp voice coils for consistent performance under intense power.


• Elegant design with polished aluminum DD logos and embossed motor boot.


• Optimized for both daily driving and show-stopping builds.

Specifications:

• Speaker Size: 12 Inches


• RMS Power: 1500 Watts


• Peak Power: 4500 Watts


• Impedance: D2


• Voice Coil Diameter: 3 Inches


• Piston Diameter: 10.25 Inches


• Frequency Response (Fs): 32.13 Hz


• Qms: 6.463


• Qes: 0.5125


• Qts: 0.4749


• Equivalent Volume (Vas): 24.23 Liters


• Maximum Excursion (Xmech): 100 MM


• Maximum Linear Excursion (Xmax): 22 MM

Enclosure Recommendations:

• Woofer Displacement: 0.17 CuFt


• Ported Enclosure Range: 1.75 - 3.0 CuFt

Dimensions:

• Frame Outer Diameter: 12.625 Inches


• Frame OD with Gasket: 12.875 Inches


• Mounting Diameter: 11.375 Inches


• Mounting Depth: 9 Inches


• Motor Diameter: 7.562 Inches


• Motor Depth: 4 Inches
