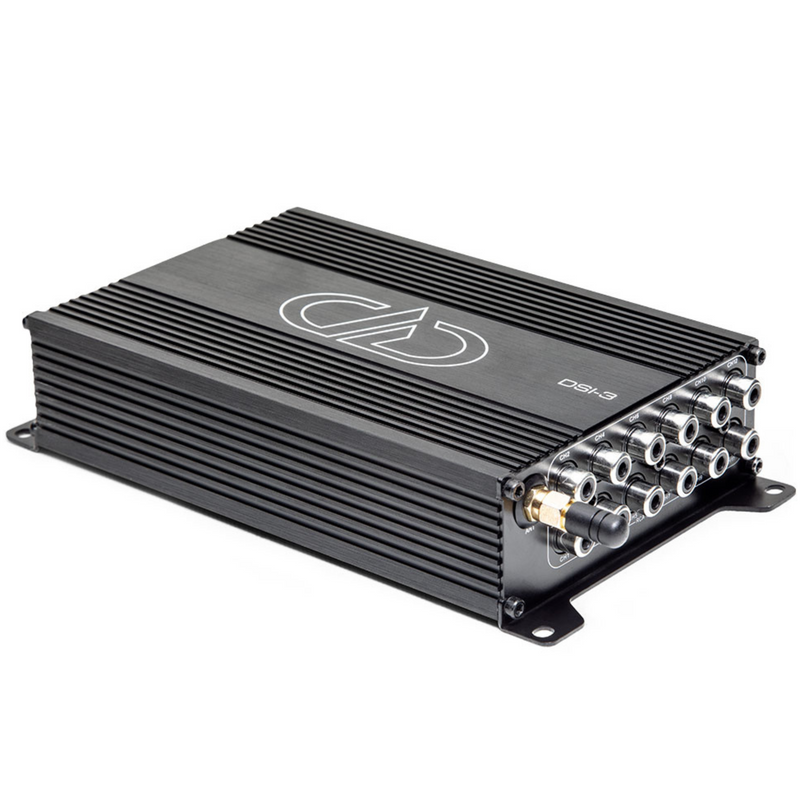

DD Audio 12 Channel 31 Band Parametric EQ Active Pre-Amp Signal Processor DSI-3

• 31 band Parametric / Graphic Equalizer, Crossovers, and Time Alignment
• Bluetooth Compatible
• 6 Customizable EQ Presets, 6ch High-level Inputs, 6ch High-level Inputs, 6ch Low-level RCA Inputs
• 12ch Low-level RCA Outputs

DD Audio 12 Channel 31 Band Parametric EQ Active Pre-Amp Signal Processor DSI-3

This listing includes:

(1) 12 Channel Signal Processor

The DSI-3 audio signal processor will allow you to precisely tune the acoustics of a vehicle's audio system for maximum listening pleasure. With features like 6ch summable input, 12ch output, Bluetooth 5.0 audio streaming, and 31 band parametric EQ this DSP can easily handle the increased interfacing and tuning needs of today's multi channel audio systems. The DSI-3's has an advanced tuning suite for easy system setup and the mobile user interface is compatible with and Android for on the go tuning and control. For even more installation flexibility you can add the optional DSI-3RMT for remote control of the master volume, preset selection, and subwoofer level.

Features:

• PC and Smartphone Graphic User Interfaces


• 31 band Parametric / Graphic Equalizer, Crossovers, and Time Alignment


• Bluetooth Compatible


• Remote Controllable (w/ optional DSI-3RMT)


• 6 Customizable EQ Presets

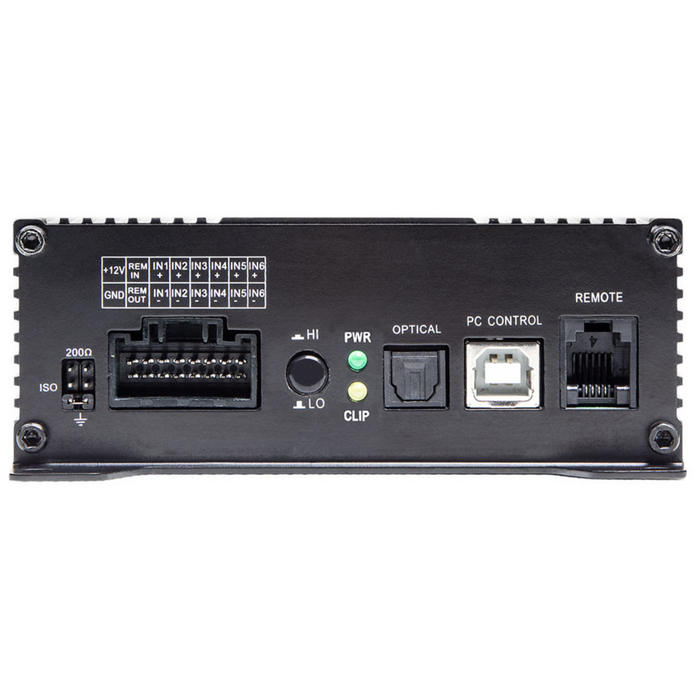

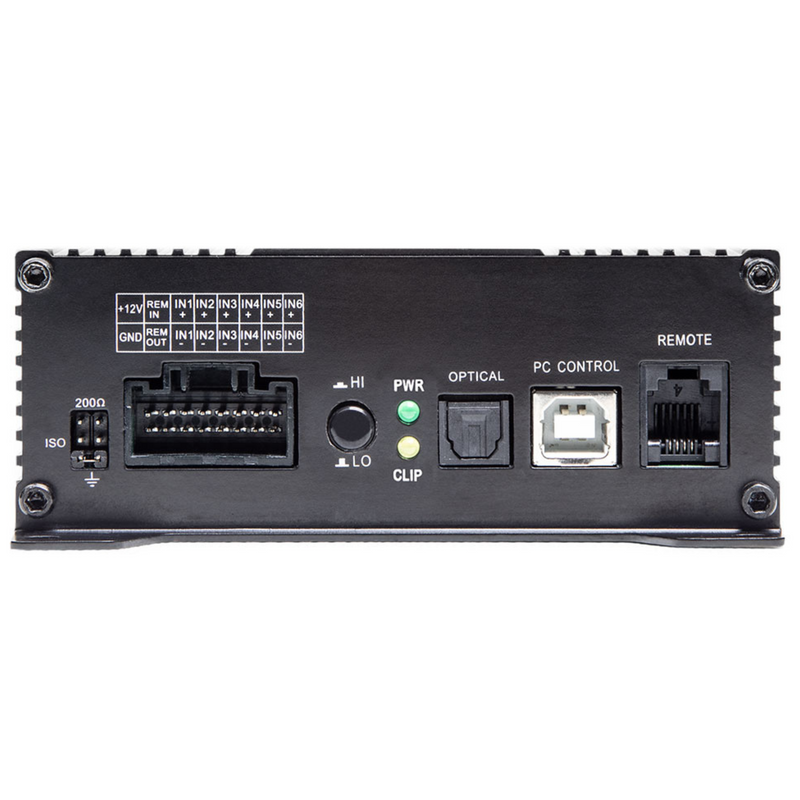

• 6ch High-level Inputs


• 6ch Low-level RCA Inputs


• Input Summing

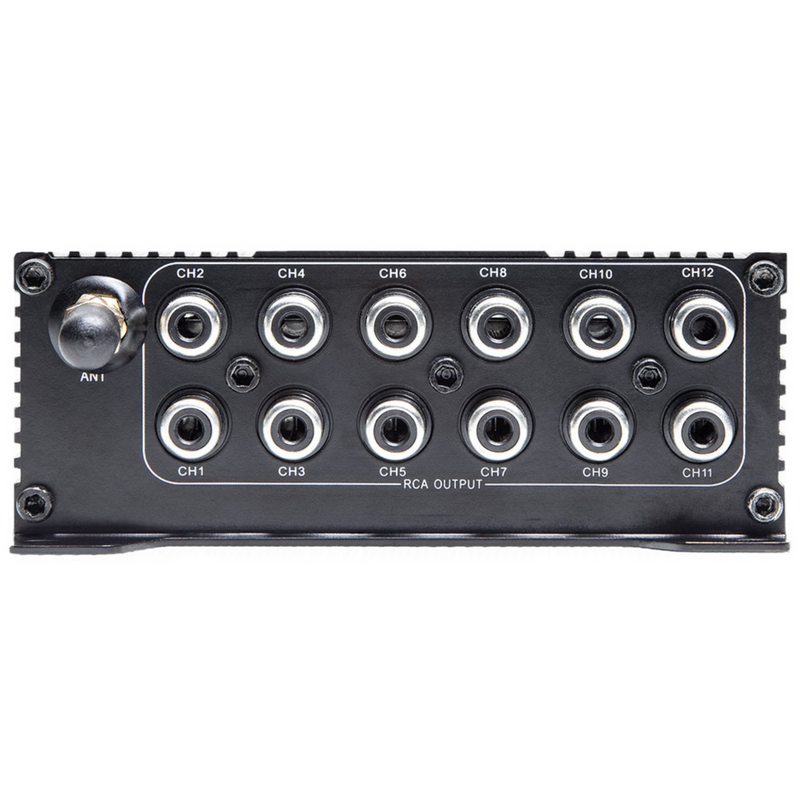

• 12ch Low-level RCA Outputs


• Aluminum Chassis

Specifications:

• Operating Voltage: 8.7 - 16.5


• Input Channel(s): 6


• Output Channel(s): 12


• RCA Input Voltage Sensitivity: 0.3-3.2v (CH1 - CH4) / 0.6-6.4v (CH5 - CH6)


• High-Level Input Voltage Sensitivity: 2-20v (CH1 - CH4) / 4-40v (CH5 - CH6)


• RCA Output Voltage: 0.2V - 5V


• RCA Input Impedance: > 20k(ohms)


• High Level Input Impedance: 240(ohms)


• RCA Output Impedance: > 50k(ohms)


• RCA Input S/N: > 105dBA


• High-Level Input S/N: > 115dBA


• THD: < 0.02%


• Parametric / Graphic EQ: 31 bands


• Sampling Frequency: 192 kHz


• Bit Depth: 32 bit


• Processing Speed: 395 MHz


• Remote Control: Remote Available, Sold Separately


• Remote Out Current: 12V < 500mA


• Dimensions (Inches): 7.5 x 4.2 x 1.5


• Dimensions (MM): 191 x 107 x 39
