- 8MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
- Outputs max. 8MP (3840 2160) @15 fps, and supports 26881520 (2688 1520) @25/30 fps
- -H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max IR distance: (40 m) 131ft
- ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments

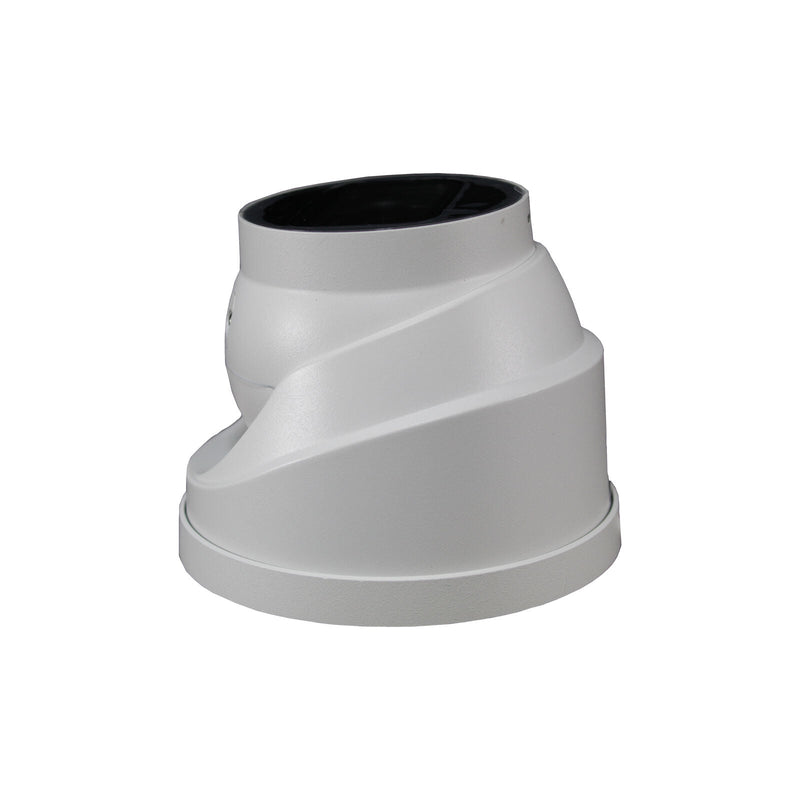

Dauha OEM 8MP 4K IR Indoor/Outdoor 2.7mm Fixed CCTV Turret Security Camera CVI
Turret Networking / Internet Protocol Security Camera (IPC),1/3" ,8MP@15fps,Motorized 2.7~13.5mm, IR(40 m) 131ft, WDR, starlight, VCA, SD Slot. UL Listed professional surveillance products.
Remote viewing from your mobile with ENS Security. you can quickly and easily view your security system remotely through your smartphone, tablet, or PC. free download app and no monthly fees.

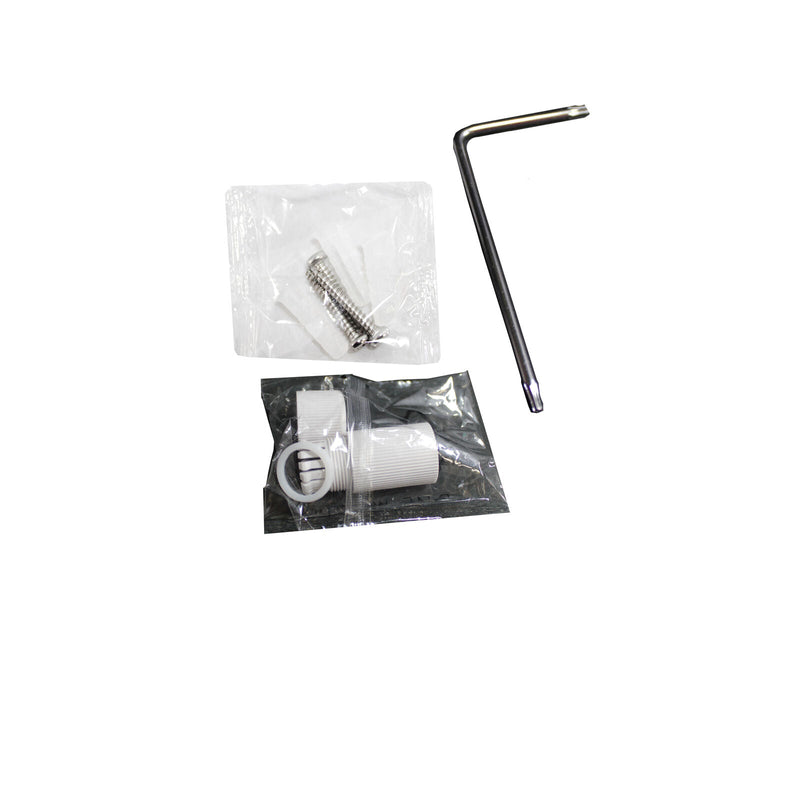

This Listing Includes
(1)Camera
(3) Screws and Wall Mounts
(1) Hardware
(1) Hexagonal Wrench
Features:
-8MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
-Outputs max. 8MP (3840 2160) @15 fps, and supports 26881520 (2688 1520) @25/30 fps
-H.265 codec, high compression rate, ultra-low bit rate
-Built-in IR LED, max IR distance: (40 m) 131ft
-ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
-Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
-Intelligent detection: Intrusion, tripwire
-Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, -illegal access, voltage detection
-Supports max. 256 GB Micro SD card
-12V DC/POE power support
-IP67 protection
Specifications
Image Sensor: 1/2.7" CMOS
Image Size: 3840(H) x 2160(V)
RAM/ROM: 256 MB / 128 MB
Electronic Shutter: Auto/Manual, 1/3s~1/100000s
Minimum Illumination: 0.008 Lux@F1.5
IR LEDs: 2
Smart IR: Support
IR Distance: 40 m (131.2 ft)
IR On/Off Control: Auto/Manual
Focal Length: 2.7 mm-13.5 mm Vari-Focal
Angle of View: Pan: 0-360 / Tilt: 0-78 / Rotation: 0-360
Max. Aperture: F1.5
Close Focus Distance: 0.8m ~ 0.8m (2.62ft ~ 2.62ft)
Video Compression: H.265; H.264; H.264H; H.264B; MJPEG
Streaming Capability:2 Streams
Video Resolution: 3840 2160 (3840 2160); 3072 2048 (3072 2048); 3072 1728 (3072 1728); 2592 1944 (2592 1944); 2688 1520 (2688 1520); 3M (2048 1536); 2304 1296 (2304 1296); 1080p (1920 1080); 1.3M (1280 960); 720p (1280 720); D1 (704 576/704 480); VGA (640 480); CIF (352 288/352 240)
Video Frame Rate: Main Stream:3840 2160 (1 fps-15 fps) 2688 1520 (1 fps-25/30 fps)
Sub Stream: 704 576 (1 fps-25 fps) 704 480 (1 fps-30 fps)
Video Bitrate: H.264: 32 Kbps-8192 Kbps H.265: 12 Kbps-8192 Kbps
Day / Night: Auto(ICR) / Color / B/W
Wide Dynamic Range: 120 dB
BLC Mode: Yes
HLC: Yes
Motion Detection: Disable/Enable (4 areas, rectangle)
Region of Interest: Yes (4 areas)
Mirror:Yes
Privacy Masking: 4 areas
General Function : Work together with Smart NVR to perform refine the intelligent search, event extraction and merging to event videos
AI Perimeter Protection: Tripwire; intrusion (Recognition of human and vehicle)

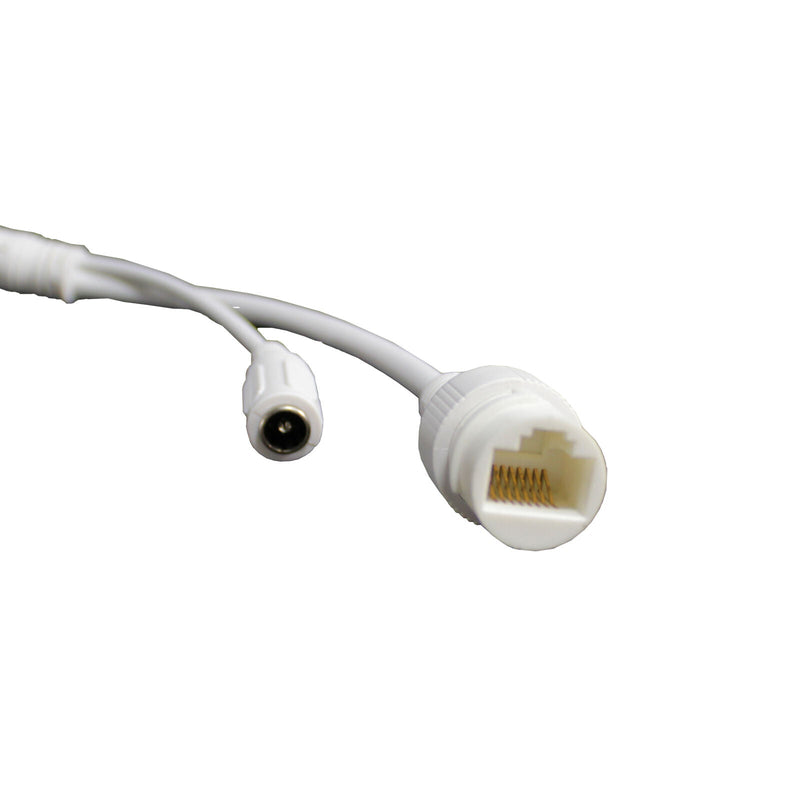

Ethernet: RJ-45 (10/100Base-T)
Network Interoperability: ONVIF (Profile S/Profile G); CGI; P2P
Network Max. Users: 20 Users
Storage: FTP; SFTP; Micro SD Card
Storage Card: Micro SD card (max. 256 GB)
Web Viewer: IE, Chrome, Firefox
Management Software: NVR; DSS; DMSS; IVSS
Mobile: IOS, Android
Certifications: CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power Supply: 12V DC/POE
Power Consumption: 9.8W
Operating Temperature: -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
Storage Temperature: -30 C ~ +60 C (-22 F ~ +140 F) / Less than 95% RH
Ingress Protection: IP67
Dimensions: 108.3 mm 122 mm (4.3" 4.8")
Weight: Net Weight 685g (1.5 lb)
Gross Weight 828 g (1.8 lb)
