Dahua OEM 5MP IR Indoor/Outdoor Bullet 3.6mm Fixed Lens CCTV Security Camera CVI

ENS Security SKU: ENS-HCC3150T-IR-36

$47.95 $59.95 Save $12

Shipping calculated at checkout

Available Now!

Dauha OEM 5MP IR Indoor/Outdoor Bullet 3.6mm Fixed Lens CCTV Security Camera CVI

The Dauha 5MP HD bullet security camera is a high-quality affordable solution to your home or business surveillance needs. It has an IP67 rating and is 100% protected against solid objects like dust and sand, and it has been tested to work for at least 30 minutes while under 15cm to 1m of water, so it can be used indoors or outdoors. The camera and its structure also has a 4KV lightning rating to protect it from lightning strikes. The camera supports multiple video formats including HDCVI, CVBS, and other common HD analog formats in the market. This feature makes the camera compatible with not only XVRs, but also most existing HD/SD DVRs. The white color blends in nicely to many applications and can also see 98 feet at night with InfraRed technology.

This Listing Includes:
(1) Bullet Security Camera

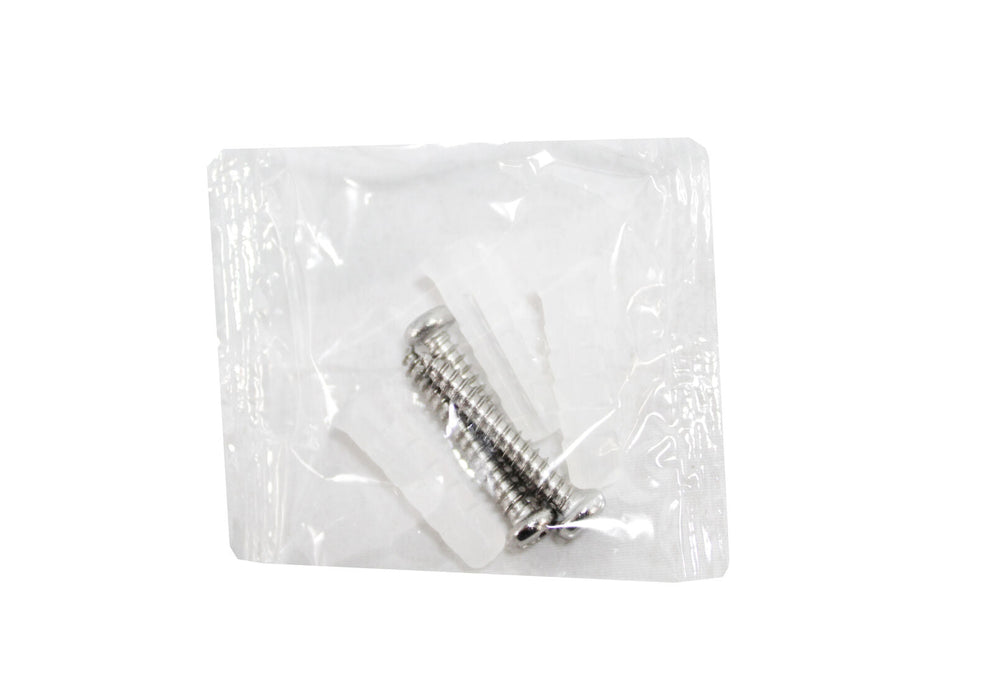

(3) Phillips head screws
(3) Plastic anchors

-Max. 20fps@5MP
-HD and SD output switchable
-3.6mm fixed lens
-Smart IR-Max. IR length 30m,98ft.
-IP67 rated for all elements

Technical Specifications:
Image Sensor: 1/2.7" CMOS
Image Size: 2592(H)×1944(V), 5MP
Electronic Shutter: PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination: 0.02Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio: More than 65dB
IR LEDs: 1
Smart IR: Support
IR Distance: Up to 30m (98feet)
IR On/Off Control: Auto / Manual
Focal Length: 3.6mm
Angle of View H: 77.5°
Max. Aperture: F1.85
Optical Zoom: N/A
Close Focus Distance: 1400mm 55"
DORI Distance:
Detect: 25px/m(8px/ft) 3.6mm: 80m(262ft)
Observe: 63px/m(19px/ft) 3.6mm: 32m(105ft)
Recognize: 125px/m(38px/ft) 3.6mm: 16m(53ft)
Identify: 250px/m(76px/ft) 3.6mm: 8m(26ft)
Pan / Tilt / Rotation: Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotation: 0° ~ 360°
Video Compression: N/A
Video Resolution: 5MP (2592×1944)
Video Frame Rate: 20fps@5MP, 25/30fps@4MP, 25/30fps@1080P
Day / Night: Auto (ICR) / Manual
White Balance: Auto / Manual
Gain Control: AGC
Digital Noise Reduction: 2D
Motion Detection: N/A
Audio Compression: N/A
Video Output: 1-channel BNC high definition video output / CVBS video output (Can switch)
Certifications :CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Audio Interface: N/A
RS485: N/A
Alarm In: N/A
Alarm Out: N/A
Power Supply: 12V DC ±30%
Power Consumption: Max. 3.7W (12V DC, IR on)
Operating Temperature: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH * Start up should be done at above -40°C (-40°F)
Storage Temperature: -40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection: IP67

Net Weight 0.37kg (0.82lb)
Gross Weight 0.48kg (1.06lb)

176mm×72.4mm×72.5mm (6.93"×2.85"×2.85")
