- Wire to 2 ohms for powerful bass or 8 ohms for stable multi-speaker setups, offering complete system versatility.
- Delivers 350W RMS and 700W peak power for smooth, controlled, and impactful low-frequency performance.
- Reinforced paper cone and butyl rubber surround ensure durability, sound accuracy, and distortion-free bass.
- Tuned for tight bass in 0.635 cu ft sealed boxes or deep lows in 1.1 cu ft ported enclosures.
- Cast aluminum frame and magnet heatsink provide cooling and rigidity, while the bold orange surround enhances its visual appeal.

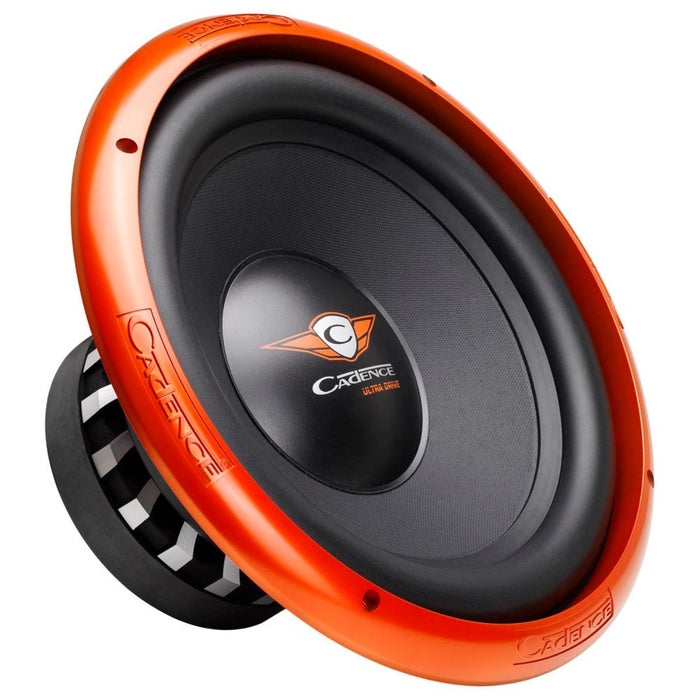

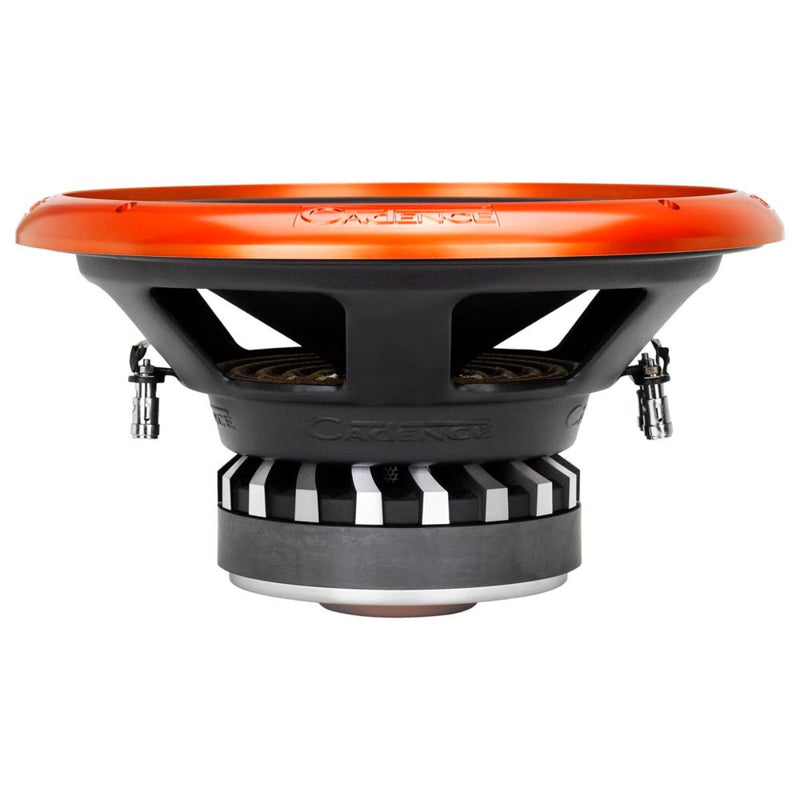

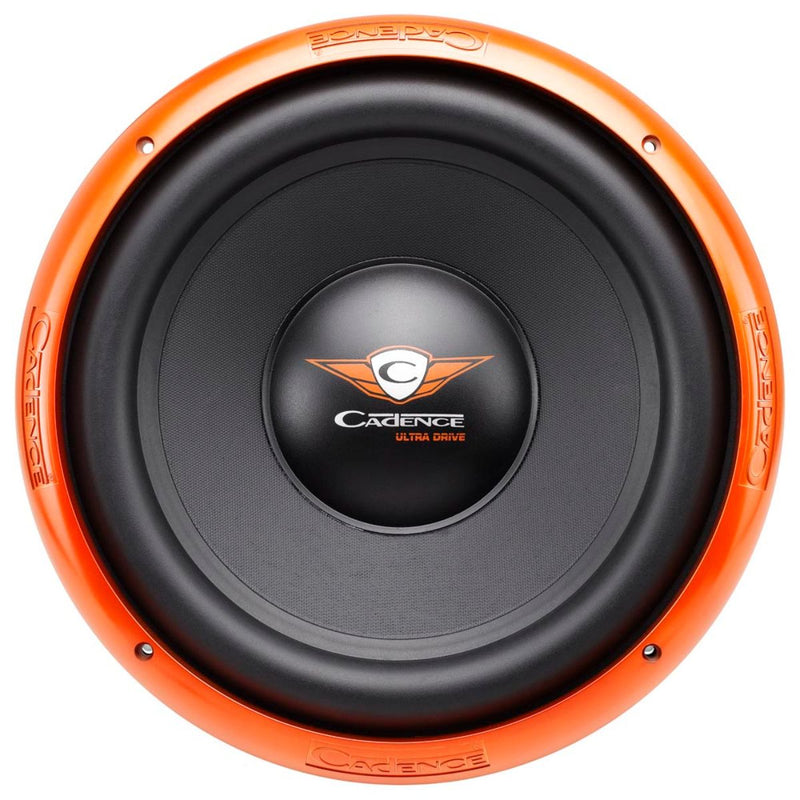

Cadence Pro Car Audio 10" 350 Watt RMS 4-Ohm Dual Voice Coil Subwoofer UD10D4
This Listing Includes:
- (1) Cadence UD10D4 10" Subwoofer
Discover deep, dynamic bass with the Cadence UD10D4 from the Ultra Drive Series. This 10-inch subwoofer blends powerful performance with refined aesthetics, featuring a vibrant orange surround and smooth black cone that radiate precision and strength. Designed for audiophiles who value both sound and style, the UD10D4 transforms every drive into a rich, immersive listening experience.
With dual 4-ohm voice coils, this subwoofer gives you flexible wiring options to match your system’s needs. Configure it to 2 ohms for hard-hitting bass and maximum amplifier output, or to 8 ohms for multi-speaker setups that demand stable, balanced sound. Whether you’re building a competition-ready setup or enhancing a daily system, the UD10D4 adapts effortlessly.
Built to last, it features a reinforced ultra-stiff pressed paper cone and a high-excursion butyl rubber surround that deliver precise low-end response with minimal distortion. Its 8mm Xmax and cast aluminum basket with integrated magnet heatsink ensure reliable cooling and consistent performance, even during long, high-volume sessions.
The UD10D4 performs flawlessly in both sealed and ported enclosures. A 0.635 cu ft sealed box delivers tight, responsive bass ideal for balanced playback, while a 1.1 cu ft ported box with a 3" port diameter and 7.62" port length enhances deep, resonant lows. With a 33-500Hz frequency range and 91dB sensitivity, it captures every bass note with clarity and power.
For anyone seeking versatility, precision, and striking design, the Cadence UD10D4 is the ultimate choice. It’s more than a subwoofer—it’s the heart of your sound system, engineered for emotion, energy, and control.
Specifications:
- Application Type: Car
- Size & Type: 10"
- Power Handling: 350W RMS / 700W Peak
- Frequency Response: 33 - 500 Hz
- SPL @ 1w/1m: 91 dB
- Impedance: Dual 4 Ohm
- Voice Coil: Dual 4 Ohm
- Cone: Reinforced Ultra-Stiff Pressed Paper
- Surround: High Excursion Butyl Rubber
- Basket: Cast Aluminum
- Magnet: Cast Aluminum Magnet Heatsink
- Xmax: 8 mm
- VAS: 33.33 L
- FS: 32.41 Hz
- QTS: 0.382
Dimensions:
- Cutout Diameter: 9.25" (235 mm)
- Mounting Depth: 5.67" (144 mm)
- Ideal Sealed Box Volume: 0.635 cu ft (17.98 L)
- Ideal Ported Box Volume: 1.1 cu ft (31.15 L)
- Port Diameter: 3" (76.2 mm)
- Port Length: 7.62" (193.6 mm)
