- POWERFUL 10" SUBWOOFER: The Cadence UD10D2 Ultra Drive Series subwoofer delivers 350W RMS and 700W peak power for strong, controlled bass in car audio systems.
- DUAL 2-OHM VOICE COIL DESIGN: Flexible dual 2-ohm voice coils allow wiring options for 1-ohm or 4-ohm final loads, making it easy to match different amplifier setups.
- DURABLE CONE AND SURROUND: Built with a reinforced ultra-stiff pressed paper cone and high-excursion butyl rubber surround for reliable bass performance and long-lasting durability.
- CAST ALUMINUM BASKET: The cast aluminum basket provides strength and stability, while the cast aluminum magnet heatsink helps improve cooling during high-output playback.
- SEALED OR PORTED ENCLOSURE READY: Designed for use in a 0.635 cu ft sealed enclosure for tight bass or a 1.1 cu ft ported enclosure for louder low-frequency output.

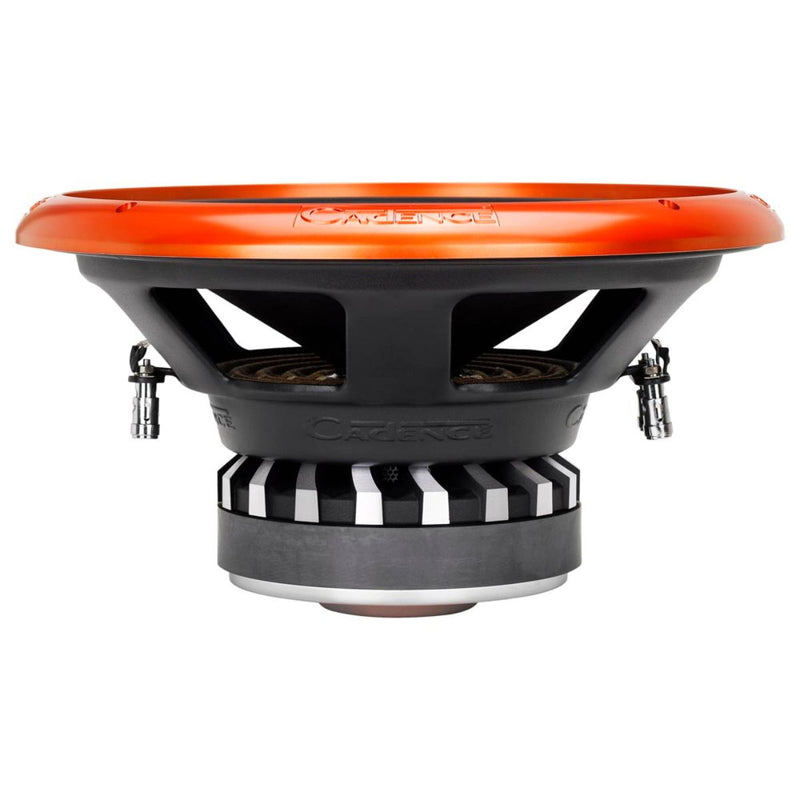

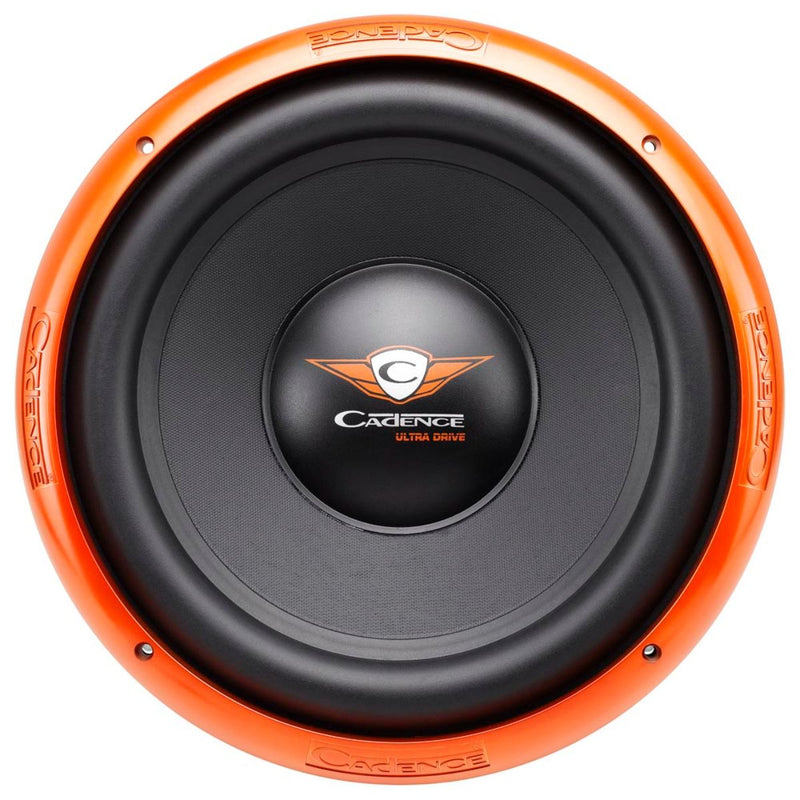

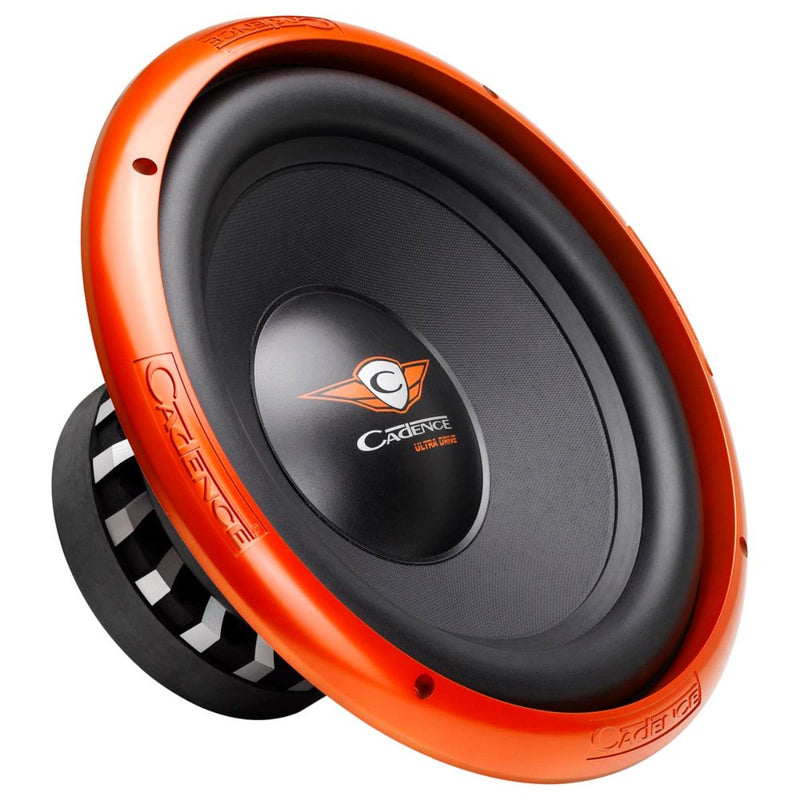

Cadence Pro Car Audio 10" 350 Watt RMS 2-Ohm Dual Voice Coil Subwoofer UD10D2
This Listing Includes:
- (1) Cadence UD10D2 10" Subwoofer
Bring deep, controlled bass into your car audio system with the Cadence UD10D2 from the Ultra Drive Series. This 10-inch subwoofer is built for listeners who want strong low-end output, clean response, and reliable performance in a compact package.
The UD10D2 features dual 2-ohm voice coils, giving you flexible wiring options for different amplifier setups. Wire it down to 1 ohm for maximum power output, or configure it to 4 ohms for a more stable and efficient system design.
Built with a reinforced ultra-stiff pressed paper cone and high-excursion butyl rubber surround, this subwoofer delivers tight, punchy bass with the durability needed for daily use. Its 8mm Xmax helps produce strong low-frequency movement, while the cast aluminum basket and magnet heatsink provide added strength, cooling, and long-lasting performance.
With 350 watts RMS power handling, 700 watts peak power, and a 91dB sensitivity rating, the Cadence UD10D2 is a great choice for car audio builds that need serious bass without taking over the entire trunk. It works well in sealed or ported enclosures, giving installers room to tune the sound for accuracy, output, or a balance of both.
Features:
- 10" Ultra Drive Series car audio subwoofer
- 350 Watts RMS
- 700 Watts Peak
- Dual 2-ohm voice coil design
- Flexible wiring options for 1-ohm or 4-ohm final loads
- Reinforced ultra-stiff pressed paper cone
- High-excursion butyl rubber surround
- Cast aluminum basket for strength and stability
- Cast aluminum magnet heatsink for improved cooling
- 8mm Xmax for strong bass movement
- Works in sealed or ported enclosures
- Ideal for daily car audio bass systems
Specifications:
- Application Type: Car Audio
- Speaker Size: 10"
- Power Handling: 350W RMS / 700W Peak
- Frequency Response: 33Hz - 500Hz
- Sensitivity: 91dB @ 1W/1M
- Impedance: Dual 2 Ohm
- Voice Coil: Dual 2 Ohm
- Cone Material: Reinforced Ultra-Stiff Pressed Paper
- Surround Material: High Excursion Butyl Rubber
- Basket Material: Cast Aluminum
- Magnet: Cast Aluminum Magnet Heatsink
- Xmax: 8mm
- VAS: 29.40L
- FS: 33.63Hz
- QTS: 0.423
Subwoofer Box Recommendations:
- Ideal Sealed Box Volume: 0.635 cu ft (17.98 L)
- Ideal Ported Box Volume: 1.1 cu ft (31.15 L)
- Port Diameter: 3" (76.2 mm)
- Port Length: 7.62" (193.6 mm)
Dimensions:
- Cutout Diameter: 9.25" (235 mm)
- Mounting Depth: 5.67" (144 mm)
