- EXTREME COMPETITION POWER: The B2 Audio X2C 18" subwoofer is built for serious SPL and demo builds with 10,000 watts RMS and 20,000 watts max power handling.
- DUAL 1 OHM CONFIGURATION: Dual 1 ohm voice coils give experienced installers flexible wiring options for high-power amplifier setups and competition-level systems.
- MASSIVE 5" VOICE COIL: Designed with a large 5-inch voice coil for serious thermal management, improved durability, and reliable performance under extreme power.
- DEEP LOW FREQUENCY OUTPUT: With a frequency range of 10 Hz to 150 Hz, this 18" subwoofer is engineered to deliver brutal low-end bass for high-output audio builds.
- BUILT FOR SPL BUILDS: Ideal for competition vehicles, wall builds, demo systems, and serious bass enthusiasts who need massive air movement and high-output performance.

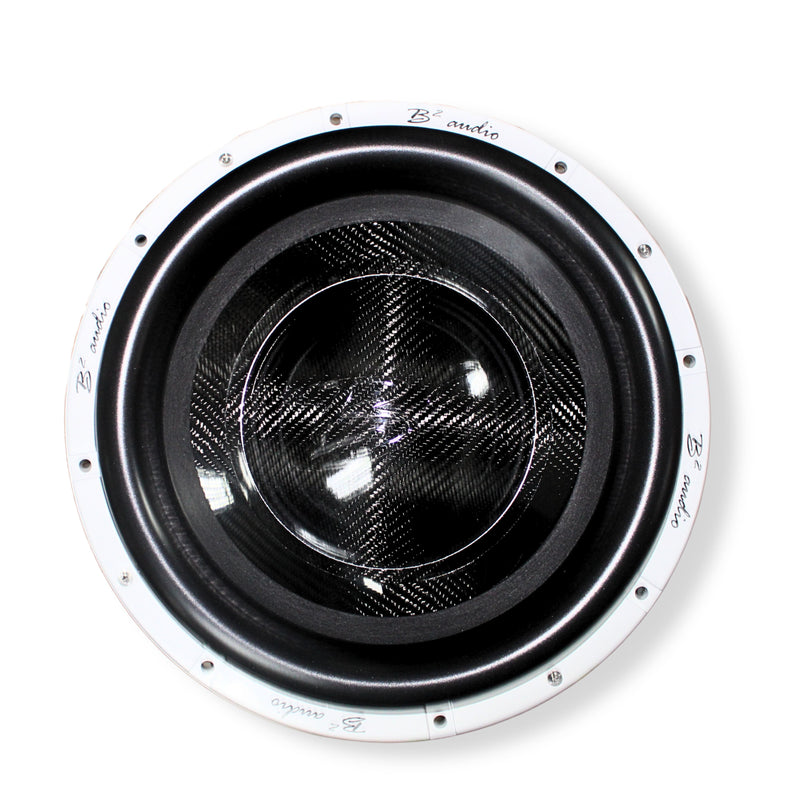

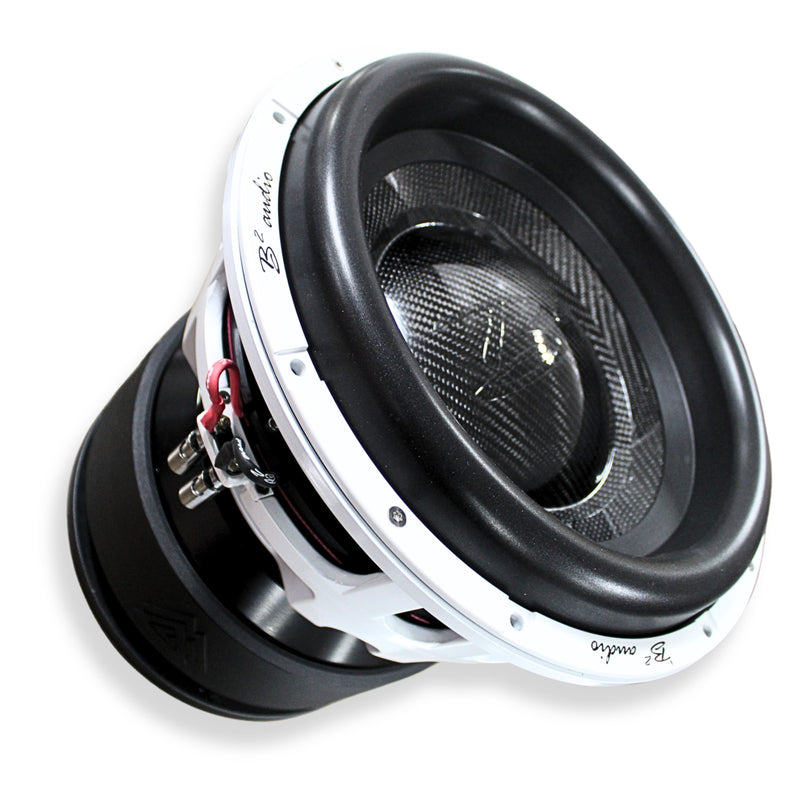

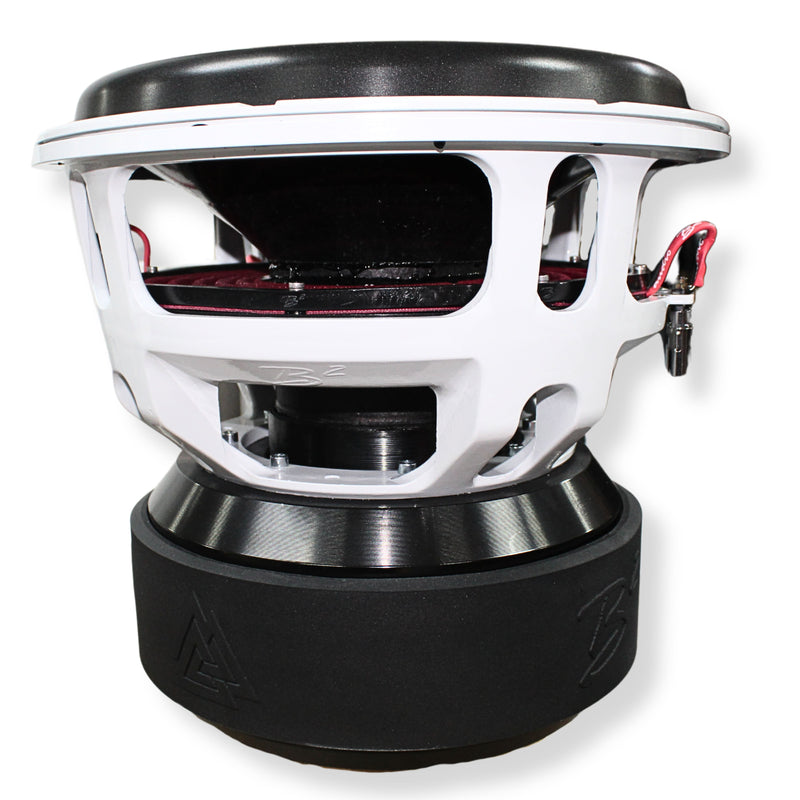

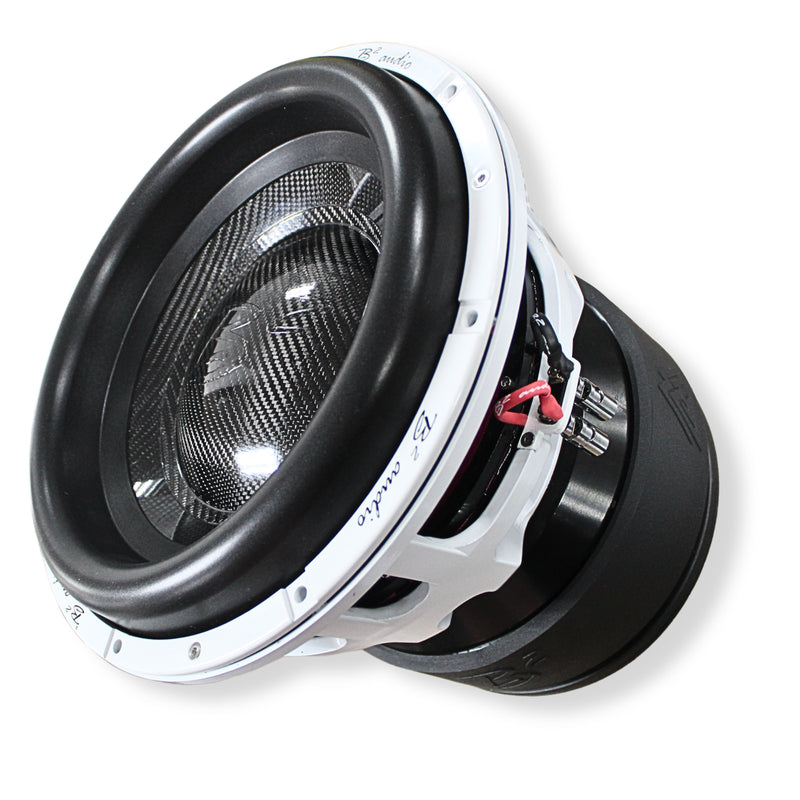

B2 Audio X2C Competition Series 18" 10,000 Watt RMS Dual 1 Ohm Subwoofer
This listing includes:
- (1) X2C 18" Dual 1 Ohm Subwoofer
The B2 Audio X2C 18" Dual 1 Ohm Subwoofer is built for extreme SPL competitors and serious bass builders who need brutal power handling, deep low-frequency output, and a motor structure that does not flinch under pressure.
Engineered for high-output competition systems, the X2C features a massive motor assembly, a large 5-inch voice coil, and serious thermal management to handle up to 10,000 watts RMS and 20,000 watts max power. With a frequency range down to 10 Hz, this 18-inch subwoofer is designed to move serious air and deliver the kind of low-end force that turns builds into legends.
Whether you are chasing meter numbers, hair tricks, or ground-shaking demo power, the X2C 18" is built for bass systems where average simply gets escorted out of the parking lot.
Features
- Competition-grade 18" SPL subwoofer
- Dual 1 Ohm voice coil configuration
- 10,000 watts RMS power handling
- 20,000 watts max power handling
- Massive 5" voice coil for extreme thermal control
- Designed for high-output SPL and demo builds
- Deep frequency response down to 10 Hz
- High motor force for powerful cone control
- Built for serious competitors and extreme bass enthusiasts
Specifications
- Frequency Range: 10 Hz – 150 Hz
- Impedance: Dual 1 Ohm
- RMS Power: 10,000 Watts
- Max Power: 20,000 Watts
Electrical Parameters
- Re (DC Resistance): 1.5971 ohms
- Le (Inductance @ 1 kHz): 3.7877 mH
- Zmax (Maximum Impedance): 27.2880 ohms
- BL (Motor Force Factor): 24.4398 N/A
Thiele/Small Parameters
- Fs (Resonant Frequency): 29.25 Hz
- Qes (Electrical Q): 0.4664
- Qms (Mechanical Q): 7.5029
- Qts (Total Q): 0.4391
- Vas (Equivalent Compliance Volume): 63.23 L (1.7327 ft^3)
- Cms (Compliance): 31.1905 M/N
Physical Characteristics
- Effective Diameter: 390.0000 mm (15.3543 in)
- Sd (Cone Area): 119459.0554 mm^2 (185.1619 in^2)
- Mms (Moving Mass): 949.0932 g
Output & Efficiency
- Efficiency: 0.3188 %
- Sensitivity @ 1W/1m: 87.0536 dB
- Sensitivity @ 2.83Vrms/1m: 94.0512 dB
