(1) Bass Knob with Voltage and Temperature Display
(1) Remote Wire
(2) Hex Wrenches
Mounting Hardware

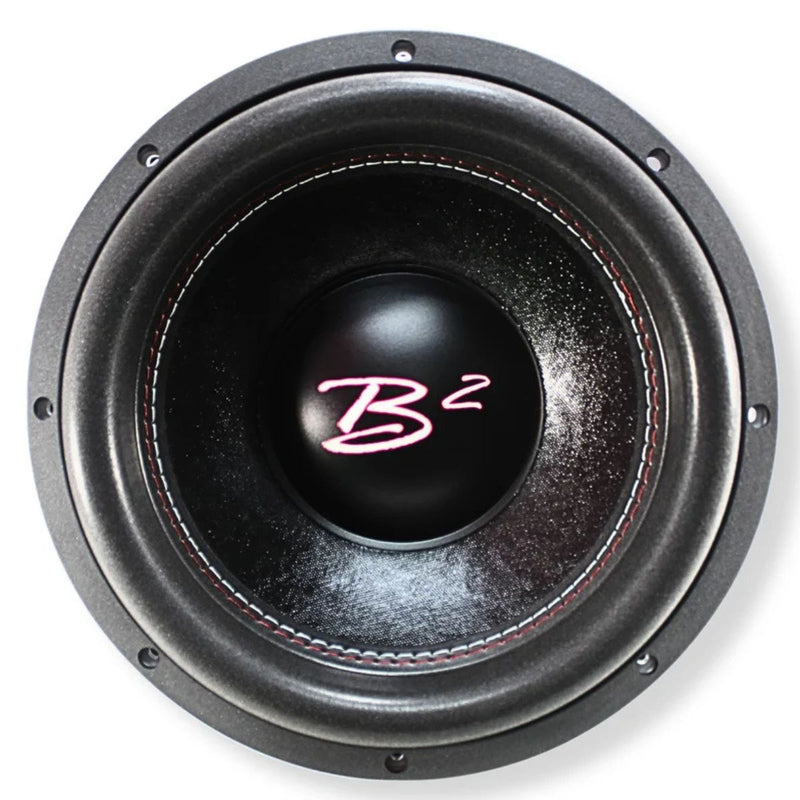

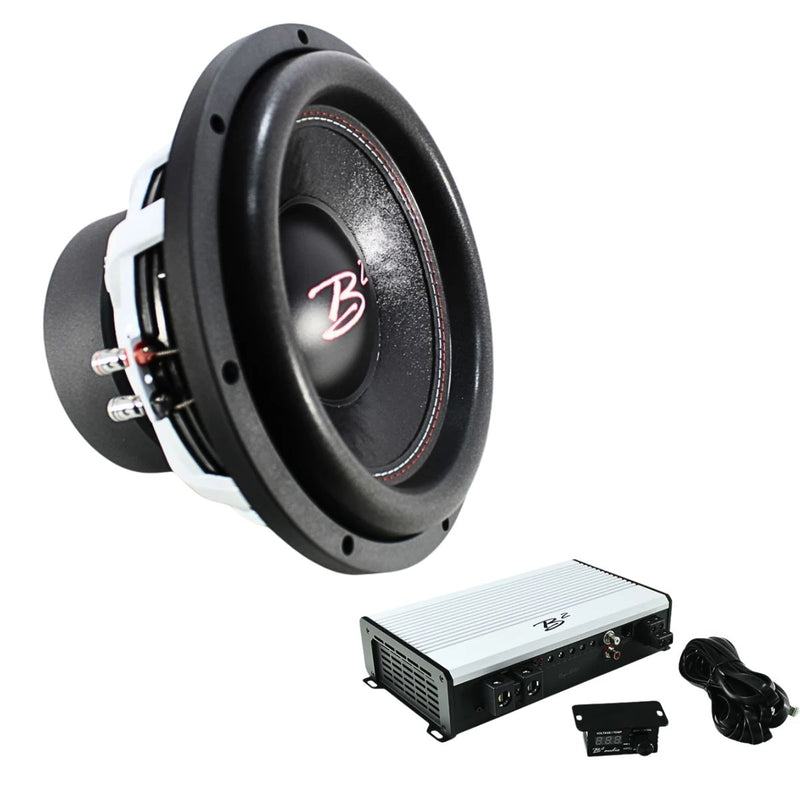

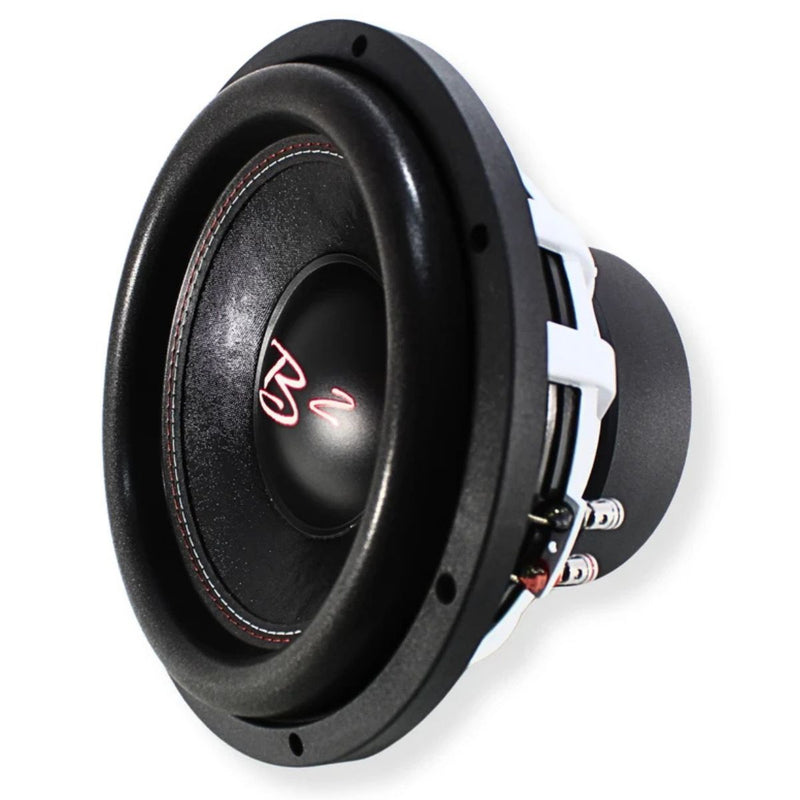

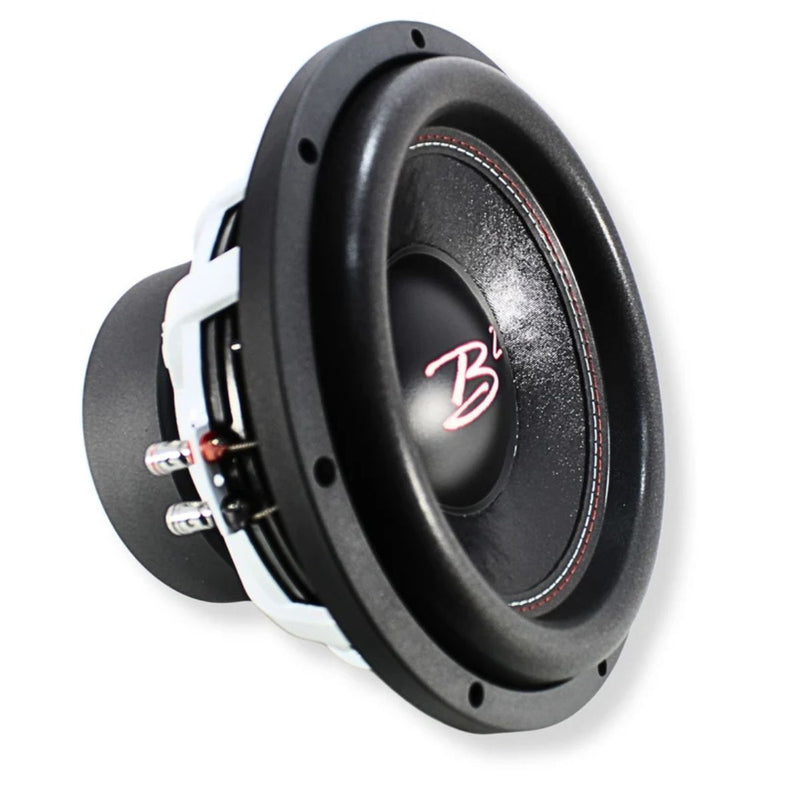

The B2 Audio RIOT V3 12-inch subwoofer delivers powerful, controlled bass with 1000 watts RMS of power handling, a heavy-duty 3-inch voice coil, and 18 mm of Xmax. This package includes the B2 Audio RAGE 3500 monoblock amplifier, providing a strong power match when the system is correctly configured at 4 ohms.
The subwoofer’s dual 2-ohm voice coils should be wired in series to create a 4-ohm final load. At 4 ohms, the RAGE 3500 amplifier produces between 1050 and 1200 watts RMS, closely matching the subwoofer’s 1000W RMS power rating while providing useful power headroom.
The RIOT V3 features an oversized 240 oz motor assembly, 8-gauge push terminals, and a high-excursion suspension designed for demanding daily systems. It can be installed in sealed, ported, or fourth-order bandpass enclosures, allowing the system to be tuned for compact installation, deeper extension, or higher output.

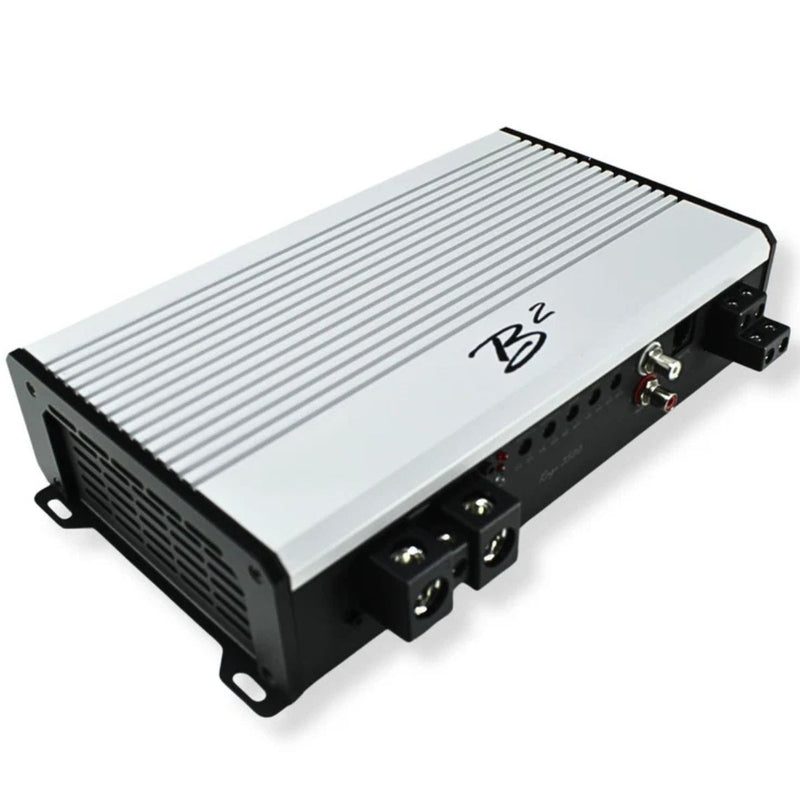

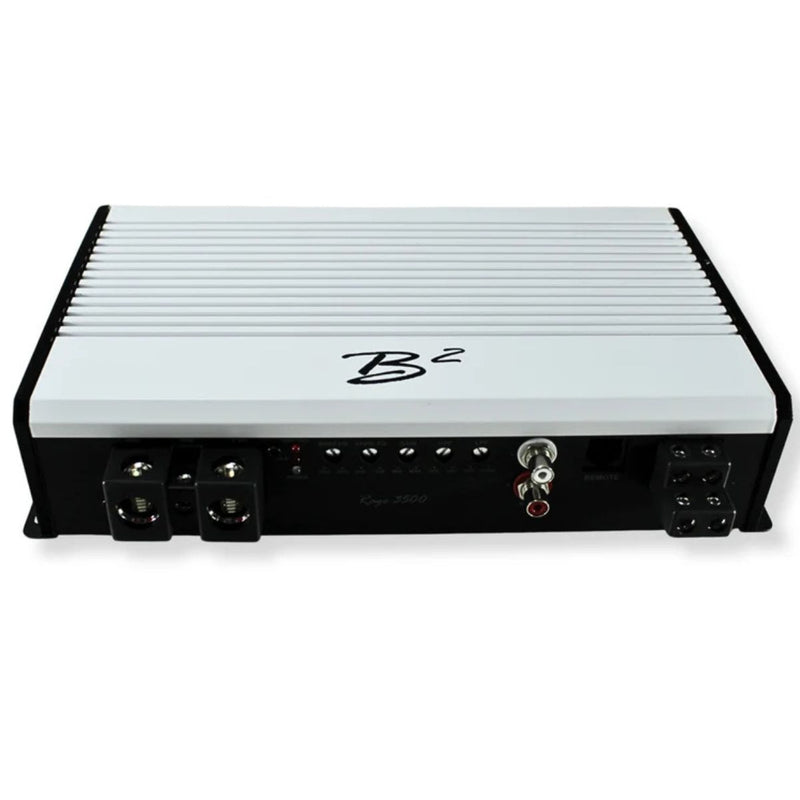

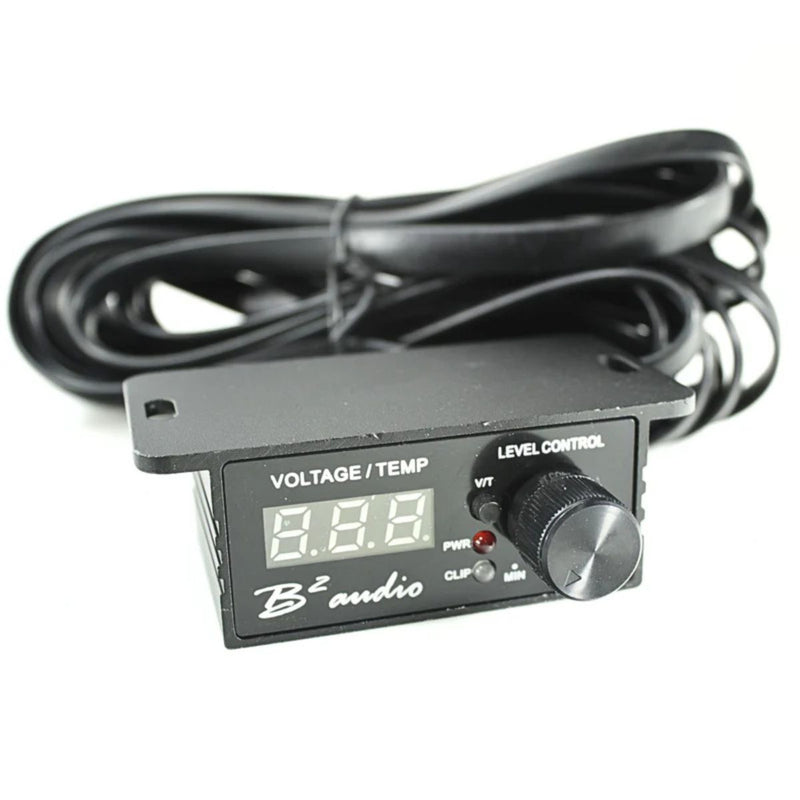

The included full-range Class-D monoblock amplifier features adjustable low-pass, high-pass, and subsonic crossovers. Its remote bass knob lets you control the output while monitoring vehicle voltage and amplifier temperature.
The voice coils should not be wired in parallel for this package. A parallel connection creates a 1-ohm load, where the amplifier can produce between 3000 and 3500 watts RMS, far exceeding the subwoofer’s 1000W RMS rating.
Features
12-inch RIOT Series V3 high-excursion subwoofer
1000W RMS and 3000W maximum power handling
Dual 2-ohm voice coils wire in series to 4 ohms
Heavy-duty 3-inch voice coil
18 mm Xmax for strong low-frequency output
Powerful 240 oz motor assembly
Heavy-duty 8-gauge push terminals
Compatible with sealed, ported, and bandpass enclosures
RAGE 3500 full-range Class-D monoblock amplifier
1050 to 1200 watts RMS at the recommended 4-ohm load
Adjustable low-pass, high-pass, and subsonic crossovers
Thermal, short-circuit, and overcurrent protection
Bass knob with voltage and temperature display included
Specifications
RIOT V3 12" Subwoofer
Size: 12 inches
RMS Power Handling: 1000 watts
Maximum Power Handling: 3000 watts
Nominal Impedance: Dual 2 ohms
Recommended Final Load: 4 ohms
Voice Coil Diameter: 3 inches
Frequency Response: 10 Hz to 500 Hz
Sensitivity: 82.4 dB
Xmax: 18 mm
Motor Assembly Weight: 240 oz
Push Terminal Capacity: 8 gauge
Displacement Volume: 5.2 L / 0.19 cubic feet
Overall Diameter: 12.80 inches
Mounting Diameter: 11.22 inches
Bolt Pattern Diameter: 11.93 inches
Overall Depth: 7.99 inches
Mounting Depth: 7.23 inches
Thiele and Small Parameters
Free-Air Resonance: 29.9 Hz
Resistance: 1.9 ohms
Qms: 6.55
Qes: 0.61
Qts: 0.55
Vas: 34.9 L
Cms: 90 μm/N
BL Factor: 95.5
Moving Mass: 300.8 g
Xmax: 18 mm
Suggested Enclosures
Sealed Volume: 0.89 cubic feet
Sealed Qtc: 0.64
Sealed F3: 49.3 Hz
Compact Ported Volume: 1.41 cubic feet
Compact Port Area: 12.6 square inches
Compact Port Length: 13 inches
Compact Tuning Frequency: 38 Hz
Ported Volume: 2.65 cubic feet
Port Area: 16 square inches
Port Length: 13.3 inches
Ported Tuning Frequency: 32 Hz
Fourth-Order Bandpass Ratio: 3:1
Enclosure volumes are net internal volumes. Account for the displacement of the subwoofer, port, and internal bracing when constructing the enclosure.
RAGE 3500 Amplifier
Amplifier Type: Full-Range Class-D Monoblock
RMS Power at 4 Ohms: 1050 to 1200 watts
RMS Power at 2 Ohms: 1850 to 2150 watts
RMS Power at 1 Ohm: 3000 to 3500 watts
Frequency Response: 10 Hz to 20 kHz
Signal-to-Noise Ratio: Greater than 90 dB
Input Sensitivity: 0.2V to 6V
Power Terminal Size: 0 gauge
Fuse Rating: 250 amps
Bass Control Frequency: 30 Hz to 80 Hz
Low-Pass Crossover: 50 Hz to 20 kHz
High-Pass Crossover: 10 Hz to 2 kHz
Subsonic Crossover: 10 Hz to 2 kHz
Length: 11.5 inches
Width: 7.25 inches
Height: 2.5 inches
Weight: 7.25 lb
The RIOT V3 subwoofer may arrive in packaging marked V2. The subwoofer packed inside is the V3 version.
A properly matched 1000W RMS package built for powerful, controlled 12-inch bass at 4 ohms.
