- 10" CAR AUDIO SUBWOOFER: Versatile 10-inch design delivers strong bass while remaining practical for everyday installations.
- DUAL 4-OHM VOICE COILS: DVC configuration provides flexible wiring options for matching compatible car audio amplifiers.
- 2" VOICE COIL: Built around a 2-inch voice coil for dependable everyday bass performance.
- 300-WATT RMS POWER RATING: Designed to deliver strong low-frequency output for affordable daily-driver audio systems.
- B2 AUDIO RAVE SERIES: Budget-friendly B2 Audio performance designed for everyday car audio systems and custom builds.

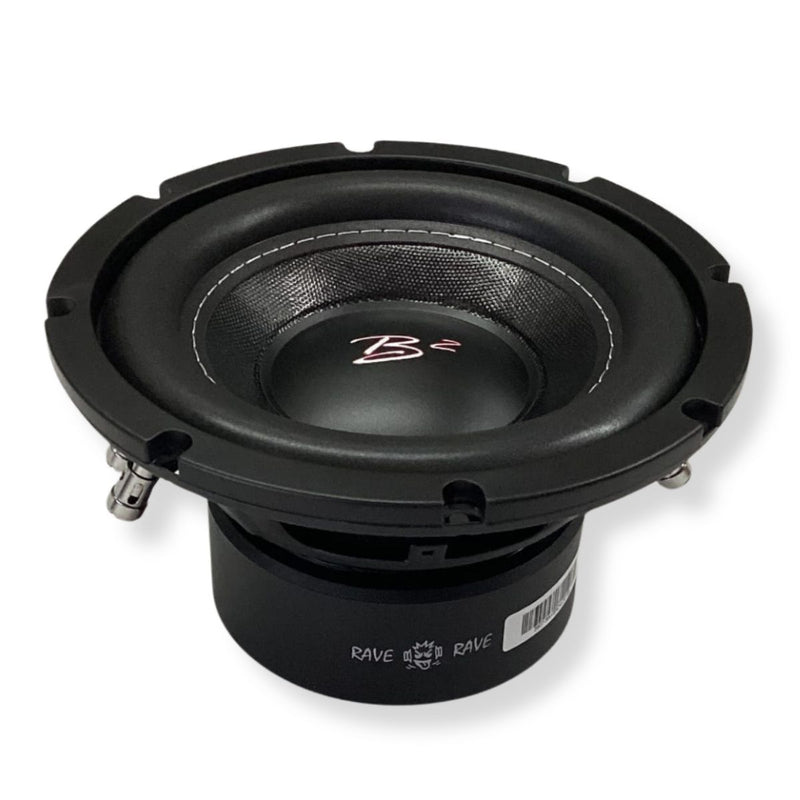

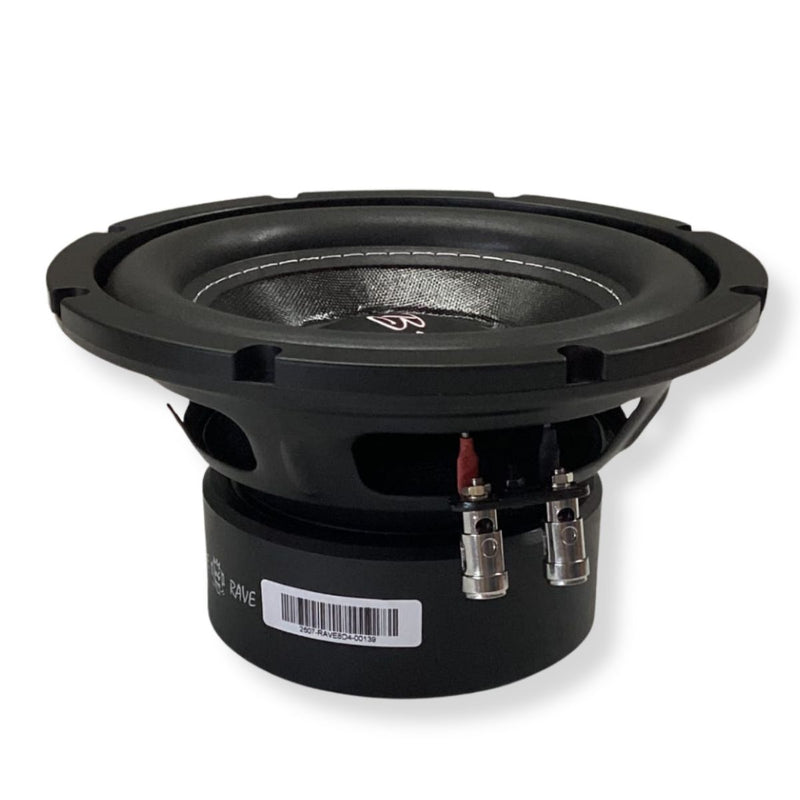

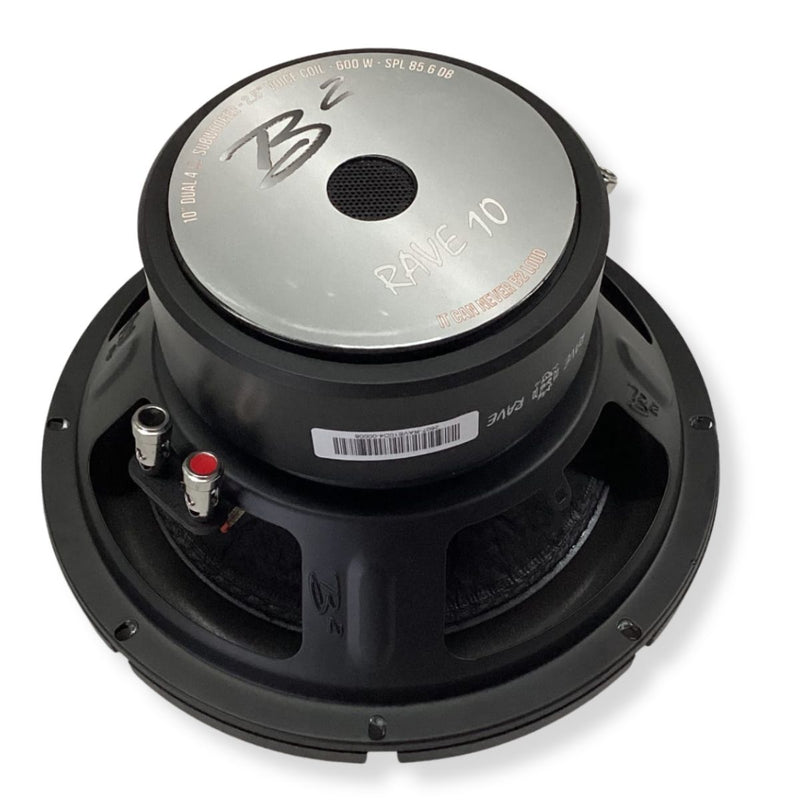

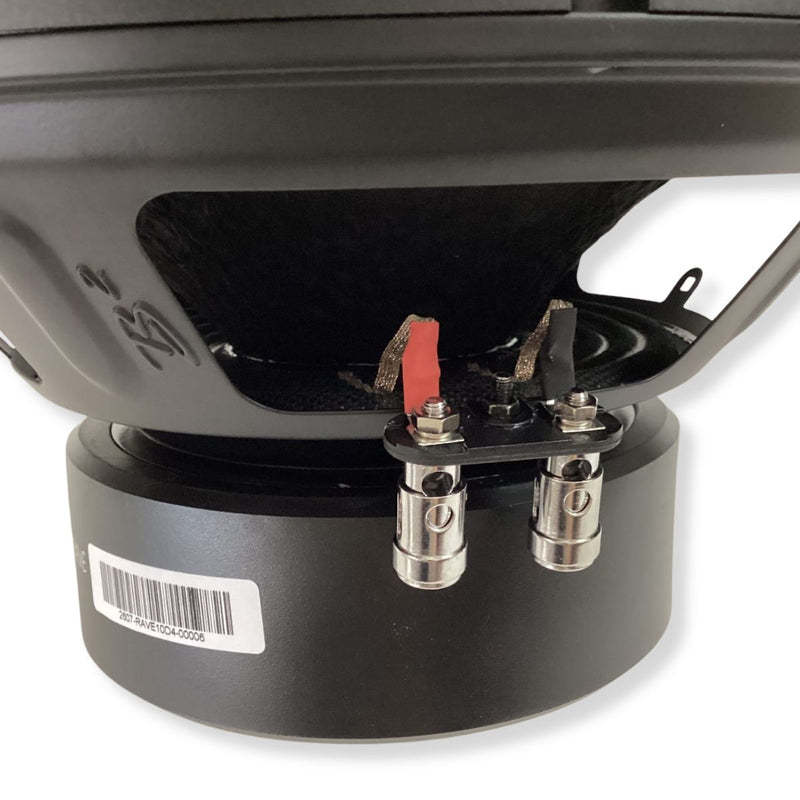

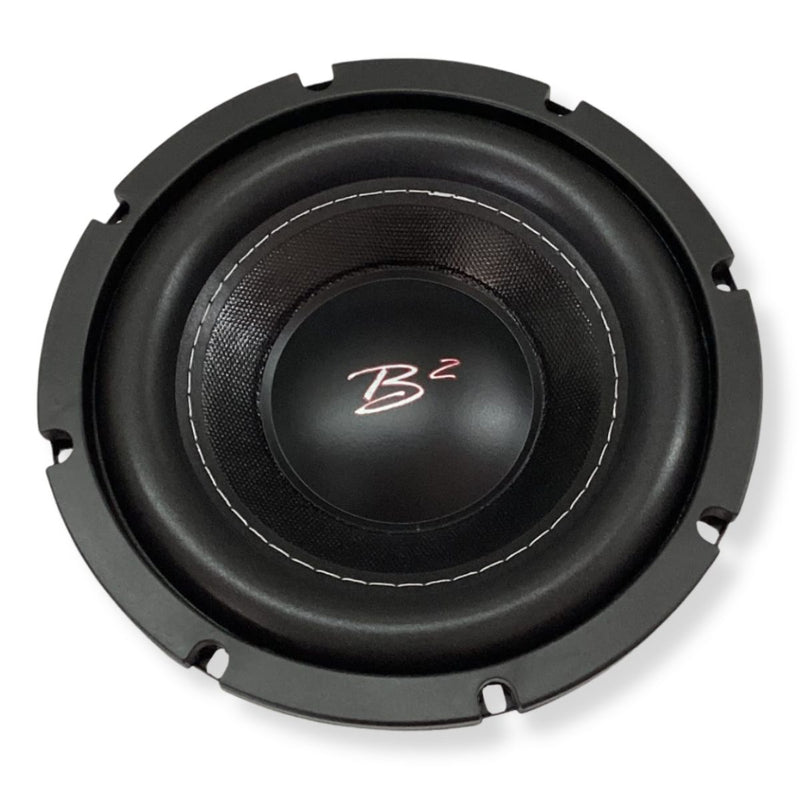

B2 Audio RAVE 10" Subwoofer 300W RMS Dual 4-Ohm 2.5" VC RAVE10-D4
This Listing Includes:
- (1) B2 Audio RAVE10-D4 10" Subwoofer
The B2 Audio RAVE10-D4 is a 10-inch RAVE Series subwoofer built for daily-driver bass systems that need more low-end output while keeping the build practical and accessible. Rated for 300 watts RMS, it is a strong option for single-subwoofer systems, compact custom builds, and everyday bass upgrades.
Its dual 4-ohm voice coil configuration provides flexible wiring options for compatible amplifiers, while the 2.5-inch / 63.5 mm voice coil platform, ferrite motor assembly, and NPP cone support controlled low-frequency performance.
With a 10.2-inch overall diameter, 7.8-inch baffle cutout, and 4.96-inch mounting depth, the RAVE10-D4 is designed for real-world trunk, hatch, and custom enclosure installs. Manufacturer compact and standard ported-enclosure recommendations are included below.
Features:
- 300W RMS / 600W Max Power Handling
- Dual 4-Ohm Voice Coil Configuration
- 10-Inch Daily-Driver Bass Platform
- 2.5-Inch / 63.5 mm Voice Coil Diameter
- 140 Oz Ferrite Motor Assembly
- NPP Cone with Slim U-Shaped Foam Surround
- 8.5 mm One-Way Xmax
- Manufacturer Compact and Standard Ported Enclosure Suggestions
Specifications:
- Brand: B2 Audio
- Series: RAVE
- Model: RAVE10-D4
- Nominal Chassis Diameter: 10" / 254 mm
- Voice Coil Configuration: Dual Voice Coil
- Nominal Impedance: Dual 4 Ohm
- RMS Power Handling: 300 Watts
- Maximum Power Handling: 600 Watts
- Frequency Response: 30 Hz–1800 Hz
- Resonant Frequency, Fs: 36.2 Hz
- Sensitivity: 85.6 dB (1W/1m)
- Voice Coil Diameter: 2.5" / 63.5 mm
- Magnet Type: Ferrite
- Motor Assembly Weight: 140 Oz
- Cone Material: NPP
- Surround Type: Slim U-Shaped Foam
- One-Way Xmax: 8.5 mm
- Overall Diameter: 10.2" / 260 mm
- Bolt Circle Diameter: 9.6" / 244 mm
- Baffle Cutout Diameter: 7.8" / 198 mm
- Mounting Depth: 4.96" / 126 mm
- Net Weight: 4.5 kg
Thiele/Small Parameters:
- Fs: 36.2 Hz
- Vas: 26.2 L
- Re, Parallel: 1.7 Ohm
- Qms: 3.97
- Qes: 0.54
- Qts: 0.48
- BL: 9.06 T/m
- Mms: 116 g
- Xmax, One Way: 8.5 mm
- Sd: 336 cm squared
- Efficiency: 0.21%
- Le, 1 kHz: 13.6 mH
- EBP: 67
Manufacturer Enclosure Suggestions:
Ported Compact
- Enclosure Volume: 37.2 L / 1.31 ft cubed
- Tuning Frequency: 38 Hz
- Port Area: 10.2 in squared
- Port Length: 11.52"
Ported
- Enclosure Volume: 52 L / 1.84 ft cubed
- Tuning Frequency: 32 Hz
- Port Area: 11.2 in sqaured
- Port Length: 13"
