- 3500W RMS High-Excursion Subwoofer: the 15-inch RAGEXL15-D2-V2 combines a custom basket, 3-inch voice coil, and 23 mm Xmax for extreme low-frequency output.
- Matched RAGE 3500 Amplifier: the included Class-D monoblock produces between 3000 and 3500 watts RMS at the recommended 1-ohm configuration.
- Dual 2-Ohm Voice Coils: wire the coils in parallel to create a 1-ohm final load and access the amplifier’s maximum rated output.
- Flexible Enclosure Options: use a sealed enclosure for a compact, controlled system or choose a ported design for stronger output and deeper extension.

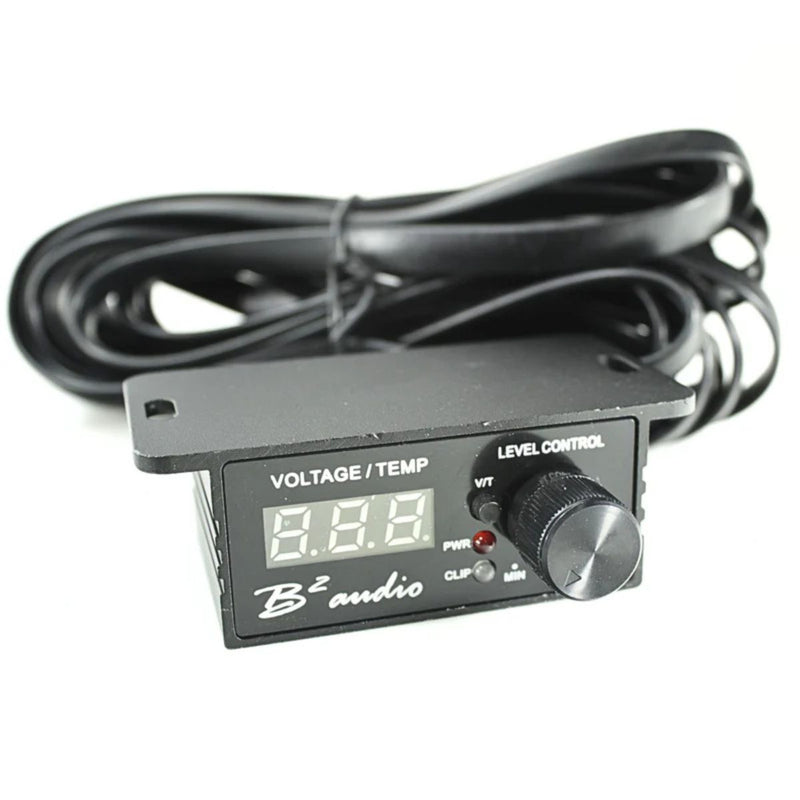

- Includes Monitoring Bass Knob: adjust the bass level while monitoring amplifier temperature and vehicle voltage from the included remote display.

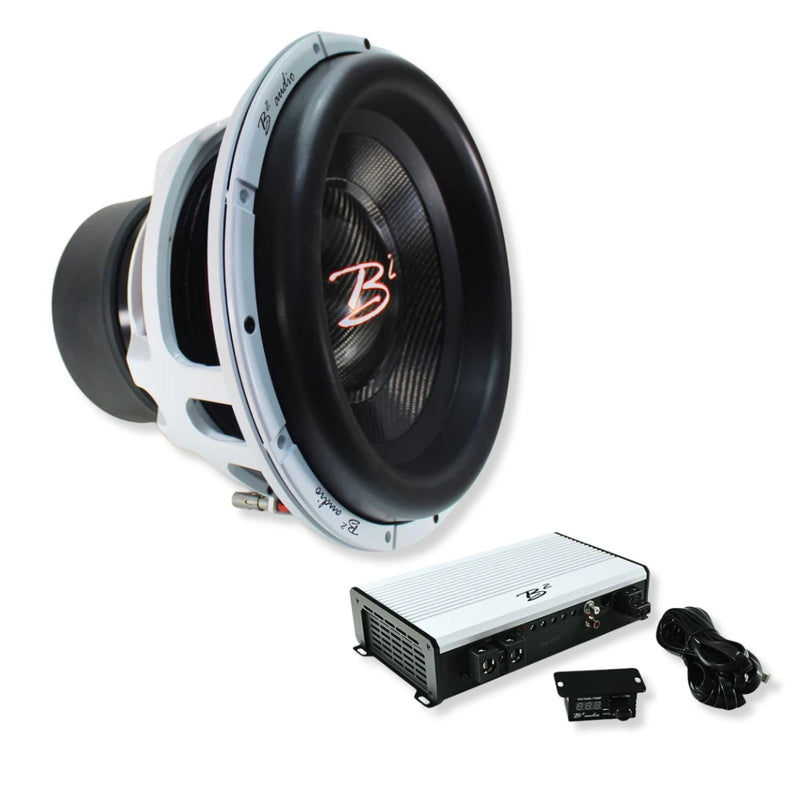

B2 Audio RAGEXL15-D2-V2 15" 3500W RMS Subwoofer with RAGE 3500 Amp
This Listing Includes:
- (1) B2 Audio RAGEXL15-D2-V2 15" Dual 2-Ohm Subwoofer
- (1) B2 Audio RAGE 3500 Monoblock Amplifier
- (1) Bass Knob with Voltage and Temperature Display
- (1) Remote Wire
- Mounting Hardware

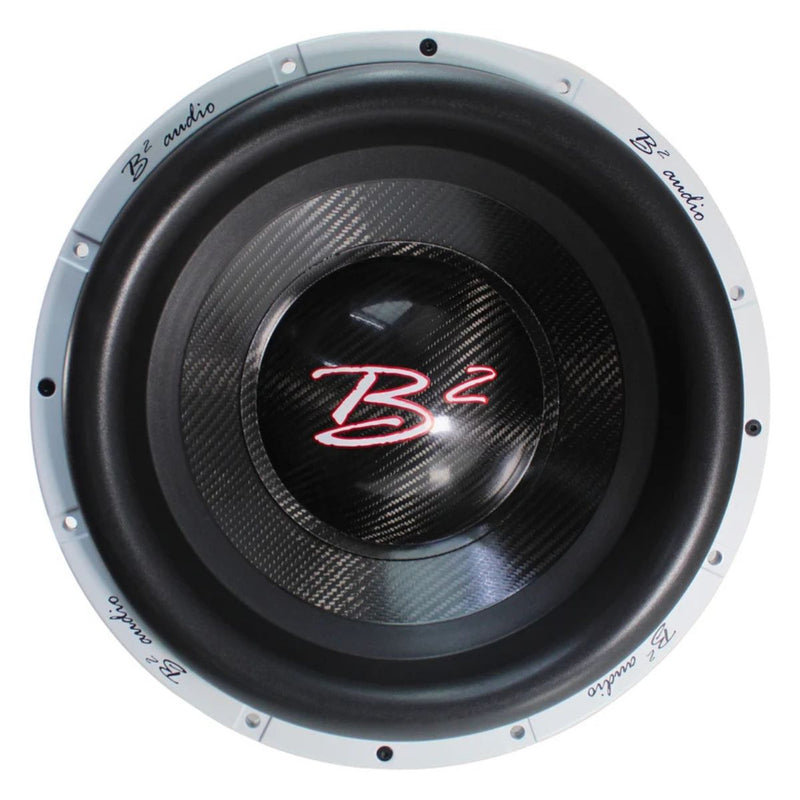

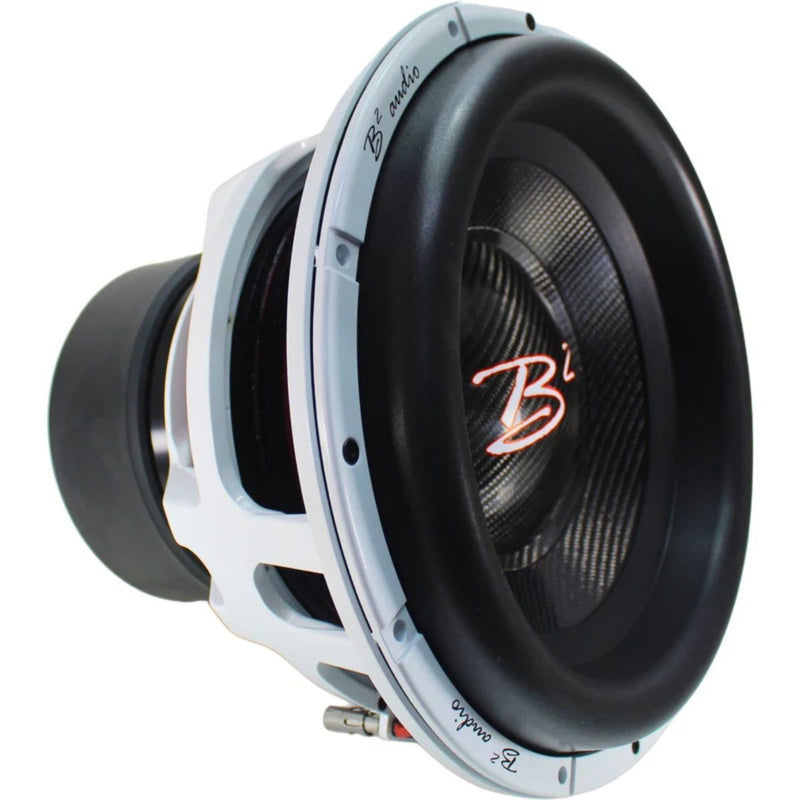

The B2 Audio RAGEXL15-D2-V2 delivers extreme low-frequency output with 3500 watts RMS of power handling, a heavy-duty 3-inch dual voice coil platform, and 23 mm of Xmax. This package includes the B2 Audio RAGE 3500 amplifier, creating a properly matched high-output system for serious street and SPL builds.
The subwoofer’s dual 2-ohm voice coils can be wired in parallel for a 1-ohm final load. At 1 ohm, the RAGE 3500 amplifier produces between 3000 and 3500 watts RMS, allowing it to drive the subwoofer near its full rated power.

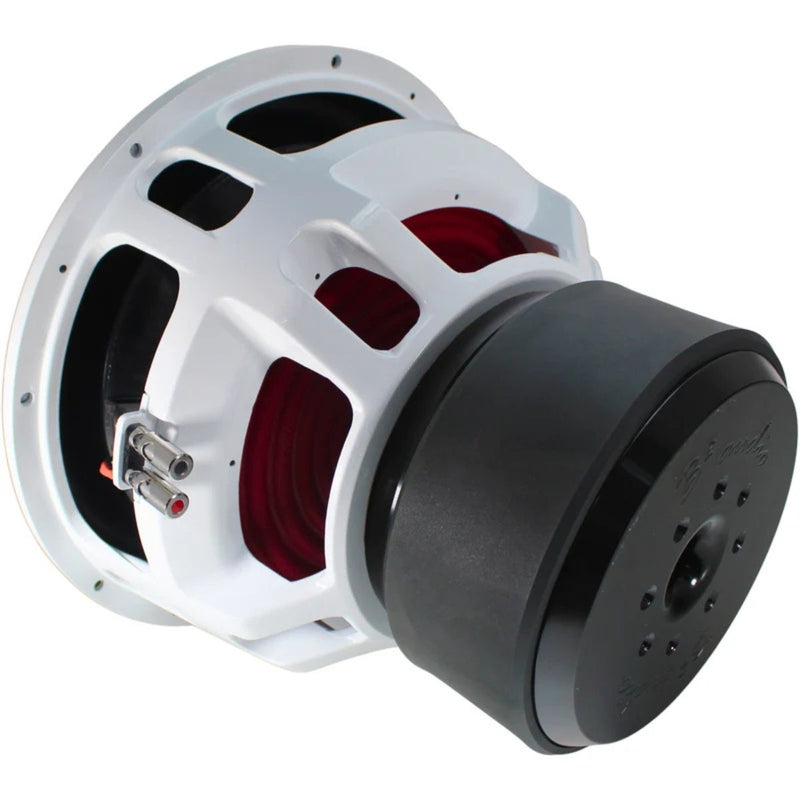

Its custom-tooled 15-inch basket, high-excursion suspension, 4-gauge push terminals, and oversized motor structure are designed to withstand demanding high-power operation. The subwoofer can be installed in sealed or ported enclosures, with configurations available for compact installations or deeper low-frequency extension.

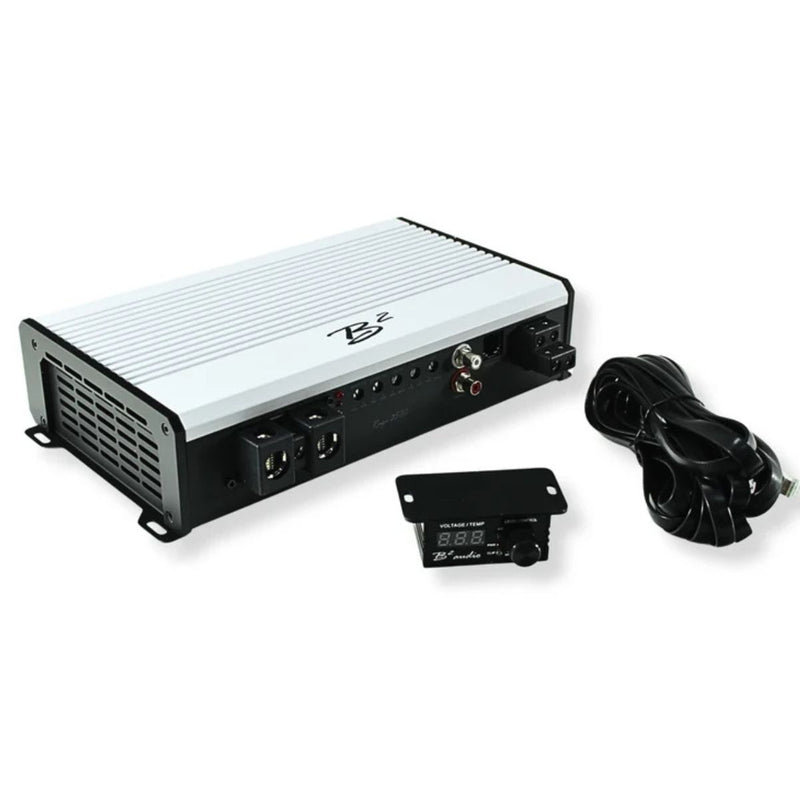

The included full-range Class-D monoblock amplifier features adjustable low-pass, high-pass, and subsonic crossovers. Its remote bass knob lets you control the output while monitoring amplifier temperature and vehicle voltage.
This high-current system requires proper electrical support, wiring, enclosure construction, gain adjustment, and professional installation.
Features
- 15-inch RAGE XL V2 high-excursion subwoofer
- 3500W RMS and 10,000W maximum power handling
- Dual 2-ohm voice coils wire to a 1-ohm final load
- Heavy-duty 3-inch dual voice coil platform
- 23 mm Xmax and 52 mm Xmech
- Custom-tooled 15-inch basket
- Heavy-duty 4-gauge push terminals
- Compatible with sealed and ported enclosures
- RAGE 3500 full-range Class-D monoblock amplifier
- Up to 3500W RMS amplifier output at 1 ohm
- Adjustable low-pass, high-pass, and subsonic crossovers
- Thermal, short-circuit, and overcurrent protection
- Bass knob with voltage and temperature display included
Specifications
RAGEXL15-D2-V2 Subwoofer
- Size: 15 inches
- RMS Power Handling: 3500 watts
- Maximum Power Handling: 10,000 watts
- Nominal Impedance: Dual 2 ohms
- Recommended Final Load: 1 ohm
- Voice Coil Diameter: 3 inches
- Sensitivity: 87.4 dB
- Xmax: 23 mm
- Xmech: 52 mm
- Cone Area: 765.1 square centimeters
- Push Terminal Capacity: 4 gauge
- Motor Assembly Displacement: 12.6 L / 0.445 cubic feet
- Overall Diameter: 15.48 inches
- Mounting Diameter: 13.5 inches
- Bolt Pattern Diameter: 14.5 inches
- Overall Depth: 13.622 inches
- Mounting Depth: 11.69 inches
Thiele and Small Parameters
- Free-Air Resonance: 27 Hz
- Resistance: 3.8 ohms
- Qms: 5.5
- Qes: 0.74
- Qts: 0.66
- Vas: 56.4 L
- Cms: 70 um/N
- BL Factor: 116.1
- Moving Mass: 493.3 g
- Xmax: 23 mm
- Xmech: 52 mm
- Cone Area: 765.1 square centimeters
Suggested Enclosures
- Sealed Volume: 1.77 cubic feet
- Sealed Qtc: 0.689
- Sealed F3: 39 Hz
- Compact Ported Volume: 2.92 cubic feet
- Compact Port Area: 32.52 square inches
- Compact Port Length: 17.5 inches
- Compact Tuning Frequency: 38 Hz
- Ported Volume: 5.36 cubic feet
- Port Area: 32.52 square inches
- Port Length: 19.2 inches
- Ported Tuning Frequency: 27 Hz
Enclosure volumes are net internal volumes. Account for the displacement of the subwoofer, port, and internal bracing when constructing the enclosure.

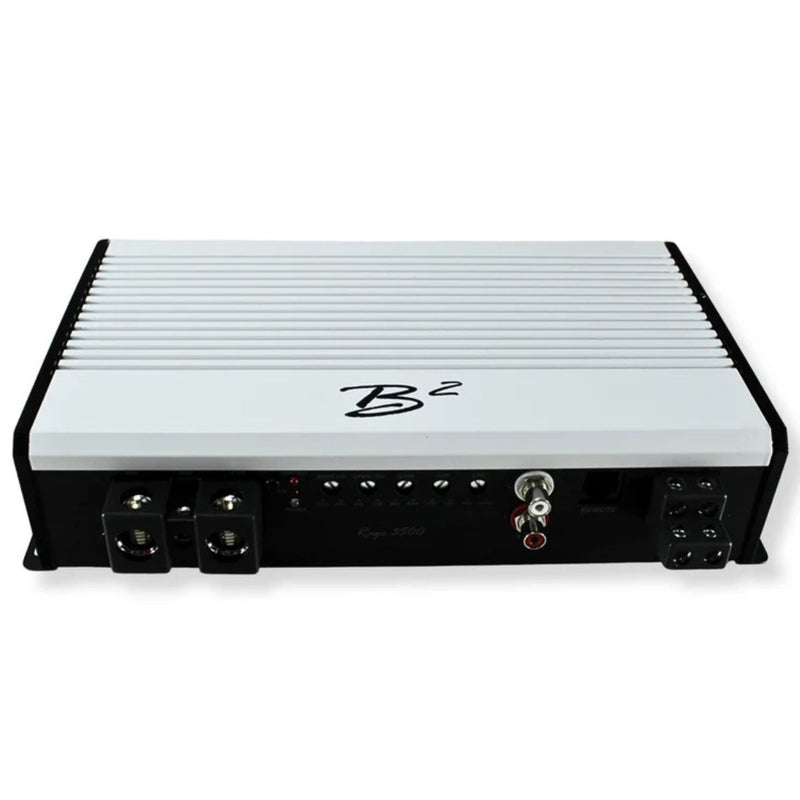

RAGE 3500 Amplifier
- Amplifier Type: Full-Range Class-D Monoblock
- RMS Power at 4 Ohms: 1050 to 1200 watts
- RMS Power at 2 Ohms: 1850 to 2150 watts
- RMS Power at 1 Ohm: 3000 to 3500 watts
- Frequency Response: 10 Hz to 20 kHz
- Signal-to-Noise Ratio: Greater than 90 dB
- Input Sensitivity: 0.2V to 6V
- Power Terminal Size: 0 gauge
- Fuse Rating: 250 amps
- Bass Control Frequency: 30 Hz to 80 Hz
- Low-Pass Crossover: 50 Hz to 20 kHz
- High-Pass Crossover: 10 Hz to 2 kHz
- Subsonic Crossover: 10 Hz to 2 kHz
- Length: 11.5 inches
- Width: 7.25 inches
- Height: 2.5 inches
- Weight: 7.25 lb
A massive 15-inch subwoofer, matched amplification, and up to 3500 watts RMS of bass built to be felt.
