- 3500W RMS High-Excursion Subwoofer: the 12-inch RAGEXL12-D2 uses a 3-inch voice coil, 23 mm excursion, and an 850 oz magnet assembly for extreme low-frequency output.
- Matched RAGE 3500 Amplifier: the included Class-D monoblock produces between 3000 and 3500 watts RMS at the recommended 1-ohm configuration.
- Dual 2-Ohm Voice Coils: wire the subwoofer’s voice coils in parallel to create the 1-ohm final load required for maximum amplifier output.
- Built for High-Power Systems: heavy-duty construction, 4-gauge push terminals, adjustable crossovers, and amplifier protection circuits support demanding installations.

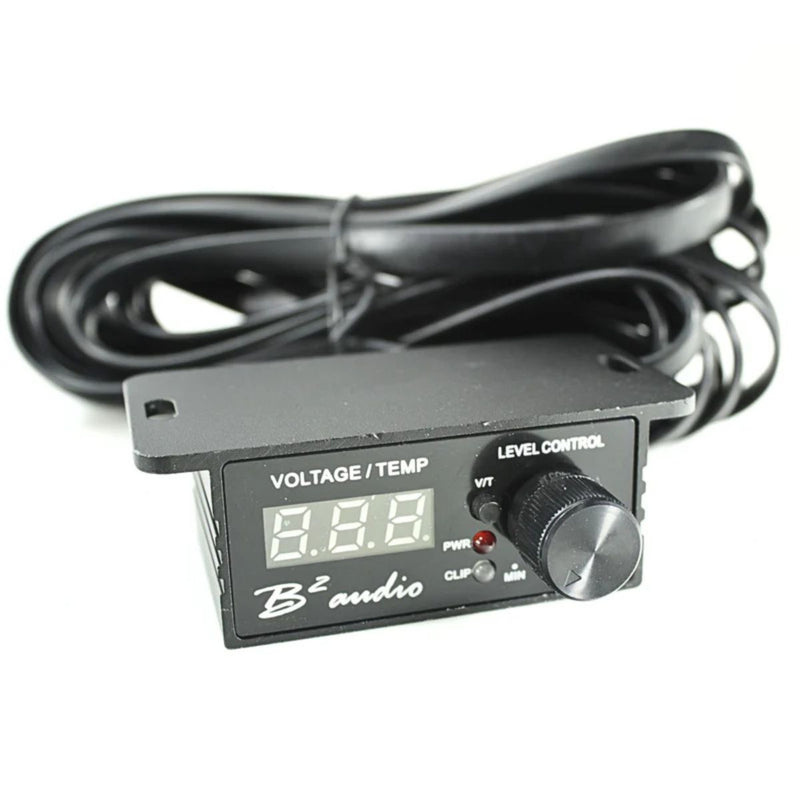

- Includes Monitoring Bass Knob: adjust the bass level while monitoring amplifier temperature and vehicle voltage from the included remote display.

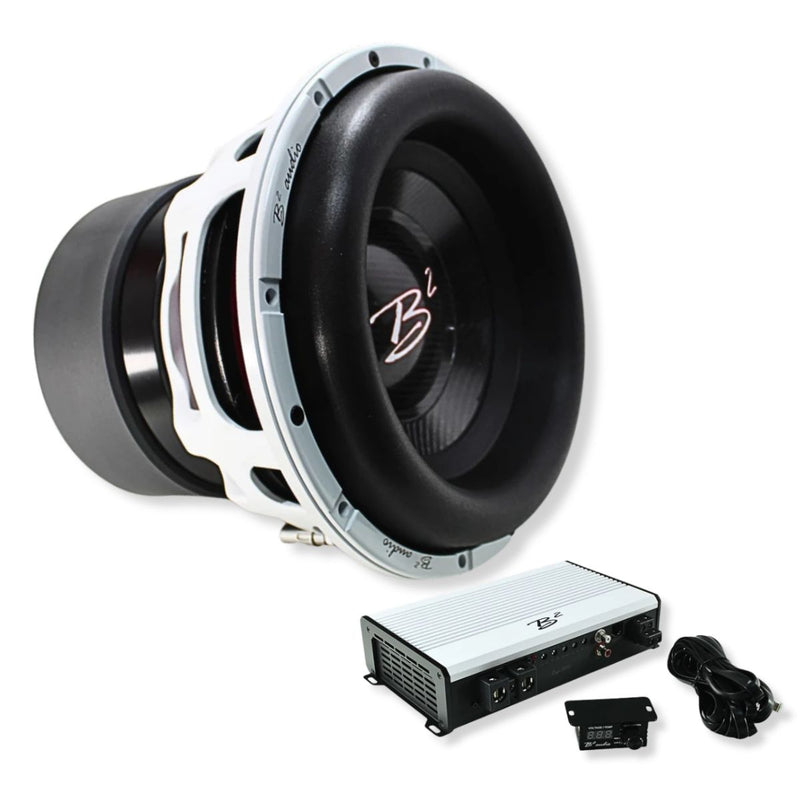

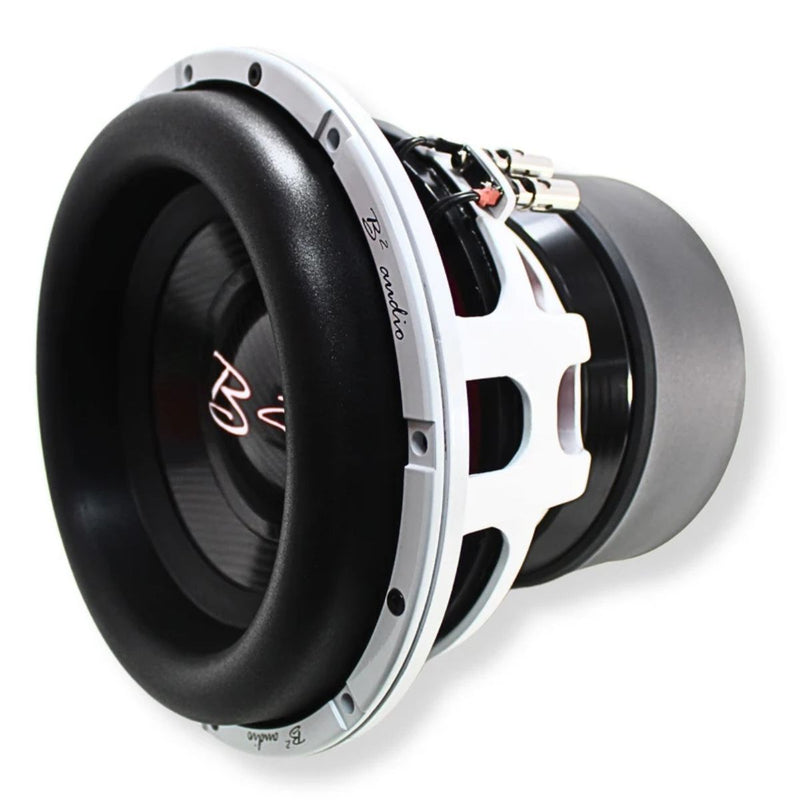

B2 Audio RAGEXL12-D2 12" 3500W RMS Subwoofer with RAGE 3500 Amp
This Listing Includes:
- (1) B2 Audio RAGEXL12-D2 12" Dual 2-Ohm Subwoofer
- (1) B2 Audio RAGE 3500 Monoblock Amplifier
- (1) Bass Knob with Voltage and Temperature Display
- (1) Remote Wire
- Mounting Hardware

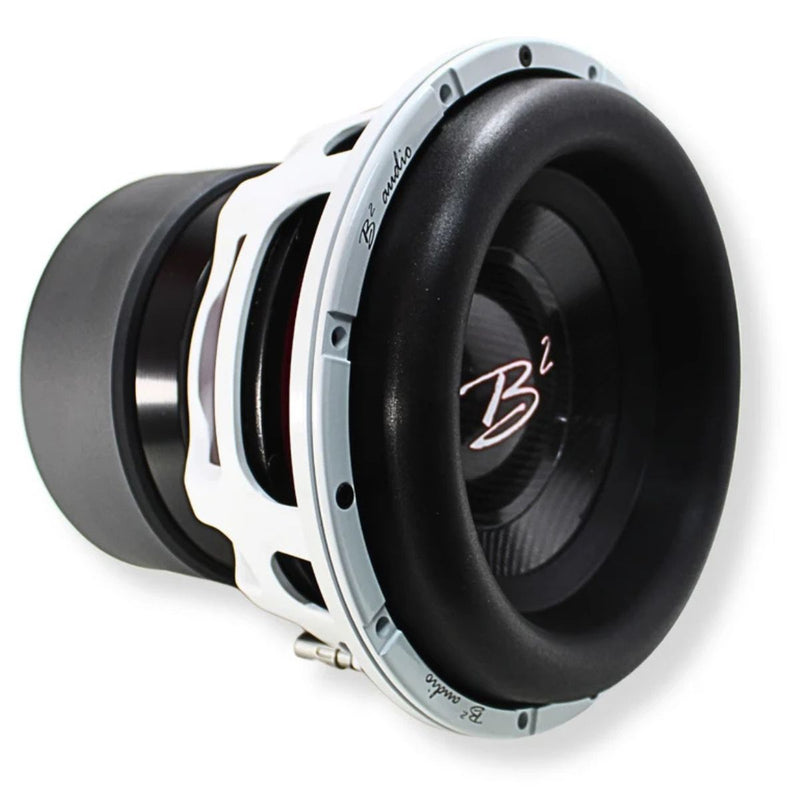

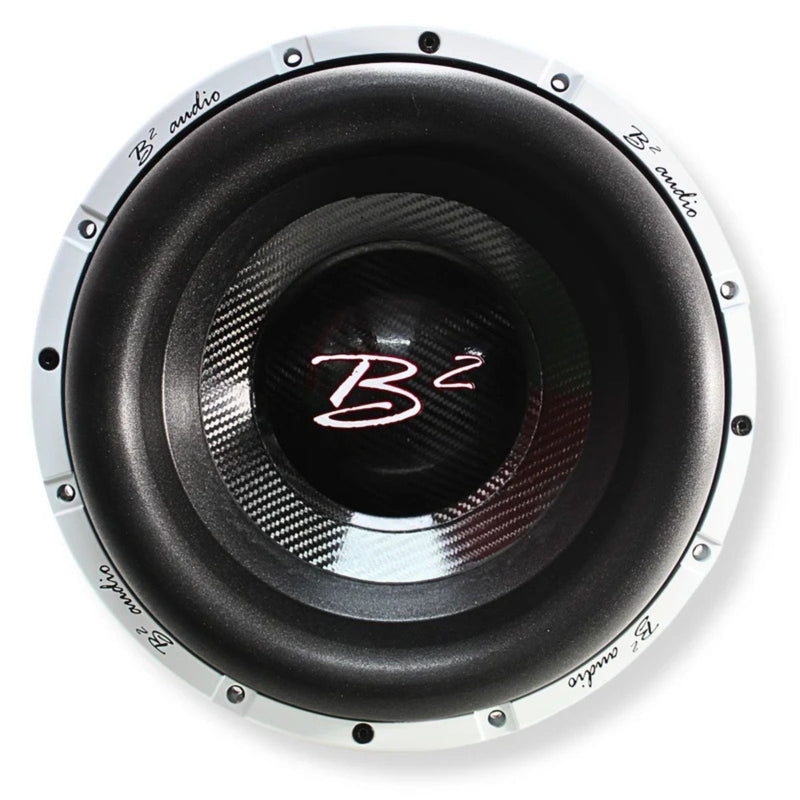

The B2 Audio RAGEXL12-D2 delivers extreme bass output with 3500 watts RMS of power handling, a massive 850 oz magnet assembly, and 23 mm of excursion. This package includes the B2 Audio RAGE 3500 amplifier, creating a properly matched high-output system for demanding street and competition builds.
The subwoofer’s dual 2-ohm voice coils can be wired in parallel for a 1-ohm final load. At 1 ohm, the included RAGE 3500 amplifier produces between 3000 and 3500 watts RMS, allowing it to drive the subwoofer near its full rated power.

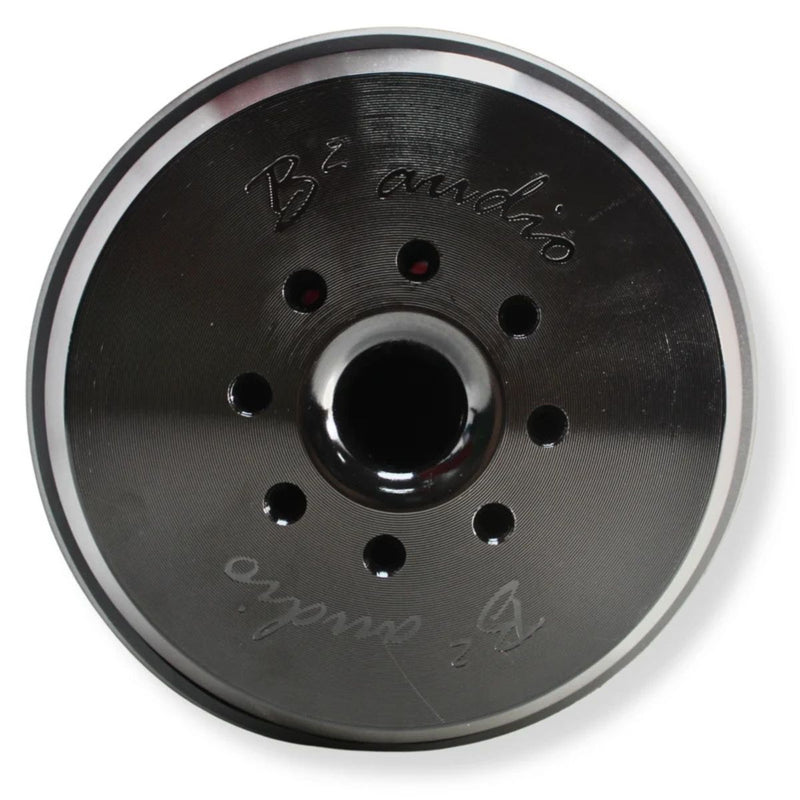

A 3-inch voice coil, high-excursion suspension, 4-gauge push terminals, and heavy-duty motor structure help the RAGEXL12-D2 maintain control under extreme power. It can be used in sealed or ported enclosures, with multiple recommended configurations available to match the desired response and available space.

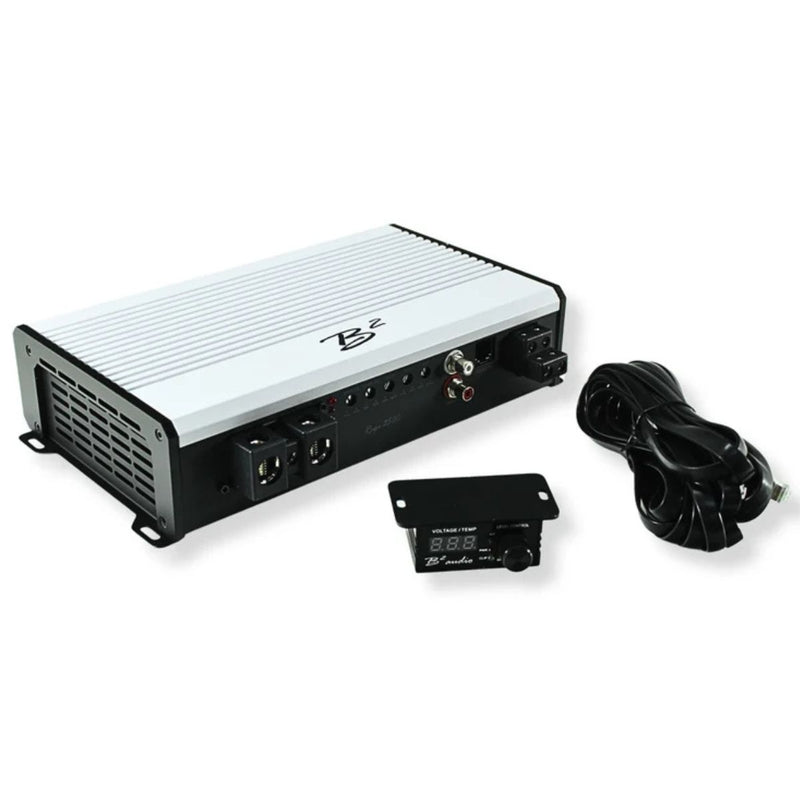

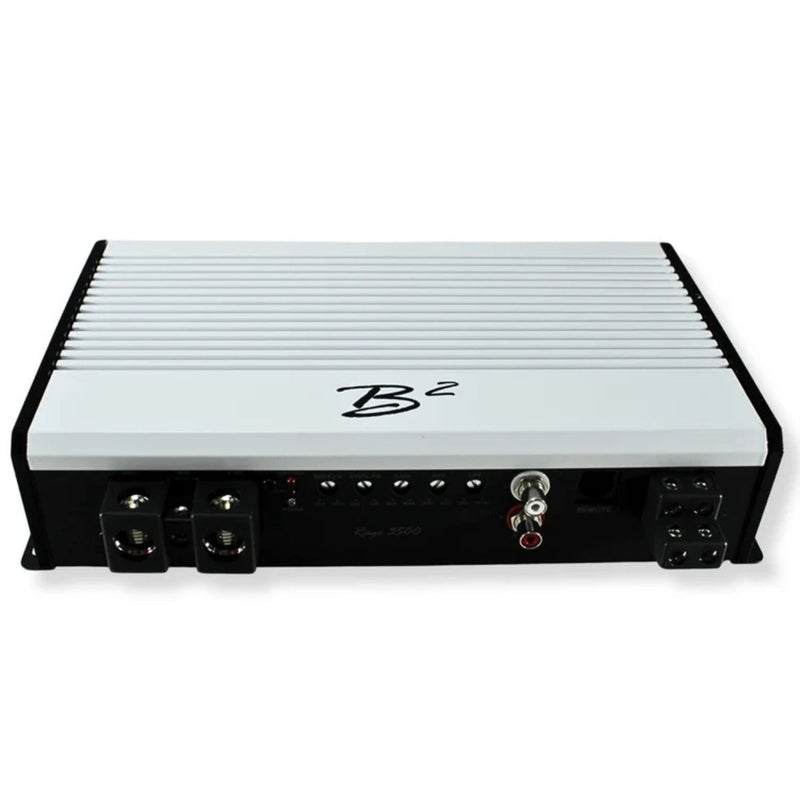

The compact Class-D amplifier includes adjustable low-pass, high-pass, and subsonic crossovers. Its included bass knob displays system voltage and amplifier temperature, helping you monitor the system while adjusting the output from the driver’s seat.
This is a high-current system that requires proper electrical support, wiring, enclosure construction, gain adjustment, and professional installation.
Features
- 12-inch RAGE XL high-excursion subwoofer
- 3500W RMS power handling
- 10,000W peak dynamic power
- Dual 2-ohm voice coils wire to a 1-ohm final load
- 3-inch voice coil
- 23 mm maximum excursion
- Massive 850 oz magnet assembly
- Heavy-duty 4-gauge push terminals
- Compatible with sealed and ported enclosures
- RAGE 3500 full-range Class-D monoblock amplifier
- Up to 3500W RMS amplifier output at 1 ohm
- Adjustable low-pass, high-pass, and subsonic crossovers
- Thermal, short-circuit, and overcurrent protection
- Bass knob with voltage and temperature display included
Specifications
RAGEXL12-D2 Subwoofer
- Size: 12 inches
- RMS Power Handling: 3500 watts
- Peak Dynamic Power: 10,000 watts
- Nominal Impedance: Dual 2 ohms
- Recommended Final Load: 1 ohm
- Voice Coil Diameter: 3 inches
- Frequency Response: 10 Hz to 500 Hz
- Sensitivity: 86 dB
- Maximum Excursion: 23 mm
- Magnet Weight: 850 oz
- Push Terminal Capacity: 4 gauge
- Displacement Volume: 8.9 L / 0.314 cubic feet
- Overall Diameter: 12.25 inches
- Mounting Diameter: 11.10 inches
- Bolt Pattern Diameter: 11.57 inches
- Overall Depth: 12.12 inches
- Mounting Depth: 10.12 inches
Thiele and Small Parameters
- Free-Air Resonance: 31 Hz
- Resistance: 3.8 ohms
- Qms: 5.99
- Qes: 0.66
- Qts: 0.59
- Vas: 22.2 L
- Cms: 70 um/N
- BL/Re: 111.1
- Moving Mass: 376.5 g
- Xmax: 23 mm
Suggested Enclosures
- Sealed Volume: 1.0 cubic foot
- Sealed Qtc: 0.605
- Sealed F3: 46 Hz
- Compact Ported Volume: 1.76 cubic feet
- Compact Port Area: 13.94 square inches
- Compact Port Length: 11.2 inches
- Compact Tuning Frequency: 38 Hz
- Ported Volume: 2.66 cubic feet
- Port Area: 30.98 square inches
- Port Length: 24.7 inches
- Ported Tuning Frequency: 33 Hz
Enclosure volumes are net internal volumes. Account for the displacement of the subwoofer, port, and internal bracing when constructing the enclosure.
RAGE 3500 Amplifier
- Amplifier Type: Full-Range Class-D Monoblock
- RMS Power at 4 Ohms: 1050 to 1200 watts
- RMS Power at 2 Ohms: 1850 to 2150 watts
- RMS Power at 1 Ohm: 3000 to 3500 watts
- Frequency Response: 10 Hz to 20 kHz
- Signal-to-Noise Ratio: Greater than 90 dB
- Input Sensitivity: 0.2V to 6V
- Power Terminal Size: 0 gauge
- Fuse Rating: 250 amps
- Bass Control Frequency: 30 Hz to 80 Hz
- Low-Pass Crossover: 50 Hz to 20 kHz
- High-Pass Crossover: 10 Hz to 2 kHz
- Subsonic Crossover: 10 Hz to 2 kHz
- Length: 11.5 inches
- Width: 7.25 inches
- Height: 2.5 inches
- Weight: 7.25 lb
One massive subwoofer, one properly matched amplifier, and up to 3500 watts RMS of system-shaking output.
