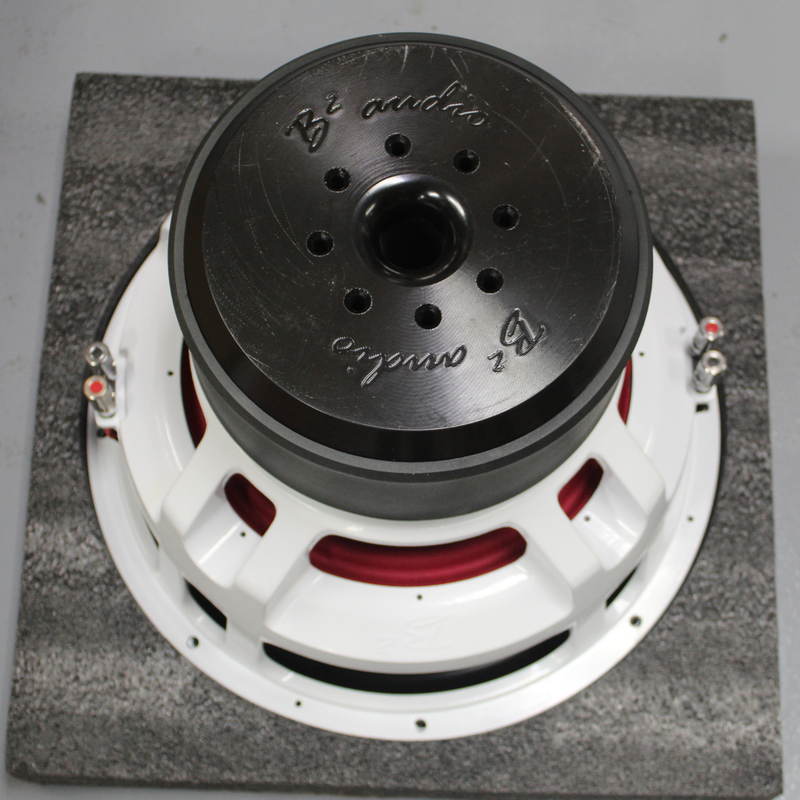

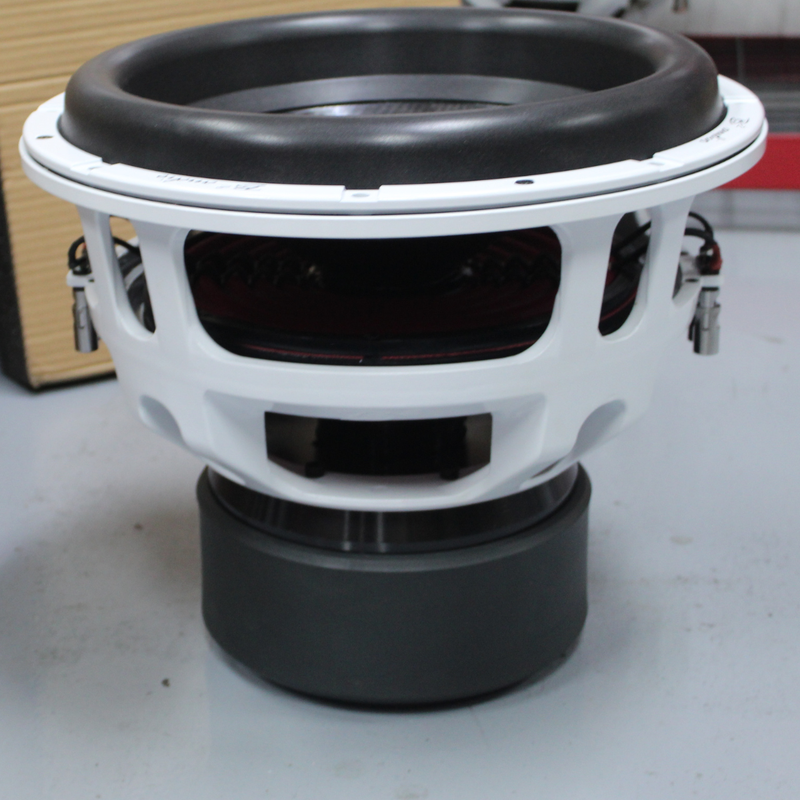

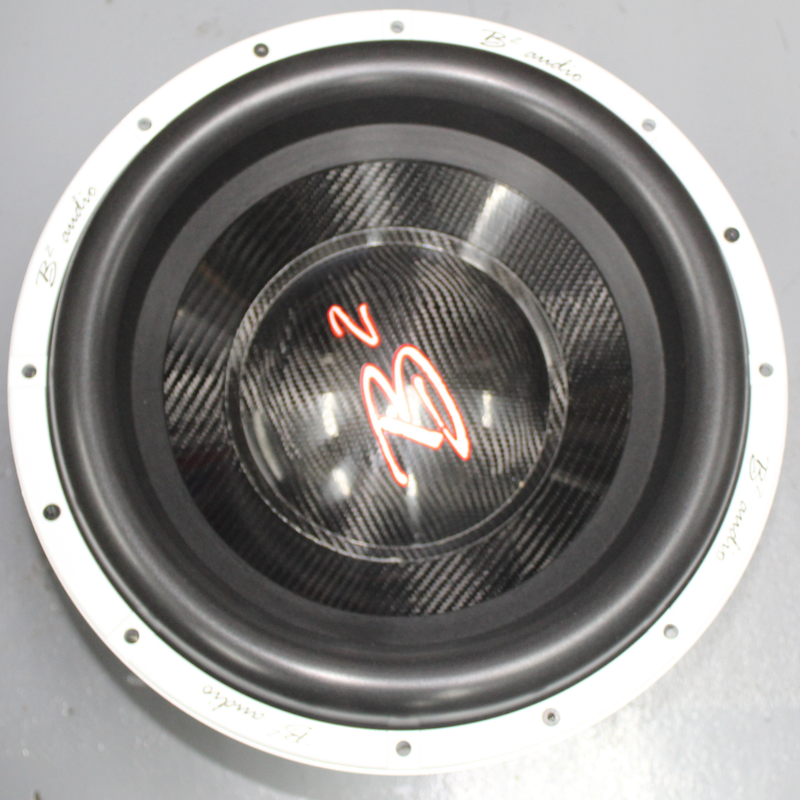

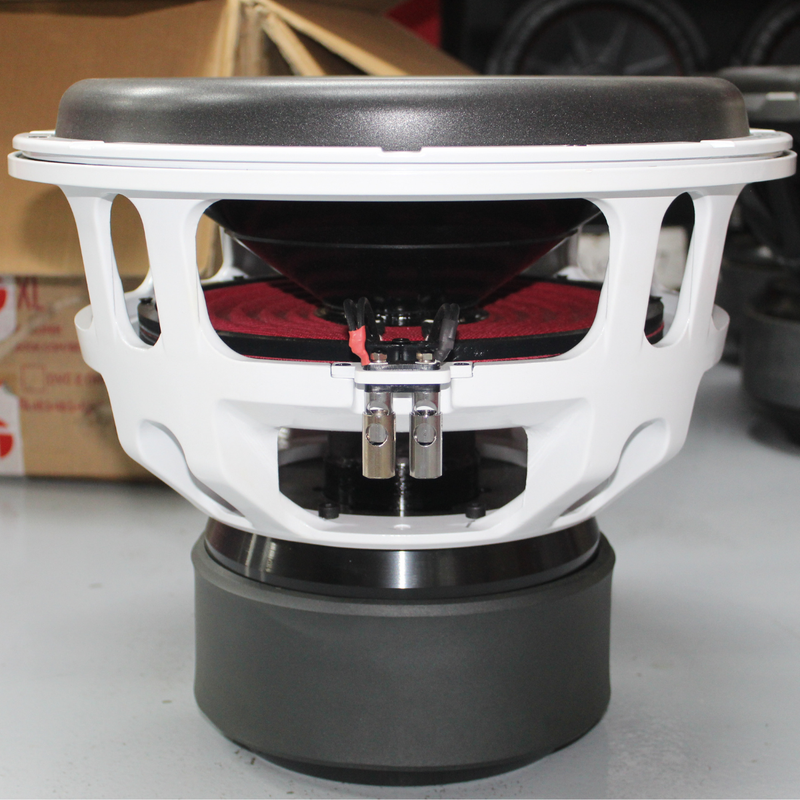

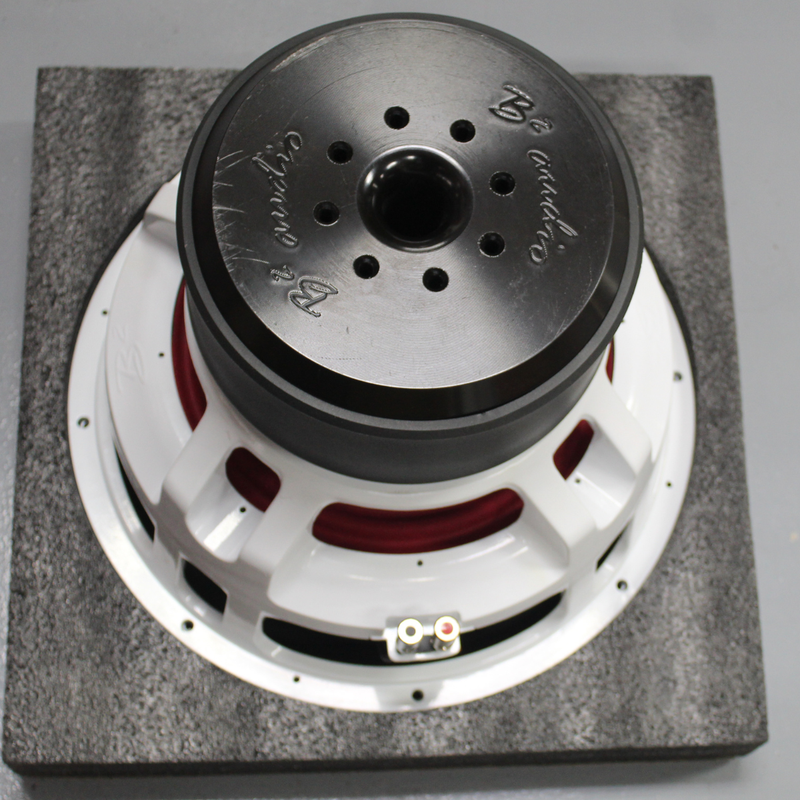

B2 Audio RAGEXL V2 Series 15" 3500W RMS 2-Ohm 3" DVC Subwoofer / RAGEXL15-D2-V2 OPEN BOX

• OPEN BOX: In Perfect Working Condition. Has Been Mounted, Small Scratches From Install.
• Massive Power Handling: Delivers 3,500 watts RMS at 2 ohm for unmatched bass performance.
• Advanced 3" DVC Platform: Built on a robust 3" dual voice coil platform for superior durability and sound clarity.
• Custom-Tooled Basket: Features a newly designed basket for the 15" model, ensuring optimal performance and fresh, modern aesthetics.
• Extreme Excursion: Offers peak-to-peak excursion of 2.76" (70 mm), allowing for deep, powerful bass that hits hard and low.
• Uncompromising Build Quality: Engineered with the highest quality components, with no recycling or compromises, for a subwoofer that sets the trend rather than follows it.

B2 Audio RAGEXL V2 Series 15" 3500W RMS 2-Ohm 3" DVC Subwoofer / RAGEXL15-D2-V2

In perfect working condition

Has been mounted

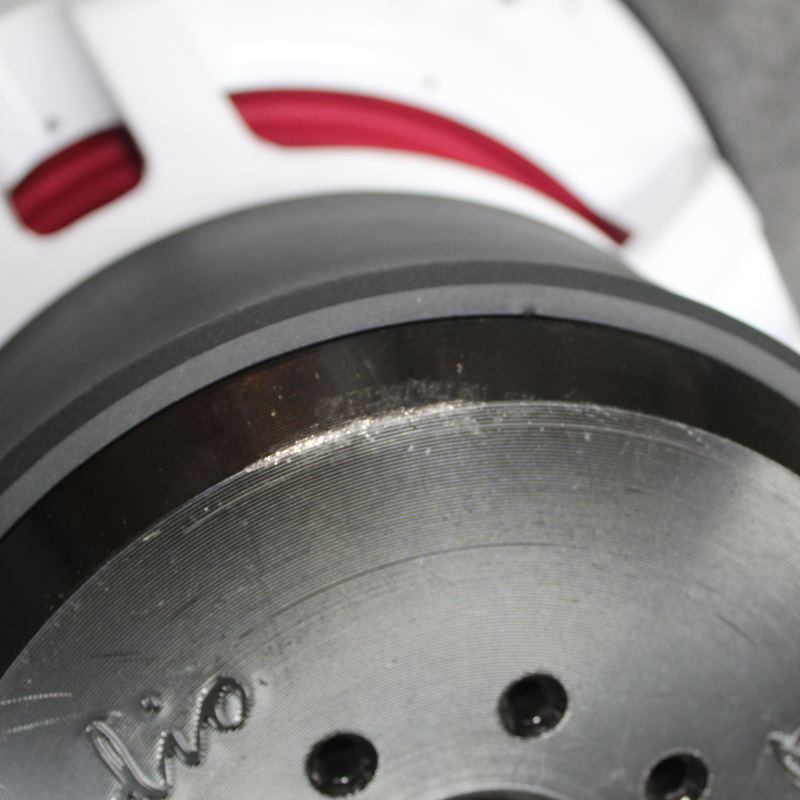

Small scratches

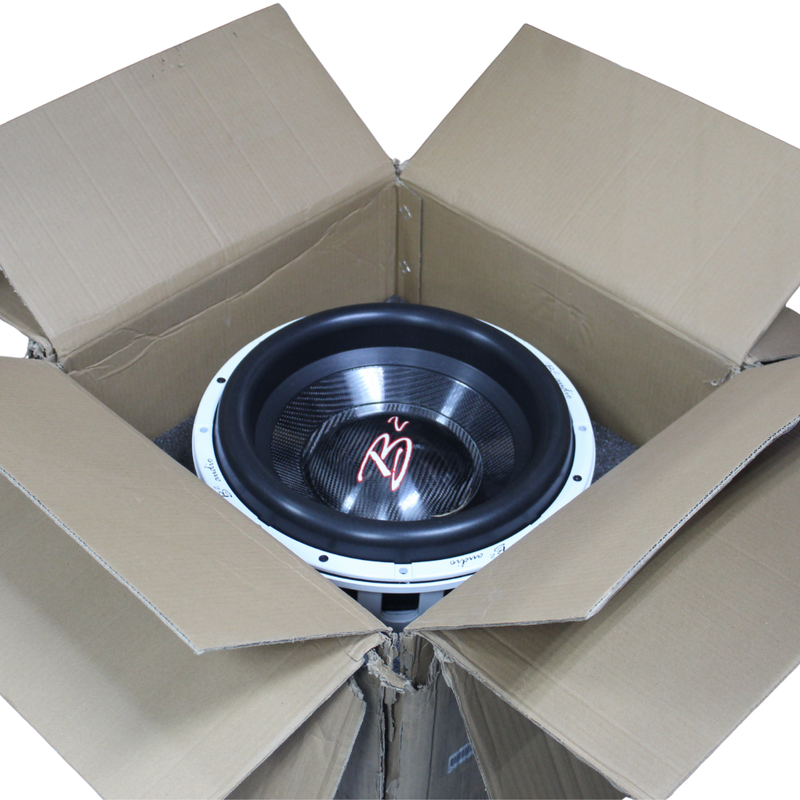

Box has been opened (see pic #2)

Open-box items are not subject to returns. They are sold "As Is". All requests for returns will not be accepted.

This Listing Includes:

• (1) RAGEXL15-D2-V2 Subwoofer

Description:

Get ready to experience bass like never before with the B2 Audio RAGEXL V2 Series 15" Subwoofer. Engineered for those who crave earth-shaking power and uncompromising sound quality, this beast delivers a staggering 3,500 watts of RMS power at 2 ohm. Built on a formidable 3" dual voice coil platform, the RAGEXL V2 is the pinnacle of subwoofer design, crafted with precision and attention to detail. With its newly custom-tooled basket and cutting-edge components, this subwoofer doesn't just set the standard it redefines it. Whether you're competing in SPL events or simply looking to dominate the streets, the RAGEXL V2 Series is your ultimate weapon in the quest for bass supremacy.

Features:

• Trendsetting Design: The RAGEXL series doesn't just follow trends, it sets them with a unique design that stands out in any setup.


• Uncompromised Performance: Built with brand-new custom-tooled baskets for 12" and 15" models, ensuring a fresh start with no recycled parts or compromises.


• Versatile Size Range: Available in 10", 12", 15", and 18" sizes, all built using the same high-quality parts and technology for consistent performance across the board.


• Extreme Excursion: Offers spider landings up to 12.4" (315 mm) and a peak-to-peak excursion of 2.76" (70 mm), maximizing movement and bass output, only limited by motor height.


• High-Powered 3" Coil Platform: This subwoofer series exceeds previous models, delivering unmatched power and durability based on a robust 3" coil platform.

Specifications:

• RMS Power Handling: 3500 Watts


• Max Power Handling: 10,000 Watts / 13.4 HP

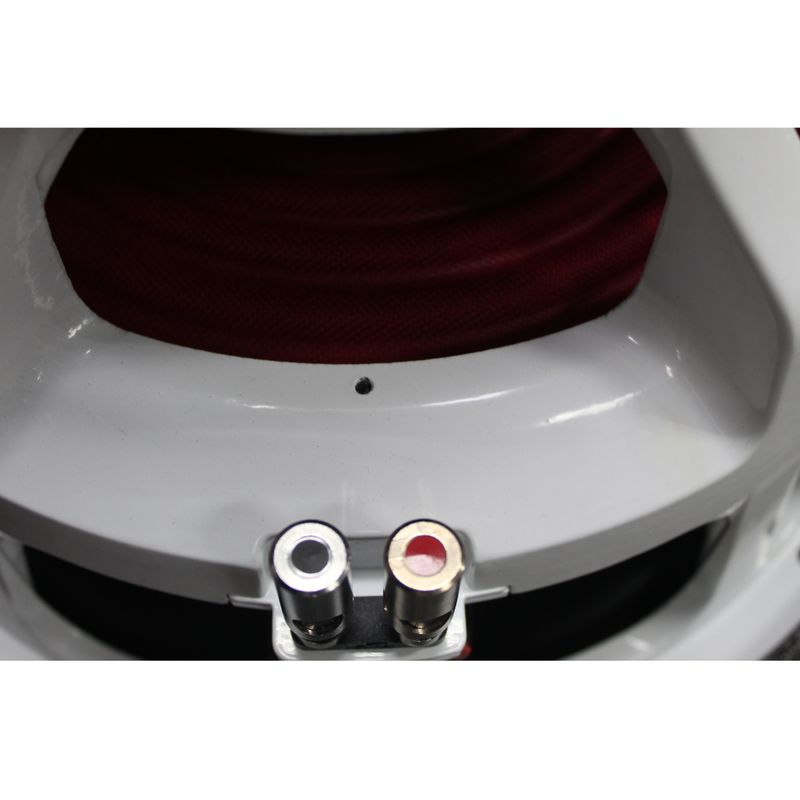

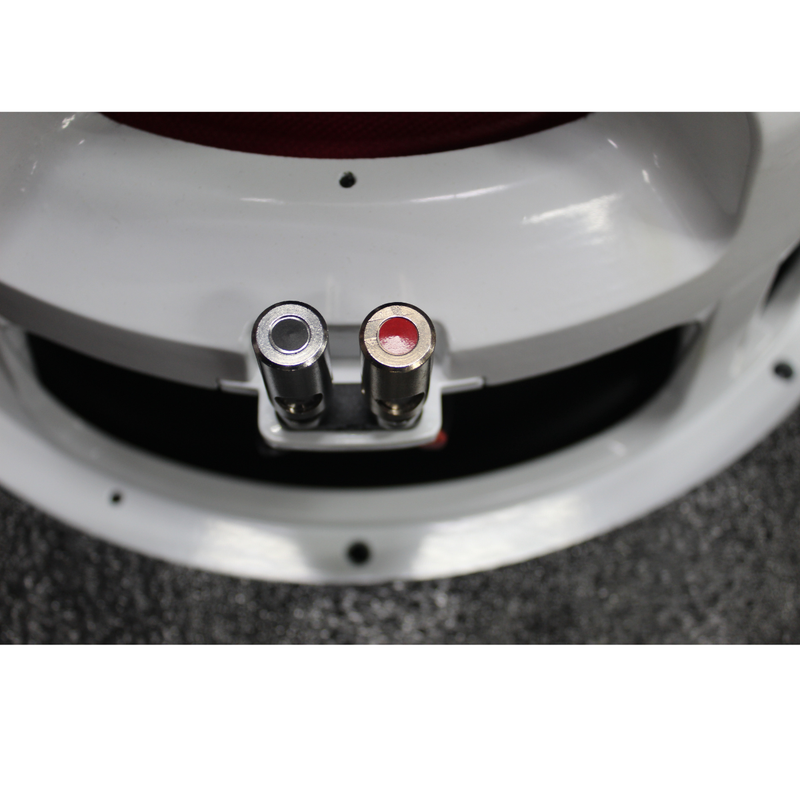

• Push Terminal Wire Gauge: 4 Ga


• Nominal Impedance: Dual 2 Ohm


• Voice Coil Diameter: 3 inches


• Sensitivity: 87.4 dB


• Motor Assembly Displacement: 12.6 L / 0.445 cu ft

Thiele & Small

• Free Air Resonance (Fs): 27 Hz


• Resistance (Re): 3.8 Ohms


• Mechanical Factor (Qms): 5.5


• Electrical Factor (Qes): 0.74


• Total Factor (Qts): 0.66


• Equivalent Volume (Vas): 56.4 L


• Compliance (Cms): 70 um/N


• BL Factor (BL): 116.1


• Moving Mass (Mms): 493.3 g


• Excursion Max (Xmax): 23


• XMECH: 52


• SD: 765.1 sq cm

Measurements:

• Overall Diameter: 15.48 in / 393 mm


• Mounting Diameter: 13.5 in / 343 mm


• Bolt Pattern Diameter: 14.5 in / 368.3 mm


• Overall Depth: 13.622 in /  346 mm


• Mounting Depth: 11.69 in / 297 mm

Enclosure Suggestions:

Sealed:

• 50L / 1.77 cu.ft


• Qtc 0.689


• F3: 39 Hz

Ported Compact:

• 82.6L / 2.92 cu.ft


• Port: 32.52 sq in


• Length: 17.5 in / 444.5 mm


• FB: 38 Hz

Ported:

• 152L / 5.36 cu.ft


• Port Area: 32.52 sq. in


• Length: 19.2 in / 487.68 mm


• FB: 27 Hz
