B2 Audio RAGEXL 12" 3500W RMS Dual 2-Ohm w/Tru Spec S12ELITE Enclosure COMBO-22

• Powerful Bass Performance: The B2 Audio RAGEXL 12" Subwoofer delivers a massive 3500W RMS and 10,000W peak power, producing deep, thunderous bass for an unmatched audio experience.
• Premium Enclosure Design: The Tru Spec Elite XXL Subwoofer Enclosure is crafted with a triple mounting baffle and quad flush baffle, featuring strategic 45° bracing for enhanced durability and sound clarity.
• Precision Tuning: The enclosure is finely tuned at 32 Hz with a port area of 40 square inches, delivering optimal bass response and ensuring your audio setup hits hard at all the right frequencies.
• Durable MDF Construction: Built from high-quality 0.75" MDF, this enclosure ensures long-lasting performance while providing a perfect match for the power and intensity of the RAGEXL subwoofer.
• Flexible Audio Setup: Featuring dual 2-ohm voice coils, the subwoofer offers versatility in wiring configurations, allowing you to customize your setup for maximum performance and sound quality.

B2 Audio RAGEXL 12" 3500W RMS Dual 2-Ohm w/Tru Spec S12ELITE Enclosure COMBO-22

This Listing Includes:

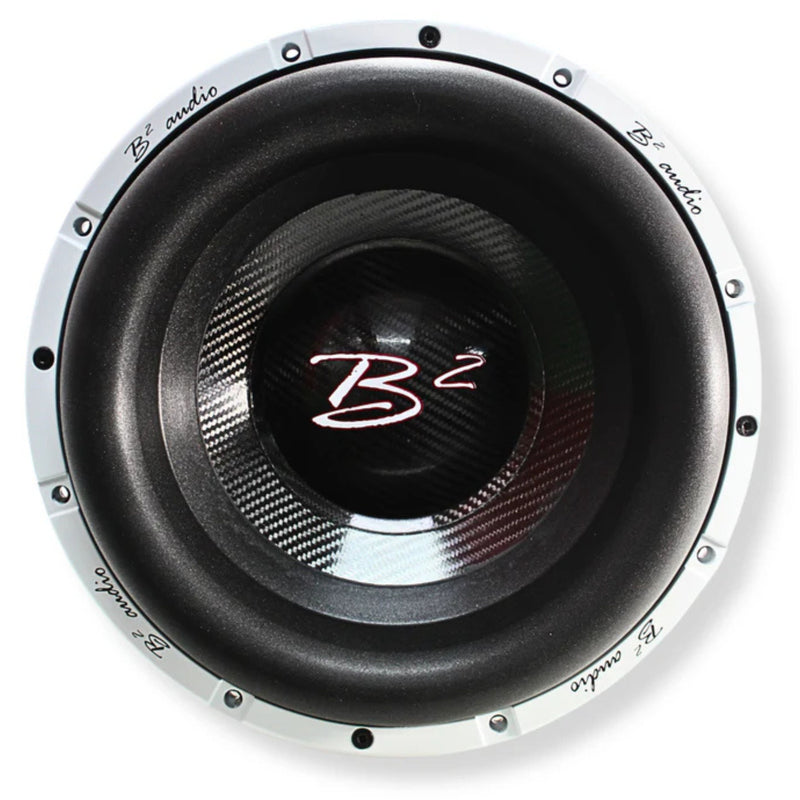

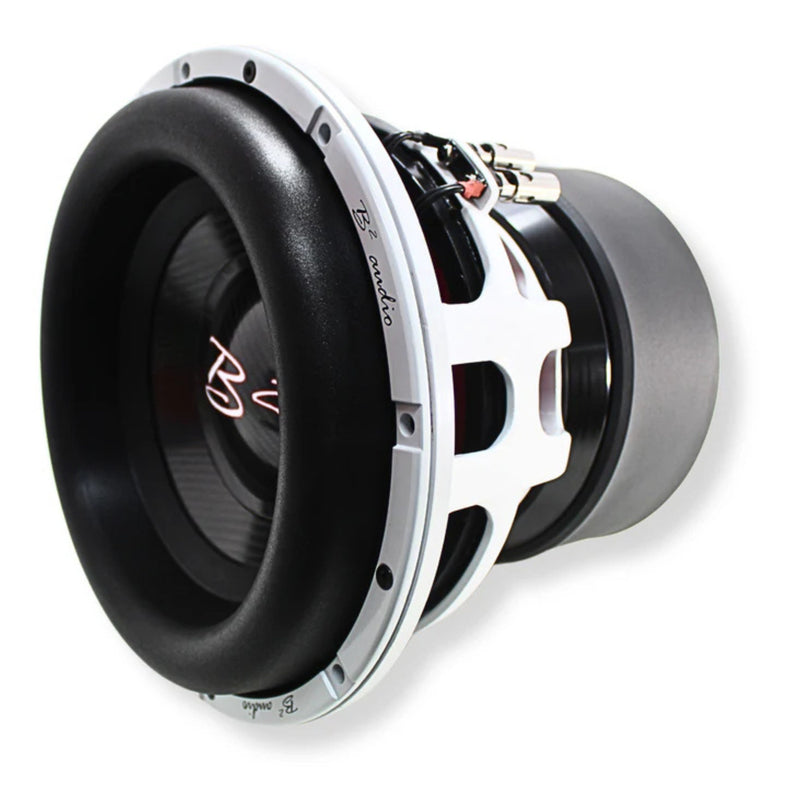

• (1) B2-RAGEXL-12-D2-V2 3500 Watt RMS Subwoofer


• (1) GP-S12ELITEXXL-B2 Tru Spec Enlclosure

Please note that these items will ship separately.

Experience unmatched bass performance with the Tru Spec Elite 12" XXL Subwoofer Enclosure paired with the B2 Audio RAGEXL 12" Subwoofer. This powerhouse combo is designed to deliver deep, resonant lows and high-impact sound. The enclosure’s precision-engineered triple and quad baffle construction is perfectly tuned at 32 Hz for optimal performance, while the B2 Audio RAGEXL subwoofer boasts an incredible 3500W RMS power handling. Together, they offer uncompromising durability and earth-shaking bass, making this the ultimate choice for serious car audio enthusiasts looking to elevate their sound system.

Subwoofer Specifications:

• RMS Power Handling: 3500 Watts


• Peak Dynamic Power: 10,000 Watts

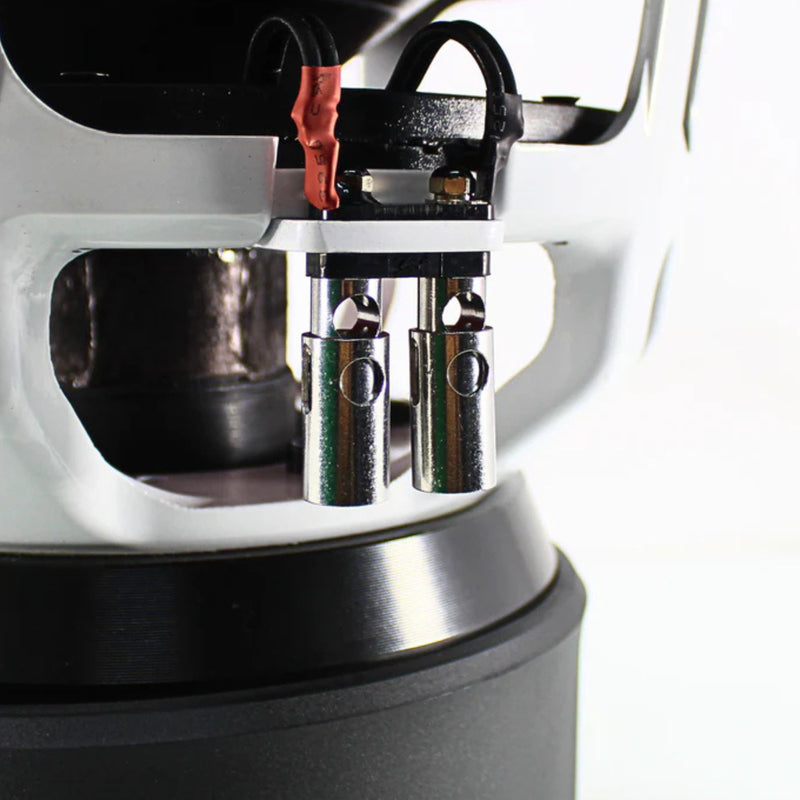

• Push Terminal Wire Gauge: 4 Ga


• Nominal Impedance: Dual 2 Ohm


• Voice Coil Diameter: 3"


• Frequency Response: 10 Hz ~ 500 Hz


• Sensitivity: 88.6 dB


• Magnet Weight: 880 Oz


• Displacement Volume: 8.9 L / .314 cu ft

Thiele & Small Parameters

• Free Air Resonance (Fs): 28 Hz


• Resistance (Re): 2 Ohm


• Mechanical Factor (Qms): 5.38


• Electrical Factor (Qes): 0.54


• Total Factor (Qts): 0.49


• Equivalent Volume (Vas): 23.7 L


• Compliance (Cms): 80 um/N


• BL Factor (BL): 131.5 BL^2/RE


• Moving Mass (Mms): 403.9 g


• Excursion Max (Xmax): 23 mm

Measurements:

• Overall Diameter: 12.25" / 311 mm


• Mounting Diameter: 11.10 / 282 mm


• Bolt Pattern Diameter: 11.57" / 294 mm


• Overall Depth: 12.12" / 308 mm


• Mounting Depth: 10.12" / 257 mm

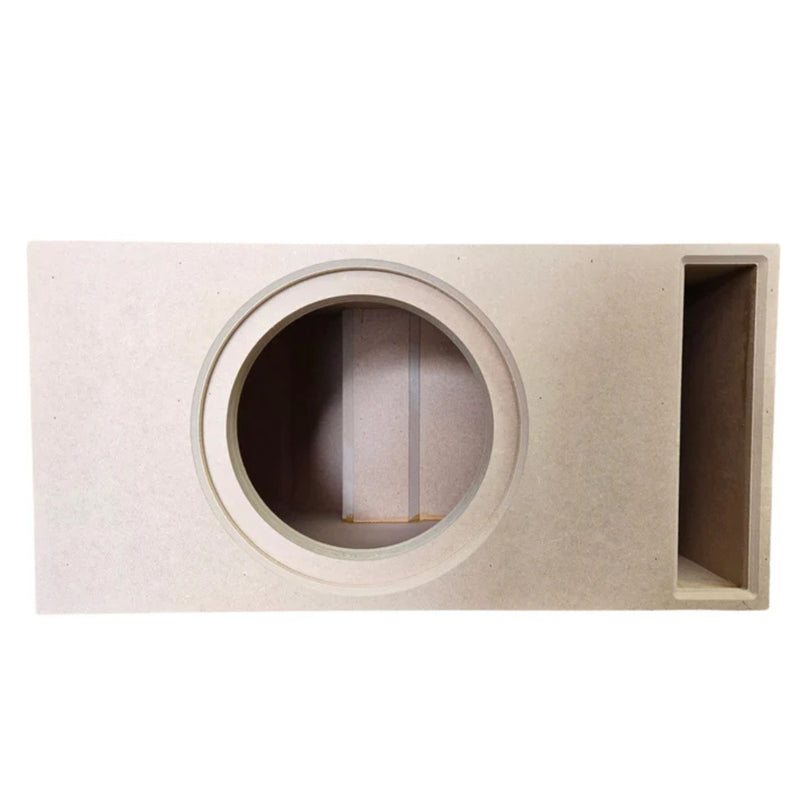

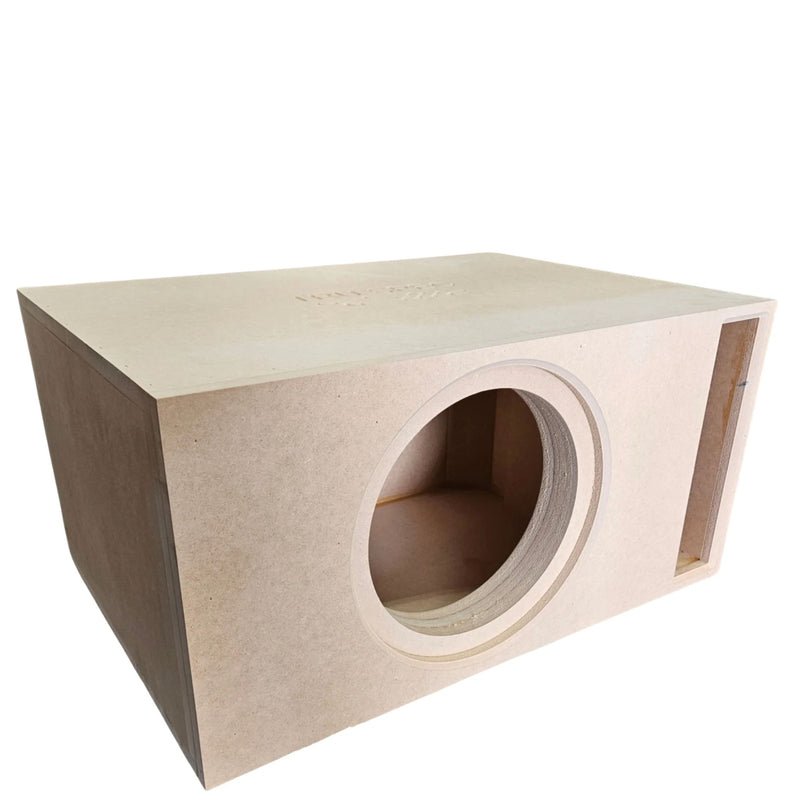

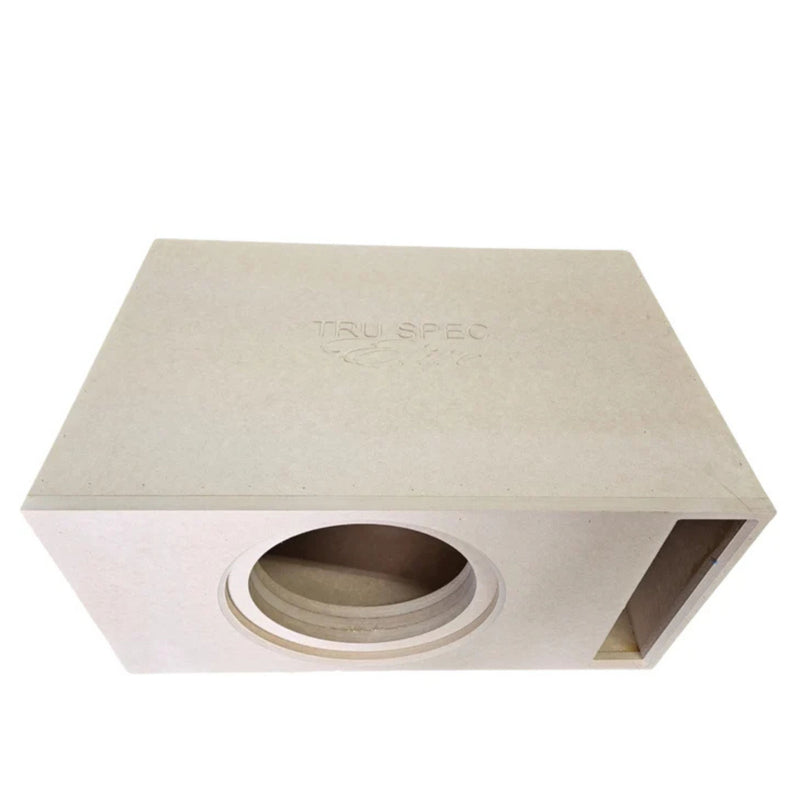

Enclosure Specifications:

• Material: MDF


• Cutout: 11.20"


• Box External Dimensions


• Width x Height x Depth (30.00" x 15.00" x 21.21")


• Material Thickness: 0.75"


• Net Internal Volume: 2.50 ft3


• Tuning Frequency: 32 Hz


• Port Area: 40.00 inch2
